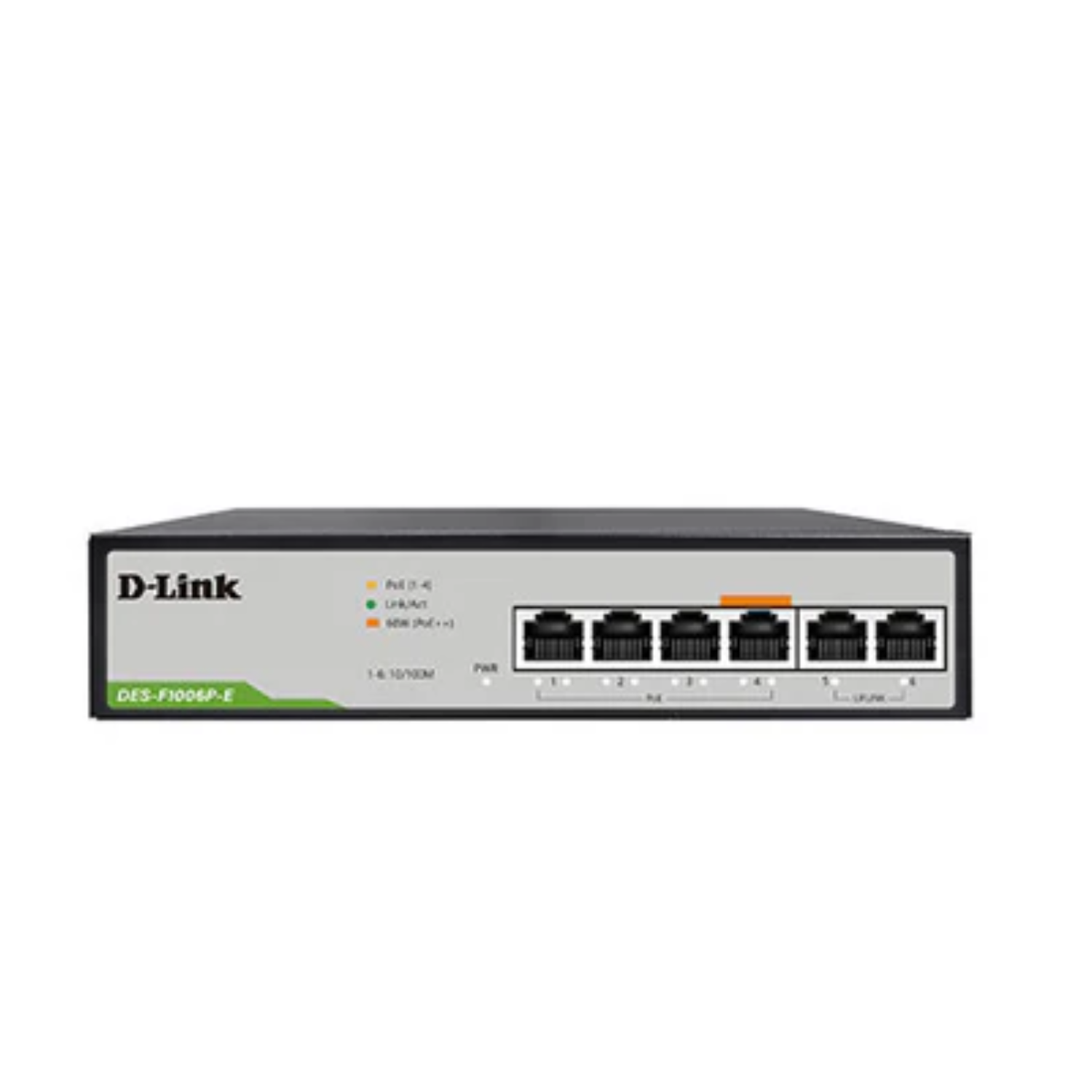

D-Link DES-F1006P-E 250M PoE Switch front

D-Link DES-F1006P-E 6-Port 10/100 250m PoE Switch

Name: D-Link DES-F1006P-E 6-Port 10/100 250m PoE Switch
Brand: DLINK
SKU: DES-F1006P-E
Price: 59.8 SGD
Availability: InStock

SKU: DES-F1006P-E Brand: DLINK

~~S$74.52~~ Save 19%

Prices in SGD, excluding 9% GST.

Why buy from SourceIT

Authorised resellerGenuine stock with full manufacturer warranty.

Local supportSingapore-based warranty and technical assistance.

Procurement readyGeBIZ, Vendors@Gov, SAP Ariba, InvoiceNow and PEPPOL.

Bulk & export ordersVolume pricing and international delivery on request.

PRODUCT DESCRIPTION

D-Link DES-F1006P-E 6-Port Fast Ethernet 250m PoE Surveillance Switch, 4x PoE 60W (DES-F1006P-E) - 3 Years Local Warranty

Power Four Cameras over One Cable Each

The D-Link DES-F1006P-E provides four 10/100 Mbps PoE ports (IEEE 802.3af/at) sharing a 60W PoE budget, plus two 10/100 Mbps uplink ports, to run IP cameras, access points and VoIP phones without separate power outlets.

Reach up to 250 m

Extend mode stretches data and PoE on ports 1-4 up to 250 metres over Cat5e or Cat6 cable, ideal for car parks, perimeters and warehouses.

Simple DIP-Switch Control

DIP-switch modes add port isolation (VLAN) to suppress broadcast storms, QoS prioritisation, and a PoE watchdog that detects a hung powered device and power-cycles it.

Plug-and-Play and Protected

Fanless, plug-and-play design with auto MDI/MDIX, flow control and 6KV lightning protection, powered by an external 52V adapter.

Need help choosing? Email sales@sourceit.com.sg with your camera count, cable runs and power needs and we will recommend the right PoE switch.

D-Link DES-F1006P-E Datasheet — Technical Specifications

General

Product Name	D-Link DES-F1006P-E 250M 6-Port 10/100 PoE Switch
Part Number	DES-F1006P-E
Series	D-Link 250M PoE Fast Ethernet Switches
Local Warranty (Singapore)	3 years, supplied by SourceIT with a GST invoice

Ports & PoE

PoE Ports	4 x 10/100 Mbps PoE RJ-45 (ports 1-4)
Uplink Ports	2 x 10/100 Mbps RJ-45 (ports 5-6)
PoE Standard	IEEE 802.3af/at
PoE Budget	60W
Extend Mode	Ports 1-4, up to 250 m (Cat5e or Cat6 cable)

Performance & Standards

Switching Capacity	1.2 Gbps
Forwarding Rate	10M: 14,800 pps; 100M: 148,800 pps
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3af/at, ANSI/IEEE 802.3 NWay auto-negotiation
Other	Flow control, auto MDI/MDIX

DIP-Switch Modes

Extend	Ports 1-4 support 250 m long-distance data and power
VLAN	Isolates ports 1-4 from each other to suppress network storms
QoS	Application prioritisation
PoE	Detects the powered device, finds a dead device, powers it off and restarts it

Physical & Environmental

Dimensions	125 x 75 x 27 mm
Weight	0.75 kg
Power Supply	External adapter, 100-240V 50/60Hz input, 52V 1.15A output
Cooling	Fanless
LEDs	Power, LINK/ACT, PoE
Lightning Protection	6KV
Operating Temperature	0 to 40 °C
Operating Humidity	10% to 90% (non-condensing)

Compatibility & Software Support

Management

Unmanaged, plug-and-play; behaviour is set with the DIP switch (Extend, VLAN, QoS, PoE). No software or licence required.

Compatible Devices

IEEE 802.3af/at powered devices such as IP cameras, wireless access points and VoIP phones; any standard Ethernet NVR, router or switch on the uplinks.

Package Contents & 250M PoE Switch Ordering Information

Package Contents

Not published by D-Link for this model; the datasheet specifies an external 52V power adapter. Email sales@sourceit.com.sg to confirm box contents before ordering.

D-Link 250M PoE Switch Models

Model	PoE Ports	Uplinks	PoE Budget	Part No.
DES-F1006P-E (this listing)	4 x 10/100	2 x 10/100	60W	DES-F1006P-E
DES-F1010P-E	8 x 10/100	2 x 10/100	96W	DES-F1010P-E
DES-F1018P-E	16 x 10/100	1 x GE + 1 x combo GE/SFP	150W	DES-F1018P-E
DES-F1026P-E	24 x 10/100	1 x GE + 1 x combo GE/SFP	250W	DES-F1026P-E

Datasheet & Downloads

D-Link datasheet	DES-F1006P-E Datasheet (PDF)
D-Link product page	DES-F1006P-E on dlink.com

Need a PDF sent directly? Email sales@sourceit.com.sg quoting DES-F1006P-E.

Frequently Asked Questions — D-Link DES-F1006P-E

Are the uplink ports Gigabit?

No. Per D-Link, both uplink ports (5-6) are 10/100 Mbps.

How far can I run PoE?

Up to 250 m on ports 1-4 with Extend mode on, using Cat5e or Cat6 cable.

What is the total PoE budget?

60W shared across the four PoE ports (IEEE 802.3af/at).

Does it need configuration?

No. It is plug-and-play; optional features are set with the DIP switch.

What warranty do I get?

3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
