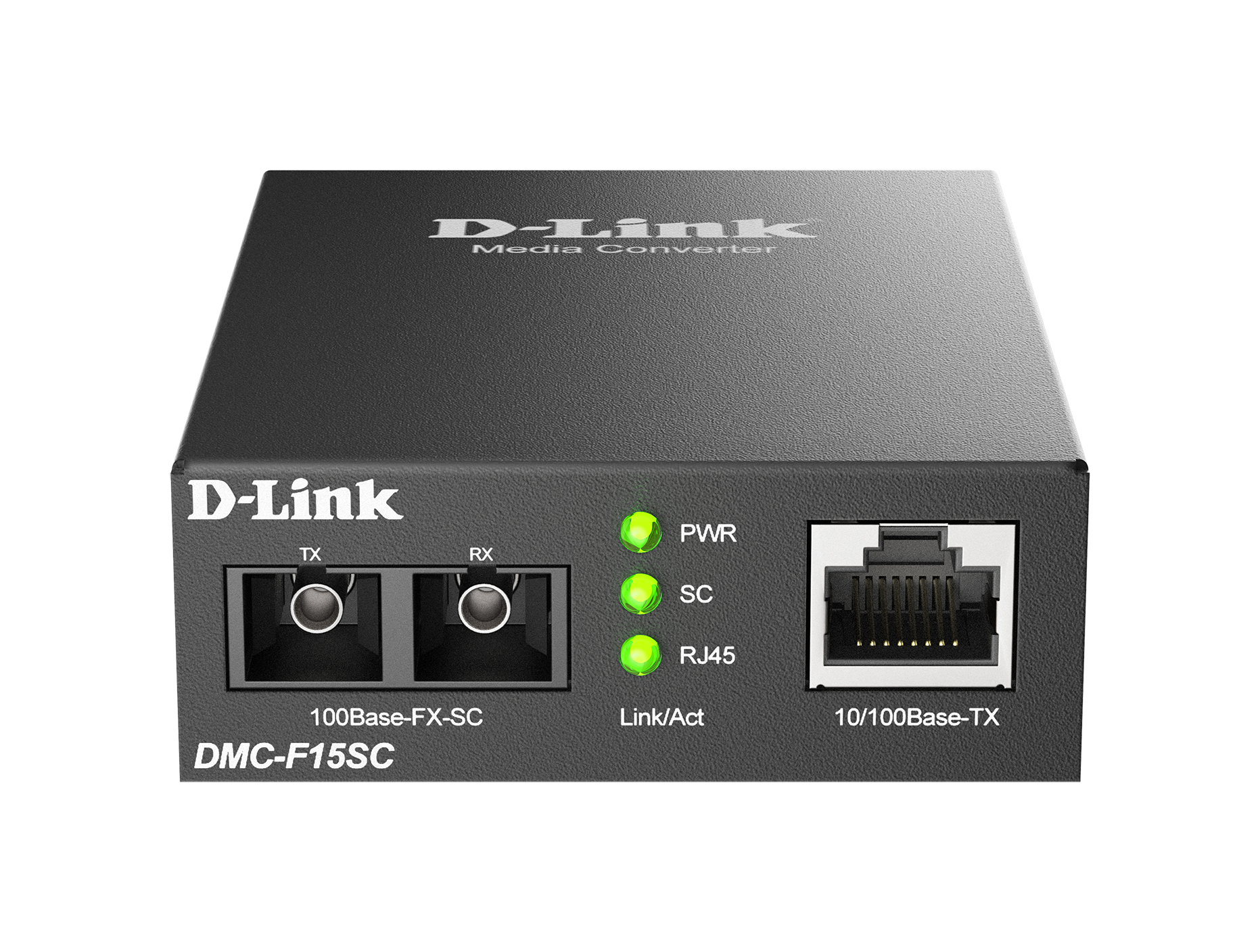

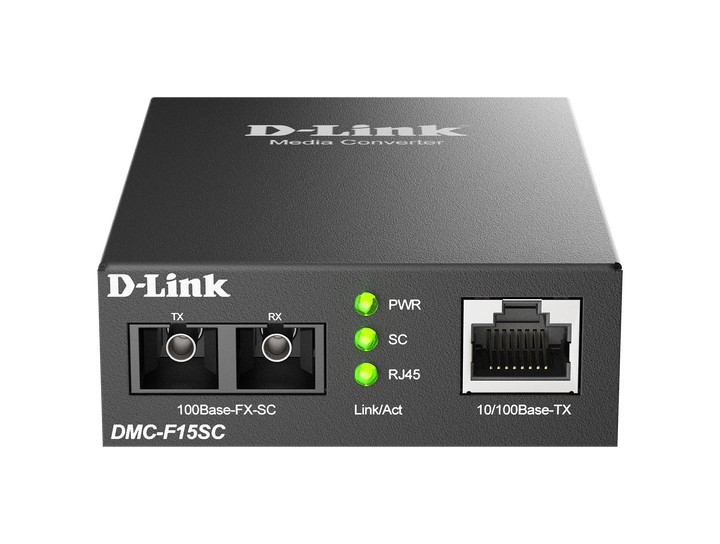

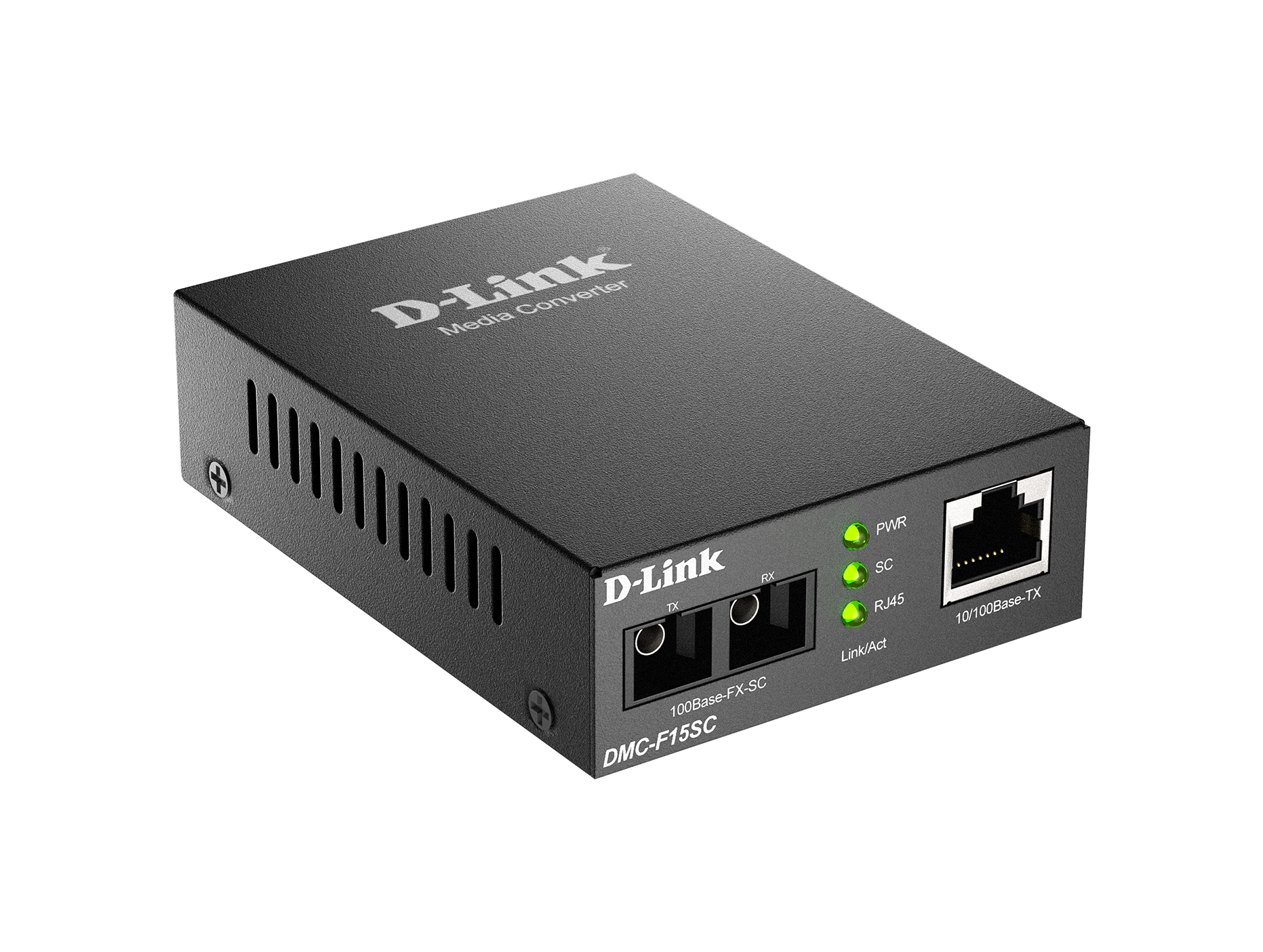

D-Link DMC-F15SC/E Fast Ethernet to 100BASE-FX Single-Mode SC Media Converter (15 km)
PRODUCT DESCRIPTION
D-Link DMC-F15SC/E 10/100BASE-TX to 100BASE-FX (SC) Single-Mode Media Converter, 15 km (DMC-F15SC/E) - 5 Years Local Warranty
Fast Ethernet Copper to Single-Mode Fibre up to 15 km
The D-Link DMC-F15SC converts 10/100BASE-TX copper to 100BASE-FX single-mode fibre with an SC connector, to IEEE 802.3 and 802.3u, for links of up to 15 km.
Compact and Low Power
The desktop unit measures 70.5 x 93.5 x 26 mm, weighs 134 g and draws a maximum of 1.5 W from a 5 V DC adapter.
Simple Deployment
Auto MDI/MDIX on the copper port removes the need for crossover cables, and separate Link/Act LEDs for the fibre and copper ports make troubleshooting quick.
Need help choosing? Email sales@sourceit.com.sg with your fibre type and link distance and we will confirm the right converter.
D-Link DMC-F15SC/E Datasheet — Technical Specifications
General
| Product Name | D-Link DMC-F15SC 10/100BASE-TX to 100BASE-FX SC Single-Mode Media Converter (15 km) |
| Part Number | DMC-F15SC/E |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces & Standards
| Copper Port | 1 x 10/100BASE-TX RJ-45, Auto MDI/MDIX |
| Fibre Port | 1 x 100BASE-FX SC (duplex), single-mode |
| Standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3u 100BASE-FX |
| Fibre Distance | Up to 15 km |
| LEDs | PWR, Link/Act (SC), Link/Act (RJ-45) |
Power
| Power Adapter | 5 V DC, 0.55 A |
| Max. Power Consumption | 1.5 W |
Physical & Environmental
| Dimensions | 70.5 x 93.5 x 26 mm |
| Weight | 134 g |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -25 to 70 °C |
| Humidity | 20% to 80% non-condensing |
Certifications
| Safety | LVD |
| EMI / EMC | CE Class B |
Specifications from D-Link's DMC-F15SC datasheet (hardware revision B1, v1.00) and dlink.com product pages. D-Link does not publish a wavelength, optical power budget or MTBF for this model.
Compatibility & Software Support
Fibre
Single-mode fibre with SC connectors (100BASE-FX). The far end needs a matching 100BASE-FX single-mode device, such as a second DMC-F15SC. D-Link does not publish the wavelength, so confirm compatibility with us before pairing it with a third-party device.
Management
Standalone, unmanaged desktop converter; no software required. D-Link does not list chassis compatibility for the DMC-F series.
Package Contents & DMC-F Media Converter Ordering Information
DMC-F Fast Ethernet Converter Ordering Information
| Model | Description | Part No. |
| DMC-F15SC/E (this listing) | 10/100BASE-TX to 100BASE-FX, single-mode SC, up to 15 km | DMC-F15SC/E |
| DMC-F02SC/E | 10/100BASE-TX to 100BASE-FX, multi-mode SC, up to 2 km | DMC-F02SC/E |
D-Link's product page lists the AC power adapter as included.
Datasheet & Downloads
| D-Link datasheet | DMC-F15SC Datasheet (PDF) |
| D-Link product page | DMC-F15SC on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DMC-F15SC/E.
Frequently Asked Questions — D-Link DMC-F15SC/E
How far can it reach?
Up to 15 km over single-mode fibre, per D-Link's datasheet. For short multi-mode links up to 2 km, see the DMC-F02SC.
Is it Gigabit?
No. It is a Fast Ethernet (10/100 Mbps copper, 100 Mbps fibre) converter.
Is the power adapter included?
Yes, per D-Link's product page. It runs from a 5 V DC, 0.55 A adapter.
Do I need a pair?
Yes, the far end needs a matching 100BASE-FX single-mode device, such as a second DMC-F15SC.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
