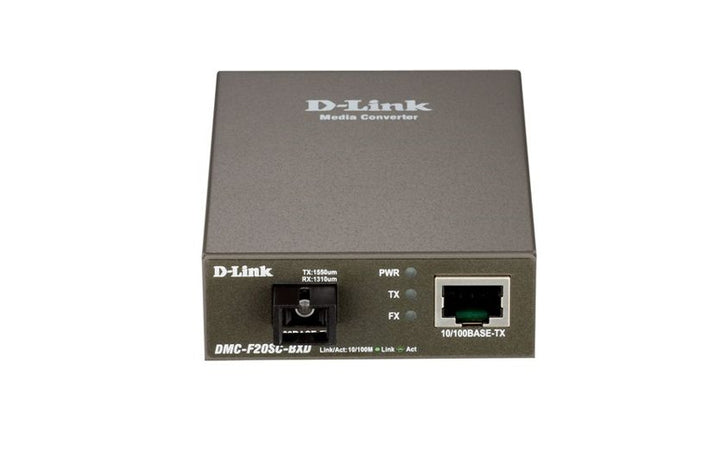

D-Link 100Base-TX to 100Base-FX (LC) Single-mode Media Converter (20km) (DMC-F20SC-BXU/E)
D-Link 100Base-TX to 100Base-FX (LC) Single-mode Media Converter (20km) (DMC-F20SC-BXU/E) - Lifetime Warranty

D-Link 100Base-TX to 100Base-FX Single-Mode Media Converter for Long-Distance Fiber Connectivity
The D-Link 100Base-TX to 100Base-FX (LC) Single-mode Media Converter (DMC-F20SC-BXU/E) offers a robust solution for businesses looking to extend their Ethernet network with fiber-optic technology. This converter seamlessly transforms 100Base-TX Ethernet signals from copper cables to 100Base-FX fiber signals, using single-mode LC fiber connectors. With support for distances up to 20 kilometers, it is ideal for long-distance networking applications, such as connecting remote offices, data centers, or expansive campuses, all while maintaining reliable and high-speed data transmission.
Efficient 100Base-TX to 100Base-FX Conversion for Optimized Networking
The D-Link DMC-F20SC-BXU/E provides a simple yet effective way to bridge the gap between copper and fiber-based networks. By converting 100Base-TX Ethernet signals to 100Base-FX single-mode fiber, it allows businesses to harness the benefits of fiber-optic technology, such as improved security, higher bandwidth, and longer-distance communication. With its LC fiber connector, the DMC-F20SC-BXU/E offers a stable and efficient connection, making it an excellent choice for expanding network reach while maintaining top-tier performance.
Single-Mode Fiber for Extended Distance Networking
Designed to use single-mode fiber, the DMC-F20SC-BXU/E supports connections over long distances up to 20 kilometers. Single-mode fiber is particularly well-suited for long-range transmission due to its ability to minimize signal loss and maintain high-quality data transfer. This feature makes the DMC-F20SC-BXU/E perfect for enterprise environments where networks need to span across large areas, whether it's connecting remote office locations, building-to-building links, or extending data center infrastructure over significant distances.
High-Speed Networking for Bandwidth-Intensive Applications
The D-Link DMC-F20SC-BXU/E operates at 100Mbps, making it ideal for bandwidth-intensive applications such as video conferencing, cloud computing, and large data transfers. By using fiber-optic technology, businesses can ensure consistent performance even for data-heavy tasks, reducing latency and improving overall network efficiency. Whether you're connecting different departments within a corporate office or linking distant data centers, the DMC-F20SC-BXU/E guarantees reliable, high-speed connectivity for modern network demands.
Why Choose the D-Link DMC-F20SC-BXU/E Media Converter?
The D-Link DMC-F20SC-BXU/E provides an effective and cost-efficient way to integrate fiber-optic technology into your network while extending your reach over long distances. With its ability to convert 100Base-TX Ethernet to 100Base-FX single-mode fiber with a range of up to 20 kilometers, it’s an excellent choice for businesses looking to expand their network without sacrificing performance or reliability. Ideal for enterprise-level networking, the DMC-F20SC-BXU/E offers a flexible solution for businesses that require high-speed, long-distance connectivity.
Technical Specifications
- Ethernet Ports: 1 x 100Base-TX RJ-45
- Fiber Type: Single-mode LC
- Distance: Up to 20 km
- LED Indicators: Power, Link, Activity
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Power Supply: External Power Adapter (5V DC)
- Dimensions: 95 x 70 x 25 mm (L x W x H)
- GTIN: 0790069263931
Detailed Specifications
D-Link’s Standalone Media Converters turn an Ethernet connection into fiber, allowing for ultra-fast long distance connections. Installation of a Standalone Media Converter is simple, and allows you to tap into fiber speeds with ease. Instead of requiring an investment in an entire chassis, the standalone series is able to provide the same high-quality conversion on a unit-by-unit basis. The standalone nature of these means that you can use save space and cut costs while still extending your network over long distances up to 60 km on a fiber-optic line. In addition to all models supporting 10/100 Mbps Half/Full-duplex, the DMC-G01LC also allows for 1000 Mbps Full-Duplexing, letting you truly maximize your network’s potential.
