Cisco Catalyst 9200L 24-Port Gigabit PoE+ 370W, 4x 10G SFP+ Managed Switch, Network Essentials
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

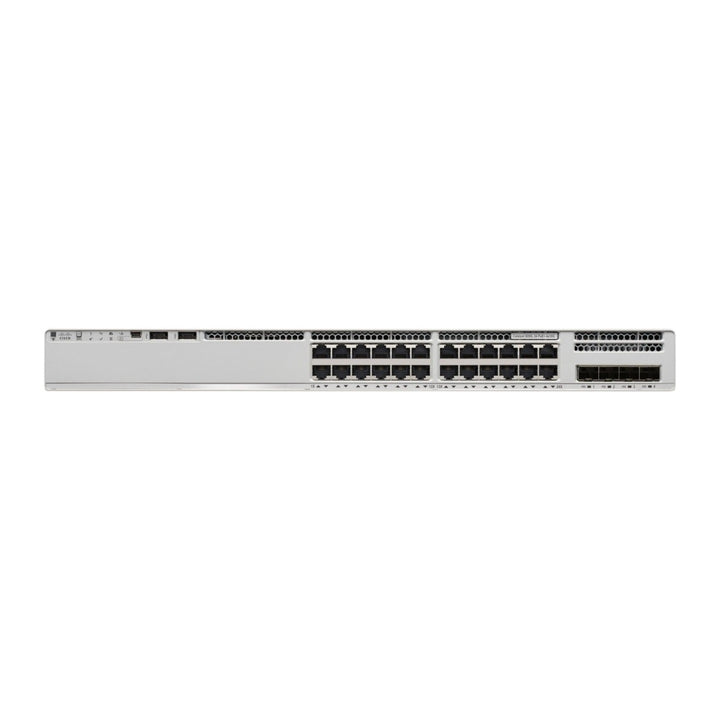

Cisco Catalyst 9200L 24-port PoE+ 4x10G, Network Essentials (C9200L-24P-4X-E) — Enhanced Limited Lifetime Warranty
24 PoE+ Access Ports with 10G Uplinks
The Cisco Catalyst 9200L C9200L-24P-4X-E is a fixed-configuration, stackable access switch with 24 10/100/1000 ports, all capable of full IEEE 802.3at PoE+ (up to 30W per port), and four fixed 1/10 Gigabit SFP+ uplinks. It runs Cisco IOS XE, the same operating system used across the Catalyst 9000 family, and ships with the perpetual Network Essentials licence (the "-E" in the part number).
370W PoE Budget, Expandable to 740W
The switch ships with a single PWR-C5-600WAC AC power supply, giving an available PoE budget of 370W. Adding a second PWR-C5-600WAC raises the available PoE budget to 740W. Cisco lists Perpetual PoE and Fast PoE for the Catalyst 9200 family: Perpetual PoE keeps power flowing to phones, cameras and access points while the switch reloads, and Fast PoE restores power after a power cycle without waiting for the operating system to finish booting.
StackWise-80 Stacking
Up to eight C9200L switches can be stacked with Cisco StackWise-80 for 80 Gbps of stack bandwidth and a single management plane. Stacking requires the optional C9200L-STACK-KIT and uses STACK-T4 stacking cables. Cisco notes that C9200L models cannot be mixed in a stack with modular C9200 models.
UADP 2.0 Mini Switching Performance
Built on the Cisco UADP 2.0 Mini ASIC with an integrated CPU, the C9200L-24P-4X delivers 128 Gbps of switching capacity and a 95.23 Mpps forwarding rate, with 2 GB DRAM, 4 GB flash, 16,000 MAC addresses and up to 11,000 IPv4 routes.
Network Essentials Licence
Network Essentials provides foundational Layer 2 and Layer 3 switching, automation, visibility and security capabilities. The Network licence is perpetual and is included with the hardware according to the part-number suffix. Cisco's ordering guide states that a Cisco DNA or Cisco Catalyst software subscription term licence (3, 5 or 7 years) is also mandatory at the time of purchase and must match the hardware tier, so an -E switch is paired with an Essentials subscription.
Managed On-Premises or from the Cloud
The C9200L can be managed on-premises with Cisco Catalyst Center (formerly Cisco DNA Center) or the IOS XE command line, and Cisco states that all Catalyst 9200L models are available for out-of-box cloud management with the Meraki dashboard.
Cisco Catalyst 9200L C9200L-24P-4X Datasheet — Technical Specifications
Ports
| Downlink ports | 24 x 10/100/1000 Ethernet, full PoE+ |
| Uplink ports | 4 x 1/10G SFP+ (fixed) |
| Management port | Ethernet management port (RJ-45) |
| Console | RJ-45 or mini USB |
Power
| Default power supply | PWR-C5-600WAC (AC) |
| PoE standard | IEEE 802.3at PoE+, up to 30W per port |
| Available PoE power (primary PSU) | 370W |
| Available PoE power (with second PSU) | 740W |
| Secondary / alternative PSU | PWR-C5-600WAC; PWR-C5-715WDC DC (spare only) |
| Perpetual PoE / Fast PoE | Yes |
Performance & Scale
| Switching capacity | 128 Gbps |
| Forwarding rate | 95.23 Mpps |
| ASIC | Cisco UADP 2.0 Mini with integrated CPU |
| DRAM / flash | 2 GB / 4 GB |
| MAC addresses | 16,000 |
| IPv4 routes | 11,000 (8,000 direct + 3,000 indirect) |
Stacking
| Technology | Cisco StackWise-80 |
| Stack bandwidth | 80 Gbps |
| Maximum stack members | 8 |
| Stack kit | C9200L-STACK-KIT (optional) |
| Mixed stacking | Not supported with modular C9200 models |
Physical
| Dimensions (H x W x D) | 4.4 x 44.5 x 28.8 cm (1.73 x 17.5 x 11.3 in.) |
| Weight | 4.71 kg (10.38 lb) |
| Form factor | 1RU, rack-mountable |
| Fans | Fixed, redundant |
| Acoustic noise (LpA) | 42 dB typical, 45 dB maximum |
| MTBF | 390,310 hours |
Software & Licensing
| Operating system | Cisco IOS XE |
| Included licence | Network Essentials (perpetual) |
| Required subscription | Cisco DNA or Cisco Catalyst Essentials term licence (3, 5 or 7 years), ordered with the hardware |
| Management | Cisco Catalyst Center, Meraki dashboard, CLI |
Compatibility & Software Support
Licensing
The C9200L-24P-4X-E includes the perpetual Network Essentials licence. Cisco's Catalyst 9200 ordering guide states that both the Network licence and a Cisco DNA or Cisco Catalyst software subscription licence are mandatory at the time of purchase, and that the term licence must align with the hardware suffix: Essentials for this -E model. Terms of 3, 5 or 7 years are offered, and the subscription is a separate part number from the switch. When the term expires, Cisco states that the add-on licence can be renewed, or deactivated and the switch reloaded to continue operating with the base licence capabilities.
Management Platforms
Supported management options include Cisco Catalyst Center on-premises, the Meraki dashboard for cloud management, and the Cisco IOS XE CLI.
Stacking Compatibility
Stack only with other Catalyst 9200L (C9200L) switches using the C9200L-STACK-KIT and STACK-T4 cables. Cisco does not support mixing C9200L models with modular C9200 models in one stack.
Transceivers
The 1/10G SFP+ uplink ports accept Cisco 10G SFP+ and 1G SFP transceivers such as GLC-SX-MMD (multimode) and GLC-LH-SMD (single-mode). Confirm specific optics against the Cisco Optics Compatibility Matrix.
Warranty
Sold by SourceIT as a Singapore unit. Cisco states that the Catalyst 9200 Series is covered by the Cisco Enhanced Limited Lifetime hardware warranty in its data sheet. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Catalyst 9200L Ordering Information
In the Box
Cisco's ordering guide lists the switch, the default power supply (PWR-C5-600WAC), a power cable and standard 19-inch mounting brackets. The stacking kit (C9200L-STACK-KIT), a second power supply, SFP transceivers and the mandatory software subscription are separate part numbers.
Catalyst 9200L Family
| Model | Key difference |
| C9200L-24T-4G-E | 24 data-only ports, 4 x 1G SFP uplinks, PWR-C5-125WAC, Network Essentials |
| C9200L-24P-4G-E | 24 full PoE+ ports, 4 x 1G SFP uplinks, PWR-C5-600WAC, 370W PoE, Network Essentials |
| C9200L-48T-4G-E | 48 data-only ports, 4 x 1G SFP uplinks, PWR-C5-125WAC, Network Essentials |
| C9200L-48P-4G-E | 48 full PoE+ ports, 4 x 1G SFP uplinks, PWR-C5-1KWAC, 740W PoE, Network Essentials |
| C9200L-24P-4X-E (this listing) | 24 full PoE+ ports, 4 x 1/10G SFP+ uplinks, PWR-C5-600WAC, 370W PoE, Network Essentials |
| C9200L-24P-4X-A | 24 full PoE+ ports, 4 x 1/10G SFP+ uplinks, PWR-C5-600WAC, 370W PoE, Network Advantage |
| C9200L-48T-4X-E | 48 data-only ports, 4 x 1/10G SFP+ uplinks, PWR-C5-125WAC, Network Essentials |
| C9200L-48P-4X-E | 48 full PoE+ ports, 4 x 1/10G SFP+ uplinks, PWR-C5-1KWAC, 740W PoE, Network Essentials |
Related Accessories at SourceIT
| Item | Use |
| Cisco 50 cm Type 4 Stacking Cable (STACK-T4-50CM=) | StackWise-80 stacking cable for Catalyst 9200L |
| Cisco 1000BASE-SX SFP (GLC-SX-MMD) | 1G uplink over multimode fibre |
| Cisco 1000BASE-LX/LH SFP (GLC-LH-SMD=) | 1G uplink over single-mode fibre up to 10 km |
Datasheet & Downloads
| Document | Link |
| Cisco Catalyst 9200 Series Switches Data Sheet | cisco.com |
| Cisco Catalyst 9200 Series Switches Ordering Guide | cisco.com |
| Catalyst 9200 Series Hardware Installation Guide | cisco.com |
| Cisco Optics Compatibility Matrix | tmgmatrix.cisco.com |
Frequently Asked Questions — Cisco Catalyst 9200L C9200L-24P-4X-E
What is the PoE budget of the C9200L-24P-4X-E?
370W with the single PWR-C5-600WAC power supply that ships with the switch, or 740W with a second PWR-C5-600WAC installed. Each port supports IEEE 802.3at PoE+ at up to 30W.
Is a Cisco DNA subscription required?
Yes. Cisco's ordering guide states that a Cisco DNA or Cisco Catalyst software subscription term licence (3, 5 or 7 years) is mandatory at the time of purchase and must match the hardware tier: Essentials for this -E model. It is a separate part number. The Network Essentials licence itself is perpetual, and the switch keeps its base licence capabilities if the term is not renewed.
What is the difference between -E and -A models?
The -E models include Network Essentials (foundational Layer 2 and Layer 3 switching, automation, visibility and security). The -A models include Network Advantage, which adds advanced routing, segmentation, multicast, scale and security capabilities. The hardware is otherwise the same.
Can I stack the C9200L with a Catalyst 9200 (non-L) switch?
No. Cisco does not support mixed stacking between C9200L and modular C9200 models. C9200L switches stack with each other, up to eight members, using the optional C9200L-STACK-KIT and STACK-T4 cables.
Are the uplinks 1G or 10G?
This model has four fixed 1/10 Gigabit SFP+ uplinks. The ports also accept 1G SFP transceivers.
