Cisco 1000BASE-LX/LH SFP Transceiver, SMF 10km / MMF 550m, 1310nm, DOM
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

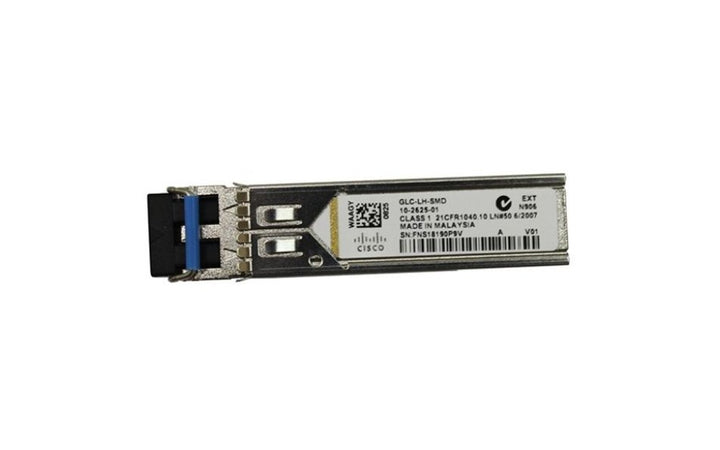

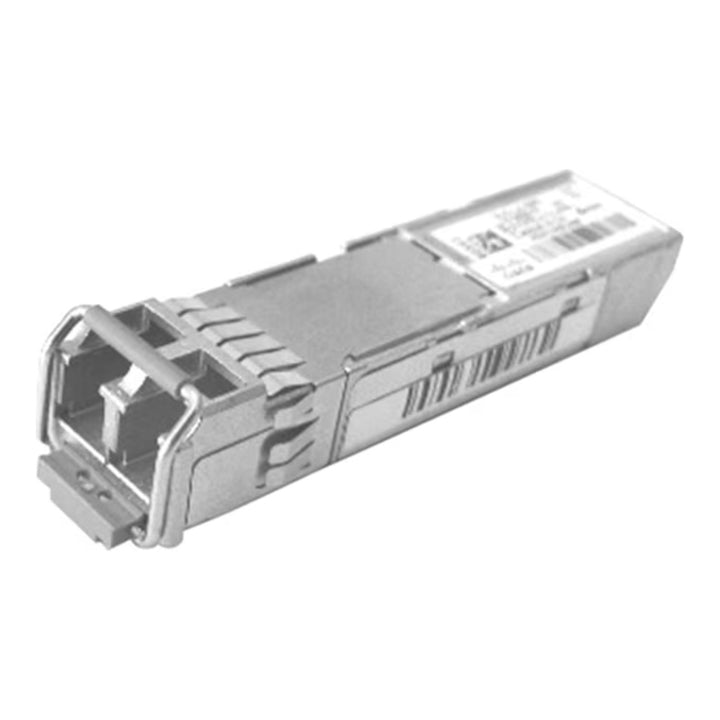

Cisco 1000BASE-LX/LH SFP transceiver module MMF/SMF, 1310nm, DOM (GLC-LH-SMD=) — Local Warranty
1000BASE-LX/LH Optic for Single-Mode and Multimode Fibre
The Cisco GLC-LH-SMD= is a 1000BASE-LX/LH long-wavelength SFP transceiver operating at 1310 nm. It carries Gigabit Ethernet up to 10 km over standard single-mode fibre, or up to 550 m over multimode fibre when used with an IEEE-specified mode-conditioning patch cord.
Digital Optical Monitoring
The "D" in GLC-LH-SMD indicates Digital Optical Monitoring (DOM) support. On supported Cisco platforms, DOM lets the switch report transceiver parameters such as transmit and receive optical power and temperature, which helps when troubleshooting a fibre link or checking margin.
Extended Temperature Range
Cisco rates the GLC-LH-SMD for the extended (EXT) operating temperature range of -5 to 85°C, suiting wiring closets and enclosures that run warmer than a data-centre environment.
Hot-Pluggable, IEEE 802.3z Compliant
SFP modules are hot-pluggable I/O devices that plug into SFP ports on Cisco switches and routers. The GLC-LH-SMD complies with IEEE 802.3z and uses a dual LC/PC connector.
Replacement for GLC-LH-SM
Cisco named the GLC-LH-SMD as the replacement when it ended sale of the earlier non-DOM GLC-LH-SM and the SFP-GE-L module (End-of-Sale 8 March 2013).
Cisco GLC-LH-SMD Datasheet — Technical Specifications
Optical
| Standard | IEEE 802.3z 1000BASE-LX/LH |
| Wavelength | 1310 nm |
| Transmit power | -9.5 to -3 dBm |
| Receive power | -20 to -3 dBm |
| Maximum channel insertion loss | 2.4 dB (MMF) / 6 dB (SMF) |
Cable Distances
| Single-mode fibre (G.652) | 10 km |
| MMF 62.5 µm, 500 MHz·km | 550 m (mode-conditioning patch cord required) |
| MMF 50 µm, 400 MHz·km | 550 m (mode-conditioning patch cord required) |
| MMF 50 µm, 500 MHz·km | 550 m (mode-conditioning patch cord required) |
Physical
| Form factor | SFP, hot-pluggable |
| Connector | Dual LC/PC |
| Dimensions (H x W x D) | 8.5 x 13.4 x 56.5 mm |
Environmental & Monitoring
| Operating temperature | -5 to 85°C (EXT) |
| Digital Optical Monitoring | Yes |
Compatibility & Software Support
Host Compatibility
The GLC-LH-SMD is supported across a wide range of Cisco switches, routers and modules with SFP ports. Support, including DOM reporting and the minimum software release, varies by platform, so confirm your host device in the Cisco Optics Compatibility Matrix.
Multimode Use
Cisco states that a mode-conditioning patch cord, as specified by the IEEE standard, is required when the 1000BASE-LX/LH module is used over multimode fibre. Without it, link reach and reliability on multimode fibre are not assured.
Interoperability
Each end of a link must use a 1000BASE-LX/LH-compatible optic at 1310 nm. It does not interoperate with 850 nm 1000BASE-SX optics such as the GLC-SX-MMD.
Lifecycle
The GLC-LH-SMD is itself the replacement product named in Cisco's End-of-Sale notice for the GLC-LH-SM and SFP-GE-L (End-of-Sale 8 March 2013; last date of support 31 March 2018).
Warranty
Local Singapore warranty. For warranty claims, keep your SourceIT invoice as proof of purchase.
Package Contents & Cisco 1000BASE SFP Family Ordering Information
What the Part Number Covers
GLC-LH-SMD= is a spare: one SFP transceiver module. Fibre patch cords and mode-conditioning patch cords are not included.
Cisco 1000BASE SFP Family
| Model | Key difference |
| GLC-SX-MMD | 1000BASE-SX, 850 nm, multimode up to 550 m (1 km on OM3/OM4), DOM |
| GLC-LH-SMD (this listing) | 1000BASE-LX/LH, 1310 nm, SMF 10 km / MMF 550 m, DOM |
| GLC-EX-SMD | 1000BASE-EX, 1310 nm, up to 40 km, DOM |
| GLC-ZX-SMD | 1000BASE-ZX, 1550 nm, up to 70 km, DOM |
| GLC-BX-D / GLC-BX-U | 1000BASE-BX single-strand bidirectional, 10 km |
| GLC-TE | 1000BASE-T copper, 100 m |
Cisco Switches at SourceIT with SFP Ports
| Item | SFP ports |
| Cisco Catalyst 9200L C9200L-48P-4G-E | 4 x 1G SFP uplinks |
| Cisco Business CBS350-24P-4G | 4 x 1G SFP uplinks |
| Cisco C9300-NM-8X= Network Module | 8 x SFP+ (1G or 10G) |
Datasheet & Downloads
| Document | Link |
| Cisco SFP Modules for Gigabit Ethernet Applications Data Sheet | www.cisco.com |
| Cisco SFP and SFP+ Transceiver Module Installation Notes | www.cisco.com |
| Cisco Optics Compatibility Matrix | tmgmatrix.cisco.com |
| End-of-Sale Announcement for GLC-LH-SM / GLC-SX-MM (replacement notice) | www.cisco.com |
Frequently Asked Questions — Cisco GLC-LH-SMD
How far does the GLC-LH-SMD reach?
Up to 10 km over single-mode fibre, or up to 550 m over multimode fibre with a mode-conditioning patch cord.
Do I need a mode-conditioning patch cord?
Only for multimode fibre. Cisco states one is required when the LX/LH module runs over MMF; it is not needed on single-mode fibre.
What is the difference between GLC-LH-SM and GLC-LH-SMD?
The GLC-LH-SMD adds Digital Optical Monitoring and is Cisco's named replacement for the discontinued GLC-LH-SM.
Can it link to a GLC-SX-MMD?
No. 1000BASE-SX runs at 850 nm and 1000BASE-LX/LH at 1310 nm; both ends must use the same optic type.
What operating temperature is it rated for?
Cisco rates it for the extended range, -5 to 85°C.
