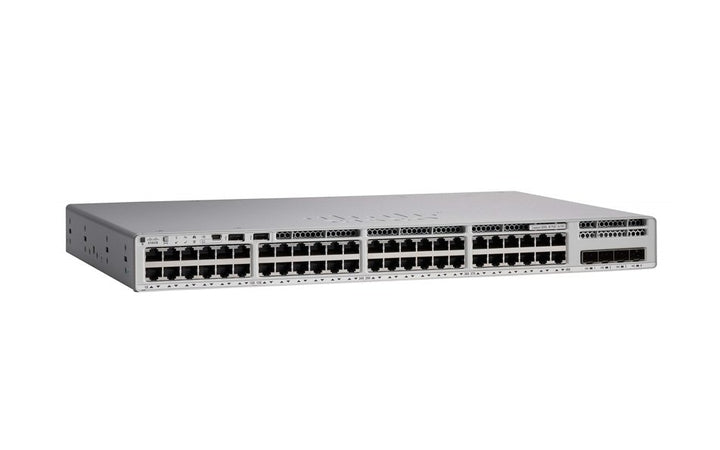

Cisco Catalyst 9200L 48-Port PoE+ 4x1G Switch, Network Essentials
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Catalyst 9200L 48-port PoE+, 4 x 1G, Network Essentials (C9200L-48P-4G-E) — Local Warranty
48 PoE+ Access Ports with Fixed 1G Uplinks
The Cisco Catalyst 9200L C9200L-48P-4G-E is a fixed-configuration, stackable access switch with 48 10/100/1000 ports, all capable of full IEEE 802.3at PoE+ (up to 30W per port), and four fixed 1 Gigabit SFP uplinks. It runs Cisco IOS XE, the same operating system used across the Catalyst 9000 family, and ships with the Network Essentials licence (the "-E" in the part number).
740W PoE Budget, Expandable to 1440W
The switch ships with a single PWR-C5-1KWAC 1000W AC power supply, giving an available PoE budget of 740W. Adding a second PWR-C5-1KWAC raises the available PoE budget to 1440W, which is enough to run all 48 ports at the full 30W PoE+ class. A DC supply, PWR-C5-715WDC, is also available as a spare from Cisco IOS XE 17.8.1. Cisco lists Perpetual PoE for the Catalyst 9200 family, which keeps PoE+ power flowing to phones, cameras and access points while the switch reloads.

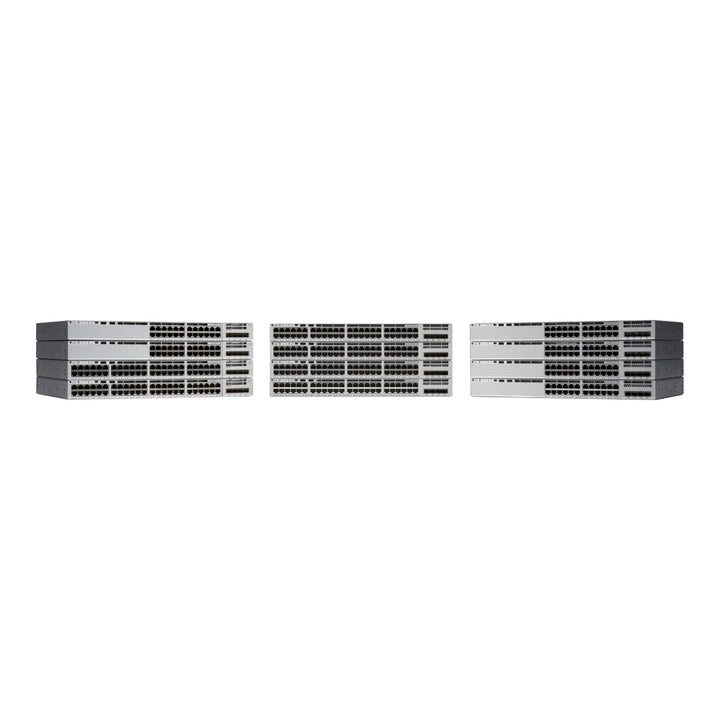

StackWise-80 Stacking
Up to eight C9200L switches can be stacked with Cisco StackWise-80 for 80 Gbps of stack bandwidth and a single management plane. Stacking requires the optional C9200L-STACK-KIT (two stack adapters plus a cable) and uses STACK-T4 stacking cables in 50 cm, 1 m or 3 m lengths. Cisco notes that C9200L models cannot be mixed in a stack with modular C9200 models, because the two use different stacking bandwidths.
UADP 2.0 Mini Switching Performance
Built on the Cisco UADP 2.0 Mini ASIC with an integrated CPU, the C9200L-48P-4G delivers 104 Gbps of switching capacity and a 77.38 Mpps forwarding rate, with 2 GB DRAM, 4 GB flash, 16,000 MAC addresses and up to 11,000 IPv4 routes. Jumbo frames up to 9198 bytes are supported.
Network Essentials Licence
Network Essentials provides foundational Layer 2 and Layer 3 switching, automation, visibility and security features. Cisco also offers Network Advantage (advanced routing, segmentation, multicast and scale) and add-on Cisco DNA / Cisco Networking Subscription term licences for Catalyst Center automation and assurance. Cisco states that base switch operation continues after an add-on term licence expires.
Managed On-Premises or from the Cloud
The C9200L can be managed on-premises with Cisco Catalyst Center (formerly Cisco DNA Center), through the IOS XE command line and model-driven programmability, or from the cloud: Cisco states that C9200L models support out-of-box cloud management with the Meraki dashboard. Trustworthy-system features including image signing, Secure Boot and the Cisco Trust Anchor module are built in.
Cisco Catalyst 9200L C9200L-48P-4G Datasheet — Technical Specifications
Ports
| Downlink ports | 48 x 10/100/1000 Ethernet, full PoE+ |
| Uplink ports | 4 x 1G SFP (fixed) |
| Management port | Ethernet management port (RJ-45) |
| Console | RJ-45 or mini USB |
Power & PoE
| PoE standard | IEEE 802.3at PoE+, up to 30W per port |
| Default power supply | PWR-C5-1KWAC (1000W AC) |
| Available PoE power (primary PSU) | 740W |
| Available PoE power (with second PSU) | 1440W |
| Secondary / alternative PSU | PWR-C5-1KWAC; PWR-C5-715WDC DC (spare only, Cisco IOS XE 17.8.1 or later) |
| Perpetual PoE | Yes (Catalyst 9200 family feature) |
Performance & Scale
| Switching capacity | 104 Gbps |
| Forwarding rate | 77.38 Mpps |
| ASIC | Cisco UADP 2.0 Mini with integrated CPU |
| DRAM | 2 GB |
| Flash | 4 GB |
| MAC addresses | 16,000 |
| VLAN IDs | 4094 |
| IPv4 routes | 11,000 (8,000 direct + 3,000 indirect) |
| ACL entries | 1,500 |
| QoS entries | 1,000 |
| Jumbo frame | 9198 bytes |
Stacking
| Technology | Cisco StackWise-80 |
| Stack bandwidth | 80 Gbps |
| Maximum stack members | 8 |
| Stack kit | C9200L-STACK-KIT (optional; two adapters + one cable) |
| Stack cables | STACK-T4-50CM, STACK-T4-1M, STACK-T4-3M |
| Mixed stacking | Not supported with modular C9200 models |
Physical
| Dimensions (H x W x D) | 4.4 x 44.5 x 28.8 cm (1.73 x 17.5 x 11.3 in.) |
| Weight | 4.80 kg (10.58 lb) |
| Form factor | 1RU, rack-mountable |
| Fans | Fixed, redundant (not field-replaceable) |
| Acoustic noise (LpA, AC PSU) | 42 dB typical, 45 dB maximum |
| MTBF | 347,760 hours |
Software & Licensing
| Operating system | Cisco IOS XE |
| Included licence | Network Essentials |
| Optional licences | Network Advantage; Cisco DNA / Cisco Networking Subscription Essentials or Advantage (term) |
| Management | Cisco Catalyst Center, Meraki dashboard, CLI, programmable interfaces |
Compatibility & Software Support
Licensing
The C9200L-48P-4G-E includes the Network Essentials licence. Network Advantage, and Cisco DNA / Cisco Networking Subscription term licences (Essentials or Advantage, offered in multi-year terms), are ordered separately where Catalyst Center automation, assurance or the advanced feature set is needed. Cisco states that base switch operation continues if an add-on term licence lapses.
Management Platforms
Supported management options include Cisco Catalyst Center (formerly Cisco DNA Center) on-premises, the Meraki dashboard for cloud management or monitoring, and the Cisco IOS XE CLI with model-driven programmability and streaming telemetry.
Stacking Compatibility
Stack only with other Catalyst 9200L (C9200L) switches using the C9200L-STACK-KIT and STACK-T4 cables. Cisco does not support mixing C9200L fixed-uplink models with modular C9200 models in one stack. Within the C9200L line, PoE, data and Multigigabit variants can be mixed.
Transceivers
The four uplink ports accept Cisco 1G SFP transceivers such as GLC-SX-MMD (multimode) and GLC-LH-SMD (single-mode). Confirm specific optics against the Cisco Optics Compatibility Matrix.
Lifecycle Status
As of October 2026, Cisco's Catalyst 9200 Series End-of-Life notice listing shows software-release and licence notices only, with no End-of-Sale announcement for the C9200L-48P-4G switch hardware.
Warranty
Local Singapore warranty. For warranty claims, keep your SourceIT invoice as proof of purchase.
Package Contents & Catalyst 9200L Family Ordering Information
In the Box
One Catalyst 9200L 48-port PoE+ switch with one PWR-C5-1KWAC power supply installed and the Network Essentials licence. The stacking kit (C9200L-STACK-KIT), second power supply and SFP transceivers are not included and are ordered separately.
Catalyst 9200L 48-Port Family
| Model | Key difference |
| C9200L-48P-4G-E (this listing) | 48 full PoE+ ports, 4 x 1G SFP uplinks, PWR-C5-1KWAC, 740W PoE |
| C9200L-48PL-4G-E | 48 partial PoE+ ports, 4 x 1G SFP uplinks, PWR-C5-600WAC, 370W PoE |
| C9200L-48T-4G-E | 48 data-only ports (no PoE), 4 x 1G SFP uplinks |
| C9200L-48P-4X-E | 48 full PoE+ ports with 4 x 10G SFP+ uplinks |
| C9200L-24P-4G-E | 24 full PoE+ ports, 4 x 1G SFP uplinks, PWR-C5-600WAC, 370W PoE |
Related Accessories at SourceIT
| Item | Use |
| Cisco 50 cm Type 4 Stacking Cable (STACK-T4-50CM=) | StackWise-80 / StackWise-160 stacking cable for Catalyst 9200 / 9200L |
| Cisco 1000BASE-SX SFP (GLC-SX-MMD) | 1G uplink over multimode fibre |
| Cisco 1000BASE-LX/LH SFP (GLC-LH-SMD=) | 1G uplink over single-mode fibre up to 10 km |
Datasheet & Downloads
| Document | Link |
| Cisco Catalyst 9200 Series Switches Data Sheet | www.cisco.com |
| Cisco StackWise Architecture on Catalyst 9200 Series (white paper) | www.cisco.com |
| Catalyst 9200 Series End-of-Life and End-of-Sale notices | www.cisco.com |
| Cisco Optics Compatibility Matrix | tmgmatrix.cisco.com |
Frequently Asked Questions — Cisco Catalyst 9200L C9200L-48P-4G-E
What is the PoE budget of the C9200L-48P-4G-E?
740W with the single PWR-C5-1KWAC power supply that ships with the switch, or 1440W with a second PWR-C5-1KWAC installed. Each port supports IEEE 802.3at PoE+ at up to 30W.
Can I stack the C9200L with a Catalyst 9200 (non-L) switch?
No. Cisco does not support mixed stacking between fixed-uplink C9200L models and modular C9200 models. C9200L switches stack with each other only, up to eight members, using the C9200L-STACK-KIT and STACK-T4 cables.
Is the stacking kit included?
No. The C9200L-STACK-KIT is optional and contains two stack adapters and one stacking cable. Additional STACK-T4 cables (50 cm, 1 m, 3 m) are available separately.
Are the uplinks 1G or 10G?
This model has four fixed 1 Gigabit SFP uplinks. If you need 10G uplinks, the C9200L-48P-4X-E variant has four 10G SFP+ uplinks.
Can it be managed from the Meraki dashboard?
Cisco states that C9200L models support out-of-box cloud management with the Meraki dashboard, in addition to on-premises management with Cisco Catalyst Center and the IOS XE CLI.
Are the fans or uplinks field-replaceable?
No. On the C9200L the fans are fixed and redundant, and the uplinks are fixed. The power supply bays accept field-replaceable PWR-C5 supplies.
