Cisco Business CBS350-24P-4G 24-Port PoE+ 195W Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

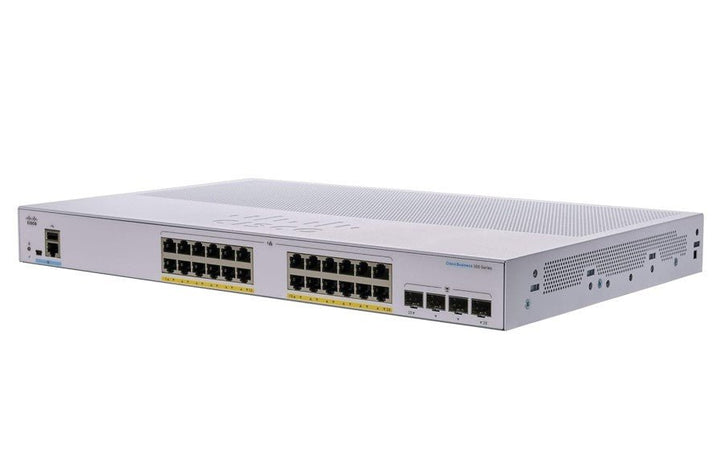

Cisco Business CBS350 24 Port PoE 195W Managed Switch (CBS350-24P-4G) — Local Warranty
24 PoE+ Gigabit Ports for Small Business Networks
The Cisco Business CBS350-24P-4G is a managed Layer 3 switch with 24 10/100/1000 ports, all supporting IEEE 802.3at PoE+, and four dedicated 1 Gigabit SFP uplink slots. It is designed for small and medium businesses that need to power IP phones, wireless access points and IP cameras from the switch while keeping full managed-switch features.
195W PoE Power Budget
The switch provides a 195W PoE budget shared across its 24 PoE+ ports. Cisco's datasheet lists system power consumption of about 34W without PoE load and about 237-240W with PoE load, from an internal 100-240V universal power supply.
Layer 3 Static Routing and RIP
Beyond VLANs and Layer 2 switching, the CBS350 supports Layer 3 inter-VLAN routing with up to 990 static routes, up to 128 IP interfaces and RIP v2, letting a small site route between user, voice and camera VLANs without a separate router.
Security and QoS
Security features include IEEE 802.1X port access authentication, DHCP snooping, IP Source Guard, DoS prevention and up to 1,024 ACL rules. Eight hardware queues per port support QoS for voice and video, and IPv6 is supported throughout.
Simple Management
The CBS350 can be managed through its web interface, CLI, SNMP v1/v2c/v3 or Cisco Business Dashboard. A USB Type-A slot is provided for file management, and up to four CBS350 switches can be stacked and managed as a single unit.
End-of-Sale Status
Cisco has announced End-of-Sale for the CBS350-24P-4G regional variants, with Cisco Catalyst 1300 (C1300-24P-4G) named as the replacement. Cisco support continues to 31 October 2029. Details are in the Compatibility accordion below.
Cisco Business CBS350-24P-4G Datasheet — Technical Specifications
Ports
| Downlink ports | 24 x 10/100/1000 Ethernet, PoE+ |
| Uplink ports | 4 x 1 Gigabit SFP (dedicated) |
| Console | Cisco standard RJ-45 console port |
| USB | USB Type-A slot for file management |
Power & PoE
| PoE standard | IEEE 802.3at PoE+ |
| PoE ports | 24 |
| PoE power budget | 195W |
| Power supply | Internal, 100-240V 50-60 Hz |
| System power consumption (no PoE) | 34.42W (110V) / 33.09W (220V) |
| System power consumption (with PoE) | 239.7W (110V) / 236.4W (220V) |
| Heat dissipation | 820.62 BTU/hr |
Performance
| Switching capacity | 56.0 Gbps |
| Forwarding rate | 41.66 Mpps |
| CPU | 800 MHz ARM |
| DRAM | 512 MB |
| Flash | 256 MB |
| Packet buffer | 1.5 MB |
| MAC table | 16K addresses |
| VLANs | Up to 4,094 active VLANs |
| Jumbo frames | Up to 9K bytes |
Layer 2 / Layer 3 Features
| Routing | Static routing (up to 990 routes), up to 128 IP interfaces, RIP v2 |
| Stacking | Up to 4 units (up to 200 ports) managed as one |
| QoS | 8 hardware queues |
| IPv6 | Supported |
| Energy Efficient Ethernet | IEEE 802.3az |
Security
| Access control | IEEE 802.1X port access authentication |
| Protection | DHCP snooping, IP Source Guard, DoS prevention |
| ACLs | Up to 1,024 rules |
Management
| Interfaces | Web browser, CLI, SNMP v1/v2c/v3 |
| Platform | Cisco Business Dashboard |
Physical & Environmental
| Dimensions (W x D x H) | 445 x 299 x 44 mm (17.5 x 11.77 x 1.73 in.) |
| Weight | 3.53 kg (7.78 lb) |
| Operating temperature | -5 to 50°C (23 to 122°F) |
| MTBF at 25°C | 698,220 hours |
Compatibility & Software Support
End-of-Sale and End-of-Life
Cisco has announced End-of-Sale and End-of-Life for the Cisco Business 350 Series (select models). The main notice covering the CBS350-24P-4G regional variants (-EU, -UK, -AU, -NA, -CN, -JP) gives these milestones:
| Milestone | Date |
| End-of-Life announcement | 30 April 2024 |
| End-of-Sale date | 29 October 2024 |
| Last ship date | 27 January 2025 |
| End of software maintenance releases | 29 October 2025 |
| End of vulnerability / security support | 29 October 2025 |
| Last date of support | 31 October 2029 |
Cisco names the Cisco Catalyst 1300 24-port GE, PoE, 4x1G SFP (C1300-24P-4G) as the migration product. Separate Cisco notices cover the -BR and -IN variants with different dates. Cisco issues no new firmware maintenance releases or security fixes for these models after 29 October 2025.
Software and Management
Managed through the built-in web interface, CLI, SNMP v1/v2c/v3 and Cisco Business Dashboard. Firmware release notes are published on Cisco's Business 350 Series support page.
Transceivers
The four SFP slots accept 1G SFP modules such as Cisco GLC-SX-MMD (multimode) and Cisco GLC-LH-SMD (single-mode). Confirm specific optics against Cisco's compatibility documentation for the CBS350.
Warranty
Local Singapore warranty. For warranty claims, keep your SourceIT invoice as proof of purchase.
Package Contents & Cisco Business 350 Family Ordering Information
In the Box
Per Cisco's datasheet: Cisco Business 350 Series Managed Switch, power cord, mounting kit and Quick Start Guide.

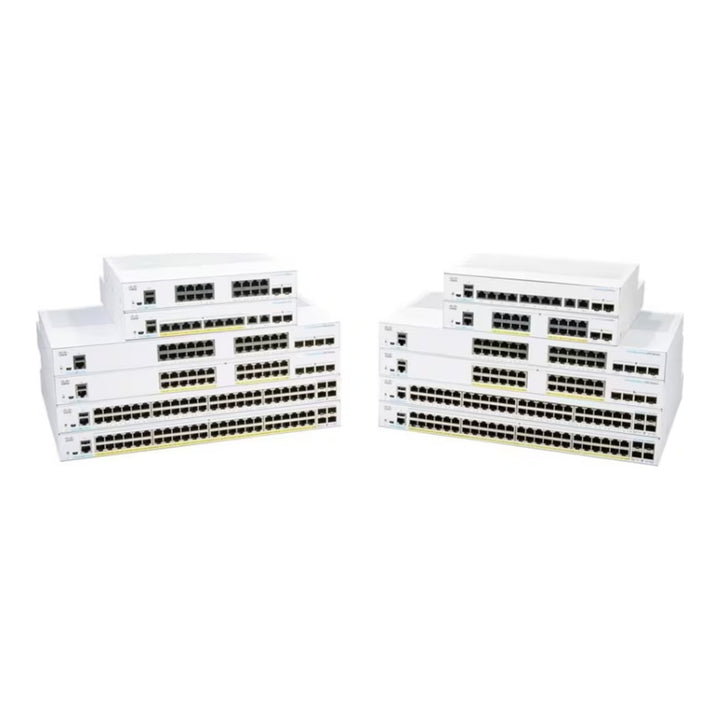

Cisco Business 350 24-Port Family
| Model | Key difference |
| CBS350-24P-4G (this listing) | 24 GE PoE+ ports, 195W PoE budget, 4 x 1G SFP |
| CBS350-24T-4G | 24 GE ports, no PoE, 4 x 1G SFP |
| CBS350-24FP-4G | 24 GE PoE+ ports, 370W PoE budget, 4 x 1G SFP |
| CBS350-24P-4X | 24 GE PoE+ ports, 195W PoE budget, 4 x 10G SFP+ uplinks |
| CBS350-24MGP-4X | Multigigabit 2.5G PoE ports, 375W PoE budget, 10G uplinks |
| C1300-24P-4G (Cisco-named replacement) | Catalyst 1300 24-port GE, PoE, 4 x 1G SFP |
Related Items at SourceIT
| Item | Use |
| Cisco 1000BASE-SX SFP (GLC-SX-MMD) | 1G fibre uplink over multimode fibre |
| Cisco 1000BASE-LX/LH SFP (GLC-LH-SMD=) | 1G fibre uplink over single-mode fibre |
| Cisco Catalyst 9200L 48-port PoE+ (C9200L-48P-4G-E) | Enterprise access switch with 48 PoE+ ports and StackWise-80 |
Datasheet & Downloads
| Document | Link |
| Cisco Business 350 Series Managed Switches Data Sheet | www.cisco.com |
| End-of-Sale and End-of-Life Announcement, CBS350 (select models) | www.cisco.com |
| Cisco Business 350 Series support page | www.cisco.com |
Frequently Asked Questions — Cisco Business CBS350-24P-4G
Is the CBS350-24P-4G still supported by Cisco?
Cisco announced End-of-Sale on 29 October 2024. Software maintenance and security fixes ended on 29 October 2025, and the last date of support is 31 October 2029.
What is the Cisco replacement for the CBS350-24P-4G?
Cisco names the Catalyst 1300 C1300-24P-4G (24-port GE, PoE, 4 x 1G SFP) as the migration product.
How much PoE power does it provide?
A 195W PoE budget shared across its 24 IEEE 802.3at PoE+ ports. For more PoE power, the CBS350-24FP-4G provides 370W.
Does it support Layer 3 routing?
Yes. It supports static routing with up to 990 routes, up to 128 IP interfaces and RIP v2 for inter-VLAN routing.
Are the uplinks combo ports?
No. The four uplinks are dedicated 1 Gigabit SFP slots; fibre or copper SFP modules are purchased separately.
Can CBS350 switches be stacked?
Yes. Cisco lists stacking of up to four CBS350 units, managing up to 200 ports as a single switch.
