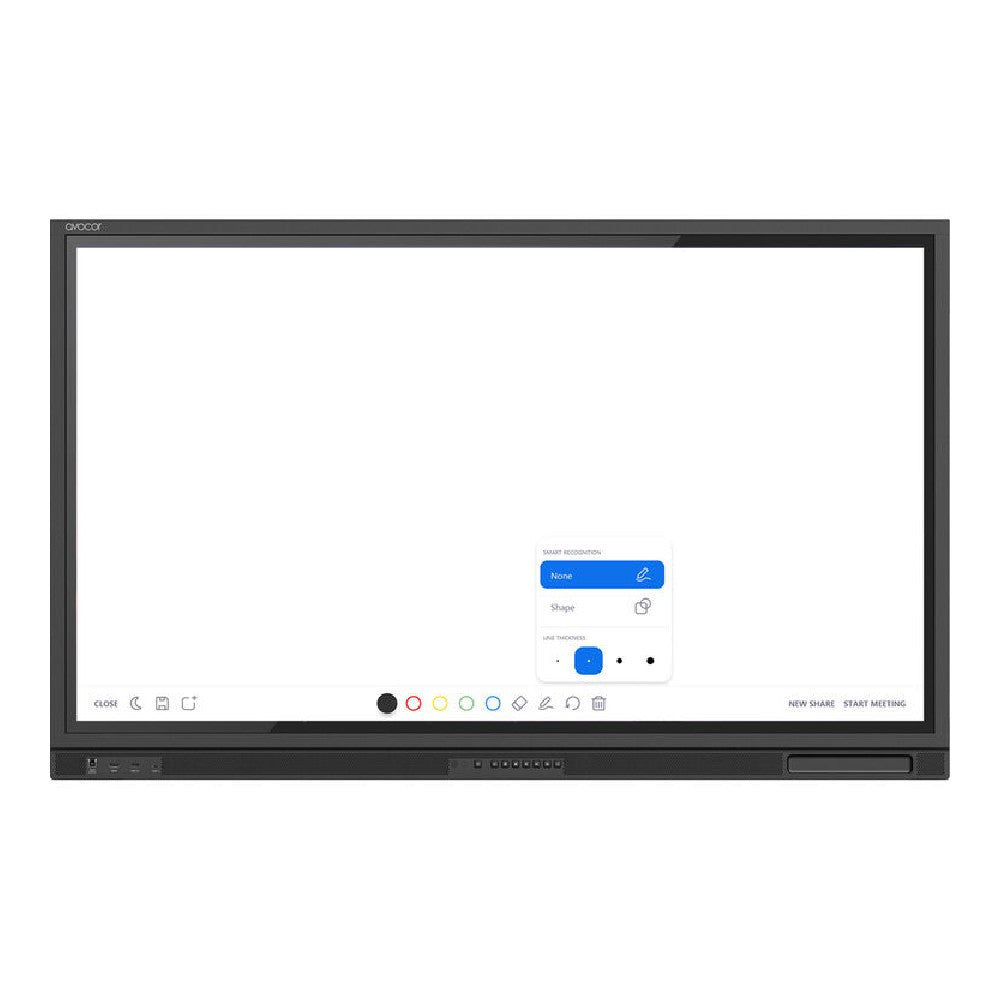

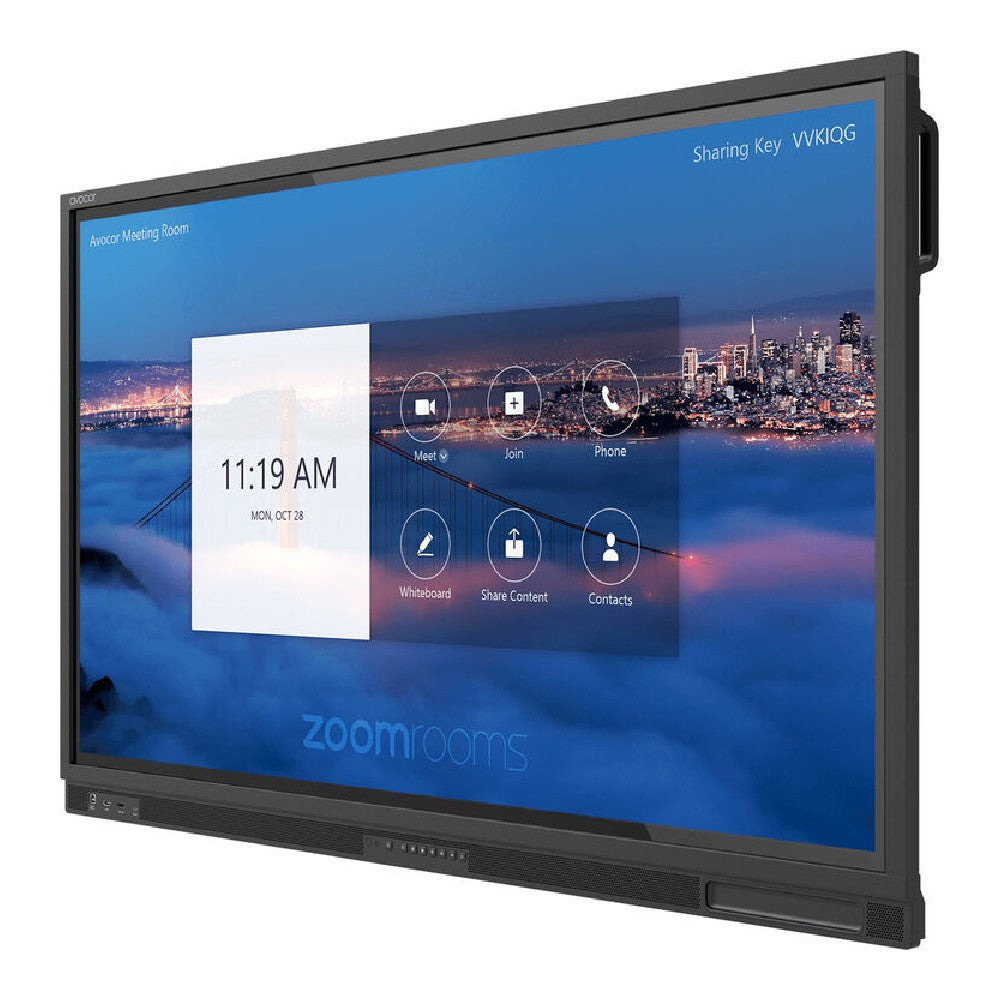

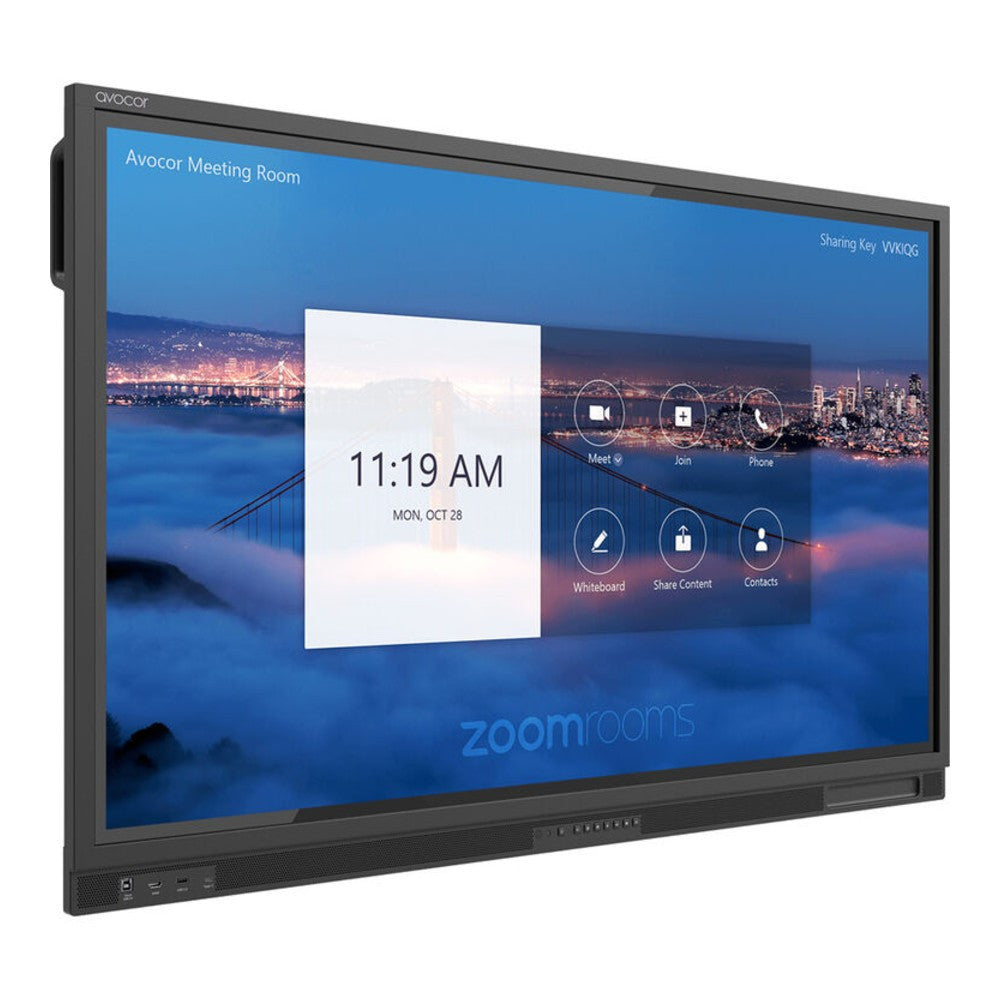

Avocor E50 Series AVE-8650 86" 4K UHD Interactive Touch Display
PRODUCT DESCRIPTION
Avocor E50 Series AVE-8650 86" 4K UHD Interactive Touch Display (AVE-8650) - 3 Years Warranty
The Avocor E50 Series AVE-8650 is a 86-inch 4K UHD interactive display with 40-point IR touch, zero-bond anti-glare glass, Android 13 with Google EDLA certification, and Avocor UiQ and FUSE built in - an affordable collaboration display for meeting rooms, huddle spaces and classrooms.
Key Features
- 86" 4K UHD (3840 x 2160) direct-lit LED panel, 400 cd/m2, 1200:1 contrast, 10-bit colour.
- Up to 40-point IR touch with fine-tip stylus; zero-parallax, zero-bond, anti-glare and anti-fingerprint glass.
- Android 13, Google EDLA certified (Google Play), Amlogic 311D2 octa-core, 4GB RAM / 32GB storage.
- Front guest ports: USB-C with 65W power delivery, HDMI 2.0, USB-B touch and 2 x USB-A; OPS slot and HDMI out (4K@60Hz).
- Avocor UiQ touch interface, FUSE cloud remote management, DisplayNote Montage wireless sharing, Rise Vision signage and Lucidspark whiteboarding.
- 2 x 15W forward-facing speakers; NDAA compliant; wall mount included.
Avocor AVE-8650 Datasheet — Technical Specifications
General
| Product Name | Avocor E50 Series AVE-8650 86" 4K UHD Interactive Touch Display |
| Brand | Avocor |
| Part Number | AVE-8650 |
| Series | Avocor E50 Series |
| Warranty | 3 years (Avocor Asia region, return to base); optional 2-year extension available (AVC-EW-E86) |
| Compliance | NDAA compliant; Google EDLA certified |
Display
| Screen Size | 86" (16:9, landscape) |
| Panel | LCD, direct-lit LED backlight |
| Resolution | 3840 x 2160 (4K UHD) @ 60Hz |
| Brightness | 400 cd/m2 |
| Contrast Ratio | 1200:1 |
| Response Time | 8 ms |
| Viewing Angle | 178 / 178 degrees |
| Colour | 10-bit, 1.07 billion colours |
| Glass | Zero parallax, zero-bond (optically bonded), anti-glare, anti-fingerprint |
| Operation Time | 16/7 |
Touch
| Touch Technology | IR (infrared) |
| Touch Points | Up to 40 points (Windows PC mode); macOS and Linux single touch |
| Stylus | 1 x fine-tip stylus supported; 2 x 3 mm passive styluses included |
| Touch Interface | 1 x USB-C, 4 x USB-B 3.0 |
| Supported OS | Windows 11, macOS (single touch), Linux (single touch), Chrome |
Android / Compute
| Operating System | Android 13 (Google EDLA certified) |
| Chipset | Amlogic 311D2: Cortex-A73 x4 + Cortex-A53 x4, Mali-G52 MP8 GPU |
| Memory / Storage | 4GB RAM / 32GB |
| OPS Slot | Yes |
| Wi-Fi | Yes |
Audio
| Speakers | 2 x 15W, forward-facing |
| Microphone / Camera | None / None |
| Presence Sensor | Yes |
Connectivity
| Front (guest) | 1 x USB-C (65W PD), 1 x HDMI 2.0, 1 x USB-B 3.0 (touch), 2 x USB-A 3.0 (hub) |

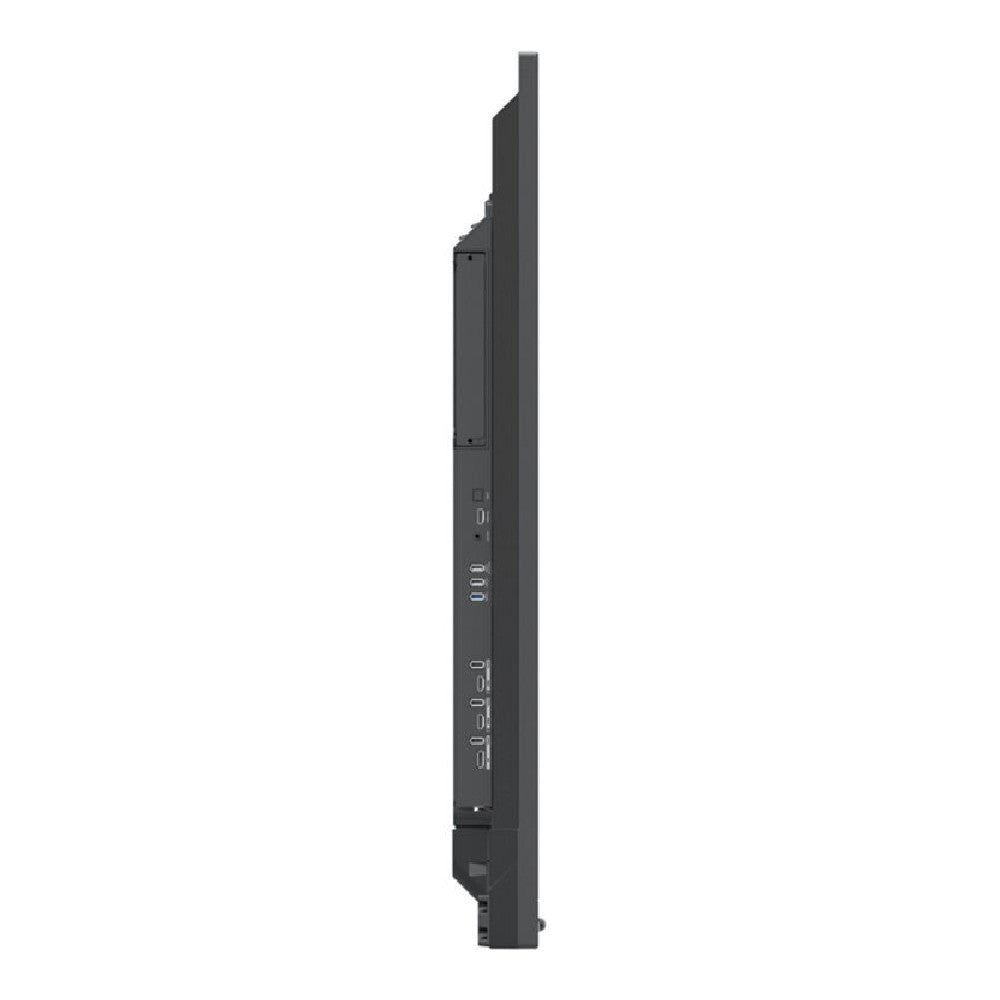

| Side | 2 x HDMI 2.0, 1 x DisplayPort 1.2, 1 x USB-C (15W PD), 3 x USB-B 3.0 (touch), 2 x USB-A 3.0 (hub), 1 x USB-A service, 1 x HDMI out (4K@60Hz / 1080p@60Hz), HDCP 2.2 |
| Audio | 1 x 3.5 mm audio out, 1 x optical S/PDIF |
| Control / Network | 1 x RS-232, 1 x LAN in, 1 x LAN out (RJ-45) |
Power & Physical
| Power Supply | AC 100-240V, 50/60Hz |
| Max Power (without OPS) | 460W |
| Standby Power | <= 0.5W |
| Operating Temperature | 0 to 40 C, 20-85% humidity |
| Dimensions (W x D x H) | 1961.8 x 87.7 x 1169.9 mm |
| Shipping Dimensions | 2160 x 225 x 1310 mm |
| Net / Gross Weight | 65.5 kg / 77 kg |
| VESA | 800 x 600 mm (wall mount included) |
| Handles | 2 |
Compatibility & Software Support
Software Included
| Avocor UiQ | Tile-based touch user interface with source preview |
| Avocor FUSE | Cloud-based remote device management (free for Avocor customers) |
| DisplayNote Montage | Wireless screen sharing |
| Rise Vision | Digital signage CMS |
| Lucidspark | Cloud whiteboarding |
Expansion
| OPS PC modules | Avocor i5 Gen 11 OPS, i7 Gen 11 OPS, i7 Gen 12 OPS, Google EDLA Android OPS |
| Mobile stand | Avocor Mobile Stand AVC-STND1 (55" to 105") |
| Spare stylus | AVE Series Stylus PEN-EP (2 per pack) |
| Extended warranty | 2-Year Extended Warranty AVC-EW-E86 |
Software is sold separately where a licence is required. Up to 40-point touch requires a Windows PC source; macOS and Linux support single touch.
Package Contents & E Series Ordering Information
In the Box
- 1 x Remote control with batteries
- 2 x 3 mm fine-tip passive touch styluses
- 1 x Wall mount
- AC power cords (UK, EU, US, AUS)
- 1 x USB-B 3.0 cable (3 m)
- 1 x HDMI cable (3 m)
- 1 x USB-C cable (1.8 m)
Avocor E Series Interactive Displays
Datasheet & Downloads
| Product page | Avocor E50 Series |
| Datasheet | Avocor E50 Series Datasheet (PDF) |
| User manual | E50 Series Manual |
| Support | Avocor E50 Series Support |
| Warranty | Avocor Global Warranty by Region |
Frequently Asked Questions — Avocor AVE-8650
Does the E50 Series need a PC to run meetings?
No. It runs Android 13 with Google Play (EDLA), Montage wireless sharing and the UiQ interface out of the box. For Windows applications add an Avocor OPS PC module or connect a laptop over USB-C.
What is the difference between the E50 Series and the H Series?
The H Series uses PCAP touch, a 3 mm bezel, 5000:1 contrast and a 100W USB-C port; the E50 Series uses 40-point IR touch with a 65W USB-C port at a lower price point.
Is a wall mount included?
Yes, a VESA wall mount is in the box. A mobile stand (AVC-STND1) is available separately.
What warranty applies in Singapore?
Avocor's Asia-region warranty is 3 years return to base. A 2-year extension (AVC-EW-E86) is available.
Can it be managed remotely?
Yes. Avocor FUSE provides cloud-based monitoring, configuration and firmware updates at no extra cost.
