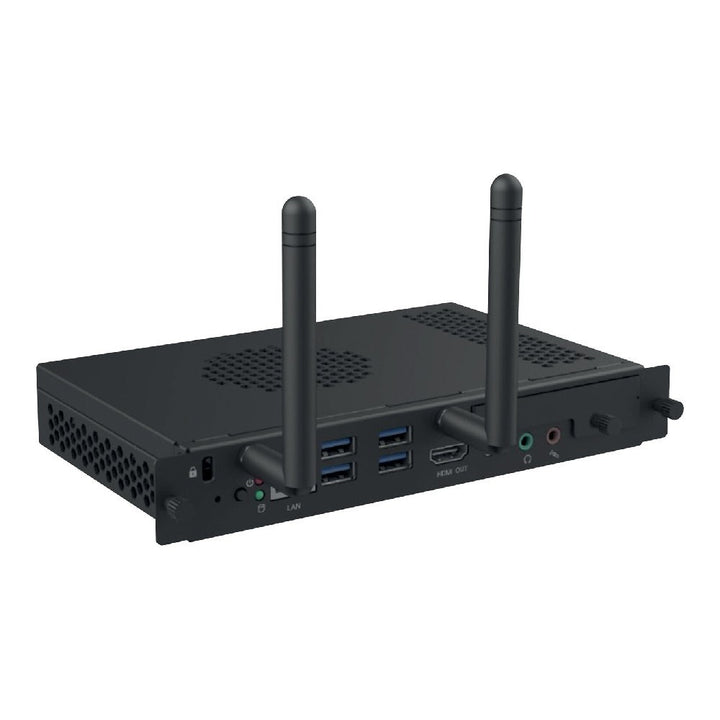

Avocor i7 Gen 11 OPS PC Module, 16GB / 256GB, Windows 11 Pro
Shipping calculated at checkout.
PRODUCT DESCRIPTION
Avocor i7 Gen 11 OPS PC Module, 16GB / 256GB, Windows 11 Pro (AVC-OPSi7-G11) - 2 Years Warranty
The Avocor i7 Gen 11 OPS PC (AVC-OPSi7-G11) slots into the OPS bay of an Avocor interactive display to turn it into an all-in-one Windows 11 Pro touch PC with no external cables - 11th Gen Intel Core i7-11390H, 16GB DDR4-3200 and a 256GB M.2 2280 SATA III SSD, with Wi-Fi, Gigabit LAN and HDMI out for a second screen.
Key Features
- 11th Gen Intel Core i7-11390H (4 cores / 8 threads, 3.4 GHz up to 5.0 GHz, 12 MB cache).
- 16GB DDR4-3200 (2 x 8GB SODIMM, upgradable to 32GB); 256GB M.2 2280 SATA III SSD.
- Intel Iris Xe Graphics; Supports 4K (3840 x 2160 @ 60Hz) via HDMI out.
- Windows 11 Pro 64-bit pre-installed; TPM 2.0.
- 4 x USB 3.0 Type-A, 1 x USB 3.2 Type-C, HDMI 2.0 out, Gigabit LAN, line out and mic in; Intel Dual Band Wireless-AX200 (2.4 / 5 GHz).
- Standard JAE 80-pin OPS interface, powered by the display (12-19V DC); 202 x 132 x 30 mm.
Avocor AVC-OPSi7-G11 Datasheet — Technical Specifications
General
| Product Name | Avocor i7 Gen 11 OPS PC Module, 16GB / 256GB, Windows 11 Pro |
| Brand | Avocor |
| Part Number | AVC-OPSi7-G11 |
| Warranty | 2 Years Warranty (Avocor Asia region, return to base) |
System
| Processor | 11th Gen Intel Core i7-11390H (4 cores / 8 threads, 3.4 GHz up to 5.0 GHz, 12 MB cache) |
| Memory | 16GB DDR4-3200 (2 x 8GB SODIMM, upgradable to 32GB) |
| Storage | 256GB M.2 2280 SATA III SSD |
| Graphics | Intel Iris Xe Graphics |
| Operating System | Windows 11 Pro OEM 64-bit, pre-installed |
| Security | TPM 2.0 |
| Audio | Intel HD Audio (via display) |
Connectivity
| USB | 4 x USB 3.0 Type-A, 1 x USB 3.2 Type-C |
| Video Out | 1 x HDMI 2.0 |
| Ethernet | Realtek RTL8111H Gigabit Ethernet, 1 x RJ-45 |
| Wireless | Intel Dual Band Wireless-AX200 (2.4 / 5 GHz) |
| Audio | 1 x 3.5 mm line out, 1 x 3.5 mm mic in |
| OPS Interface | JAE 80-pin connector |
Power & Physical
| Power | 12-19V DC in (from display) |
| Dimensions (W x D x H) | 202 x 132 x 30 mm |
| Shipping Dimensions | 267 x 192 x 72 mm |
| Net Weight | 0.6 kg |
| Operating Temperature | -10 to 50 C, 10-90% RH |
| Material | Painted steel, black |
Compatibility & Ordering Information
Fits the OPS slot of Avocor interactive and signage displays, including the E50 Series, E92, H Series, S Series and B Series.
Avocor OPS PC Modules
| Model | Part number |
| Avocor i5 Gen 11 OPS PC Module, 8GB / 256GB, Windows 11 Pro | AVC-OPSi5-G11 |
| Avocor i7 Gen 11 OPS PC Module, 16GB / 256GB, Windows 11 Pro | AVC-OPSi7-G11 |
| Avocor i7 Gen 12 OPS PC Module, 16GB / 256GB NVMe, Windows 11 Pro (4K and 5K) | AVC-OPSi7-G12 |
| Avocor Google EDLA Certified Android 13 OPS Module, 8GB / 64GB | AVC-OPS-EDLA1 |
Datasheet & Downloads
| Datasheet | Avocor i7 Gen 11 OPS Datasheet (PDF) |
| Warranty | Avocor Global Warranty by Region |
Frequently Asked Questions — Avocor AVC-OPSi7-G11
Which Avocor displays does it fit?
Any Avocor display with an OPS slot, including the E50, E92, H, S and B Series.
Is Windows included?
Yes, Windows 11 Pro is pre-installed and licensed.
Does it need its own power supply?
No, the module is powered through the display's OPS slot.
