Avocor E92 AVE-9200 92" 5K Ultra-Wide Interactive Touch Display
Shipping calculated at checkout.
PRODUCT DESCRIPTION
Avocor E92 AVE-9200 92" 5K Ultra-Wide Interactive Touch Display (AVE-9200) - 3 Years Warranty

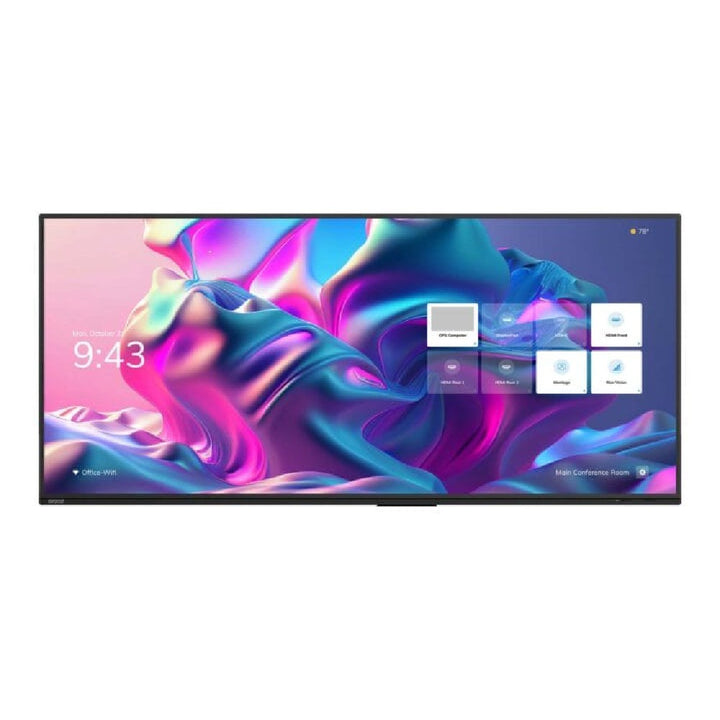

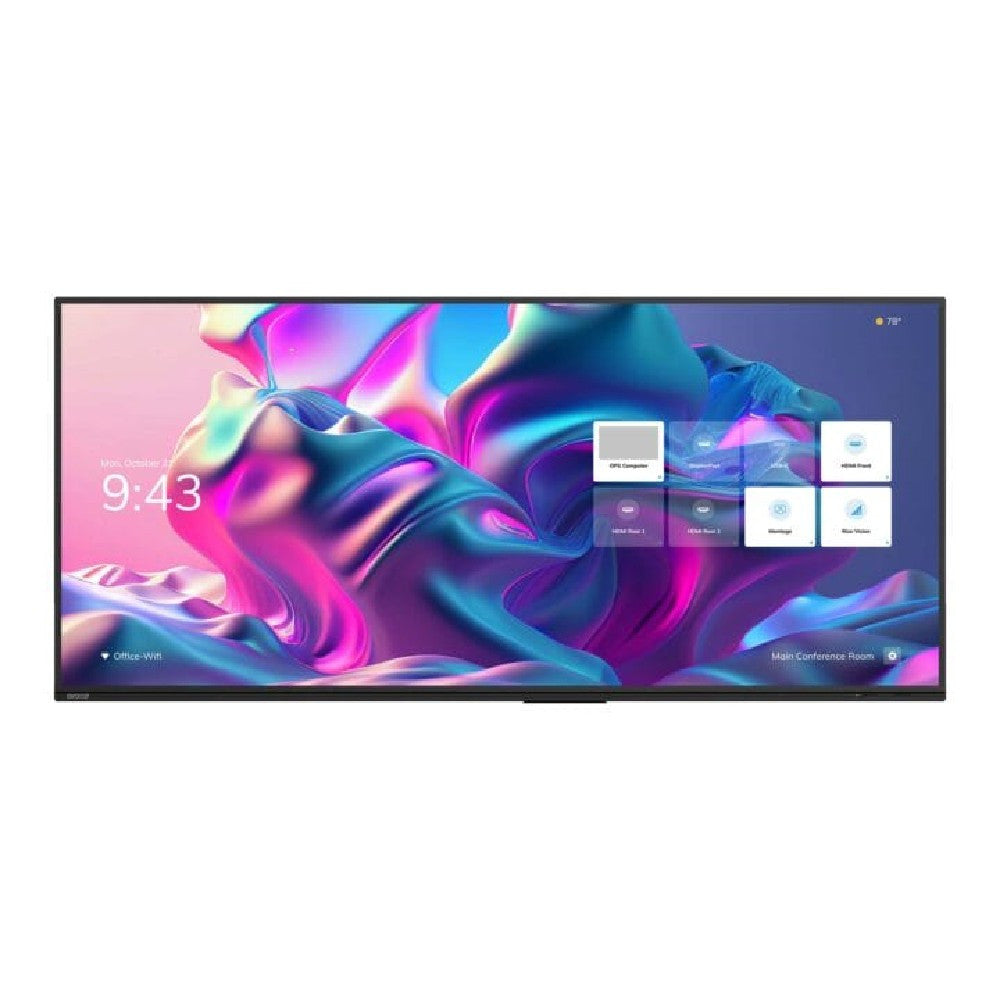

The Avocor E92 is a 92-inch 21:9 ultra-wide 5K interactive display that replaces dual-monitor meeting rooms with one seamless canvas. Optimised for Microsoft Teams Front Row and Zoom, with 50-point IR touch, Android 13 (Google EDLA), a 60W 2.1 speaker system and Avocor UiQ and FUSE.
Key Features
- 92" 21:9 ultra-wide 5K (5120 x 2160) direct-lit LED panel, 450 cd/m2, 4000:1 contrast, 6.5 ms response.
- Up to 50-point IR touch, zero-parallax zero-bond anti-glare toughened glass.
- Android 13 with Google EDLA certification; Rockchip RK3588 octa-core, 8GB RAM / 64GB storage.
- USB-C with 100W power delivery for single-cable BYOD, plus a 15W USB-C guest port, 3 x HDMI 2.0 (HDCP 2.3) and DisplayPort 1.4.
- 2 x 20W speakers plus 20W subwoofer (60W 2.1-channel); OPS slot; Wi-Fi module included.
- Built for Microsoft Teams Front Row and Zoom; UiQ, FUSE, Montage, Rise Vision and Lucidspark included; NDAA compliant.
Avocor AVE-9200 Datasheet — Technical Specifications
General
| Product Name | Avocor E92 AVE-9200 92" 5K Ultra-Wide Interactive Touch Display |
| Brand | Avocor |
| Part Number | AVE-9200 |
| Series | Avocor E92 (Ultra-Wide) |
| Warranty | 3 years (Avocor Asia region, return to base); optional 2-year extension available (AVC-EW-E92) |
| Compliance | NDAA compliant; Google EDLA certified |
Display
| Screen Size | 92" (21:9 ultra-wide, landscape) |
| Panel | LCD, direct-lit LED backlight |
| Resolution | 5120 x 2160 (5K) @ 60Hz |
| Brightness | 450 cd/m2 |
| Contrast Ratio | 4000:1 |
| Response Time | 6.5 ms |
| Viewing Angle | 178 / 178 degrees |
| Colour | 1.07 billion colours (8-bit + FRC) |
| Glass | Zero parallax, zero-bond, anti-glare, anti-fingerprint toughened glass |
| Operation Time | 16/7 |
Touch
| Touch Technology | IR (infrared) |
| Touch Points | Up to 50 points (Windows); 1 stylus supported |
| Touch Interface | 2 x USB-B 2.0, 1 x USB-C |
| Supported OS | Windows, macOS, Linux, Android |
Android / Compute
| Operating System | Android 13 (Google EDLA certified) |
| Chipset | Rockchip RK3588: 4 x Cortex-A76 + 4 x Cortex-A55, Mali-G610 MP4 GPU |
| Memory / Storage | 8GB RAM / 64GB |
| OPS Slot | Yes |
| Wi-Fi | Yes (Wi-Fi module included) |
Audio
| Speakers | 2 x 20W + 20W subwoofer (60W, 2.1-channel) |
| Microphone / Camera | None / None |
Connectivity
| Front (guest) | 1 x USB-C (15W PD), 2 x USB-A 3.0 |
| Top | 2 x USB-A 3.0 |
| Side | 1 x USB-C (100W PD), 1 x DisplayPort 1.4, 3 x HDMI 2.0 (HDCP 2.3), 3 x USB-B 2.0, 1 x USB-A 3.0, 1 x HDMI 2.0 out |
| Audio | 1 x 3.5 mm aux out, 1 x optical S/PDIF |
| Control / Network | 1 x RS-232, 2 x RJ-45 LAN |
Power & Physical
| Power Supply | AC 100-240V, 50/60Hz |
| Max Power (without OPS) | 250W |
| Standby Power | <= 0.5W |
| Operating Temperature | 0 to 40 C, 10-90% humidity |
| Dimensions (W x D x H) | 2203 x 92 x 1000 mm |
| Bezel | Top 29 / sides 18 / bottom 39 mm |
| Shipping Dimensions | 2360 x 225 x 1140 mm |
| Net / Gross Weight | 67.6 kg / 88.5 kg |
| VESA | 800 x 600 mm (wall mount included) |
| Handles | 2 |
Compatibility & Software Support
Meeting Platforms
| Microsoft Teams Rooms | Optimised for Teams Front Row on the 21:9 canvas (via OPS PC or connected PC) |
| Zoom Rooms | Supported via OPS PC or connected PC |
| BYOD | Single-cable USB-C (100W PD) or HDMI |
Software Included
| Avocor UiQ | Tile-based touch interface |
| Avocor FUSE | Cloud remote device management |
| DisplayNote Montage | Wireless screen sharing |
| Rise Vision | Digital signage CMS |
| Lucidspark | Cloud whiteboarding |
Expansion
| OPS PC for 5K | Avocor i7 Gen 12 OPS PC (supports 5K 21:9) |
| Mobile stand | Avocor Mobile Stand AVC-STND1 |
| Spare stylus | AVE Series Stylus PEN-EP |
| Extended warranty | 2-Year Extended Warranty AVC-EW-E92 |
Package Contents & E Series Ordering Information
In the Box
- 1 x Remote control with batteries
- 2 x 3 mm fine-tip passive styluses
- AC power cords (UK, EU, US, AUS)
- 1 x USB-B 3.0 cable (3 m)
- 1 x HDMI cable (3 m)
- 1 x USB-C cable (1.8 m)
- 1 x Wall mount
- 1 x Wi-Fi module
Avocor E Series Interactive Displays
Datasheet & Downloads
| Product page | Avocor E92 |
| Datasheet | Avocor E92 Datasheet |
| User manual | E92 Series Manual |
| Support | Avocor E92 Support |
| Warranty | Avocor Global Warranty by Region |
Frequently Asked Questions — Avocor AVE-9200
Why a 21:9 display?
A 21:9 ultra-wide canvas shows the video gallery and shared content side by side without a second screen, which is how Microsoft Teams Front Row and Zoom's layouts are designed to work.
Which OPS PC supports 5K?
The Avocor i7 Gen 12 OPS (AVC-OPSi7-G12) supports the 5120 x 2160 resolution of the E92.
Is a wall mount included?
Yes, an 800 x 600 VESA wall mount is in the box.
What warranty applies in Singapore?
3 years return to base under Avocor's Asia-region warranty; a 2-year extension (AVC-EW-E92) is available.
