Avocor Google EDLA Certified Android 13 OPS Module, 8GB / 64GB
PRODUCT DESCRIPTION
Avocor Google EDLA Certified Android 13 OPS Module, 8GB / 64GB (AVC-OPS-EDLA1) - 2 Years Warranty

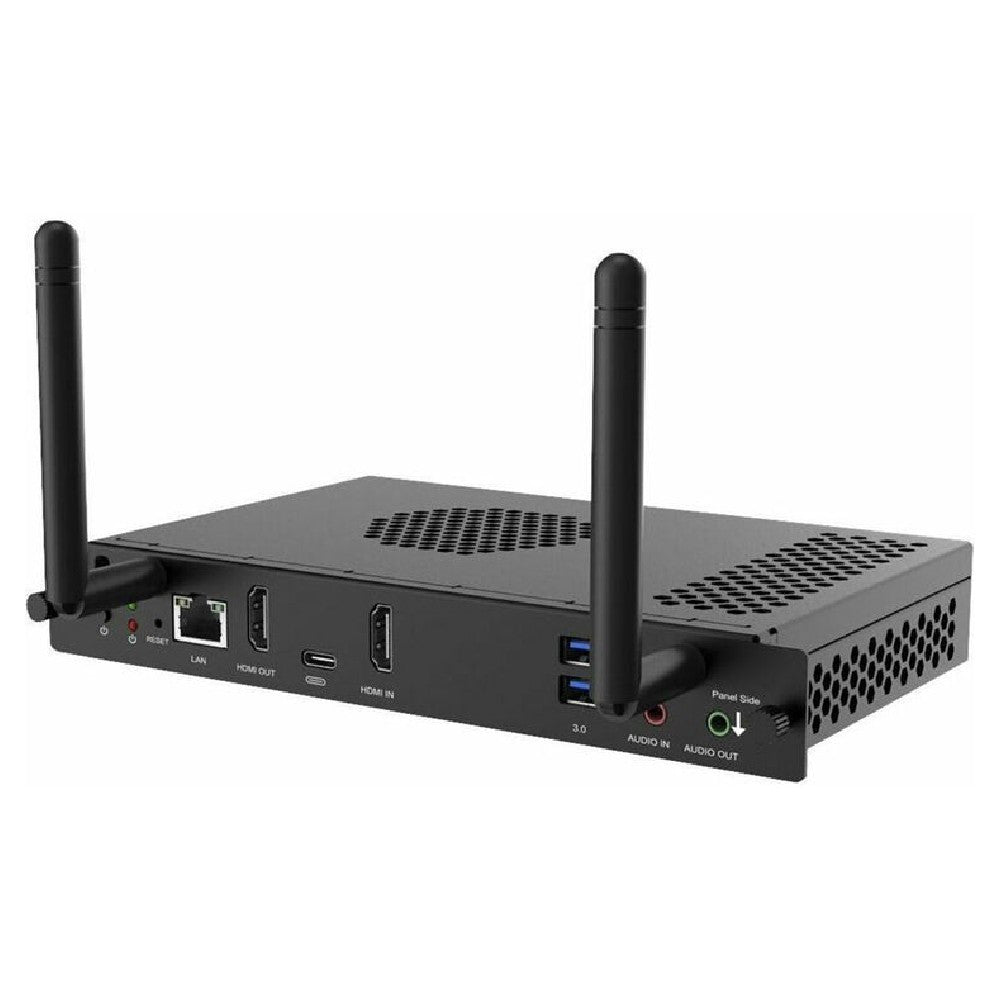

The Avocor Google EDLA Certified OPS (AVC-OPS-EDLA1) is a plug-and-play slot-in Android 13 PC that brings the Google Play Store, Google Mobile Services and Google Workspace apps to any Avocor OPS-slot display, with an octa-core processor, 8GB RAM / 64GB storage, Wi-Fi 6E, Google Cast and Apple AirPlay.
Key Features
- Google EDLA certified: Google Play Store, Google Mobile Services, Google Workspace (Docs, Sheets, Slides) and Google Play Protect.
- Android 13; octa-core quad Cortex-A76 + quad Cortex-A55 (RK3588 class), Mali-G610 MC4 GPU, 8GB RAM / 64GB storage.
- Google Cast and Apple AirPlay wireless sharing; remote updates, configuration and monitoring for IT.
- HDMI in, HDMI out and USB-C out up to 4K@60Hz; 2 x USB-A 3.0; Gigabit LAN; Wi-Fi 6E.
- Powered by the display OPS slot (23W typical / 30W max); 180 x 119 x 30 mm, 0.63 kg.
Avocor AVC-OPS-EDLA1 Datasheet — Technical Specifications
General
| Product Name | Avocor Google EDLA Certified Android 13 OPS Module, 8GB / 64GB |
| Brand | Avocor |
| Part Number | AVC-OPS-EDLA1 |
| Warranty | 2 Years Warranty (Avocor Asia region, return to base) |
System
| Operating System | Android 13, Google EDLA certified |
| Processor | Octa-core: 4 x ARM Cortex-A76 + 4 x ARM Cortex-A55 (RK3588 per distributor) |
| Graphics | Mali-G610 MC4 |
| Memory / Storage | 8GB / 64GB |
| Wireless | Wi-Fi 6E (802.11ax); Bluetooth |
| Ethernet | 1 x RJ-45 10/100/1000 |
Connectivity

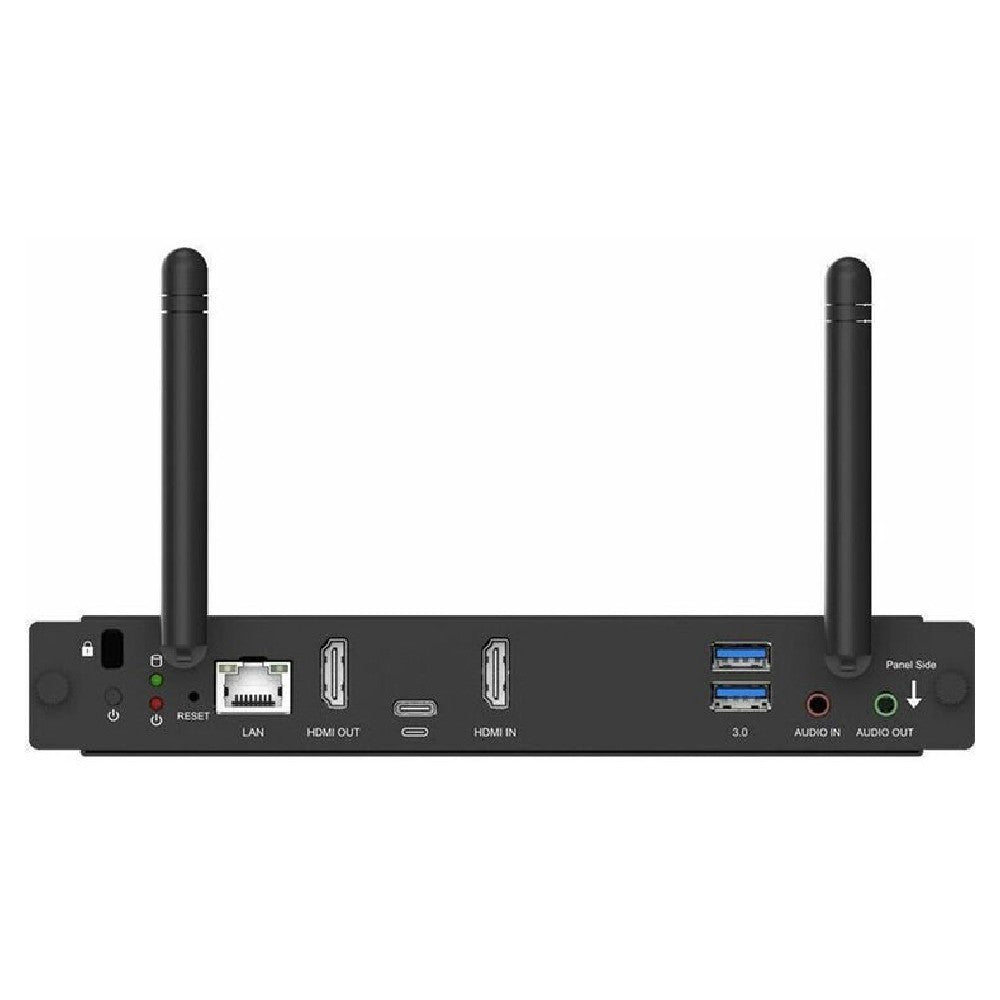

| Video | 1 x HDMI out (4K@60Hz), 1 x USB-C out (4K@60Hz), 1 x HDMI in (4K@60Hz) |
| USB | 2 x USB-A 3.0 |
| Audio | 1 x 3.5 mm in, 1 x 3.5 mm out |
| Other | OPS jack, DC in, power and reset buttons |
Power & Physical
| Power | 12-19V DC via OPS; 23W typical, 30W max |
| Dimensions (W x D x H) | 180 x 119 x 30 mm |
| Shipping Dimensions | 267 x 192 x 72 mm |
| Net / Gross Weight | 0.63 kg / 0.85 kg |
| Operating Temperature | 0 to 40 C, 10-90% RH |
Compatibility & Ordering Information
Fits the OPS slot of Avocor interactive and signage displays, including the E50 Series, E92, H Series, S Series and B Series.
Avocor OPS PC Modules
| Model | Part number |
| Avocor i5 Gen 11 OPS PC Module, 8GB / 256GB, Windows 11 Pro | AVC-OPSi5-G11 |
| Avocor i7 Gen 11 OPS PC Module, 16GB / 256GB, Windows 11 Pro | AVC-OPSi7-G11 |
| Avocor i7 Gen 12 OPS PC Module, 16GB / 256GB NVMe, Windows 11 Pro (4K and 5K) | AVC-OPSi7-G12 |
| Avocor Google EDLA Certified Android 13 OPS Module, 8GB / 64GB | AVC-OPS-EDLA1 |
Datasheet & Downloads
| Product page | Avocor Google EDLA OPS |
| Datasheet | Avocor EDLA OPS Datasheet (PDF) |
| Warranty | Avocor Global Warranty by Region |
Frequently Asked Questions — Avocor AVC-OPS-EDLA1
What does EDLA certified mean?
Google's Enterprise Device Licensing Agreement lets the module run licensed Google Mobile Services, including the Play Store and Workspace apps, like a Google-certified tablet.
Which displays does it fit?
Any Avocor display with an OPS slot; Avocor lists it as the Android option for the H, E50, E92, S and B Series.
Does it support wireless sharing?
Yes, Google Cast and Apple AirPlay are supported.
