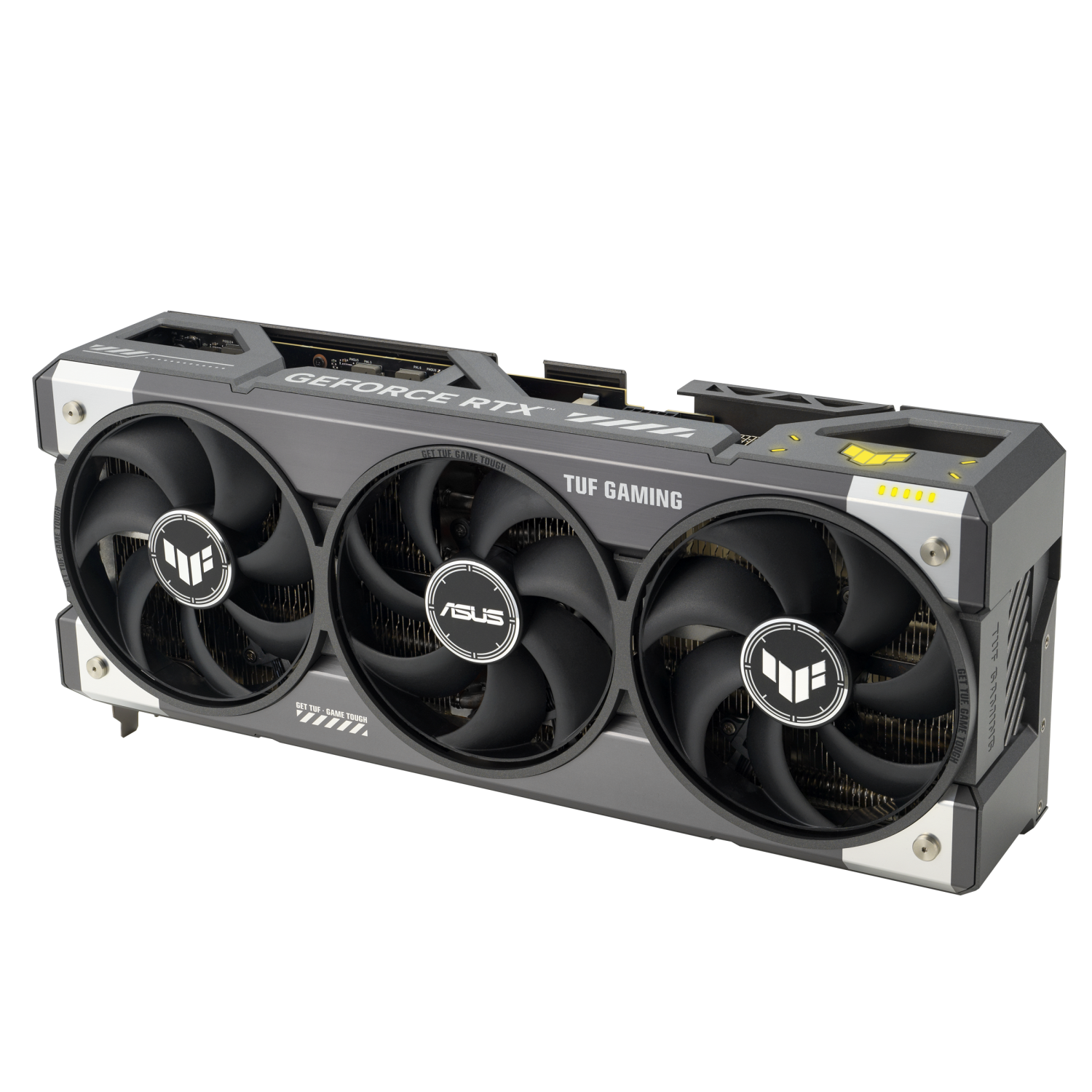

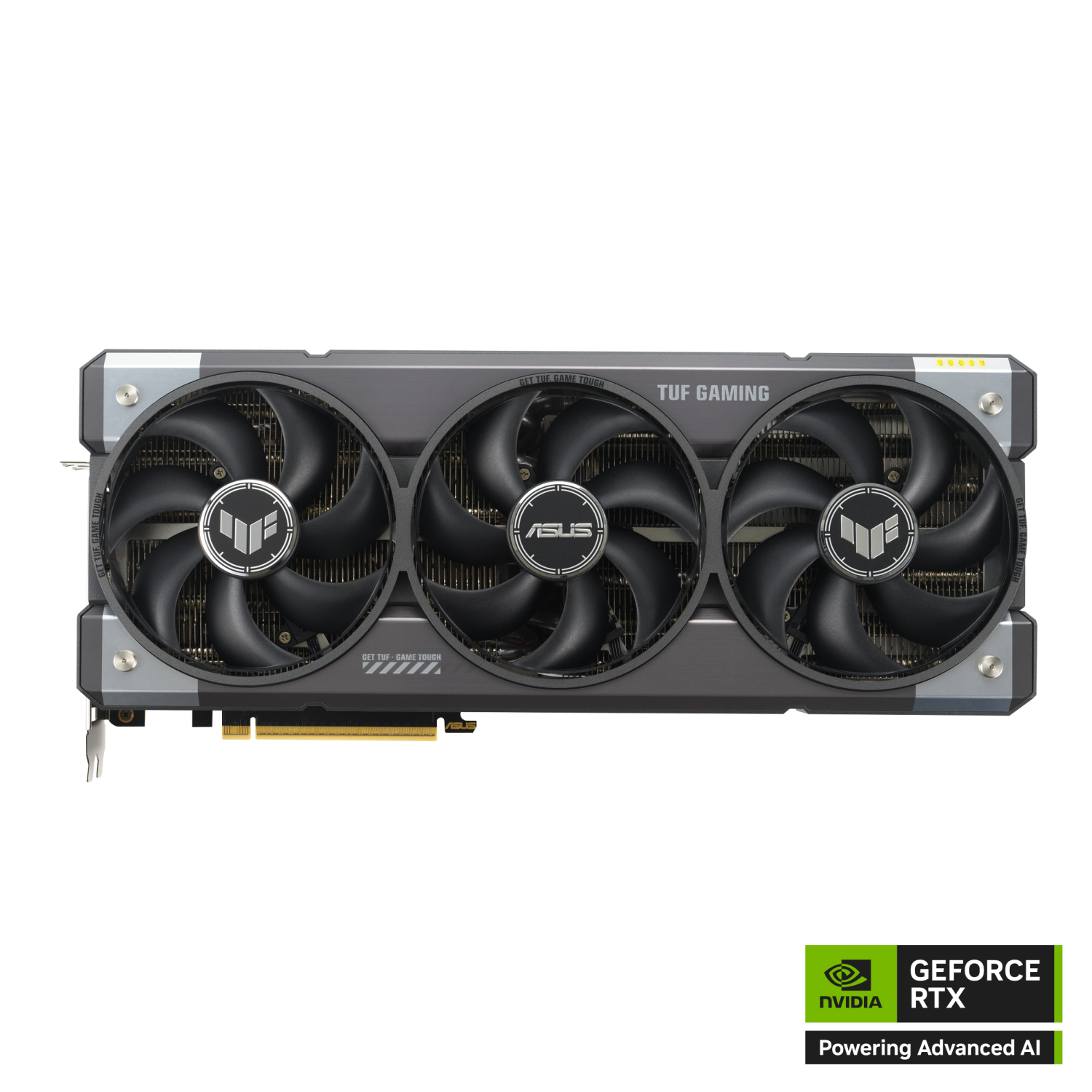

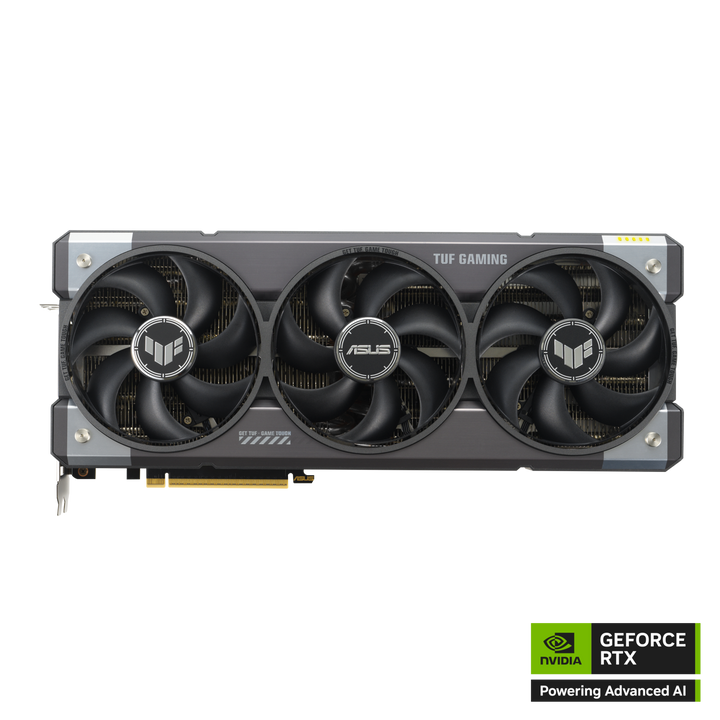

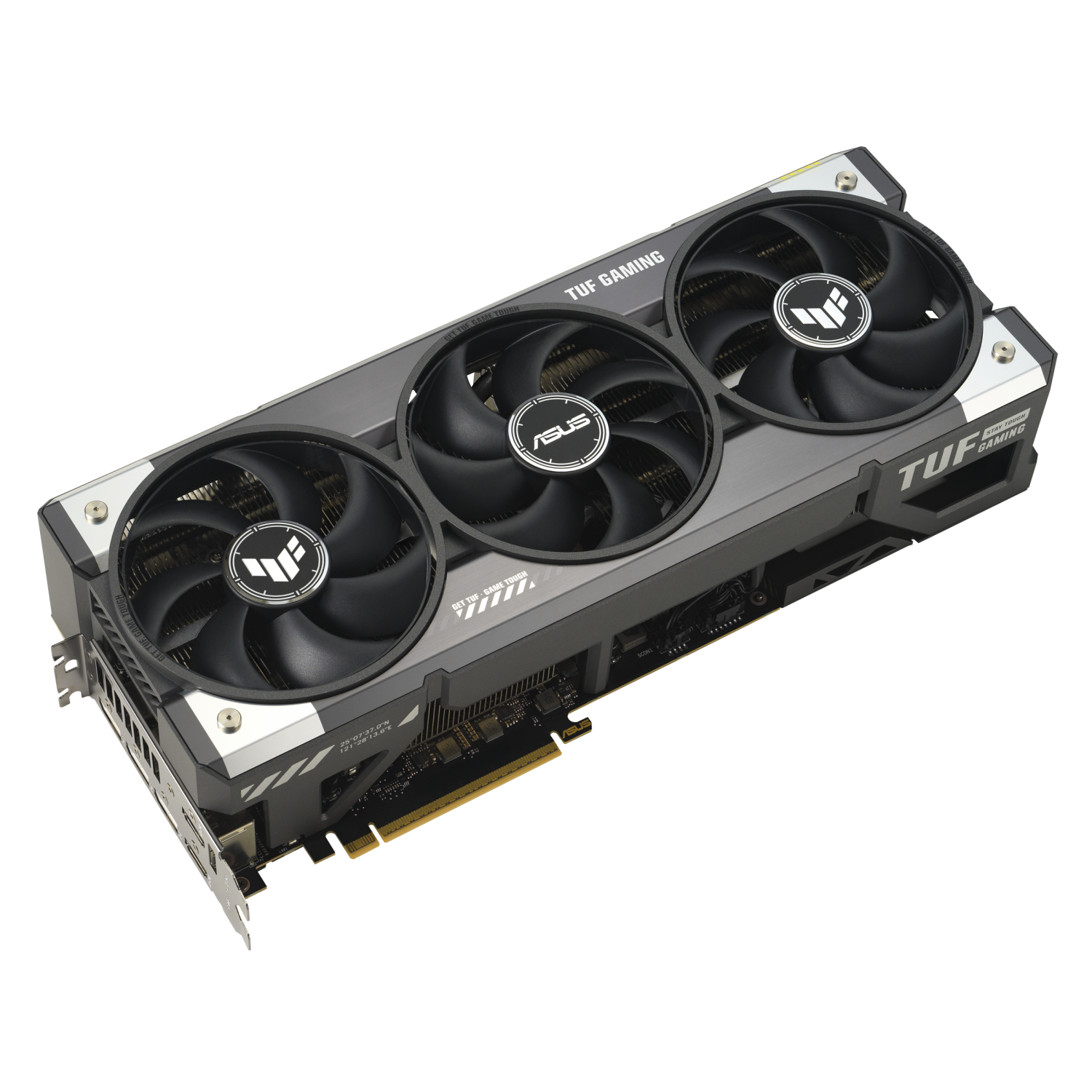

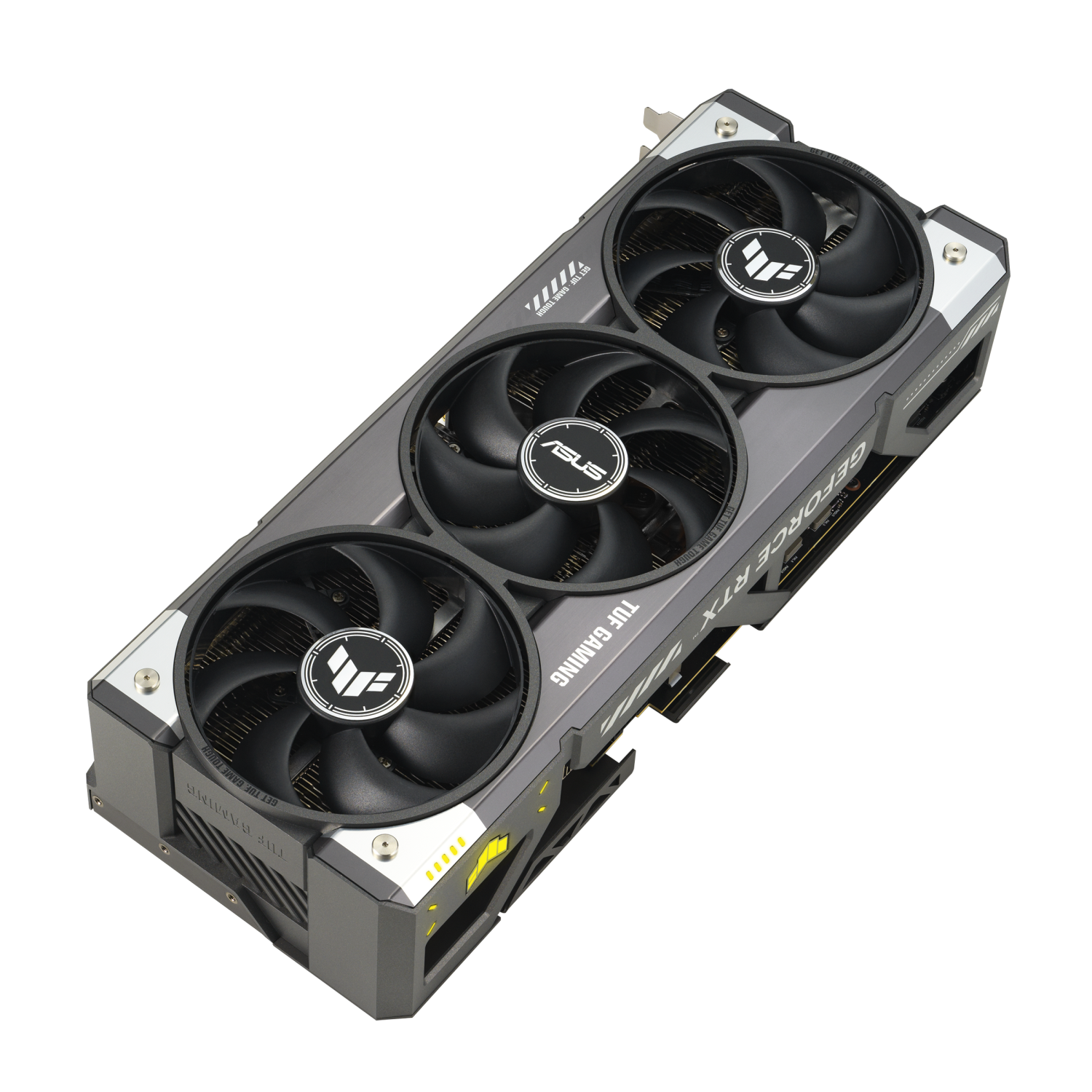

ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition Graphics Card
PRODUCT DESCRIPTION
ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition (TUF-RTX5090-O32G-GAMING) - 3 Years Local Warranty
Military-Grade Durability
TUF Gaming RTX 5090 is built for long service: TUF-grade 5K black metallic capacitors, chokes and MOSFETs, a die-cast shroud, a vented metal exoskeleton, a protective PCB coating and Auto-Extreme single-pass soldering. ASUS GPU Guard adhesive and a GPU bracket protect the die.
Triple Axial-tech Cooling
Three Axial-tech fans with longer blades (up to 23% more airflow, per ASUS) push air through a large vapor chamber with twelve heatpipes, and a phase-change GPU thermal pad keeps the RTX 5090 cool under sustained load. Dual BIOS switches between Quiet and Performance modes.
Full RTX 5090 Performance
21,760 CUDA cores, 32GB of 28 Gbps GDDR7 on a 512-bit bus, DLSS 4 with Multi Frame Generation and 3,352 AI TOPS for 4K gaming, rendering and local AI work.
ASUS TUF Gaming RTX 5090 Datasheet — Technical Specifications
General
| Product Name | ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition |
| Model | TUF-RTX5090-O32G-GAMING |
| ASUS Part Number | 90YV0LY0-M0NA00 |
| UPC | 197105890329 |
| Series | TUF Gaming |
| Local Warranty (Singapore) | 3 years ASUS warranty, supplied by SourceIT with a GST invoice |
GPU
| Graphics Engine | NVIDIA GeForce RTX 5090 (Blackwell architecture) |
| AI Performance | 3,352 AI TOPS |
| CUDA Cores | 21,760 |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL 4.6 |
| Engine Clock | OC mode 2580 MHz; default mode 2550 MHz (boost) |
Memory
| Video Memory | 32GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 512-bit |

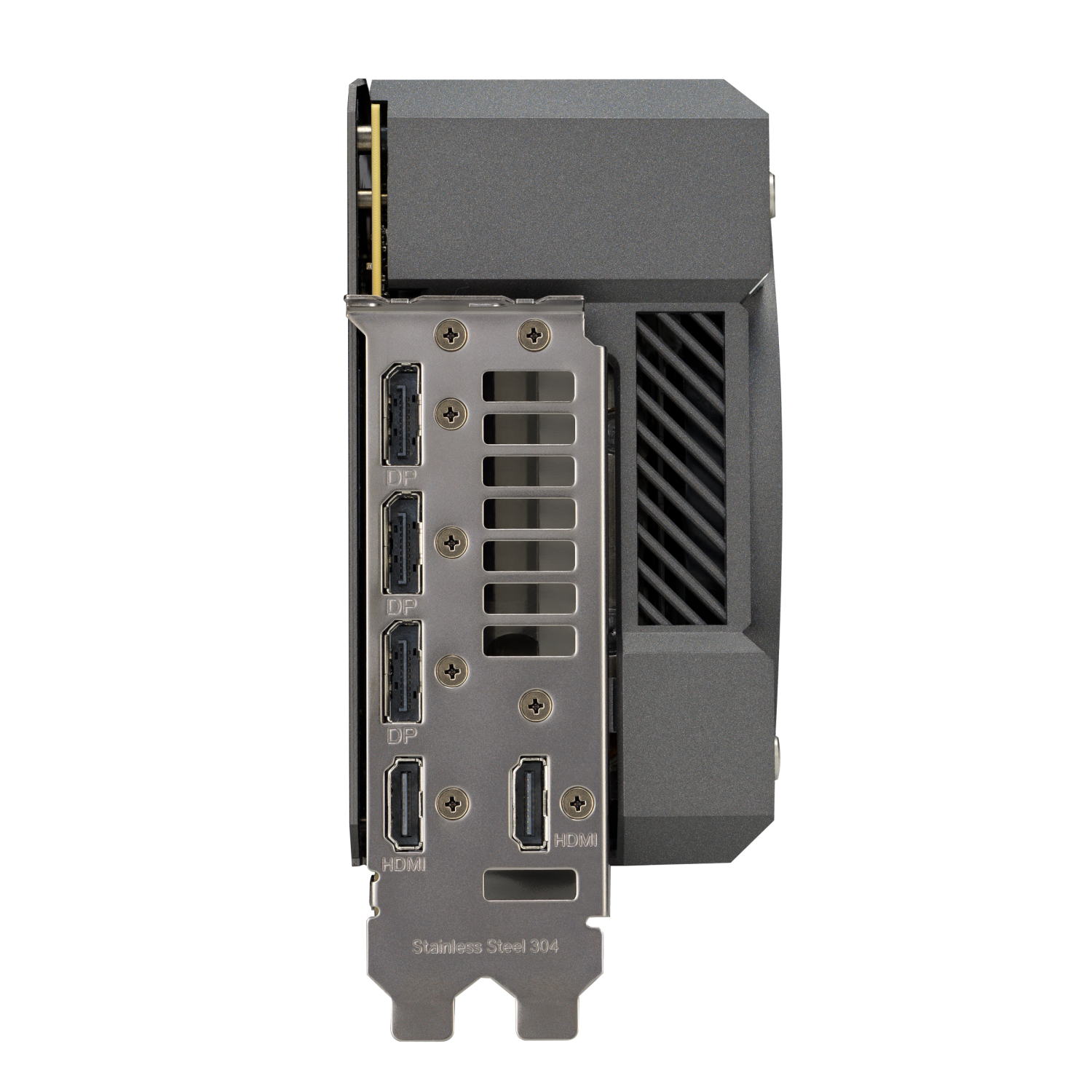

Display Outputs
| HDMI | 2 x native HDMI 2.1b |
| DisplayPort | 3 x native DisplayPort 2.1b |
| HDCP | HDCP 2.3 |
| Max. Digital Resolution | 7680 x 4320 (8K) |
| Max. Simultaneous Displays | 4 |
| NVLink / CrossFire | Not supported |
Power & Cooling
| Recommended PSU | 1000W (ASUS figure, based on a fully overclocked CPU and GPU) |
| Power Connector | 1 x 16-pin |
| Cooling | Triple Axial-tech fans, vapor chamber with 12 heatpipes, phase-change GPU thermal pad |
| BIOS | Dual BIOS (Quiet / Performance) |
| Lighting | ARGB, ASUS Aura Sync |
Physical
| Dimensions | 348 x 146 x 72 mm (13.7 x 5.7 x 2.8 in) |
| Slot Width | 3.6 slots |
Compatibility & Software Support
Motherboard
Needs a PCI Express x16 slot; runs at full PCIe 5.0 speed on Intel Z890/B860 and AMD X870E/X870/B850 boards, and is backward compatible with PCIe 4.0 slots.
Power Supply
ASUS recommends a 1000W PSU for a fully overclocked system. A native 16-pin (12V-2x6 / 12VHPWR) ATX 3.x PSU cable is preferred; a 1-to-4 adapter is included for older PSUs.
Case Fit
At 348mm long and 3.6 slots thick, the card needs a full-size or large mid-tower case with at least 350mm of GPU clearance. A TUF graphics card holder is included.
Operating Systems & Software
Windows 11 / Windows 10 64-bit and Linux with NVIDIA drivers. ASUS GPU Tweak III handles monitoring, fan curves and overclocking; NVIDIA Game Ready and Studio drivers cover gaming and creative apps.
Typical Use
4K and 8K high-refresh gaming with DLSS 4 Multi Frame Generation, 3D rendering, video editing and local AI/LLM inference that benefits from 32GB of VRAM.
Package Contents & ASUS GeForce RTX 5090 Ordering Information
In the Box
TUF Gaming GeForce RTX 5090 OC Edition graphics card, Speedsetup manual, TUF graphics card holder, TUF hook-and-loop strap, TUF magnet, TUF Gaming certificate, thank-you card and a 1-to-4 adapter cable.
ASUS GeForce RTX 5090 Range at SourceIT
| Model | Key feature |
| ROG Astral LC (liquid-cooled) RTX 5090 | 360mm AIO, 2.5-slot card |
| ROG Astral RTX 5090 | Quad-fan air cooler, 3.8-slot |
| ROG Astral White RTX 5090 | Quad-fan, white finish, 3.8-slot |
| ROG Astral BTF RTX 5090 | Hidden-connector GC-HPWR, 3.8-slot |
| TUF Gaming RTX 5090 (this listing) | Triple-fan, military-grade build, 3.6-slot |
| ProArt RTX 5090 | Compact 2.5-slot, USB-C output, creator focus |
Datasheet & Downloads
| ASUS product page | TUF Gaming RTX 5090 on asus.com |
| Technical specifications | Full ASUS tech specs |
| Drivers & manuals | ASUS support downloads (GPU Tweak III, BIOS, manual) |
| NVIDIA drivers | NVIDIA GeForce Game Ready and Studio drivers |
Frequently Asked Questions — ASUS TUF Gaming RTX 5090
How is TUF different from ROG Astral?
Both use the full RTX 5090 with 32GB GDDR7. TUF uses three fans and a 3.6-slot cooler at 2580 MHz (OC mode); ROG Astral adds a fourth fan, Power Detector+ and higher 2610 MHz clocks in a 3.8-slot design.
Does it come with a 16-pin adapter?
Yes. A 1-to-4 adapter cable is included for power supplies without a native 16-pin cable.
What power supply do I need?
ASUS recommends 1000W for a fully overclocked CPU and GPU system.
What warranty do I get?
3 years ASUS warranty, supplied locally by SourceIT with a GST invoice.
