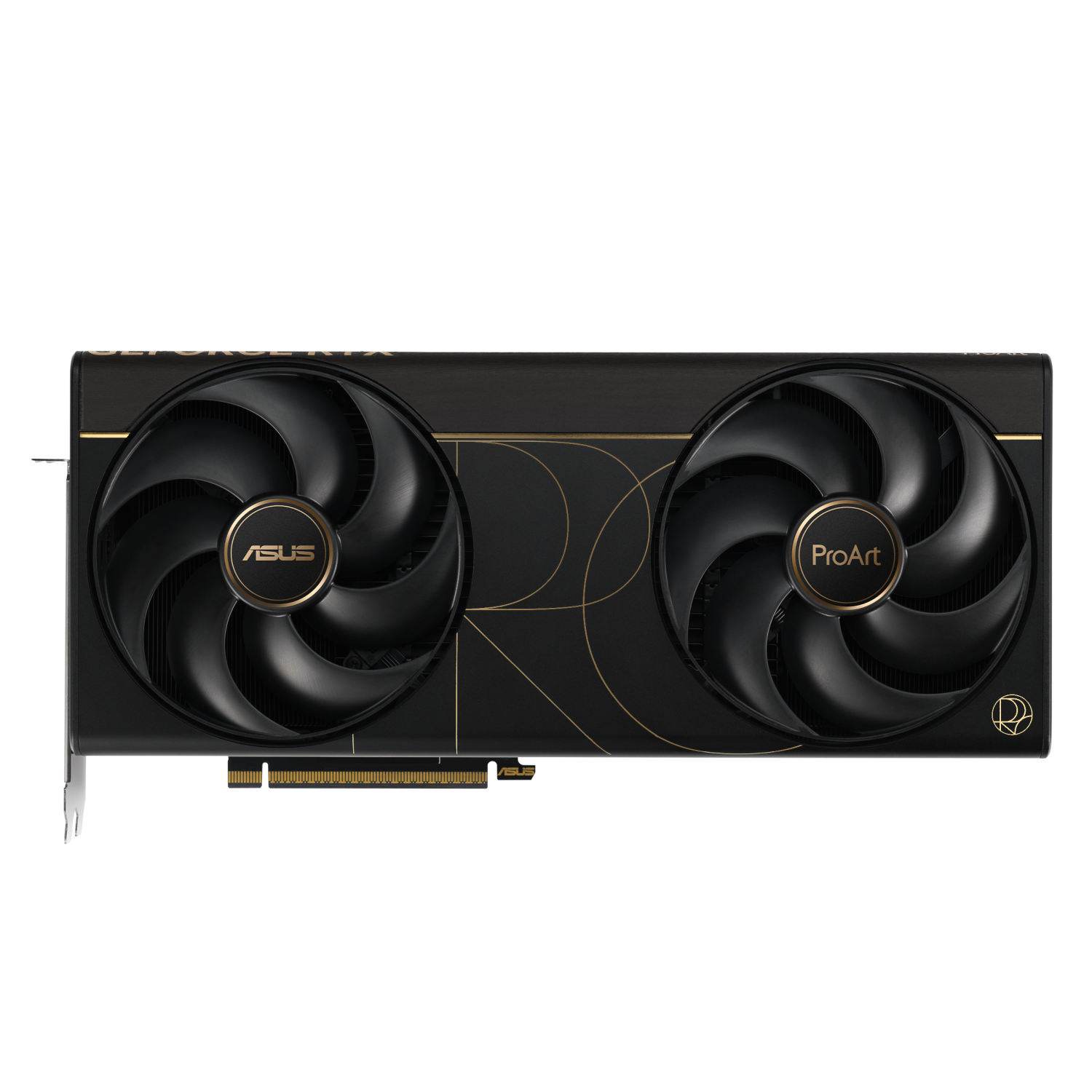

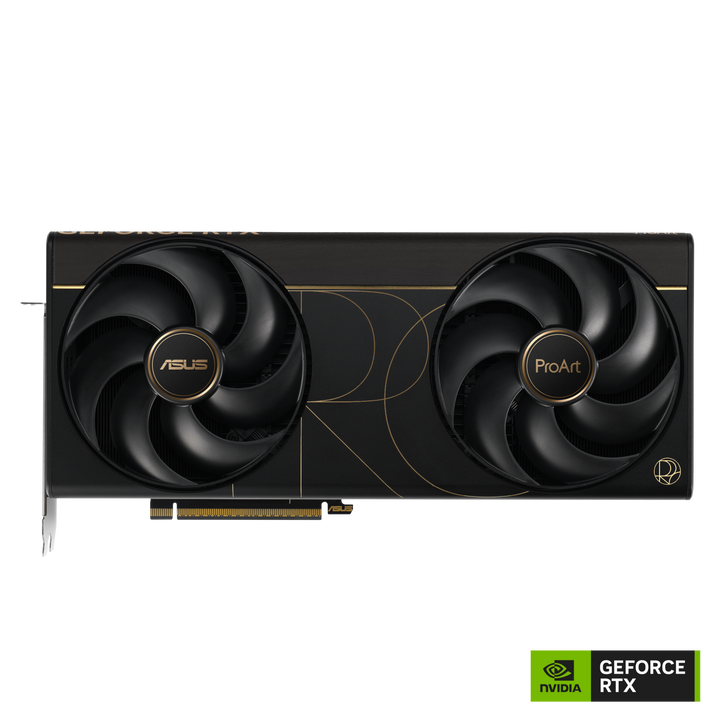

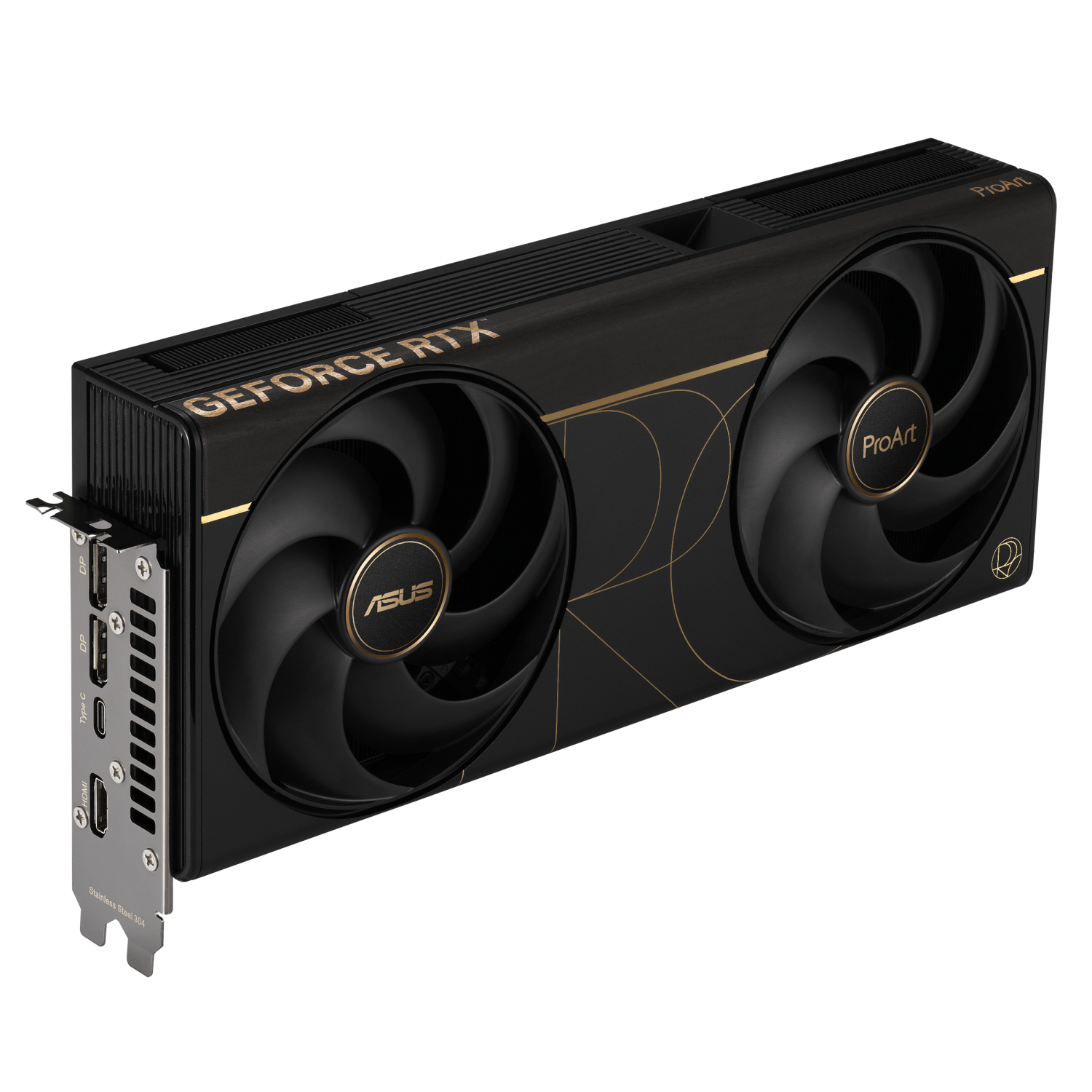

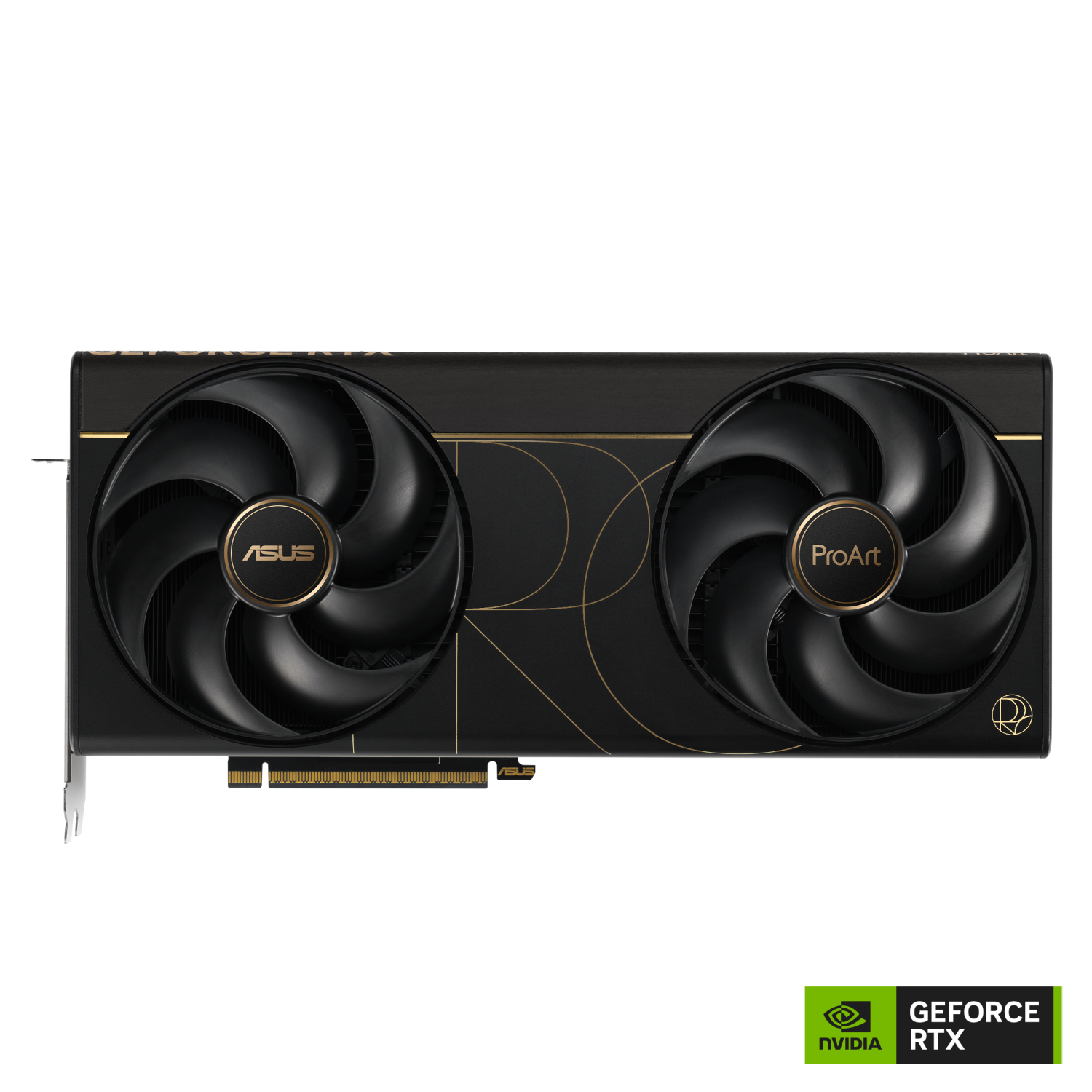

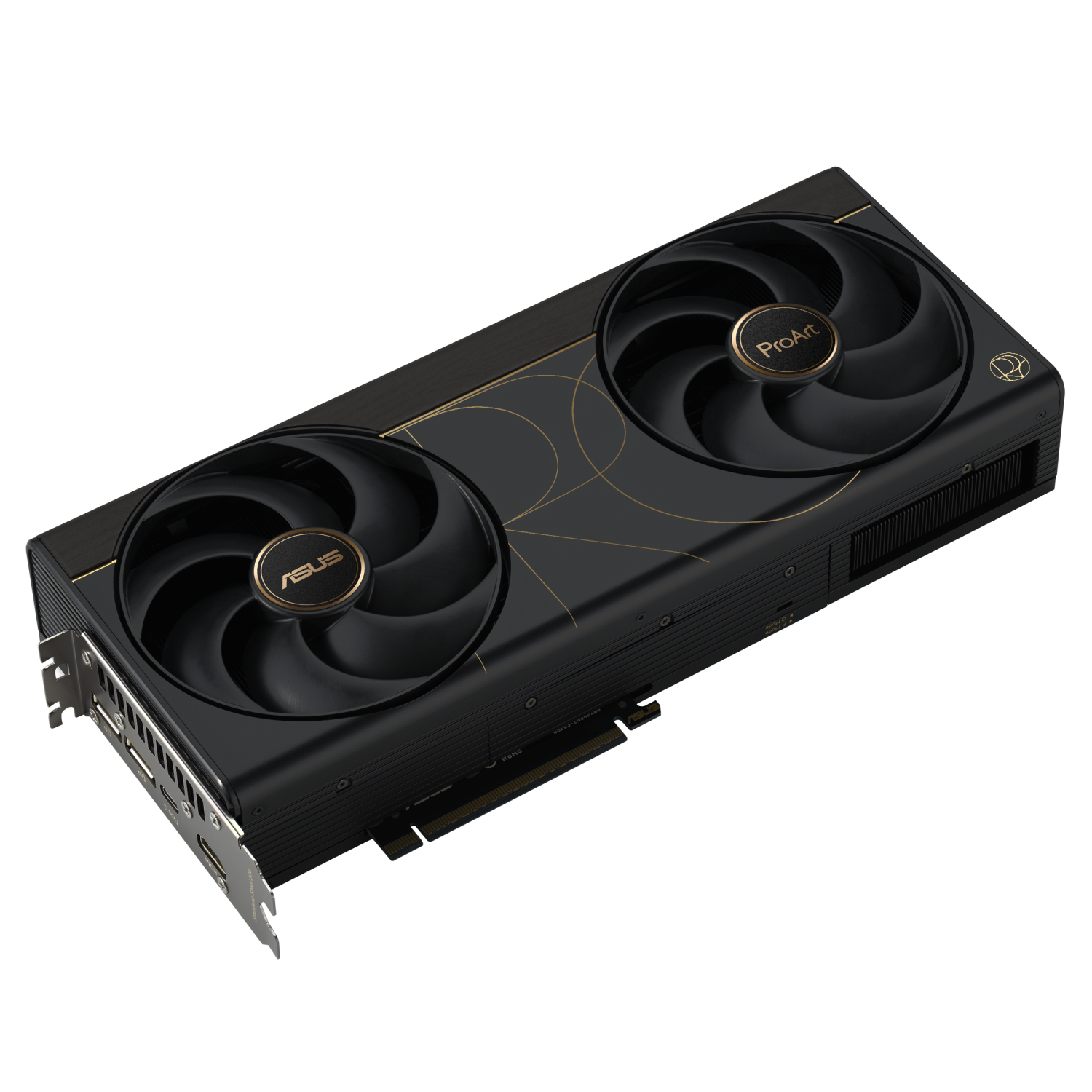

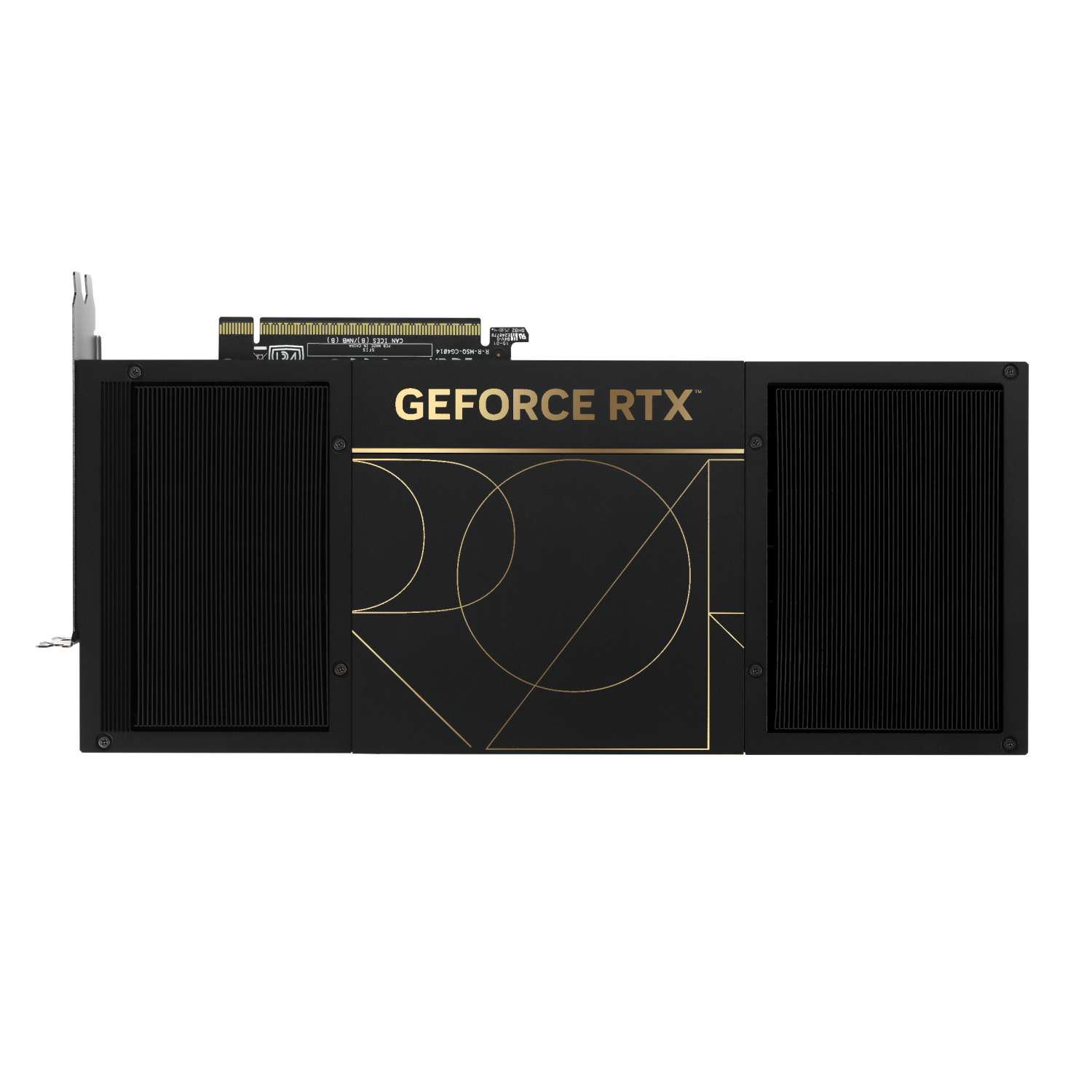

ASUS ProArt GeForce RTX 5090 32GB GDDR7 OC Edition 2.5-Slot Graphics Card
PRODUCT DESCRIPTION
ASUS ProArt GeForce RTX 5090 32GB GDDR7 OC Edition (PROART-RTX5090-O32G) - 3 Years Local Warranty
ASUS's First 2.5-Slot RTX 5090
ProArt RTX 5090 fits the full GeForce RTX 5090 with 32GB GDDR7 into a 2.5-slot, 304mm card that is SFF-Ready, so it suits compact workstations as well as full towers and leaves slots free for capture, audio or network cards.
Quiet, Efficient Cooling
Dual 115mm Axial-tech fans (20% more airflow and pressure, per ASUS), a custom vapor chamber, liquid metal on the GPU die and a double-vented backplate with up to 11% better heat dissipation keep clocks high without a large cooler. Dual BIOS switches between Performance and Quiet modes.
Built for Creators
Understated ProArt styling, NVIDIA Studio driver support and a USB Type-C video output alongside DisplayPort 2.1b and HDMI 2.1b make it a natural fit for video editing, 3D rendering and AI-assisted workflows. GPU Guard adhesive and a GPU bracket protect the die.
ASUS ProArt RTX 5090 Datasheet — Technical Specifications
General
| Product Name | ASUS ProArt GeForce RTX 5090 32GB GDDR7 OC Edition |
| Model | PROART-RTX5090-O32G |
| ASUS Part Number | 90YV0P00-M0NA00 |
| UPC | 199291502352 |
| Series | ProArt |
| Local Warranty (Singapore) | 3 years ASUS warranty, supplied by SourceIT with a GST invoice |
GPU
| Graphics Engine | NVIDIA GeForce RTX 5090 (Blackwell architecture) |
| AI Performance | 3,352 AI TOPS |
| CUDA Cores | 21,760 |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL 4.6 |
| Engine Clock | OC mode 2512 MHz; default mode 2482 MHz |
Memory
| Video Memory | 32GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 512-bit |
Display Outputs
| HDMI | 1 x native HDMI 2.1b |
| DisplayPort | 2 x native DisplayPort 2.1b |
| USB Type-C | 1 x USB Type-C (video output to compatible monitors) |
| HDCP | HDCP 2.3 |
| Max. Digital Resolution | 7680 x 4320 (8K) |
| Max. Simultaneous Displays | 4 |
Power & Cooling
| Recommended PSU | 1000W (ASUS figure, based on a fully overclocked CPU and GPU) |
| Power Connector | 16-pin; 1-to-4 adapter cable included |
| Cooling | Dual 115mm Axial-tech fans, custom vapor chamber, liquid metal on GPU die, double-vented backplate |
| BIOS | Dual BIOS (Performance / Quiet) |
Physical
| Dimensions | 304 x 140 x 50 mm (11.97 x 5.51 x 1.97 in) |
| Slot Width | 2.5 slots |
| SFF Ready | Yes |
Compatibility & Software Support
Motherboard
Needs a PCI Express x16 slot; runs at full PCIe 5.0 speed on Intel Z890/B860 and AMD X870E/X870/B850 boards, and is backward compatible with PCIe 4.0 slots.
Power Supply
ASUS recommends a 1000W PSU for a fully overclocked system. A native 16-pin (12V-2x6 / 12VHPWR) ATX 3.x PSU cable is preferred; a 1-to-4 adapter is included for older PSUs.
Case Fit
At 304mm long and 2.5 slots, it fits most mid-towers and many SFF-Ready compact cases. Confirm GPU length clearance of at least 305mm.
Operating Systems & Software
Windows 11 / Windows 10 64-bit and Linux with NVIDIA drivers. ASUS GPU Tweak III handles monitoring, fan curves and overclocking; NVIDIA Game Ready and Studio drivers cover gaming and creative apps.
Typical Use
4K and 8K high-refresh gaming with DLSS 4 Multi Frame Generation, 3D rendering, video editing and local AI/LLM inference that benefits from 32GB of VRAM.
Package Contents & ASUS GeForce RTX 5090 Ordering Information
In the Box
ProArt GeForce RTX 5090 OC Edition graphics card, Speedsetup manual, ProArt graphics card holder, ASUS hook-and-loop strap, thank-you card and a 1-to-4 adapter cable.
ASUS GeForce RTX 5090 Range at SourceIT
| Model | Key feature |
| ROG Astral LC (liquid-cooled) RTX 5090 | 360mm AIO, 2.5-slot card |
| ROG Astral RTX 5090 | Quad-fan air cooler, 3.8-slot |
| ROG Astral White RTX 5090 | Quad-fan, white finish, 3.8-slot |
| ROG Astral BTF RTX 5090 | Hidden-connector GC-HPWR, 3.8-slot |
| TUF Gaming RTX 5090 | Triple-fan, military-grade build, 3.6-slot |
| ProArt RTX 5090 (this listing) | Compact 2.5-slot, USB-C output, creator focus |
Datasheet & Downloads
| ASUS product page | ProArt RTX 5090 on asus.com |
| Technical specifications | Full ASUS tech specs |
| Drivers & manuals | ASUS support downloads (GPU Tweak III, BIOS, manual) |
| NVIDIA drivers | NVIDIA GeForce Game Ready and Studio drivers |
Frequently Asked Questions — ASUS ProArt RTX 5090
Will it fit a small-form-factor case?
It is SFF-Ready at 304 x 140 x 50 mm and 2.5 slots. Check your case's GPU length and slot clearance.
What is the USB-C port for?
It is a video output for monitors that accept a video signal over USB-C, alongside 2 x DisplayPort 2.1b and 1 x HDMI 2.1b.
Is it slower than the ROG Astral?
ASUS clocks it at 2512 MHz (OC mode) versus 2610 MHz on the ROG Astral, in exchange for a much smaller 2.5-slot cooler. CUDA cores and 32GB GDDR7 are identical.
Is it suitable for AI and rendering?
Yes. 32GB of GDDR7, 21,760 CUDA cores and NVIDIA Studio drivers suit Blender, DaVinci Resolve, Adobe apps and local AI models.
What warranty do I get?
3 years ASUS warranty, supplied locally by SourceIT with a GST invoice.
