ASUS ROG Astral LC GeForce RTX 5090 32GB GDDR7 OC Edition Liquid-Cooled Graphics Card
PRODUCT DESCRIPTION
ASUS ROG Astral LC GeForce RTX 5090 32GB GDDR7 OC Edition (ROG-ASTRAL-LC-RTX5090-O32G-GAMING) - 3 Years Local Warranty

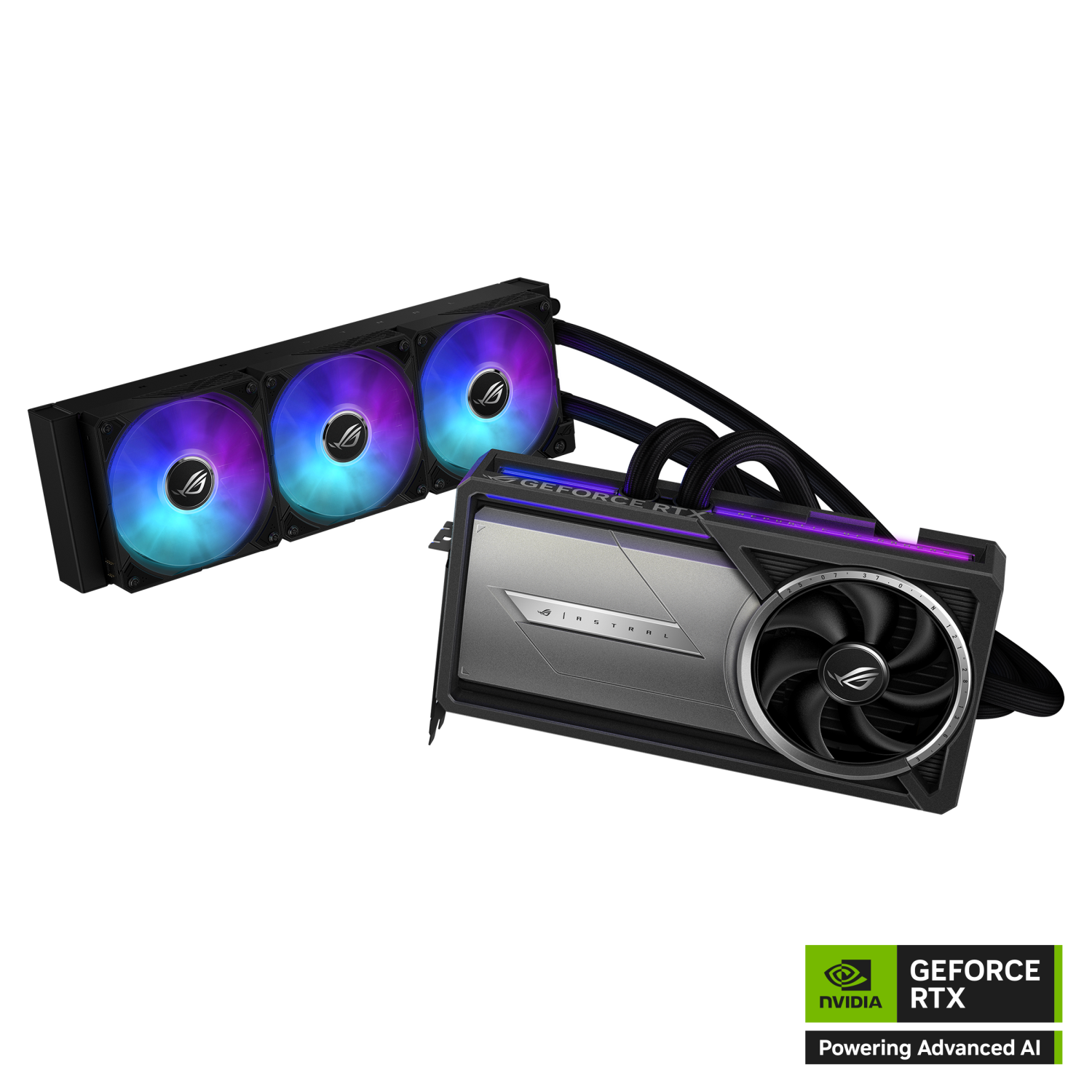

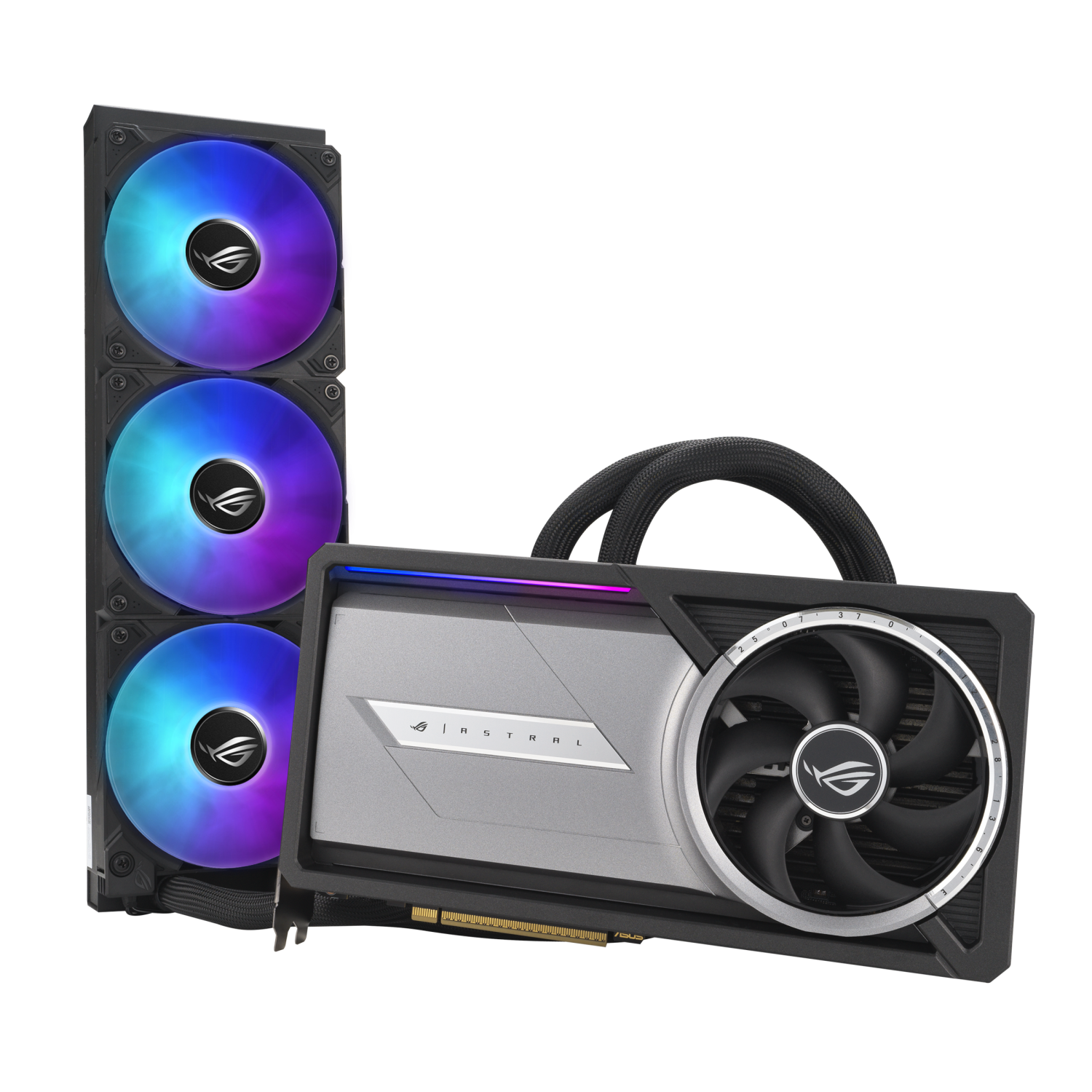

360mm AIO Liquid Cooling
The ROG Astral LC pairs the GeForce RTX 5090 with a pre-filled 360mm all-in-one liquid cooler. A full-coverage copper cold plate cools the GPU, VRAM and power stages, and the 360 x 38mm radiator has 50% more dissipation area than ASUS's previous generation, which ASUS rates at up to 30% better than pure air cooling.

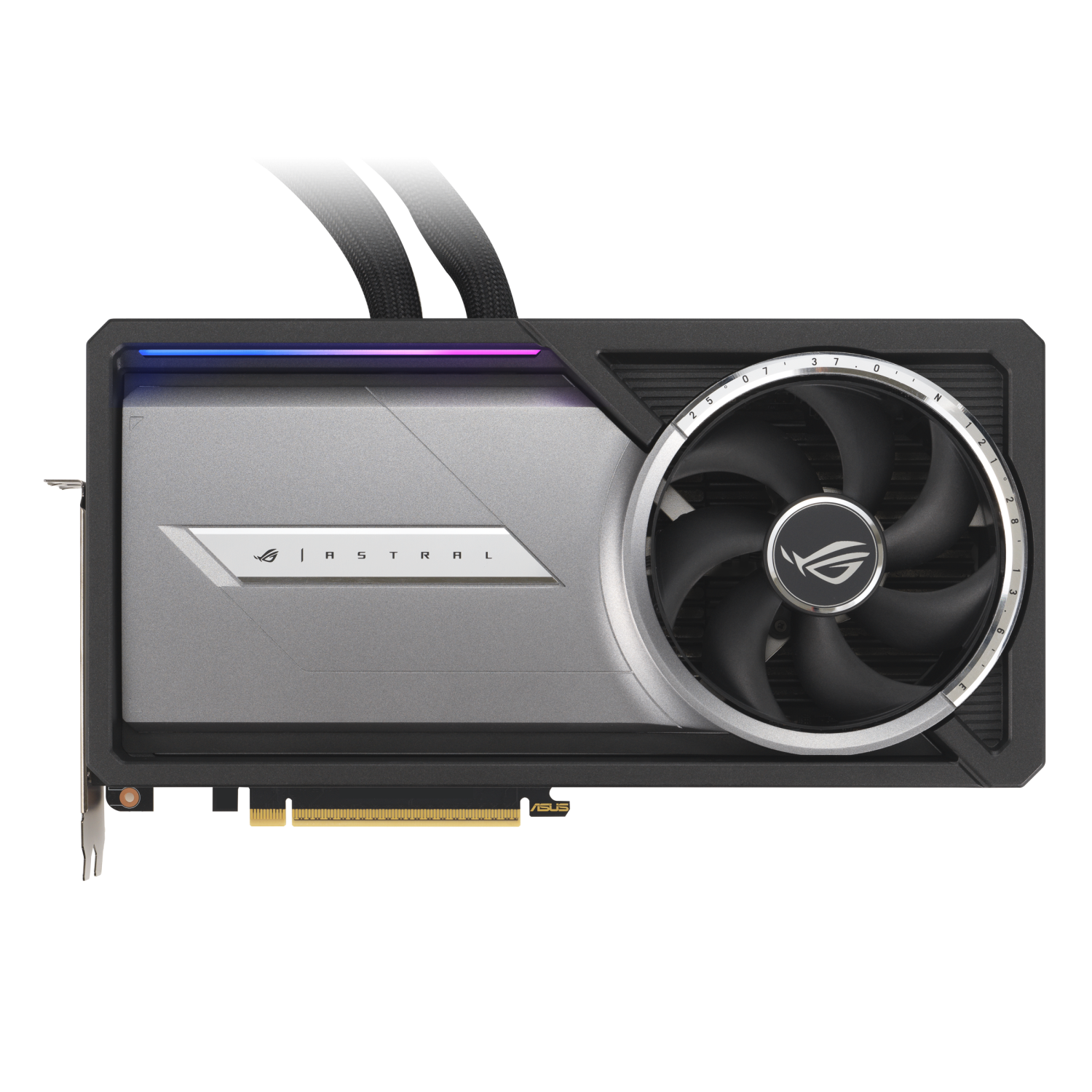

Compact 2.5-Slot Card
With the heat moved to the radiator, the card itself is only 2.5 slots thick (288.46 x 153.7 x 48 mm), leaving room for capture cards, NICs or extra NVMe adapters. An axial-tech fan and low-profile heatsink under the shroud keep the power-delivery components cool.
Power Detector+, Dual BIOS and GPU Guard
Power Detector+ monitors all six pins on the 16-pin cable, dual BIOS switches between Performance and Quiet fan behaviour, and GPU Guard adhesive plus a GPU bracket protect the die. 80-amp MOSFETs and a conformal-coated PCB round out the build.
ASUS ROG Astral LC RTX 5090 Datasheet — Technical Specifications
General
| Product Name | ASUS ROG Astral LC GeForce RTX 5090 32GB GDDR7 OC Edition |
| Model | ROG-ASTRAL-LC-RTX5090-O32G-GAMING |
| ASUS Part Number | 90YV0LW2-M0NA00 |
| UPC | 197105920811 |
| Series | ROG Astral |
| Local Warranty (Singapore) | 3 years ASUS warranty, supplied by SourceIT with a GST invoice |
GPU
| Graphics Engine | NVIDIA GeForce RTX 5090 (Blackwell architecture) |
| AI Performance | 3,352 AI TOPS |
| CUDA Cores | 21,760 |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL 4.6 |
| Engine Clock | OC mode 2610 MHz; default mode 2580 MHz (boost) |
Memory
| Video Memory | 32GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 512-bit |

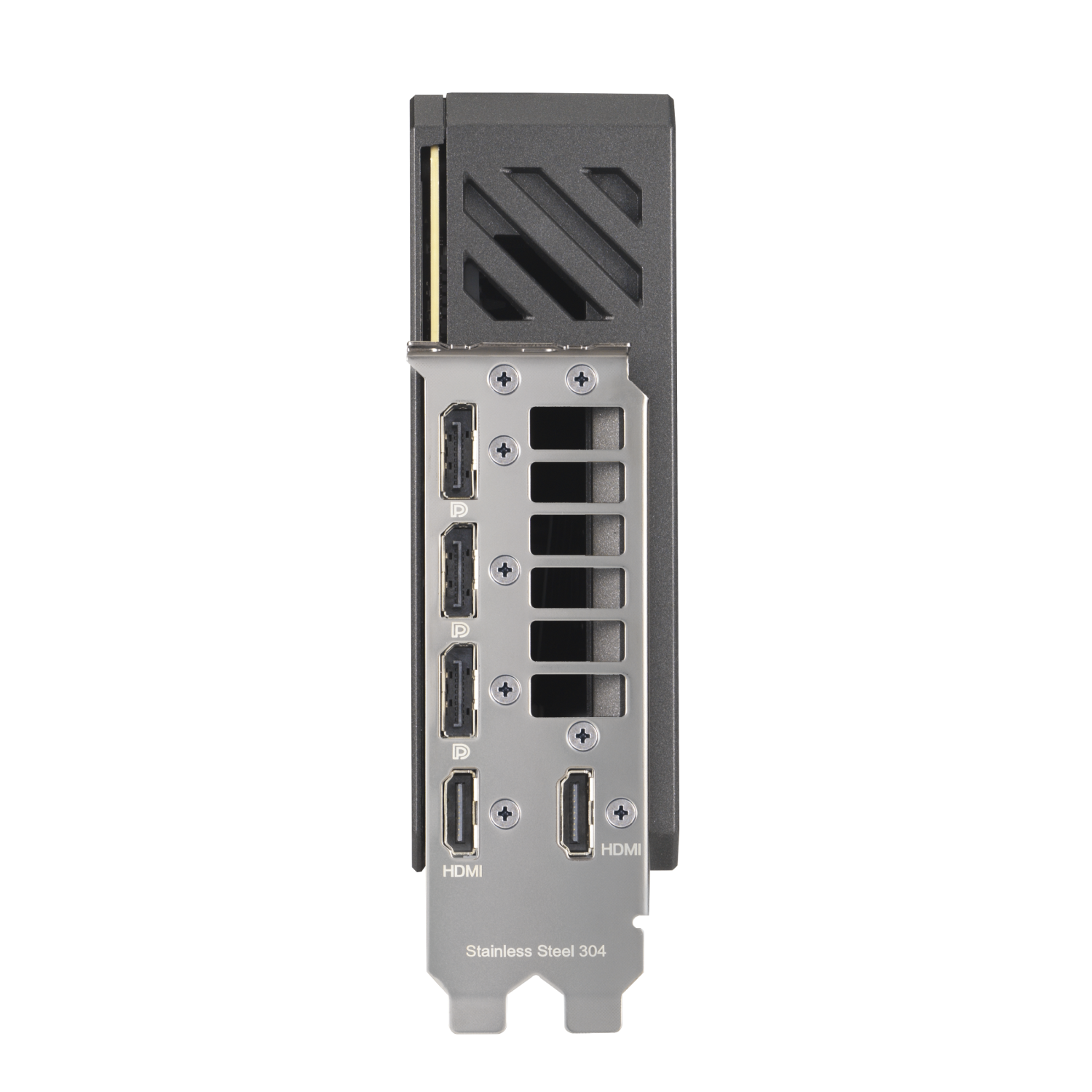

Display Outputs
| HDMI | 2 x native HDMI 2.1b |
| DisplayPort | 3 x native DisplayPort 2.1b |
| HDCP | HDCP 2.3 |
| Max. Digital Resolution | 7680 x 4320 (8K) |
| Max. Simultaneous Displays | 4 |
| NVLink / CrossFire | Not supported |
Power & Cooling
| Recommended PSU | 1000W (ASUS figure, based on a fully overclocked CPU and GPU) |
| Power Connector | 1 x 16-pin |
| Cooling | 360mm AIO liquid cooler (3 radiator fans), full-coverage copper cold plate, on-card axial fan for VRM, phase-change GPU thermal pad |
| BIOS | Dual BIOS (Performance / Quiet) |
| Lighting | Indirect ARGB, ASUS Aura Sync |
Physical
| Card Dimensions | 288.46 x 153.7 x 48 mm |
| Radiator Dimensions | 400 x 120 x 65 mm (360mm radiator) |
| Slot Width | 2.5 slots |
Compatibility & Software Support
Motherboard
Needs a PCI Express x16 slot; runs at full PCIe 5.0 speed on Intel Z890/B860 and AMD X870E/X870/B850 boards, and is backward compatible with PCIe 4.0 slots.
Power Supply
ASUS recommends a 1000W PSU for a fully overclocked system. A native 16-pin (12V-2x6 / 12VHPWR) ATX 3.x PSU cable is preferred; a 1-to-4 adapter is included for older PSUs.
Case Fit
The case needs a 360mm radiator mount (top or front) in addition to space for a 288mm, 2.5-slot card. Check tube reach between the PCIe slot and the radiator position before ordering.
Operating Systems & Software
Windows 11 / Windows 10 64-bit and Linux with NVIDIA drivers. ASUS GPU Tweak III handles monitoring, fan curves and overclocking; NVIDIA Game Ready and Studio drivers cover gaming and creative apps.
Typical Use
4K and 8K high-refresh gaming with DLSS 4 Multi Frame Generation, 3D rendering, video editing and local AI/LLM inference that benefits from 32GB of VRAM.
Package Contents & ASUS GeForce RTX 5090 Ordering Information
In the Box
ROG Astral LC GeForce RTX 5090 graphics card with attached 360mm AIO radiator and fans, Speedsetup manual, graphics card holder, hook-and-loop strap, magnet, PCB ruler, thank-you card and a 1-to-4 adapter cable.
ASUS GeForce RTX 5090 Range at SourceIT
| Model | Key feature |
| ROG Astral LC (liquid-cooled) RTX 5090 (this listing) | 360mm AIO, 2.5-slot card |
| ROG Astral RTX 5090 | Quad-fan air cooler, 3.8-slot |
| ROG Astral White RTX 5090 | Quad-fan, white finish, 3.8-slot |
| ROG Astral BTF RTX 5090 | Hidden-connector GC-HPWR, 3.8-slot |
| TUF Gaming RTX 5090 | Triple-fan, military-grade build, 3.6-slot |
| ProArt RTX 5090 | Compact 2.5-slot, USB-C output, creator focus |
Datasheet & Downloads
| ASUS product page | ROG Astral LC RTX 5090 on rog.asus.com |
| Technical specifications | Full ASUS tech specs |
| Drivers & manuals | ASUS support downloads (GPU Tweak III, BIOS, manual) |
| NVIDIA drivers | NVIDIA GeForce Game Ready and Studio drivers |
Frequently Asked Questions — ASUS ROG Astral LC RTX 5090
Does the AIO need to be filled or maintained?
No. It is a sealed, pre-filled all-in-one loop. Just mount the 360mm radiator in a compatible case position.
Will a 280mm radiator mount work?
No. The radiator is a 360mm unit (400 x 120 x 65 mm), so the case needs a 360mm mounting position.
Does it come with a 16-pin adapter?
Yes. A 1-to-4 adapter cable is included for power supplies without a native 16-pin cable.
What power supply do I need?
ASUS recommends 1000W for a fully overclocked CPU and GPU system. Size up if you run a high-end CPU with heavy overclocking.
Is it suitable for AI workloads?
Yes. The RTX 5090's 32GB of GDDR7 and 5th-gen Tensor Cores with FP4 support suit local LLM inference, Stable Diffusion and CUDA development.
What warranty do I get?
3 years ASUS warranty, supplied locally by SourceIT with a GST invoice.
