ASUS ROG Astral GeForce RTX 5090 32GB GDDR7 BTF OC Edition Graphics Card
PRODUCT DESCRIPTION
ASUS ROG Astral GeForce RTX 5090 32GB GDDR7 BTF OC Edition (ROG-ASTRAL-RTX5090-O32G-BTF-GAMING) - 3 Years Local Warranty
Cable-Free BTF Power Delivery
The BTF (Back-To-the-Future) edition has no 16-pin socket on top of the card. Power comes through a GC-HPWR gold-finger connector next to the PCIe slot, so the card draws power straight from a BTF motherboard and the 16-pin cable disappears from view. It is the cleanest way to run an RTX 5090 in a showcase build.
Quad-Fan Cooling with Patented Vapor Chamber

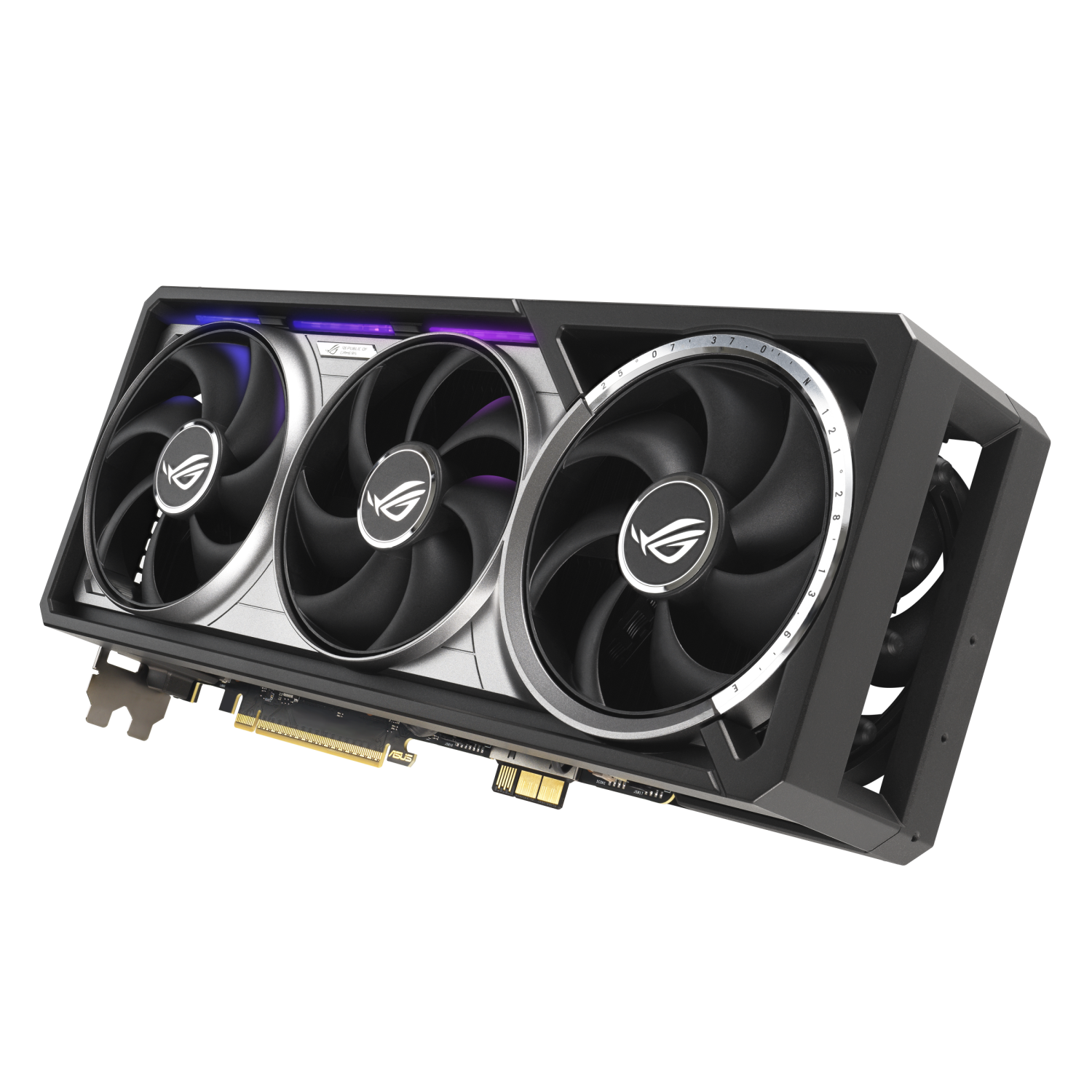

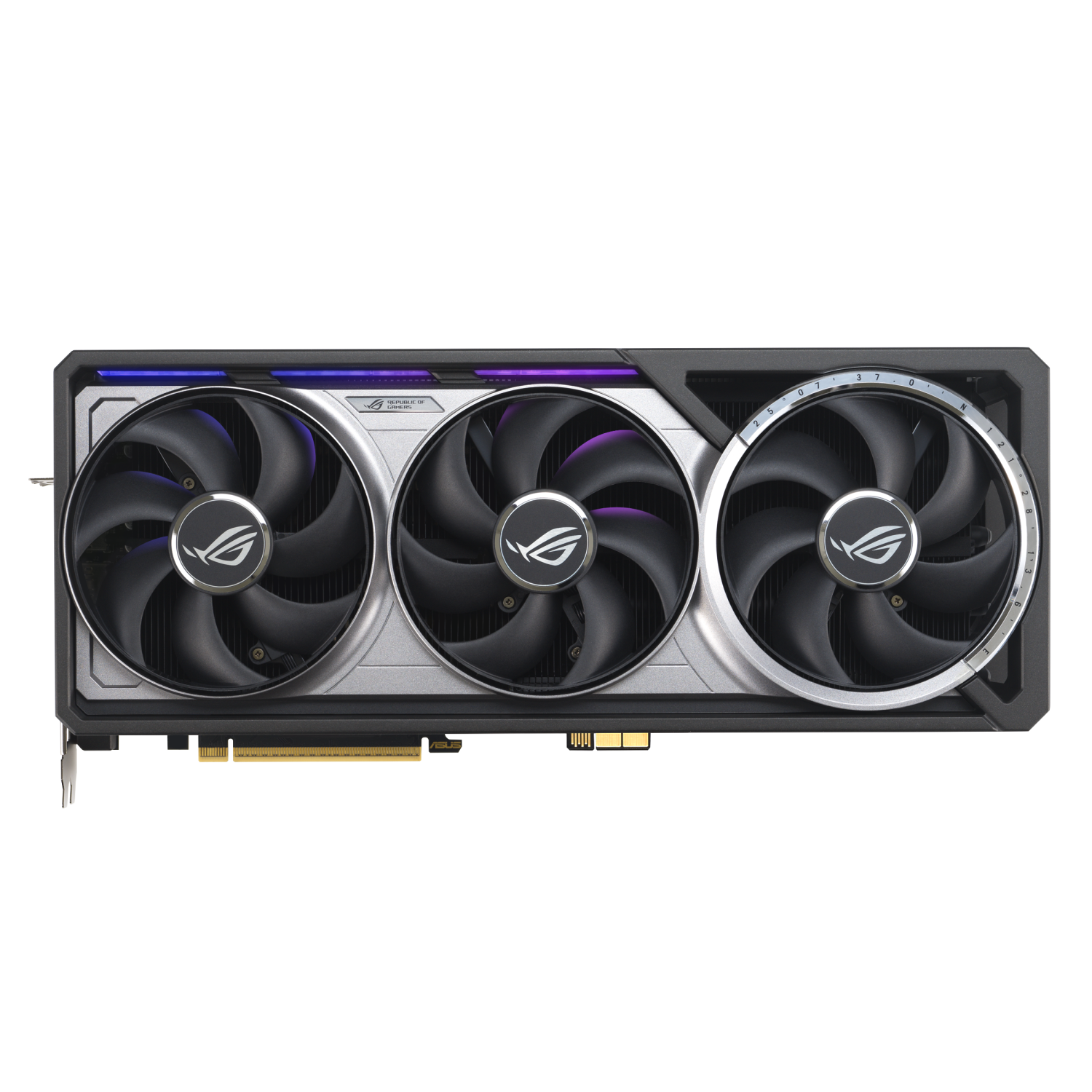

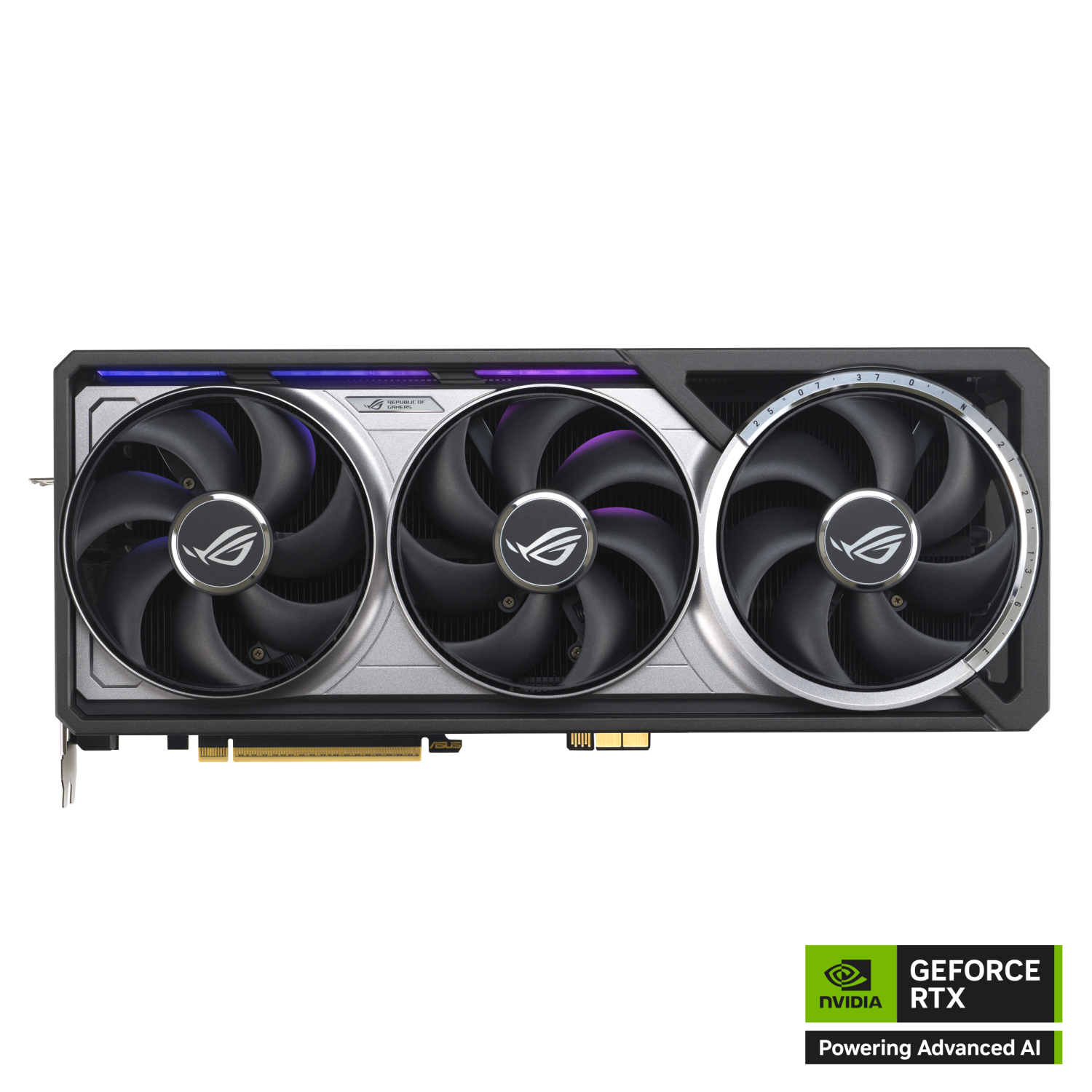

ROG Astral is ASUS's first quad-fan graphics card. The fourth fan lets ASUS pack the heatsink fins more densely and, by ASUS's figures, raises air pressure by up to 20%. A patented vapor chamber with milled heatpipe channels, ASUS MaxContact (5% more heat-spreader contact area) and a phase-change GPU thermal pad move heat away from the RTX 5090 die.
Built-in Health Monitoring
Embedded sensors across the VRMs, chokes and VRAM feed a thermal map in ASUS GPU Tweak III, and 80-amp MOSFETs give over 35% more headroom than the reference design.
Built to Last

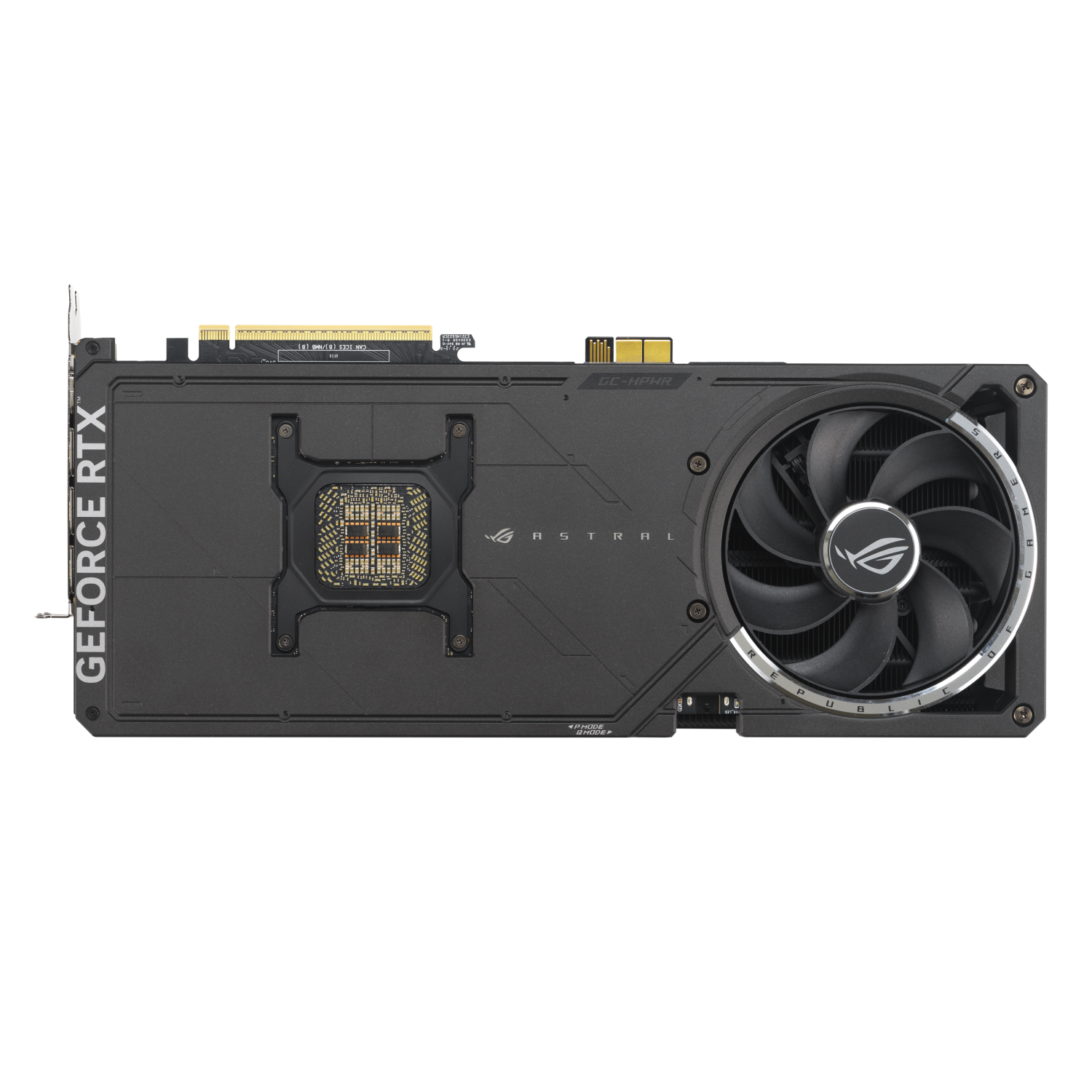

Die-cast frame, shroud and backplate, a 304 stainless-steel I/O bracket, ASUS GPU Guard adhesive on all four GPU corners plus a metal GPU bracket, and a conformal PCB coating against moisture and dust. A dual BIOS switch gives you Performance or Quiet fan behaviour at the same power target.
ASUS ROG Astral RTX 5090 BTF Datasheet — Technical Specifications
General
| Product Name | ASUS ROG Astral GeForce RTX 5090 32GB GDDR7 BTF OC Edition |
| Model | ROG-ASTRAL-RTX5090-O32G-BTF-GAMING |
| ASUS Part Number | 90YV0NF0-M0NA00 |
| UPC | 199291176379 |
| Series | ROG Astral BTF |
| Local Warranty (Singapore) | 3 years ASUS warranty, supplied by SourceIT with a GST invoice |
GPU
| Graphics Engine | NVIDIA GeForce RTX 5090 (Blackwell architecture) |
| AI Performance | 3,352 AI TOPS |
| CUDA Cores | 21,760 |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL 4.6 |
| Engine Clock | OC mode 2610 MHz; default mode 2580 MHz (boost) |
Memory
| Video Memory | 32GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 512-bit |

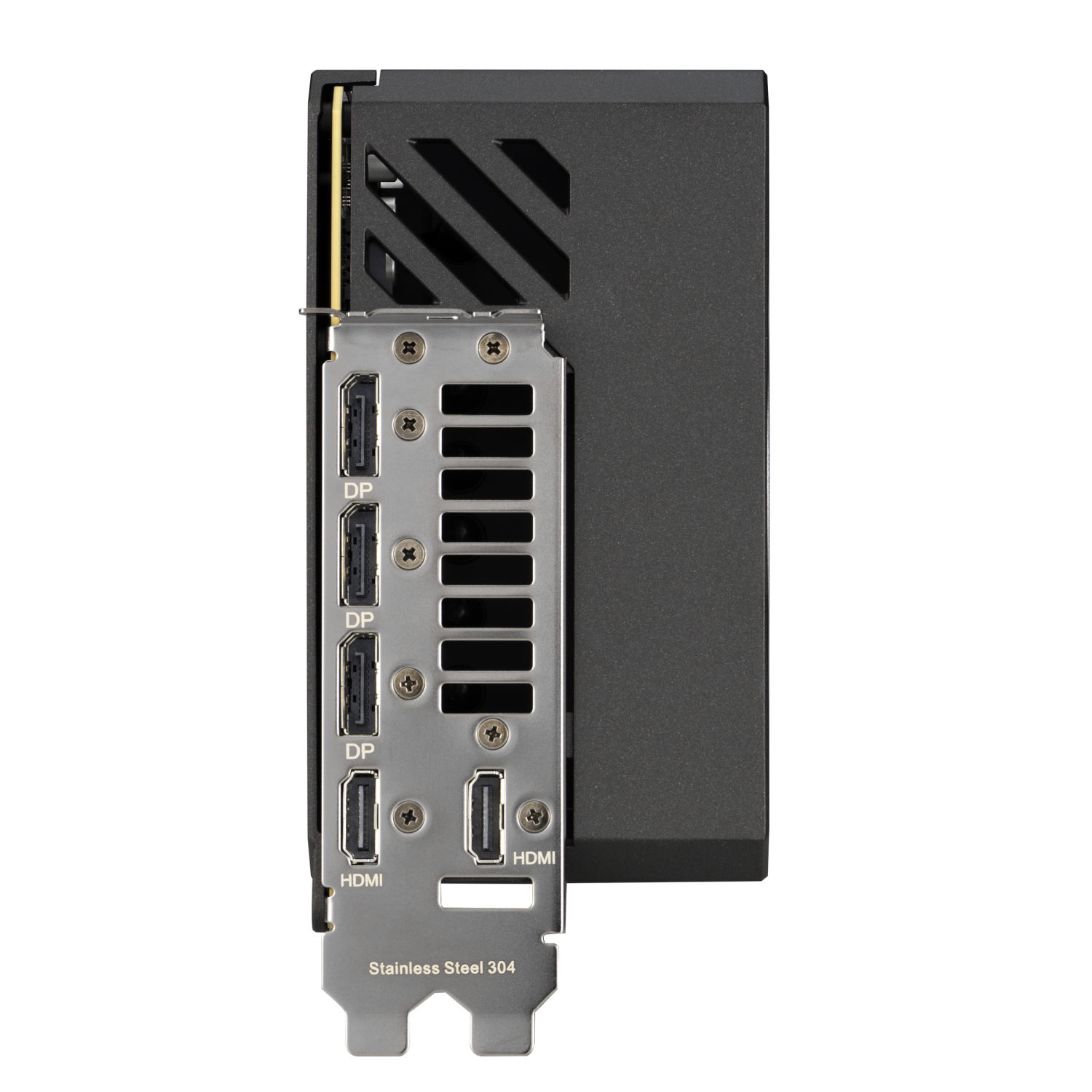

Display Outputs
| HDMI | 2 x native HDMI 2.1b |
| DisplayPort | 3 x native DisplayPort 2.1b |
| HDCP | HDCP 2.3 |
| Max. Digital Resolution | 7680 x 4320 (8K) |
| Max. Simultaneous Displays | 4 |
| NVLink / CrossFire | Not supported |
Power & Cooling
| Recommended PSU | 1000W (ASUS figure, based on a fully overclocked CPU and GPU) |
| Power Connector | 16-pin GC-HPWR (graphics card high-power) gold-finger edge connector, powered through a BTF motherboard |
| Cooling | Quad Axial-tech fans, patented vapor chamber, phase-change GPU thermal pad |
| BIOS | Dual BIOS (Performance / Quiet) |
| Lighting | ARGB, ASUS Aura Sync |
Physical
| Dimensions | 357.6 x 149.3 x 76 mm (14.1 x 5.9 x 3 in) |
| Slot Width | 3.8 slots |
Compatibility & Software Support
Motherboard (Important)
Requires an ASUS BTF motherboard with a GC-HPWR connector beside the PCIe x16 slot, such as the ROG / TUF / PRIME BTF boards. It will not receive power in a standard motherboard.
Power Supply
ASUS recommends a 1000W PSU for a fully overclocked system. The PSU feeds the motherboard's GC-HPWR input rather than the card directly.
Case Fit
Choose a BTF-ready case with rear motherboard connector cut-outs. The card is 357.6mm long and 3.8 slots thick.
Operating Systems & Software
Windows 11 / Windows 10 64-bit and Linux with NVIDIA drivers. ASUS GPU Tweak III handles monitoring, fan curves and overclocking.
Typical Use
Hidden-cable showcase gaming PCs and creator rigs that want RTX 5090 performance with no visible GPU power cable.
Package Contents & ASUS GeForce RTX 5090 Ordering Information
In the Box
ROG Astral GeForce RTX 5090 BTF OC Edition graphics card, Speedsetup manual, ROG graphics card holder, ROG hook-and-loop strap, ROG magnet, keycap, PCB ruler, thank-you card and an adapter cable (1 to 4).
ASUS GeForce RTX 5090 Range at SourceIT
| Model | Key feature |
| ROG Astral LC (liquid-cooled) RTX 5090 | 360mm AIO, 2.5-slot card |
| ROG Astral RTX 5090 | Quad-fan air cooler, 3.8-slot |
| ROG Astral White RTX 5090 | Quad-fan, white finish, 3.8-slot |
| ROG Astral BTF RTX 5090 (this listing) | Hidden-connector GC-HPWR, 3.8-slot |
| TUF Gaming RTX 5090 | Triple-fan, military-grade build, 3.6-slot |
| ProArt RTX 5090 | Compact 2.5-slot, USB-C output, creator focus |
Datasheet & Downloads
| ASUS product page | ROG Astral RTX 5090 BTF on rog.asus.com |
| Technical specifications | Full ASUS tech specs |
| Drivers & manuals | ASUS support downloads (GPU Tweak III, BIOS, manual) |
| NVIDIA drivers | NVIDIA GeForce Game Ready and Studio drivers |
Frequently Asked Questions — ASUS ROG Astral RTX 5090 BTF
Will this work on my normal motherboard?
No. The BTF edition is powered through a GC-HPWR edge connector and needs an ASUS BTF motherboard with that connector. For a standard board, choose the regular ROG Astral RTX 5090.
Do I still need a 16-pin cable from the PSU?
The PSU powers the motherboard's GC-HPWR input on the back of the board; there is no cable to the card itself.
Is performance different from the standard ROG Astral?
No. ASUS lists identical clocks, cooling and dimensions; only the power-delivery method differs.
What warranty do I get?
3 years ASUS warranty, supplied locally by SourceIT with a GST invoice.
