APC Replacement Battery Cartridge #35
PRODUCT DESCRIPTION
APC Replacement Battery Cartridge #35 (RBC35) - 2 Years Local Warranty

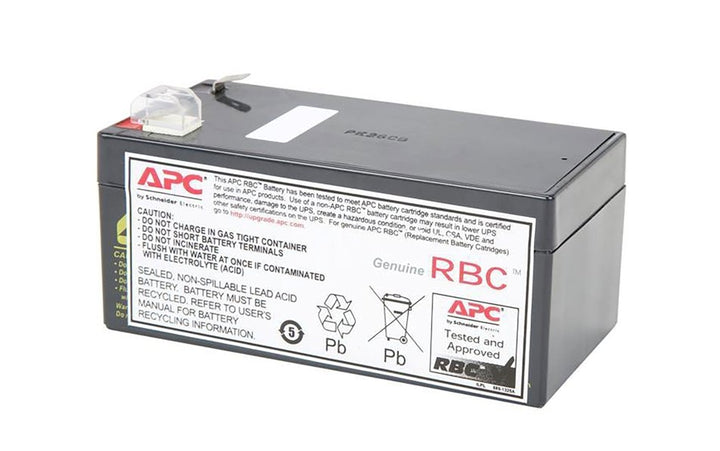

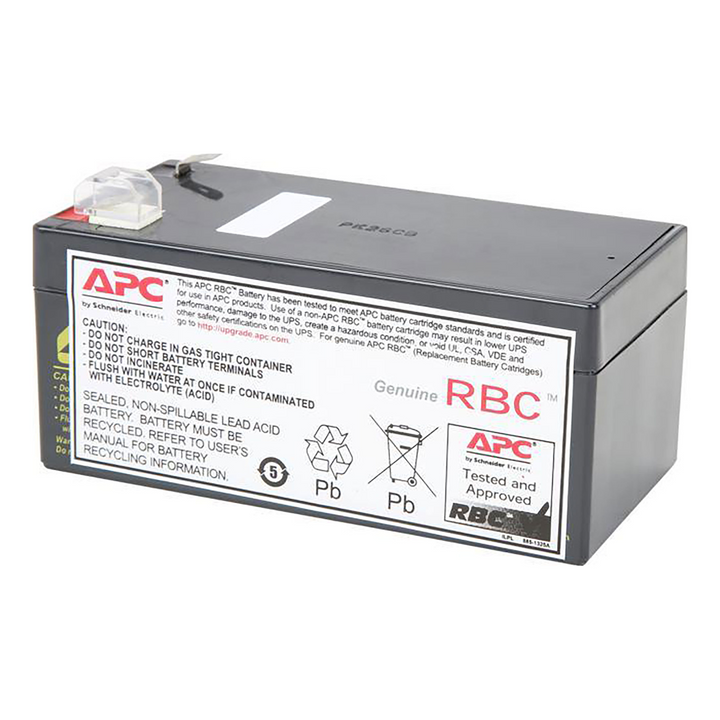

APC RBC35 Replacement Battery Cartridge — 12 V 3 Ah, the Smallest in the Range
The APC RBC35 is a single-block sealed lead-acid replacement battery cartridge rated 12 V, 3.0 Ah, measuring 66 x 58 x 134 mm and weighing just 1.4 kg. It is the smallest cartridge covered in this part of the APC range, and it serves the smallest units: the 350 VA Back-UPS ES desktop models.
Three sources agree on the rating — Schneider’s data sheet populates the battery-voltage field as 12 V with a single block, Schneider’s product page describes a 12 V 3.0 Ah lead-acid battery, and the distributor parametric data matches. For a cartridge of this vintage that is about as well-established as a figure gets.
A 1.4 kg Part That Was Listed at 5.5 kg
The corrections on this page are large. Capacity was shown as 9 Ah and is 3.0 Ah. Weight was shown as 5.5 kg and is 1.4 kg net, 1.68 kg packaged — the old figure overstated it by nearly four times. The dimensions were given as 151 x 65 x 100 mm and are 66 x 58 x 134 mm.
The certification line has gone too. Schneider publishes no UL or CE mark for this cartridge. What it does publish is a RoHS position of pro-active compliance with the product sitting outside the legal scope of the EU directive, which is a weaker and more specific statement than the badge the old listing carried, and it is reproduced here as written.
Before You Order: This Cartridge Has No Confirmed 230 V Host
Every host model that could be traced for the RBC35 is a 120 V North American Back-UPS ES 350 VA unit — the BE350C, BE350G, BE350R, BE350T and BE350U. The equivalent 350 VA machine sold on 230 V mains reportedly takes the RBC2 instead.
That makes the RBC35 an installed-base part here: genuinely the right cartridge if you are maintaining an imported or legacy ES 350, and probably the wrong one if your UPS was bought in Singapore. We would rather tell you that before you order than process a return afterwards.
Genuine APC Stock, GST Invoice, Local Warranty
SourceIT supplies the RBC35 as genuine APC stock in Singapore with a GST invoice and local warranty support, under Schneider’s two-year repair-or-replace cartridge warranty, which carries no regional split.
Not sure whether your unit takes an RBC35 or an RBC2? Open the battery compartment and read the number on the pack, or send us the model and serial number from the UPS label and we will check it for you at no charge.
APC RBC35 Datasheet — Technical Specifications
General
| Part Number (SKU) | RBC35 |
| Product Name | APC Replacement Battery Cartridge 35 with 2 Year Warranty |
| Product Type | Sealed lead-acid replacement battery cartridge, supplied assembled |
| Brand | APC by Schneider Electric |
| GTIN | Not published in the documents available for this cartridge |
| Manufacturer Warranty | 2-Year Manufacturer Warranty (APC by Schneider Electric) |
| Warranty Coverage | Local Warranty (Singapore) |
Battery Specifications
| Nominal Voltage | 12 V — stated in Schneider’s battery-voltage field |
| Capacity | 3.0 Ah |
| Battery Blocks | 1 — stated by Schneider |
| Chemistry | Sealed lead-acid (VRLA), maintenance-free |
| Expected Service Life | Not published by Schneider for this cartridge |
Physical & Environmental
| Dimensions (H x W x D) | 66 x 58 x 134 mm |
| Net Weight | 1.4 kg |
| Shipping Weight | 1.68 kg |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -15 to 45 °C |
| Relative Humidity | 0 to 95 percent, non-condensing |
| Operating Altitude | 0 to 10,000 ft |
| Storage Altitude | 0 to 15,240 m |
| RoHS Position | Pro-active compliance (product out of EU RoHS legal scope) — Schneider’s own wording |
| REACh | REACh declaration available from Schneider Electric |
Compatibility & Runtime
Reported hosts: the Back-UPS ES 350 VA family
Schneider publishes no host list for the RBC35. Two independent retailers and a customer account on Schneider’s own community forum name the BE350C, BE350G, BE350R, BE350T and BE350U — the 350 VA Back-UPS ES desktop range. The forum entry specifically pairs the RBC35 with the BE350U and, in the same breath, the RBC2 with the BE500U, which is a useful cross-check on both.
The explicit negative, and it matters here
No 230 V host was found for the RBC35 in any source. Every BE3xx designation above is a 120 V North American nameplate. The 230 V machine in the same power class, sold as the BK350-RS and BK350-GR, is reported to take the RBC2 rather than this cartridge.
So if your UPS was bought on Singapore mains, the RBC35 is probably not your part. If you are maintaining imported or legacy equipment, it may well be. Either way, the number printed on the pack you are removing settles it in seconds — and Schneider also publishes the UPS to RBC cross reference list.
Runtime
Twelve volts at 3 Ah is about 36 watt-hours before losses, which is a small store by design. A Back-UPS ES 350 exists to carry a router, a modem or a single desktop through a momentary interruption and to allow an orderly shutdown, not to work through an outage. On these units only the battery-backed sockets draw on the cartridge at all; the surge-only sockets go dead the moment mains fails, so what is plugged into which side determines the runtime you actually see.
Hot-swap: not claimed
Schneider’s hot-swap position covers Smart-UPS models with user-replaceable batteries, and the Back-UPS ES family sits outside it. Switch the unit off and unplug it from the wall before opening the battery compartment.
Package Contents & RBC Series Ordering Information
In the box
One assembled APC RBC35 cartridge with the APC installation instruction sheet. Schneider publishes no colour or rack-mount rating for this part, which at 1.4 kg is very much a desktop component.
Small APC cartridges at SourceIT
Cartridge numbers in this range are not interchangeable. Two cartridges can share a case, a weight and a chemistry and still differ in voltage, capacity or connector, so the number printed on the pack you are removing is the only safe way to order a replacement.
| RBC35 (this listing) | 12 V, 3.0 Ah, single block, 1.4 kg — Back-UPS ES 350 VA, 120 V hosts only |
| RBC2 | The cartridge reported for the 230 V 350 VA machines — check this one first if your UPS was bought locally |
| RBC29 | 12 V, 4.5 Ah, single block — Back-UPS ES |
| RBC30 | 12 V, 5.1 Ah, single block — Back-UPS |
| RBC3 | 12 V, 10 Ah, single block — a much larger desktop cartridge |
Disposal
Small as it is, this is still a lead-acid cell and does not belong in household waste. Return the exhausted cartridge to us with the order reference and we will put it into the correct recycling stream.
Datasheet & Downloads
- Schneider Electric product page for the APC RBC35
- Schneider Electric product data sheet for the RBC35 (as mirrored by RS Components, an authorised distributor)
- APC UPS to RBC Cross Reference List (document UPS_to_RBC_EN)
- Replacement Battery Cartridge manual for Back-UPS and Smart-UPS (SPD_JHSH-7ENFZG_EN)
- Safety data sheet for APC sealed lead-acid battery cartridges (v3.3, 24 Sep 2025)
The data sheet linked above was opened and the part number printed inside checked against this listing. That check is not a formality in this range: several files in distributor libraries are indexed under one cartridge number and turn out to contain another’s document entirely. Schneider’s own download host is not linked, because it redirects across domains and has repeatedly served the wrong model’s document.
Frequently Asked Questions — APC RBC35
Is the RBC35 3 Ah or 9 Ah?
3.0 Ah. Schneider’s data sheet and product page both say 12 V 3.0 Ah, single block, and the 1.4 kg weight fits. The 9 Ah shown previously was boilerplate copied across many cartridge listings and was wrong by a factor of three.
Will it fit my UPS if I bought it in Singapore?
Possibly not. Every host traced for the RBC35 is a 120 V North American Back-UPS ES 350 VA unit, and the 230 V machine in the same class reportedly takes the RBC2 instead. Read the number printed on the cartridge in your unit before ordering, or send us the UPS model and serial and we will check.
Why is it so much lighter than the old listing said?
Because the old figure was wrong. It gave 5.5 kg for a 1.4 kg part, an overstatement of almost four times, and the same 5.5 kg appeared on several unrelated cartridge listings in the same catalogue.
What runtime will it give?
Minutes, and how many depends entirely on the load. About 36 watt-hours of stored energy before losses is enough for a router and an ONT to ride out a short interruption, or for a desktop to shut down cleanly. It is not enough to work through an outage, and it was never designed to be.
Is it RoHS compliant?
Schneider’s wording is more specific than that: pro-active compliance, with the product sitting outside the legal scope of the EU RoHS directive. That is what its data sheet says and it is what is published here. There is no UL or CE mark for this cartridge in any Schneider document, so neither is claimed.
Can I replace it with the UPS still on?
No. Schneider’s hot-swap statement is scoped to Smart-UPS models with user-replaceable batteries and does not cover the Back-UPS ES family. Switch off, unplug from the wall, then open the compartment.
Does it come with a local Singapore warranty?
Yes. Every APC RBC35 sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the RBC35 with a 2-year manufacturer warranty. Schneider states the term as two years, repair or replace, with no regional split, so the figure above is the one that applies in Singapore.
