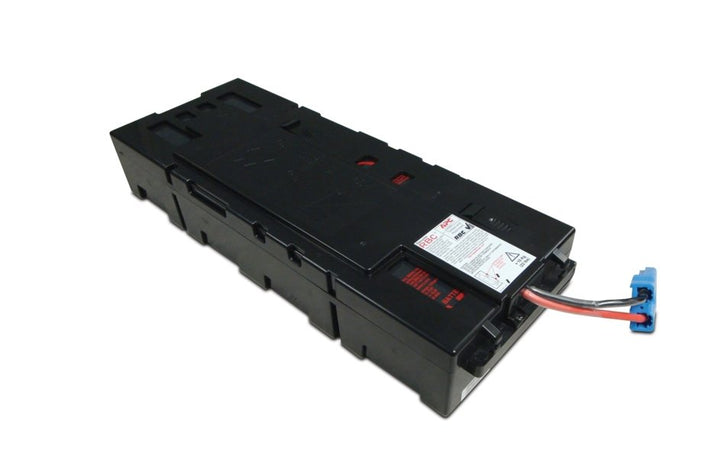

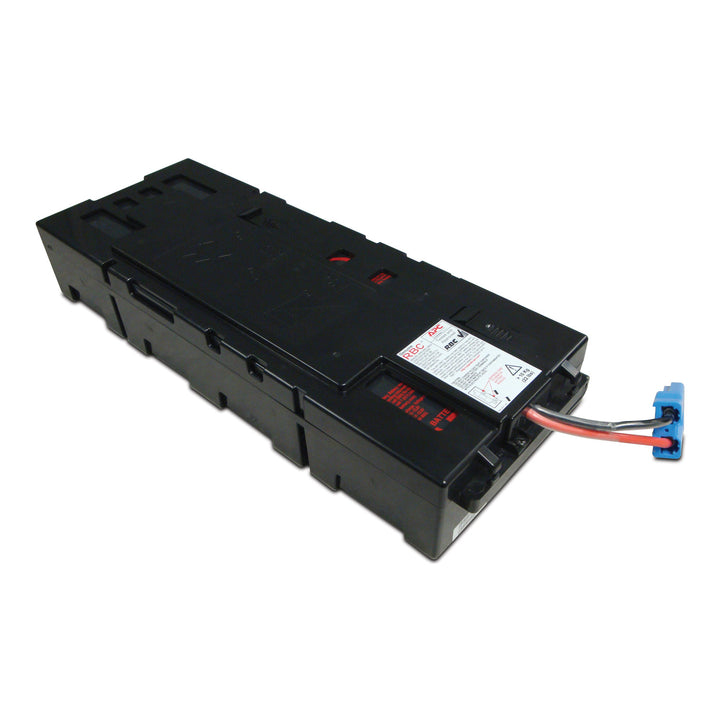

APC Replacement Battery Cartridge #116

General

Battery Specifications

Physical & Environmental

Every figure above is taken from Schneider Electric's own published documentation for this exact part number. Where Schneider does not publish a value, the row says so rather than carrying a figure borrowed from a similar cartridge — APC ratings differ between parts that look identical.

UPS models this cartridge is specified for. The SMX750I assignment is confirmed by Schneider's own product data sheet for that UPS, which names APCRBC116 as its replacement battery.

The Smart-UPS X operation manual covering SMX750I, SMX750INC, SMX1000I, SMX1500RMI2U and SMX1500RMI2UNC names APCRBC116 and APCRBC115 together for that group of models; Schneider's 120 V product records assign APCRBC116 specifically to the 750 VA builds (SMX750C, SMX750CNC) and APCRBC115 to the 1500 VA builds. If your unit is a 1500 VA Smart-UPS X rack model, the cartridge you want is APCRBC115.

Electrical fit. Schneider's product data sheet rates this cartridge at 48 V DC. Note that some catalogue entries, including Schneider's own marketing metadata, show 12 V 7.0 Ah for this part — that is the rating of a single battery block inside the assembly, not the cartridge rating, and the 10.45 kg net weight confirms a multi-block tray. A UPS will only accept the cartridge built for it: the charger, the runtime calculation and the low-battery cut-off are all set for a specific pack.

Runtime after replacement. A new cartridge restores the runtime the UPS was rated for when new; it does not add runtime beyond that. How long that actually is depends entirely on how heavily the UPS is loaded — a unit at a quarter load runs for considerably longer than the same unit near its rated output. Schneider does not publish runtime figures against the cartridge itself, only against the UPS, so if you need a runtime target for a specific rack load, send us the load in watts and the UPS model and we will size it properly rather than quote a number that will not hold.

Installation. The cartridge is supplied fully assembled with its connectors already fitted, so replacement is a slide-out, slide-in operation rather than a wiring job. Schneider does not publish a statement about whether this particular cartridge may be changed with the UPS energised, so follow the installation guide that ships in the box for the correct sequence on your model, and treat the pack as live: these are high-current lead-acid assemblies and a shorted terminal is a genuine hazard. If you would rather not do it in-house, ask us and we will look at arranging it for you.

In the Box

The cartridge is supplied fully assembled with all required connectors pre-fitted. Schneider does not publish an itemised package contents list for this part number, so we do not invent one.

APC Smart-UPS X Replacement Cartridges Stocked by SourceIT

Matching UPS Models

If you are replacing the UPS rather than the battery, or adding a second unit, these are the models this cartridge is specified for:

Ordering notes. Quote the part number APCRBC116 on your purchase order — the cartridge number, not the UPS model, is what determines what ships. This cartridge is a lead-acid assembly and travels as such: net weights across the APC RBC range run from under 3 kg to over 30 kg, so check the physical specifications above before you arrange a courier. We can supply the cartridge on its own, or alongside a network management card, rack PDU or a replacement UPS on a single GST invoice.

• Schneider Electric product page for APCRBC116 — official product identity, environmental data and document library (Australia catalogue)
• Smart-UPS X-Series Replacement Battery Cartridge — user guide
• Operation manual — Smart-UPS SMX 750/1000/1500 VA Rack-Mount 2U (names APCRBC116 and APCRBC115)
• Product Safety Data Sheet — APC rechargeable lead-acid RBC and battery packs

Schneider Electric serves its PDF datasheets from a download host that redirects and does not reliably return the document you asked for, so we do not publish direct PDF links here — a link that hands you another model's datasheet is worse than no link at all. If you need the signed product data sheet, the installation guide or a written confirmation of fitment for your unit, email us the UPS model number and we will send the current document across.

Which APC UPS models does the APCRBC116 fit?

Schneider specifies it for the 750 VA and 1000 VA Smart-UPS X models, which in the 230 V range sold here are the SMX750I and SMX1000I. The SMX750I assignment comes from Schneider's own data sheet for that UPS. If your model is not named here, send us the part number from the rear label and we will confirm the correct cartridge in writing before you order.

Why do some listings say this cartridge is 12 V?

Schneider rates the complete cartridge at 48 V DC in its product data sheet. You will see 12 V 7.0 Ah quoted for this part in some catalogue entries, including Schneider's own marketing metadata: that is the rating of one battery block inside the assembly, not of the cartridge. The net weight settles it — a 12 V block of this capacity weighs roughly 2.5 kg, and this cartridge weighs 10.45 kg, so it is a multi-block assembly. It matters because a charger set for one voltage will not correctly service a pack of another.

How do I make sure I am ordering the right cartridge?

Read the model number off the label on the rear or side of the UPS and select against that, never against the part number of the battery already inside it and never against the VA rating alone. Schneider says the same thing on its APC UPS Replacement Battery Cartridge Selector Tool: two units of identical capacity in tower and rack form take different cartridges, and a SmartConnect or network-card build often differs from the standard build of the same model. Send us the model number and we will confirm the correct cartridge in writing before you order.

Can I fit the cartridge myself?

Mechanically, yes. The cartridge ships fully assembled with its connectors already fitted, so it is a slide-out, slide-in job that needs no wiring and, on most models, no tools. Whether it can be changed with the UPS still running depends on the model, and Schneider does not publish that statement for this cartridge, so follow the installation guide in the box for the correct sequence rather than assuming either way. Treat the pack as live throughout — it is a high-current lead-acid assembly. If the unit is protecting something you would rather not gamble on, ask us about arranging the replacement.

How long should the cartridge last?

Schneider does not publish a service-life figure against this particular part number. Its general guidance for sealed lead-acid replacement cartridges is three to five years, and in Singapore the climate is the deciding factor: cells age markedly faster when they run warm, so a unit in an air-conditioned rack will comfortably reach the top of that range while one in a hot riser or an unventilated cabinet may not. Replace on age and on the UPS's own battery-fault warning rather than waiting for an outage to test it.

What do I do with the old cartridge?

Do not put it in general waste. A UPS cartridge is a sealed lead-acid assembly and is regulated waste in Singapore. Schneider supplies battery recycling information with the cartridge, and SourceIT can look at arranging collection of the exhausted pack for proper recycling when the replacement is delivered — tell us when you order so it can be scheduled with the delivery.

Is this a genuine APC part, and what does the warranty cover?

Yes. Every APC Replacement Battery Cartridge #116 (APCRBC116) sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the APCRBC116 with a 2-year manufacturer warranty, stated as 2 years repair or replace. Schneider publishes this term worldwide with no regional variation, so the Singapore figure is the same 2 years quoted elsewhere — unlike some APC UPS families, where the European figure is higher and does not apply to a Singapore supply.
