APC Easy UPS On-Line Li-Ion SRVL 6kVA 6kW Rack/Tower 5U 230V Extended Runtime
PRODUCT DESCRIPTION
APC Easy UPS On-Line Li-Ion SRVL 6kVA/6kW Rack/Tower 5U 230V Extended Runtime with Rail Kit (SRVL6KRILRK) - 3 Years Local Warranty
6 kVA / 6 kW On-Line Double Conversion with a Lithium-Ion Pack
The APC Easy UPS On-Line Li-Ion SRVL6KRILRK is the 6 kVA model of the lithium-ion Easy UPS On-Line range, rated at 6 kVA / 6 kW — a unity power factor build, so the full 6000 W is available to the load. It is supplied as a complete extended-runtime kit: a 2U power module, a 3U SRVL48RMBP3U lithium-ion battery pack (48 V, 4800 Wh) and the rail kit, occupying 5U in total. The load runs from the inverter continuously on a 230 V sine wave, with the rectifier absorbing the sags, brownouts and switching transients of a loaded Singapore riser.
At this rating the SRVL6KRILRK is a hardwired product: input and output are a single 1P+N+E hardwire connection each, so it is installed by a licensed electrical worker on a dedicated circuit and normally feeds a rack PDU rather than individual IEC leads. That is the same arrangement as the lead-acid SRV6KRIRK it sits alongside in our catalogue.
Why Lithium-Ion at 6 kVA
A 6 kVA lead-acid UPS carries a heavy VRLA bank that needs replacing every three to five years in a warm Singapore plant room, and each replacement is a lift-and-swap job on a live rack. Schneider Electric describes the SRVL lithium-ion battery as minimising the need to replace the battery during the UPS lifetime, and backs it with a five-year repair-or-replace warranty on the battery against three years on the UPS itself. Fewer battery cycles, less weight per watt-hour and a smaller footprint are the practical gains.
Scalable Runtime with SRVL48RMBP3U Packs
Schneider Electric's product page states that up to three external SRVL48RMBP3U packs can be added to this model for extended runtime. Each pack is a 3U, 48 V, 4800 Wh unit, so a rack with one power module and the maximum pack count is a serious runtime installation rather than a ride-through UPS. Runtime figures for this model are not printed on the Schneider product page, so we do not print them here; send us your load and hold-up time and we will size it from the manufacturer's runtime data.

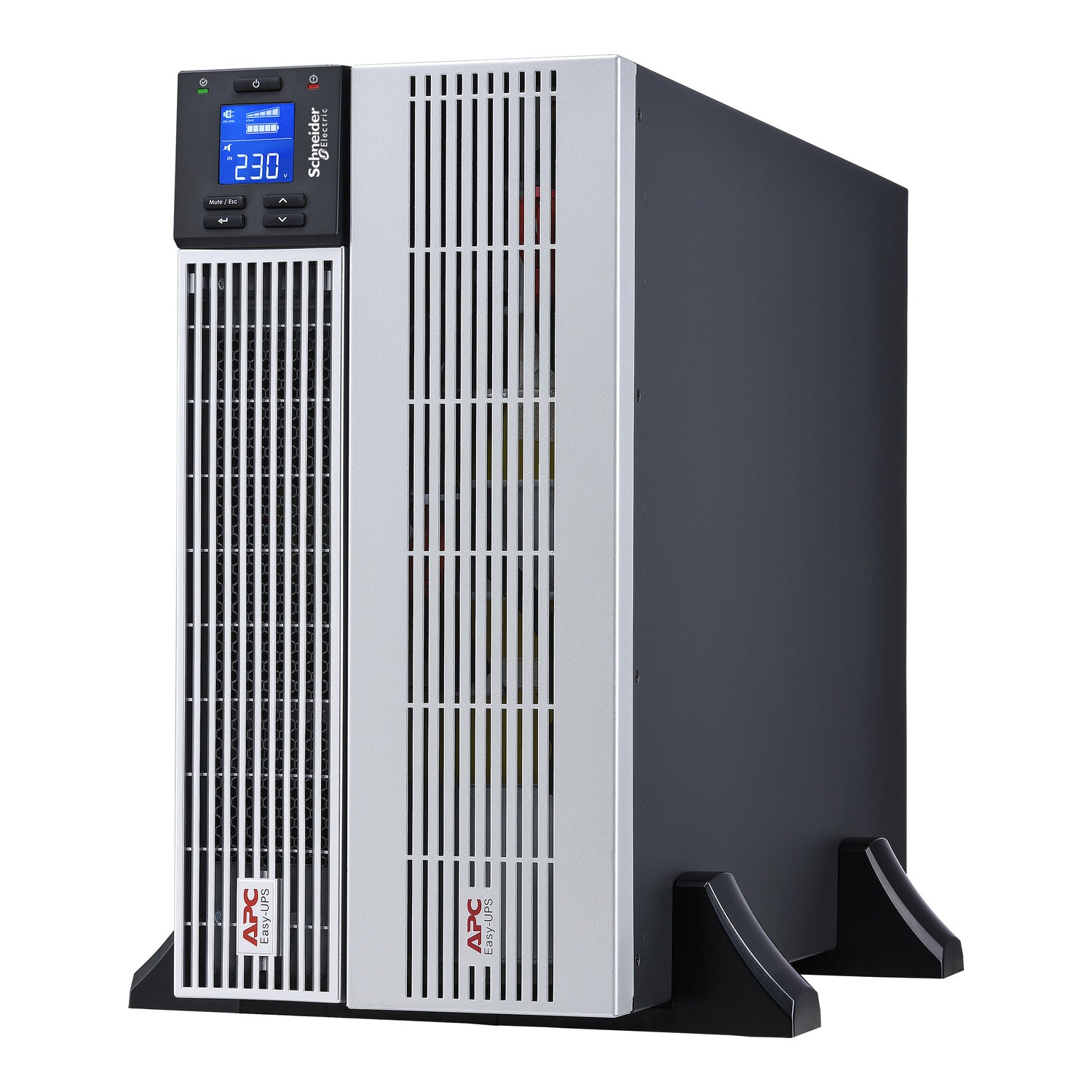

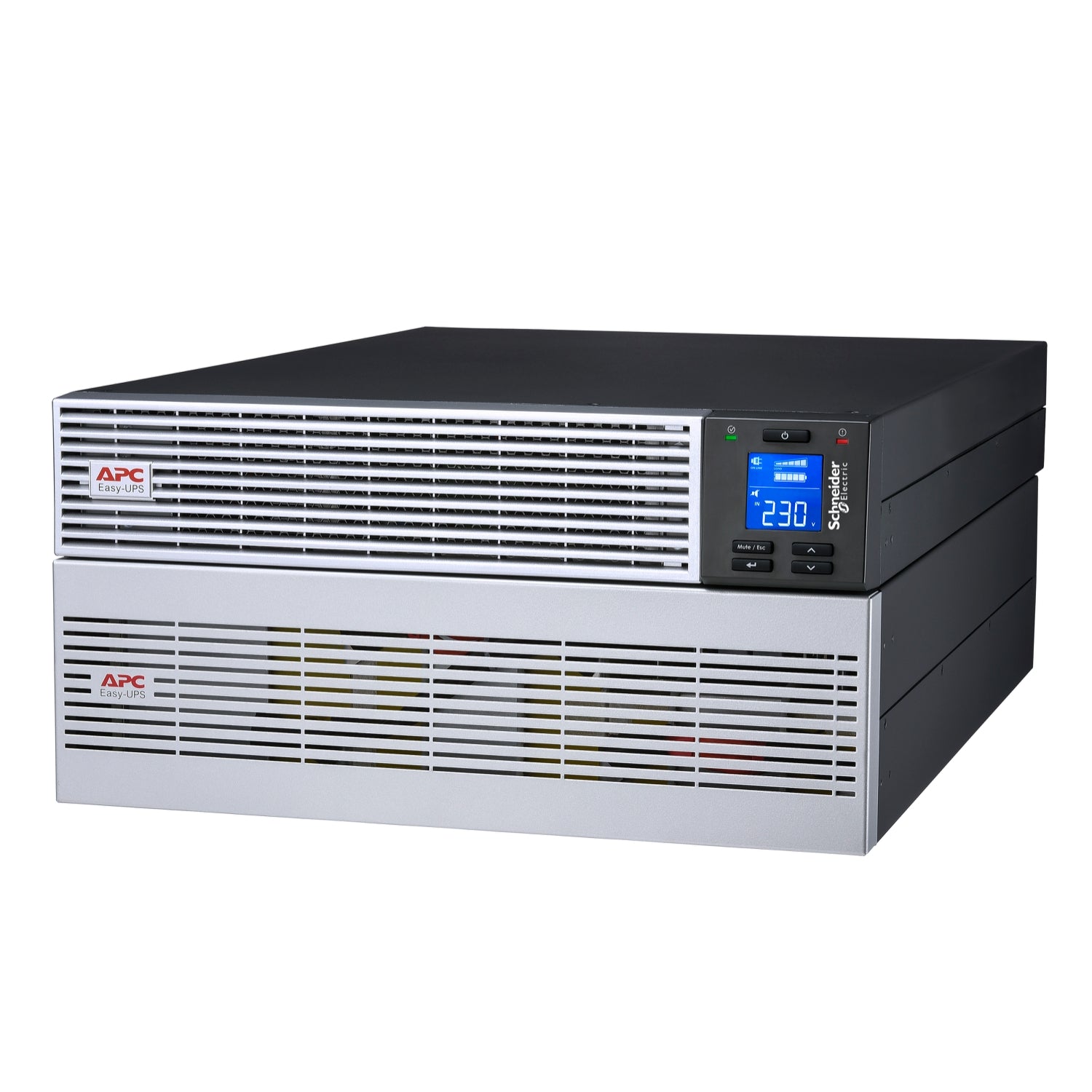

5U Rack/Tower Convertible, Rails Included
The kit occupies 5U and measures 217 x 438 x 685 mm assembled, with a net weight of 69.2 kg. The rail kit and stabilisation feet are in the carton, so the module and pack can be racked or stood as a tower without a separate order. At 685 mm deep it needs a proper server cabinet — 1000 mm or 1070 mm deep — rather than a comms cabinet.
Intelligent Card Slot, EPO and PowerChute

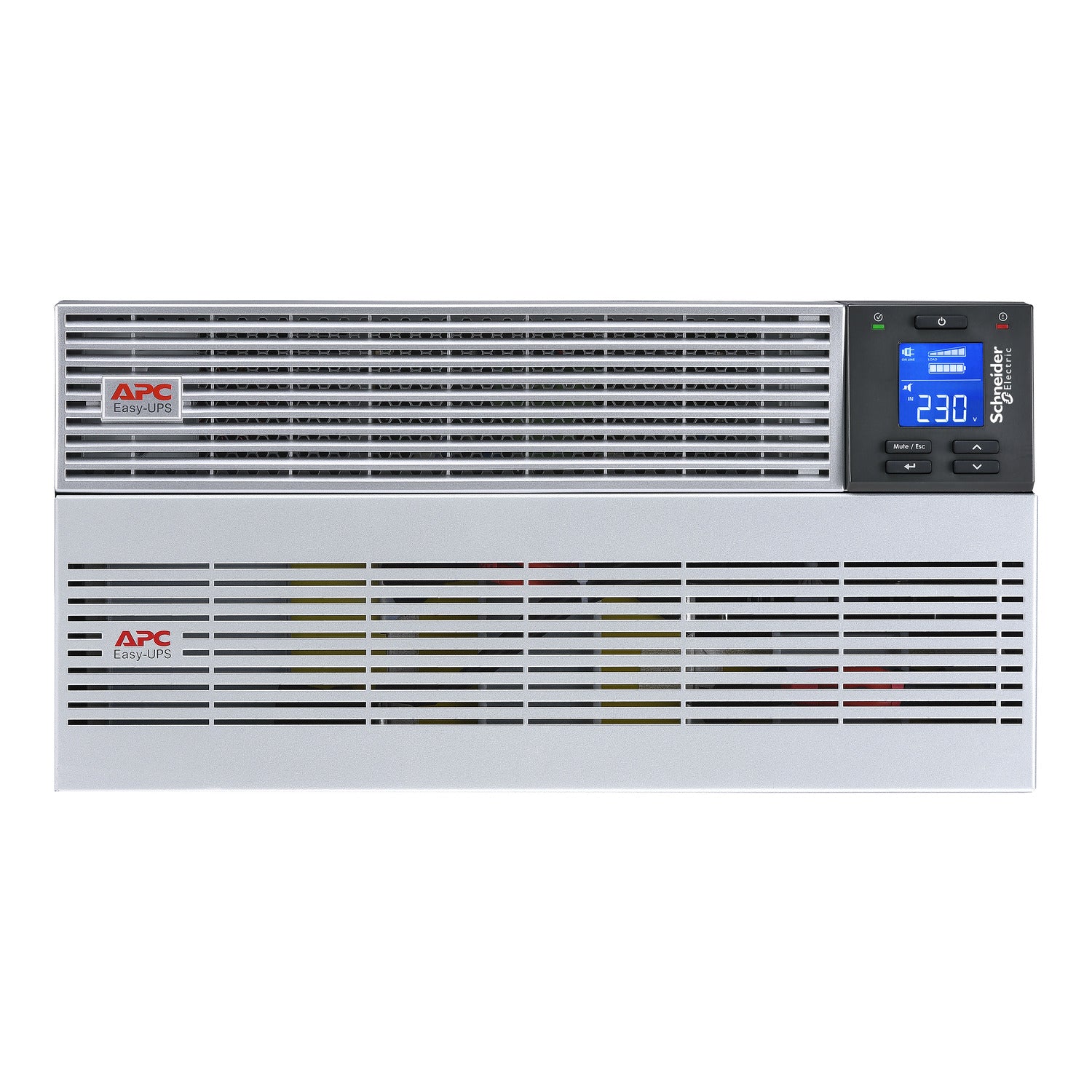

The power module carries a multifunction LCD and an Intelligent Card Slot that takes the optional AP9544 Network Management Card 3 for SNMP monitoring and alerting; Schneider Electric also lists Modbus and dry-contact cards for the slot. Graceful shutdown of servers and workstations is handled by PowerChute over USB or serial, as Schneider's product page describes.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the SRVL6KRILRK as an APC by Schneider Electric product with a full GST invoice and local Singapore warranty support. Schneider Electric's printed term for this model is three years repair or replace on the UPS and five years repair or replace on the lithium-ion battery. Because the unit is hardwired, we can also introduce a licensed electrical contractor for the installation if you do not have one.
Email sales@sourceit.com.sg with your load in watts, the runtime you need and the cabinet you intend to use, and we will confirm the configuration and send the current Schneider datasheet.
APC SRVL6KRILRK Datasheet — Technical Specifications
General
| Schneider Electric Product Name | APC Easy UPS On-Line, 6kVA/6kW, Lithium-ion, Rack/Tower 5U, 230V, 1 Hard wire (1P+N+E) outlet, Intelligent Card Slot, Extended runtime, W/ rail kit |
| Part Number (SKU) | SRVL6KRILRK |
| Kit Composition | 2U lithium-ion power module, 3U SRVL48RMBP3U battery pack (48 V, 4800 Wh) and rail kit — 5U in total |
| Range | APC Easy UPS On-Line Lithium-ion SRVL, extended-runtime models |
| Topology | Double conversion on-line |
| Form Factor | Rack/Tower convertible, 5U |
| Manufacturer Warranty | 3 years UPS, 5 years lithium-ion battery — repair or replace (APC by Schneider Electric) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Output
| Output Power Capacity | 6 kVA / 6 kW |
| Output Power Factor | 1.0 — the full 6000 W is available to the load |
| Nominal Output Voltage | 230 V |
| Output Waveform | Sine wave |
| Output Connection | 1 x hardwire, 1P+N+E |
| Output Frequency | Not published by Schneider Electric on the product page — ask us and we will confirm from the current datasheet |
| Efficiency | Not published by Schneider Electric on the product page — ask us and we will confirm from the current datasheet |
| Internal Bypass | Not published by Schneider Electric on the product page — ask us and we will confirm from the current datasheet |
| Transfer Time | Not published by Schneider Electric — the load is fed continuously from the inverter |
Input
| Nominal Input Voltage | 230 V |
| Input Connection | 1 x hardwire, 1P+N+E — installed by a licensed electrical worker |
| Input Voltage Range | Not published by Schneider Electric on the product page — ask us and we will confirm from the current datasheet |
| Input Frequency | Not published by Schneider Electric on the product page — ask us and we will confirm from the current datasheet |
Batteries & Runtime
| Battery Type | Lithium-ion — Schneider Electric describes it as minimising the need to replace the battery during the UPS lifetime |
| Battery Pack | SRVL48RMBP3U — 48 V, 4800 Wh, 3U rackmount |
| Battery Bus Voltage | 48 V DC |
| Additional Battery Packs | Up to three external SRVL48RMBP3U packs, as stated on Schneider Electric's product page |
| Typical Recharge Time | Not published by Schneider Electric on the product page — ask us and we will confirm from the current datasheet |
| Runtime at Load | Not published on the Schneider Electric product page — ask us for a sizing calculation |
Communications & Management
| Communication Ports | Intelligent Card Slot (1 slot, free); USB and serial for PowerChute as described on Schneider's product page |
| Control Panel | Multifunction LCD |
| Network Management | Optional AP9544 Network Management Card 3 for the Intelligent Card Slot; Modbus and dry-contact cards also listed by Schneider Electric |
| Shutdown Software | PowerChute — graceful shutdown of servers and workstations |
| Emergency Power Off (EPO) | Not published by Schneider Electric on the product page — ask us and we will confirm from the current datasheet |
Physical & Environmental
| Rack Height | 5U (2U power module + 3U battery pack) |
| Dimensions (H x W x D) | 217 x 438 x 685 mm |
| Net Weight | 69.2 kg |
| Shipping Weight | Not published by Schneider Electric on the product page — ask us and we will confirm from the current datasheet |
| Mounting | Rack or tower; rail kit and stabilisation feet included |
| Audible Noise | Not published by Schneider Electric on the product page — ask us and we will confirm from the current datasheet |
| Operating Environment | Not published by Schneider Electric on the product page — ask us and we will confirm from the current datasheet |
| Certifications | As printed on the current Schneider Electric datasheet — ask us for the PDF |
| Package Contents | Power module, SRVL48RMBP3U battery pack, rail kit, stabilisation feet and documentation; the full cable list is on the Schneider datasheet we can send you |
Compatibility & Runtime
Hardwired Input and Output

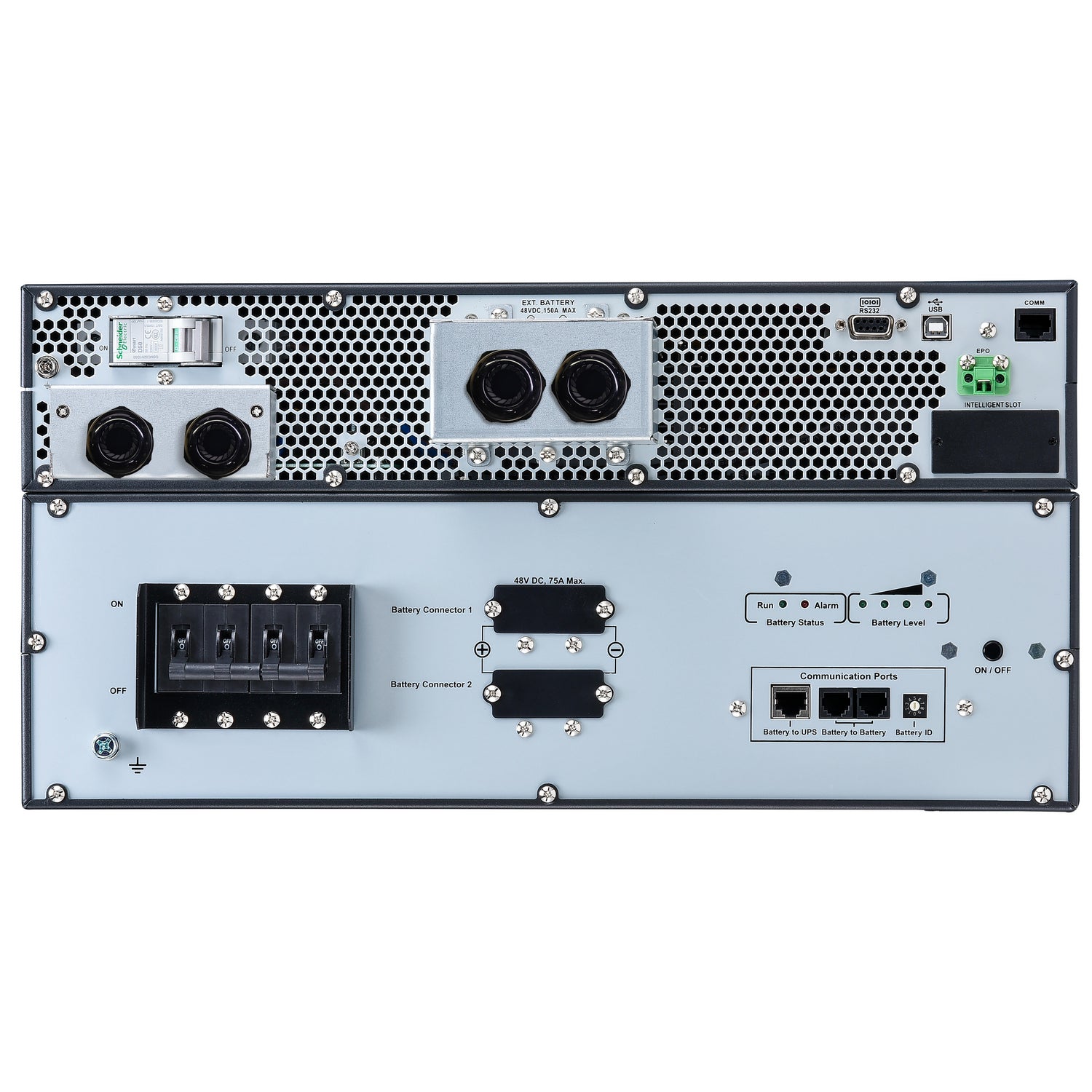

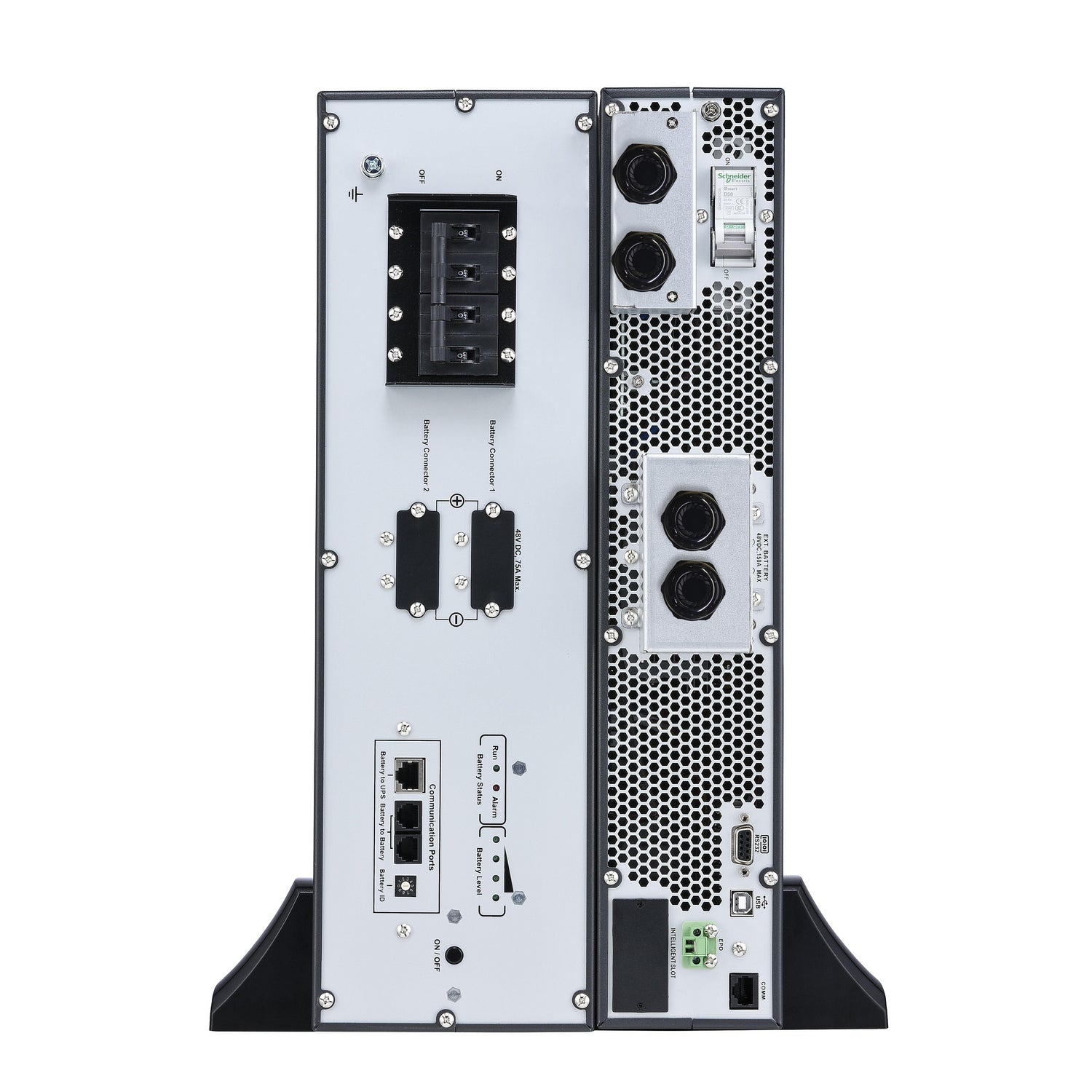

The SRVL6KRILRK has a single 1P+N+E hardwire connection for input and another for output. There are no IEC outlets on the UPS itself; the output normally feeds one or more rack PDUs — for example a switched AP7921B or a basic AP9559 — and the IEC leads for the servers plug into those. Installation must be done by a licensed electrical worker on a dedicated circuit sized for 6 kW plus battery charging. Because the input is hardwired there is no plug type to worry about for Singapore.
Sizing
This is a unity power factor build, so size directly on watts: add up the continuous draw of everything downstream of the UPS, allow headroom for start-up surge and growth, and compare it with 6000 W. If you are close to the limit, the 10 kVA lead-acid SRV10KRIRK is the next step in the Easy UPS On-Line range.
Rack Fit
The assembled kit occupies 5U at 217 x 438 x 685 mm and weighs 69.2 kg net, so it belongs at the bottom of a 1000 mm or 1070 mm deep server cabinet with the rail kit supplied. Plan for two people or a lift for installation. Each additional SRVL48RMBP3U pack is a further 3U.
Battery and Runtime
The SRVL48RMBP3U is a 48 V, 4800 Wh lithium-ion pack — twice the energy of the 2U pack used on the 1 to 3 kVA SRVL kits. Schneider Electric's product page states up to three external packs can be added. Runtime and recharge figures are not printed on the product page, so we do not print them; send us your load and the hold-up time you need and we will size the pack count from the manufacturer's data.
Management and Software
An Intelligent Card Slot takes the optional AP9544 Network Management Card 3 for SNMP monitoring; Modbus and dry-contact cards are also listed by Schneider Electric. PowerChute provides graceful shutdown of servers and workstations.
Package Contents & Easy UPS On-Line SRVL Ordering Information
In the Box
Power module, SRVL48RMBP3U lithium-ion battery pack, rail kit, stabilisation feet and documentation. Ask us for the current Schneider datasheet for the full cable list.
Easy UPS On-Line Lithium-ion SRVL Range Ordering Information
| SRVL1KRILRK (ask us) | 1 kVA / 900 W | Rack/Tower 4U, rails included | 6 x C13 |
| SRVL2KRILRK (ask us) | 2 kVA / 1800 W | Rack/Tower 4U, rails included | 6 x C13 |
| SRVL3KRILRK (ask us) | 3 kVA / 2700 W | Rack/Tower 4U, rails included | 6 x C13, 1 x C19 |
| SRVL6KRILRK (this listing) | 6 kVA / 6 kW | Rack/Tower 5U, rails included | Hardwire 1P+N+E |
| SRVL48RMBP3U (ask us) | 48 V, 4800 Wh battery pack | 3U | For this 6 kVA model, up to three |
| SRVL48RMBP2U (ask us) | 48 V, 2400 Wh battery pack | 2U | For the 1, 2 and 3 kVA kits |
Accessories
| AP9544 | Network Management Card 3 for the Intelligent Card Slot — ask us |
| SRVL48RMBP3U | Additional 48 V, 4800 Wh lithium-ion battery pack, 3U — up to three per UPS |
| AP7921B | 1U switched rack PDU, 16 A, 8 x C13 — a typical output distribution for a hardwired UPS |
| AP9559 | 1U basic rack PDU, 16 A — output distribution |
The Lead-Acid 6 kVA and 10 kVA Easy UPS On-Line SRV Models
| SRV6KRIRK | 6 kVA | Rackmount, VRLA battery pack and rail kit |
| SRVPM6KRIL + SRV240RLBP-9A | 6 kVA | Rackmount, extended runtime VRLA pack |
| SRV10KRIRK | 10 kVA | Rackmount, VRLA battery pack and rail kit |
Datasheet & Downloads
Schneider Electric hosts the official documentation for this product. The links below are the Schneider Electric pages for this part number; each one names the correct model.
| Schneider Electric product page | APC SRVL6KRILRK on se.com — Israel (English) site |
| Brochure, APC Easy UPS On-Line Lithium-Ion SRVL 230V Extended Runtime | Schneider document SPD_SRVL_230V_Brochure_EN — document landing page, UK site |
Schneider's own datasheet and user manual download links redirect to a document host that has repeatedly served the wrong model's file, so we do not publish those links here rather than risk sending you the wrong specification. Email sales@sourceit.com.sg quoting SRVL6KRILRK and we will send you the current PDF datasheet and user manual directly.
The 6 kVA model has its own user manual (Schneider reference SPD_EU_UM_TME19612_EN) and the SRVL48RMBP3U pack its own guide (SPD_EU_UM_TME19702_EN); email us and we will send both.
Frequently Asked Questions — APC SRVL6KRILRK
Does the SRVL6KRILRK have IEC outlets?
No. Input and output are each a single 1P+N+E hardwire connection. The output normally feeds a rack PDU, and your equipment plugs into the PDU. A licensed electrical worker installs the UPS on a dedicated circuit.
What is included in the kit?
A 2U lithium-ion power module, a 3U SRVL48RMBP3U battery pack (48 V, 4800 Wh) and the rail kit with stabilisation feet — 5U in total, 217 x 438 x 685 mm and 69.2 kg.
How do I size it?
This is a 6 kVA / 6 kW unity power factor build, so compare the continuous watts of your load, with headroom for surge and growth, directly against 6000 W.
What runtime will I get, and can I add packs?
Schneider Electric's product page states up to three external SRVL48RMBP3U packs can be added. Runtime figures are not printed on the product page, so we do not print them; send us your load and hold-up time and we will size the pack count from the manufacturer's data.
Is the battery user replaceable?
The battery is an external 3U pack connected by cable rather than a cartridge inside the UPS, and Schneider Electric describes the lithium-ion battery as minimising the need to replace the battery during the UPS lifetime. Schneider Electric does not describe changing the pack with the load running, so plan a maintenance window for any pack change.
How do I monitor it and shut servers down?
The Intelligent Card Slot takes the optional AP9544 Network Management Card 3 for SNMP; PowerChute handles graceful shutdown of servers and workstations.
Which cabinet does it fit?
At 685 mm deep and 69.2 kg it belongs in a 1000 mm or 1070 mm deep server cabinet with the supplied rail kit, mounted low. It is not a comms-cabinet product.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every APC SRVL6KRILRK sold by SourceIT comes with local Singapore warranty and a GST invoice; APC by Schneider Electric backs the SRVL6KRILRK with a three-year manufacturer warranty on the UPS and a five-year manufacturer warranty on the lithium-ion battery.
