APC Easy UPS On-Line Li-Ion SRVL 2000VA Rack/Tower 4U 230V Extended Runtime
PRODUCT DESCRIPTION
APC Easy UPS On-Line Li-Ion SRVL 2000VA/1800W Rack/Tower 4U 230V Extended Runtime with Rail Kit (SRVL2KRILRK) - 3 Years Local Warranty
On-Line Double Conversion with a Lithium-Ion Battery Pack
The APC Easy UPS On-Line Li-Ion SRVL2KRILRK is a true double-conversion on-line UPS rated at 2000 VA / 1800 W, supplied as a complete extended-runtime kit: the 2U SRVLPM2KRIL power module, one 2U SRVL48RMBP2U lithium-ion battery pack (48 V, 2400 Wh) and two SRVRK1 rail kits, occupying 4U of rack space in total. The load runs from the inverter continuously on a clean 230 V sine wave, so voltage sag, brownout and switching transients on a Singapore riser are absorbed by the rectifier rather than passed to your servers, and the battery is held in reserve for a genuine outage.
What sets the SRVL apart from the lead-acid Easy UPS On-Line SRV models in our catalogue is the battery: Schneider Electric prints an 8 to 10 year battery life for the lithium-ion pack, against three to five years for VRLA, and a 4.8 hours recharge. In a warm Singapore comms room that is the difference between one battery cycle and two or three over the life of the UPS.
0.9 Power Factor and 1800 W of Real Power
The SRVL is a 0.9 power factor build, delivering 1800 W from 2000 VA. Watts are the number that decides whether a UPS copes with a rack of servers, switches and storage, so size on the total continuous watts of the connected load with headroom for start-up surge. Schneider Electric prints up to 90% efficiency in on-line double-conversion mode and up to 96% in ECO mode for this model, which keeps the heat load in the cabinet modest.
Output is provided on six IEC C13 outlets, so ordinary IEC leads plug straight in. The input is an IEC 60320 C20 inlet with a wide 160β300 V operating window at full load (110β300 V at 60% load).
Runtime, and Adding a Second Pack
Schneider Electric's SRVL brochure prints 136 minutes at half load and 60 minutes at full load for this model on its internal pack alone. Where you need longer, additional SRVL48RMBP2U packs can be added β Schneider's product page states up to two; confirm with us for your runtime target.

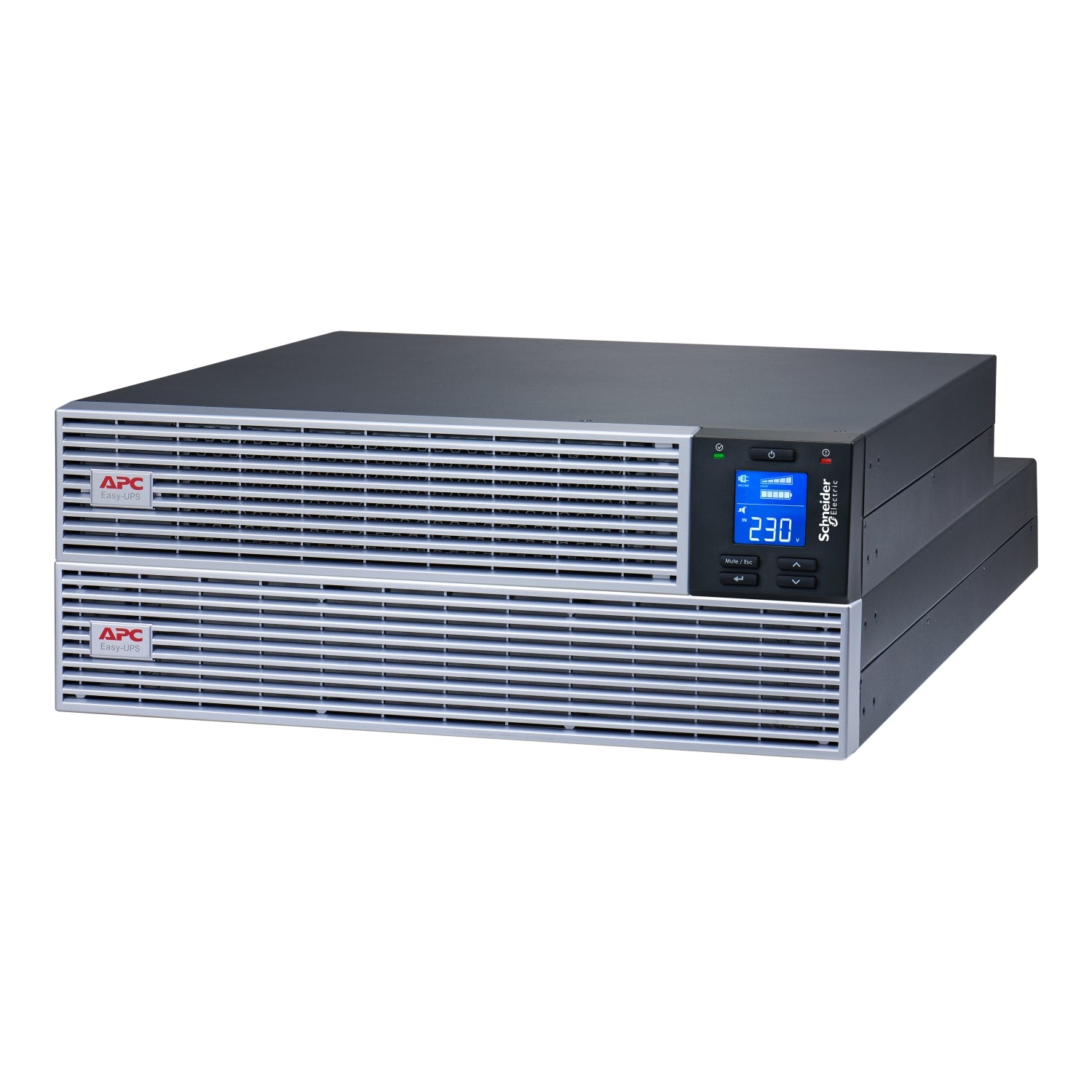

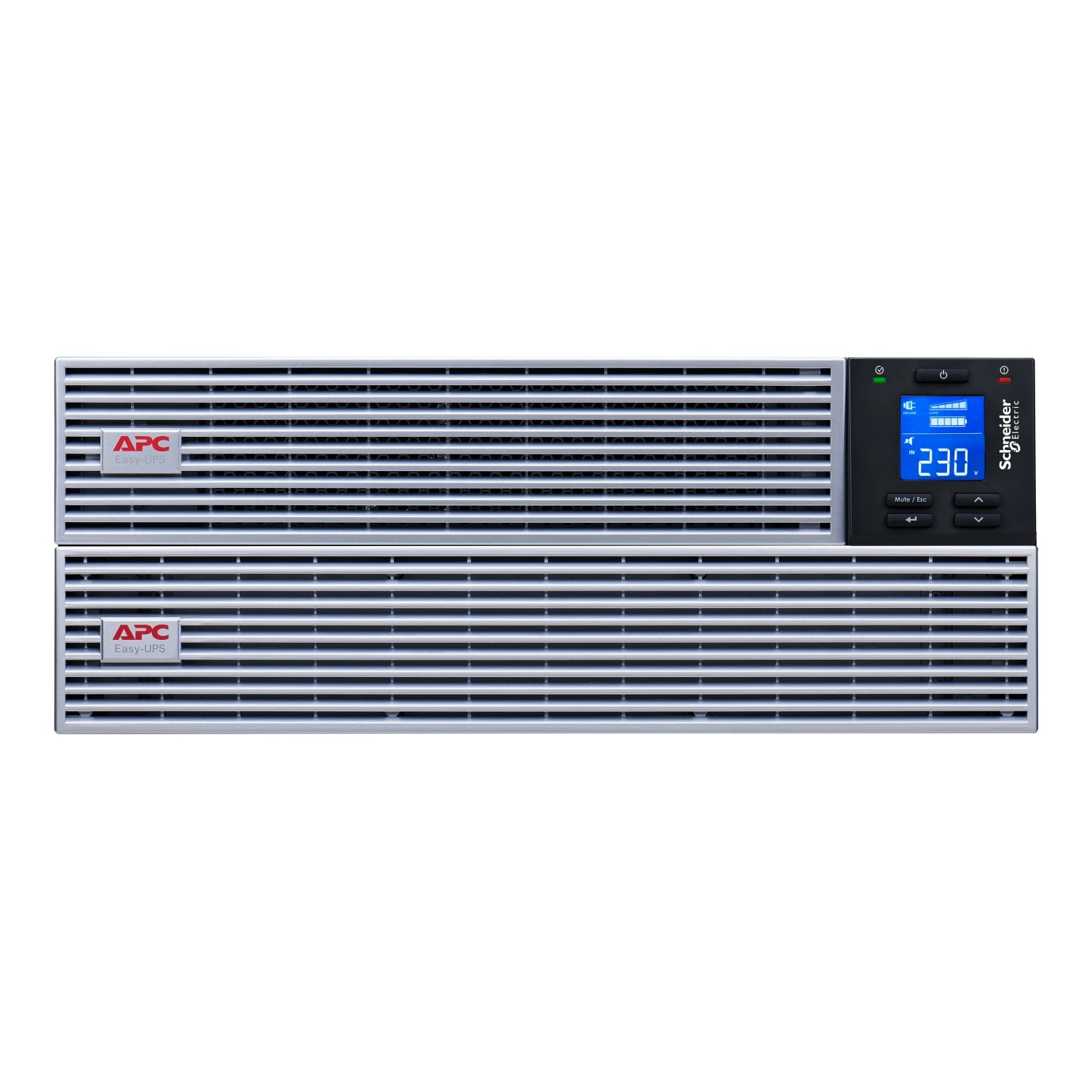

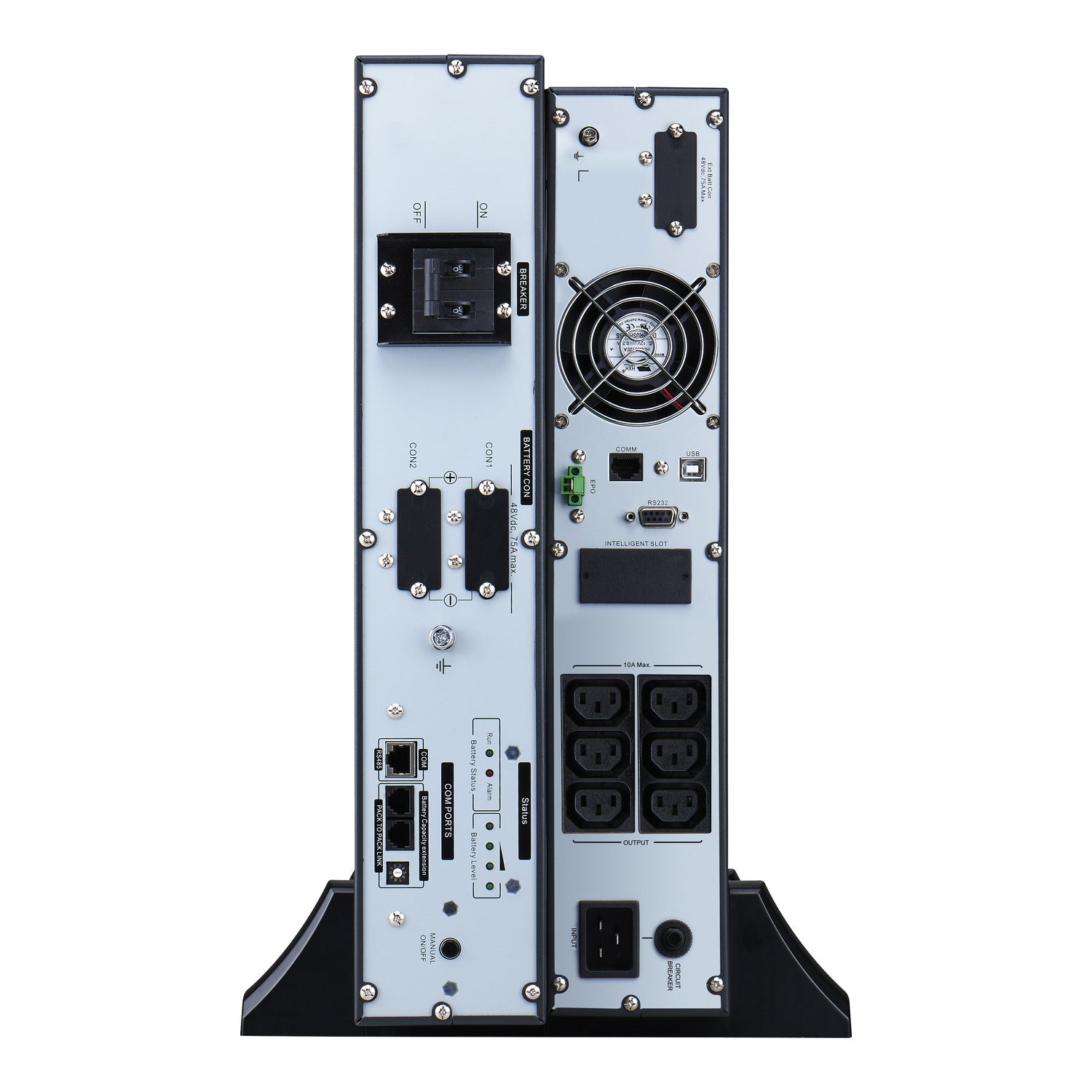

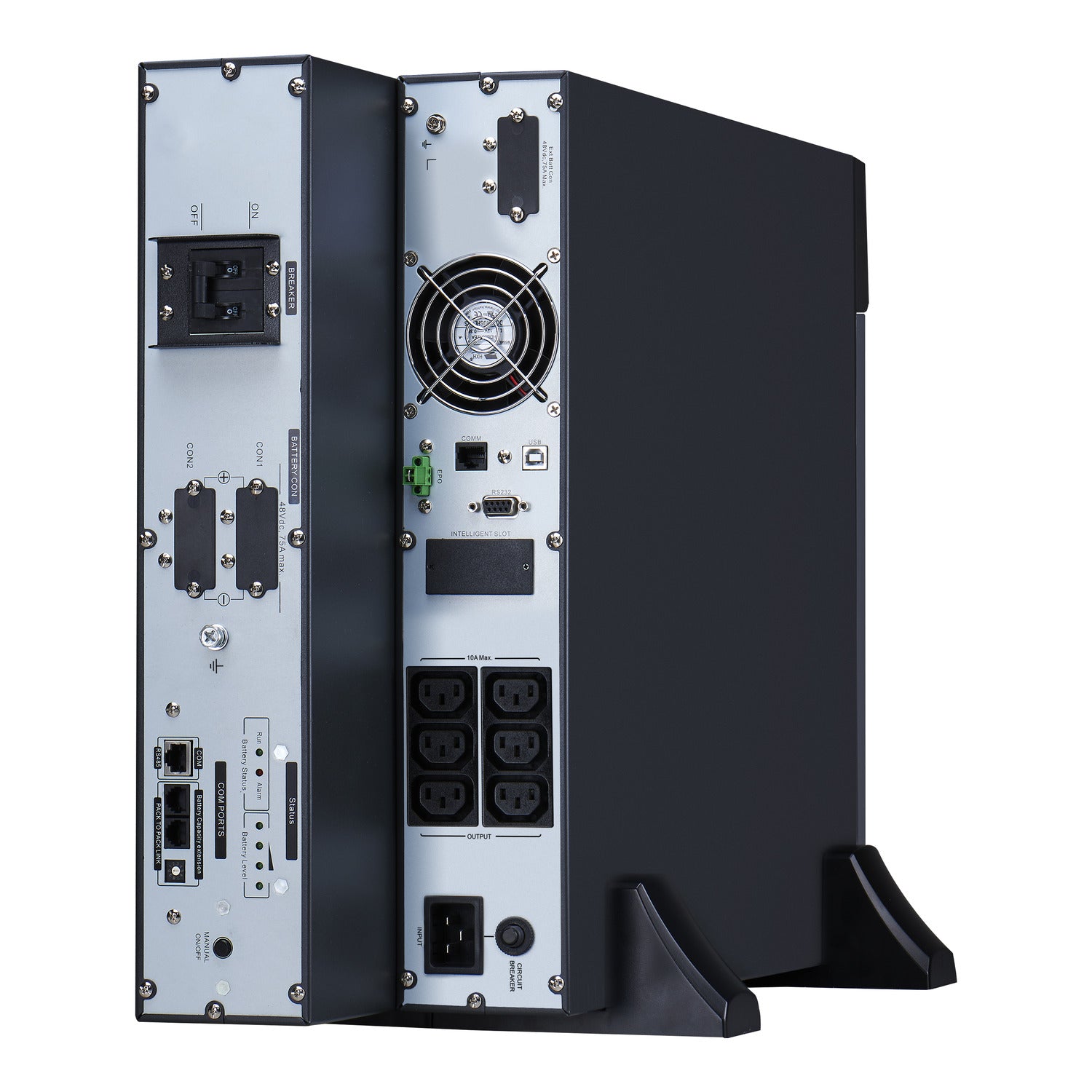

4U Rack/Tower Convertible, Rails Included
The kit occupies 4U: a 2U power module of 86 x 438 x 502 mm and a 2U battery pack of 86 x 438 x 616 mm, with two SRVRK1 rail kits in the carton and stabiliser brackets for tower use. At 616 mm deep the pack needs a server-depth cabinet rather than a shallow comms cabinet.
Input Lead β Read Before You Plug In
The input lead in the carton is a Schuko (CEE 7/7) to IEC mains lead. A Schuko plug does not fit Singapore's BS 1363 (Type G) wall sockets. The normal solution in Singapore is a BS 1363 to IEC lead of the right rating, or feeding the UPS from an IEC-outlet rack PDU such as the AP9559 basic rack PDU. We do not bundle a BS 1363 lead with the UPS, so tell us how you intend to feed it and we will quote the right lead.
Emergency Power Off, Intelligent Card Slot and PowerChute

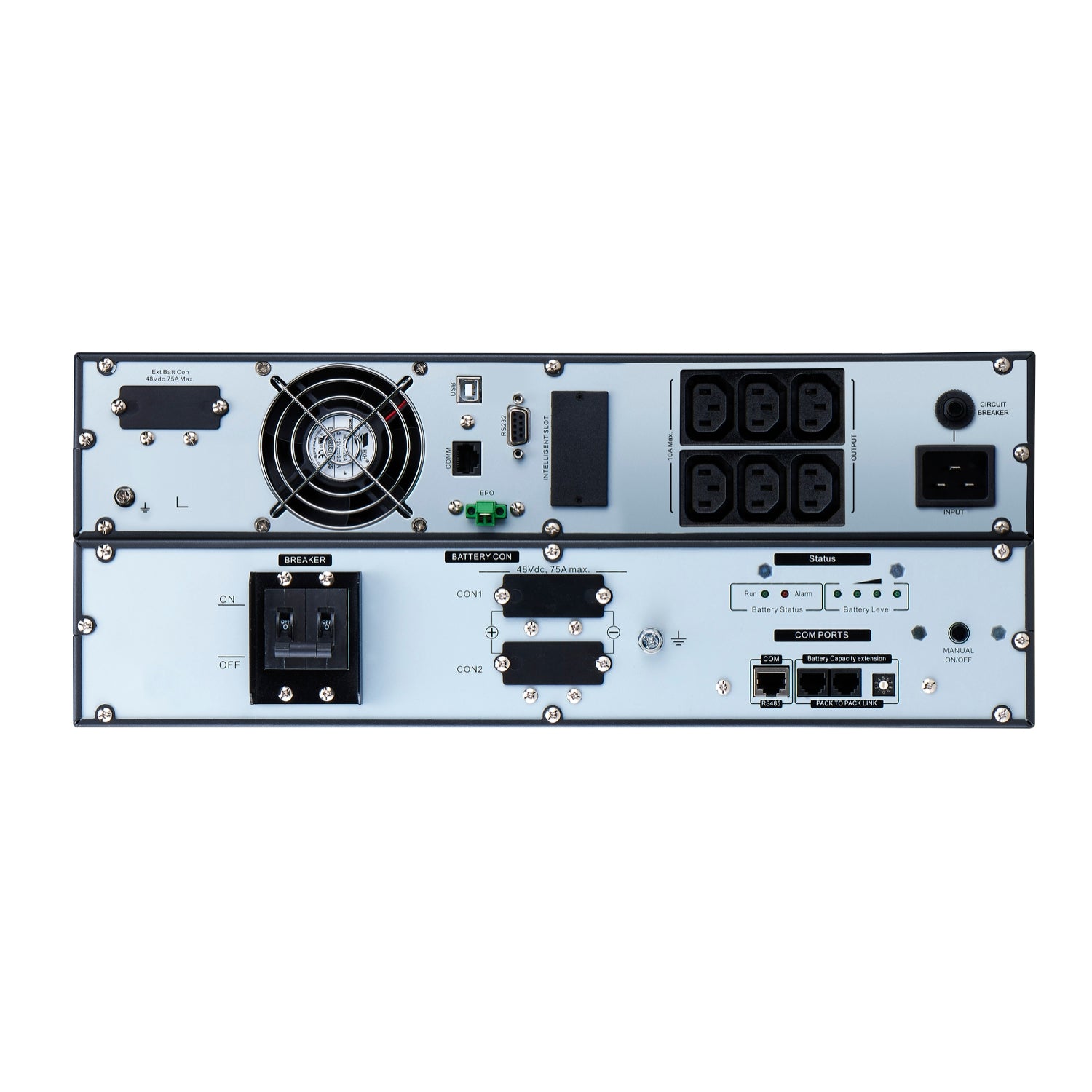

The power module carries a multifunction LCD, USB and RS-232 ports and an Emergency Power Off connector for a room EPO loop. An Intelligent Card Slot takes the optional AP9544 Network Management Card 3 for SNMP monitoring, with Modbus and dry-contact cards also listed by Schneider Electric. PowerChute software is in the box for graceful unattended shutdown over USB or serial.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the SRVL2KRILRK as an APC by Schneider Electric product with a full GST invoice and local Singapore warranty support. Schneider Electric's printed term for this model is three years repair or replace on the UPS and five years repair or replace on the lithium-ion battery.
Not sure whether you need this kit or the lead-acid SRV2KRILRK-E? Email sales@sourceit.com.sg with your load and runtime and we will size it for you.
APC SRVL2KRILRK Datasheet β Technical Specifications
General
| Schneider Electric Product Name | APC Easy UPS On-Line, 2000VA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC C13 outlets, Intelligent Card Slot, Extended runtime, W/ rail kit |
| Part Number (SKU) | SRVL2KRILRK |
| Kit Composition | SRVLPM2KRIL 2U power module x 1, SRVL48RMBP2U 2U lithium-ion battery pack x 1, SRVRK1 rail kit x 2 |
| Range | APC Easy UPS On-Line Lithium-ion SRVL, extended-runtime models |
| Topology | Double conversion on-line |
| Form Factor | Rack/Tower convertible, 4U in total (2U module + 2U battery pack) |
| Manufacturer Warranty | 3 years UPS, 5 years lithium-ion battery β repair or replace (APC by Schneider Electric) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Output
| Output Power Capacity | 2000 VA / 1800 W |
| Output Power Factor | 0.9 |
| Nominal Output Voltage | 230 V, configurable to 220 V / 230 V / 240 V |
| Output Frequency | 50/60 Hz Β±3 Hz synchronised to mains |
| Output Waveform | Sine wave |
| Output Receptacles | 6 x IEC C13 |
| Crest Factor | 3:1 |
| Efficiency | Up to 90% in on-line double-conversion mode; up to 96% in ECO mode |
| Internal Bypass | Automatic and manual |
| Output Voltage Regulation | Not published by Schneider Electric as a percentage figure for this model β ask us |
| Transfer Time | Not published by Schneider Electric β the load is fed continuously from the inverter |
Input
| Nominal Input Voltage | 230 V |
| Input Voltage Range (full load) | 160β300 V AC |
| Input Voltage Range (60% load) | 110β300 V AC |
| Input Frequency | 40β70 Hz auto-sensing |
| Input Connection | IEC 60320 C20 inlet |
| Input Lead Supplied | Schuko (CEE 7/7) to IEC lead β does not fit Singapore BS 1363 sockets; see the note above |
Batteries & Runtime
| Battery Type | Lithium-ion, 8 to 10 year battery life as printed by Schneider Electric |
| Battery Pack | SRVL48RMBP2U β 48 V, 2400 Wh, 2U rackmount (recommended charge voltage 52.5 V) |
| Battery Bus Voltage | 48 V DC |
| Typical Recharge Time | 4.8 hours |
| Battery Charger Power | 480 W |
| Runtime at Half Load | 136 minutes β as published by Schneider Electric (brochure), internal pack only |
| Runtime at Full Load | 60 minutes β as published by Schneider Electric (brochure), internal pack only |
| Additional Battery Packs | Additional SRVL48RMBP2U packs can be added β Schneider's product page states up to two; confirm with us for your runtime target |
| Battery Replacement | External 2U pack connected by cable |
Communications & Management
| Communication Ports | USB (Type B), RS-232 serial, EPO connector, RJ45 battery-pack communication port, Intelligent Card Slot (1 slot, free) |
| Emergency Power Off (EPO) | Yes |
| Control Panel | Multifunction LCD status and control console |
| Audible Alarm | Alarm when on battery, distinctive low-battery alarm, overload continuous-tone alarm |
| Network Management | Optional AP9544 Network Management Card 3 for the Intelligent Card Slot; Modbus and dry-contact cards also listed by Schneider Electric |
| Shutdown Software | PowerChute (supplied in the box) over USB or serial |
Physical & Environmental
| Rack Height | 4U (2U power module + 2U battery pack) |
| Dimensions, Kit (H x W x D) | 172 x 438 x 616 mm |
| Dimensions, Power Module | 86 x 438 x 502 mm, 8.8 kg |
| Dimensions, Battery Pack | 86 x 438 x 616 mm, 28.3 kg |
| Net Weight (kit) | 37.1 kg |
| Shipping Weight (kit) | 50.15 kg |
| Shipping Carton | 48 x 80 x 60 cm |
| Mounting Position | Horizontal (rack) and vertical (tower), rail kits and stabiliser brackets supplied |
| Audible Noise | 50 dBA at 1 m |
| Heat Dissipation | 683 BTU/hour |
| Ingress Protection | IP20 |
| Finish | Black with silver front bezel |
| Operating Environment | 0β40 Β°C at rated load (40β50 Β°C with load derated to 80%), 0β95% relative humidity non-condensing |
| Operating Altitude | Not printed as a single figure by Schneider Electric across its documents β ask us if your site is above 2000 m |
| Storage Environment | β20 to 50 Β°C, 0β95% relative humidity non-condensing |
| Certifications (as printed) | CB, CE, RCM, EAC, TISI, UKCA, KC, UN 38.3, IEC 62619 |
| Package Contents | See the In the Box list in the Package Contents section below |
Compatibility & Runtime
Outlets and What Can Be Plugged In
The SRVL2KRILRK provides 6 x IEC C13 on the output. Standard IEC leads plug straight in; an IEC C13 to C14 lead is in the box and locking lead kits such as the AP8704S-WW are available. The input is an IEC 60320 C20 inlet. Size on watts, not on VA: this is a 0.9 power factor build rated at 1800 W, so add up the continuous draw of everything you intend to connect with headroom for start-up surge.
Rack Fit
The kit occupies 4U. The power module is 86 x 438 x 502 mm and the battery pack 86 x 438 x 616 mm, so the pack needs at least 616 mm of usable depth plus cable clearance. Two SRVRK1 rail kits and stabiliser brackets are in the carton. If depth is tight, ask us about the 2U lead-acid rackmount models.
Battery and Runtime
The battery is a 48 V, 2400 Wh lithium-ion pack (SRVL48RMBP2U) with an 8 to 10 year battery life as printed by Schneider Electric and a 4.8 hours recharge. Schneider's brochure prints 136 minutes at half load and 60 minutes at full load on the internal pack; treat those as sizing figures, since real runtime depends on load, pack age and temperature.
Additional SRVL48RMBP2U packs can be added β Schneider's product page states up to two; confirm with us for your runtime target. Each extra pack is another 2U and another 28.3 kg, and it is ordered without rails, so add an SRVRK1 rail kit for each one.
Input Lead
The supplied input lead has a Schuko plug that does not fit Singapore BS 1363 sockets β see the note in the description above and tell us how you intend to feed the UPS.
Management and Software
An Intelligent Card Slot takes the optional AP9544 Network Management Card 3 for SNMP monitoring and alerting. PowerChute connects over the supplied USB or RS-232 cable for graceful unattended shutdown, and the EPO connector lets a room emergency stop drop the UPS output.
Package Contents & Easy UPS On-Line SRVL Ordering Information
In the Box
User manual and safety guide, PowerChute management software, RS-232 serial cable, USB cable, RJ45 cable, rack-mount brackets with 8 flat-head screws, stabiliser brackets with 4 pan-head screws, Schuko to IEC utility power cable, IEC C13 to C14 output cable, plus the SRVL48RMBP2U battery pack and its battery cable, and two SRVRK1 rail kits
Easy UPS On-Line Lithium-ion SRVL Range Ordering Information
| SRVL1KRILRK (ask us) | 1 kVA / 900 W | Rack/Tower 4U, rails included | 6 x IEC C13 |
| SRVL2KRILRK (this listing) | 2 kVA / 1800 W | Rack/Tower 4U, rails included | 6 x IEC C13 |
| SRVL3KRILRK (ask us) | 3 kVA / 2700 W | Rack/Tower 4U, rails included | 6 x IEC C13 + 1 x IEC C19 |
| SRVL6KRILRK (ask us) | 6 kVA / 6 kW | Rack/Tower 5U, rails included | Hardwire 1P+N+E |
| SRVL48RMBP2U (ask us) | 48 V, 2400 Wh battery pack | 2U, rail kit SRVRK1 sold separately | For the 1, 2 and 3 kVA kits |
Accessories
| AP9544 | Network Management Card 3 for the Intelligent Card Slot β SNMP monitoring and alerting, ask us |
| SRVL48RMBP2U | Additional 48 V, 2400 Wh lithium-ion battery pack, 2U β Schneider's product page states up to two additional packs |
| SRVRK1 | Rail kit for one 2U unit, needed for each additional battery pack |
| AP9559 | 1U basic rack PDU with an IEC inlet β one way to feed the UPS without a Schuko lead |
The Lead-Acid Easy UPS On-Line SRV Kits
If lithium-ion is more than the application justifies, the 0.9 power factor -E generation of the lead-acid extended-runtime kits covers the same ratings at 4U with a VRLA pack.
| SRV1KRILRK-E | 1 kVA / 900 W | Rackmount 4U, VRLA pack, rail kit |
| SRV2KRILRK-E | 2 kVA / 1800 W | Rackmount 4U, VRLA pack, rail kit |
| SRV3KRILRK-E | 3 kVA / 2700 W | Rackmount 4U, VRLA pack, rail kit |
Datasheet & Downloads
Schneider Electric hosts the official documentation for this product. The links below are the Schneider Electric pages for this part number; each one names the correct model.
| Schneider Electric product page | APC SRVL2KRILRK on se.com β Hong Kong (English) site |
| User manual, Easy UPS On-Line SRVL 1000/2000/3000 VA extended runtime (SRVLPM1KRIL / SRVLPM2KRIL / SRVLPM3KRIL) | Schneider document SPD_EU_UM_TME23545_EN β document landing page, Ireland (English) site |
| Brochure, APC Easy UPS On-Line Lithium-Ion SRVL 230V Extended Runtime | Schneider document SPD_SRVL_230V_Brochure_EN β document landing page, UK site |
Schneider's own datasheet and user manual download links redirect to a document host that has repeatedly served the wrong model's file, so we do not publish those links here rather than risk sending you the wrong specification. Email sales@sourceit.com.sg quoting SRVL2KRILRK and we will send you the current PDF datasheet and user manual directly.
The governing user manual for the power module is Schneider Electric document 990-91562, and the battery pack has its own user manual (Schneider reference SPD_EU_UM_TME21198_EN) which we can send on request.
Frequently Asked Questions β APC SRVL2KRILRK
What is the difference between the VA and the watt rating, and how do I size this UPS?
VA is apparent power and watts is real power; the watt rating is what limits your load. The SRVL is a 0.9 power factor build, so this model gives 1800 W from 2000 VA. Total up the continuous watts of everything you want to protect, allow headroom for start-up surge and growth, and compare that to 1800 W.
What runtime will I get?
Schneider Electric's brochure prints 136 minutes at half load and 60 minutes at full load for this model on its internal SRVL48RMBP2U pack. Runtime falls sharply as load rises, so send us your load in watts and the hold-up time you need and we will size it against the manufacturer's runtime curve, including extra packs if you need them.
Can I add more battery packs, and how many?
Yes. Additional SRVL48RMBP2U packs can be added β Schneider's product page states up to two; confirm with us for your runtime target. Each pack is 2U, 28.3 kg and 616 mm deep and ships without rails, so order an SRVRK1 rail kit for each one.
How long does the lithium-ion battery last, and is it user replaceable?
Schneider Electric prints an 8 to 10 year battery life, two to three times what a VRLA battery gives in the same cabinet. The pack is a separate 2U unit connected by cable rather than a cartridge inside the UPS; Schneider Electric does not describe changing it with the load running, so plan a short maintenance window.
Will the supplied power lead work in Singapore?
Not directly. The input lead in the box is a Schuko (CEE 7/7) to IEC lead, and a Schuko plug does not fit a Singapore BS 1363 (Type G) socket. Use a BS 1363 to IEC lead of the right rating, or feed the UPS from an IEC-outlet rack PDU. We do not bundle a BS 1363 lead, so tell us how you plan to feed the UPS and we will quote the correct lead.
How much rack space does it need, and is a rail kit included?
4U: a 2U power module and a 2U battery pack, with two SRVRK1 rail kits in the carton. The pack is 616 mm deep, so it needs a server-depth cabinet.
How do I monitor it and shut servers down safely?
The Intelligent Card Slot takes the optional AP9544 Network Management Card 3 for SNMP monitoring; PowerChute is in the box for shutdown over USB or RS-232, and an EPO connector is fitted.
How does this compare with the lead-acid SRV -E extended-runtime kits?
The lead-acid SRV2KRILRK-E gives the same 1800 W at 4U with a VRLA pack, a two-year warranty and a three to five year battery cycle. The lithium-ion SRVL carries a three-year UPS and five-year battery warranty, an 8 to 10 year battery life and a faster recharge.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every APC SRVL2KRILRK sold by SourceIT comes with local Singapore warranty and a GST invoice; APC by Schneider Electric backs the SRVL2KRILRK with a three-year manufacturer warranty on the UPS and a five-year manufacturer warranty on the lithium-ion battery.
