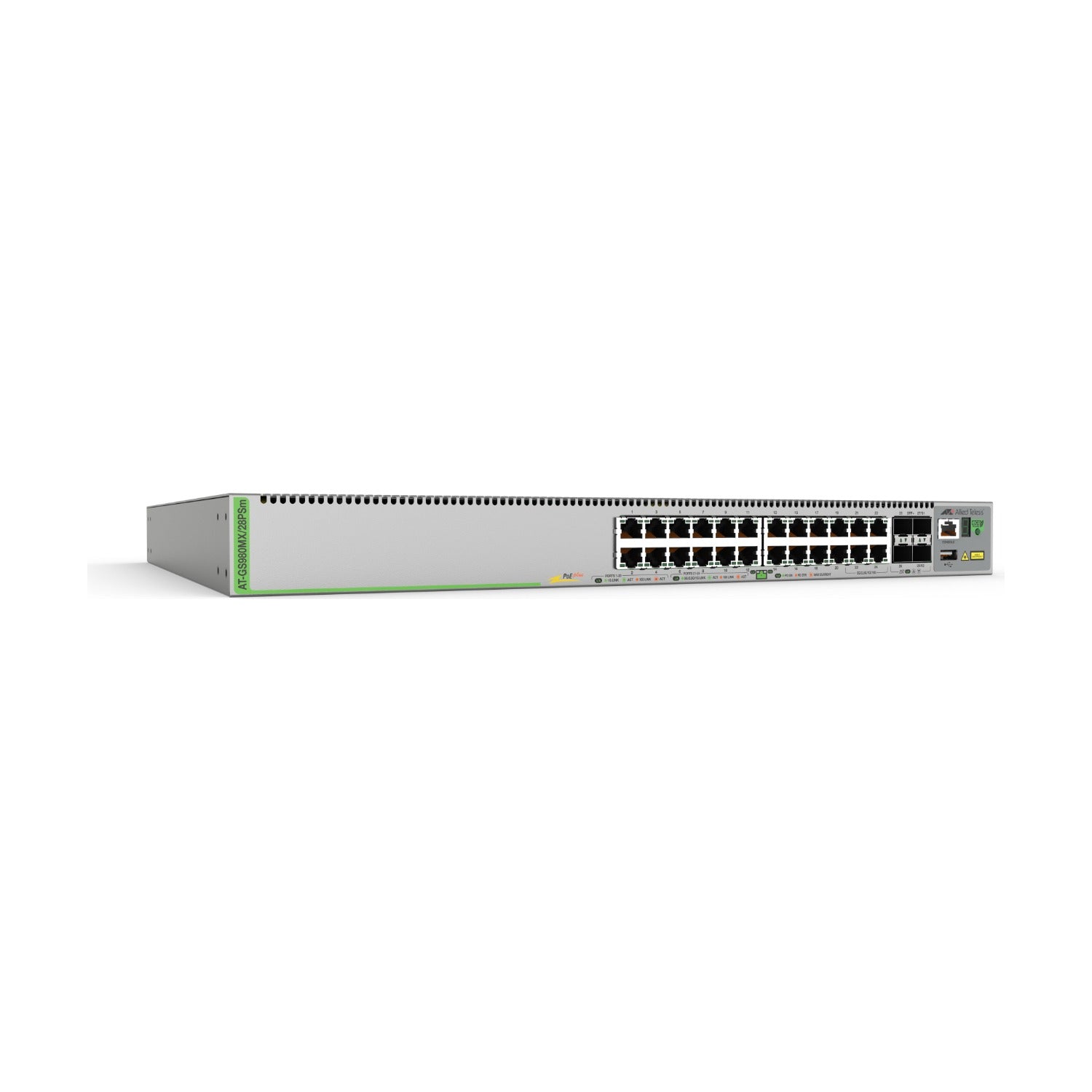

Allied Telesis GS980MX/28PSm 24-Port PoE+ Multi-Gigabit Stackable Layer 3 Lite Switch with 4 x 10G SFP+
PRODUCT DESCRIPTION
Allied Telesis GS980MX/28PSm 24-Port PoE+ Multi-Gigabit Stackable Switch - Local Warranty
Multi-Gigabit Ports for Wi-Fi 6 Access Points
Alongside 20 Gigabit PoE+ ports, the GS980MX/28PSm has four 100M/1/2.5/5G Multi-Gigabit ports, so high-speed Wi-Fi 6 access points can run above 1Gbps over existing Cat5e/Cat6 cabling instead of being bottlenecked or needing re-cabling.
PoE+ on All 24 Copper Ports
All 24 copper ports source PoE, with a 370W budget that supports every port at 15.4W or 12 ports at the full 30W PoE+ level, for IP phones, access points and cameras.
10G Uplinks and VCStack
Four 1/10G SFP+ ports provide uplinks. Up to four GS980MX switches can be stacked into one managed unit using any port, including over fibre with VCStack LD.
AMF Plus and Vista Manager EX
As an AMF Plus edge node running AlliedWare Plus, the switch can be centrally managed with automatic backup and upgrade, and monitored in Vista Manager EX.
GS980MX/28PSm Datasheet — Technical Specifications
General
| Product Name | Allied Telesis CentreCOM GS980MX/28PSm Stackable Multi-Gigabit Layer 3 Lite Switch |
| Model | GS980MX/28PSm |
| Order Code | AT-GS980MX/28PSm-30 |
| Series | CentreCOM GS980MX Series |
| Operating System | AlliedWare Plus |
Ports
| 10/100/1000T (RJ-45) Copper Ports | 20 (PoE+) |
| 100M/1/2.5/5 Gigabit Ports | 4 (PoE+) |
| 1/10 Gigabit SFP+ Ports | 4 |
| Stacking | Any port can be used for stacking |
| Management | Front-panel console port, USB interface |
Performance
| Switching Fabric | 160Gbps |
| Forwarding Rate | 119Mpps |
| MAC Addresses | Up to 16K |
| VLANs | 4094 configurable |
| Jumbo Frames | 10KB L2, 9KB L3 |
| Memory | 1GB DDR3 SDRAM |
| Packet Buffer | 1.5MB |
| Latency | 8.29μs (100Mbps), 7.63μs (1Gbps), 7.41μs (2.5Gbps), 4.97μs (5Gbps), 1.63μs (10Gbps) |
| MTBF | 200,000 hours |
Power & PoE
| Power Supply | Single fixed internal PSU |
| Max PoE Power | 370W |
| PoE Sourcing Ports | 24 at 7.5W / 24 at 15.4W / 12 at 30W (PoE+) |
| Max Power Consumption | 70W (no PoE load); 510W (full PoE load) |
| Max Heat Dissipation | 239 BTU/h (no PoE load); 1741 BTU/h (full PoE load) |
| Noise | 42 dBA (under 30 °C ambient, ISO7779) |
Physical
| Dimensions (W x D x H) | 441 x 421 x 44 mm |
| Mounting | Rack-mount |
| Weight | 5.6 kg unpackaged; 7.6 kg packaged |
| Packaged Dimensions | 563 x 534 x 128 mm |
Environmental
| Operating Temperature | 0 °C to 50 °C (derated by 1 °C per 305 m) |
| Storage Temperature | -25 °C to 70 °C |
| Operating Humidity | 5% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Operating Altitude | Up to 3,000 m |
Features & Applications
Key Software Features
AlliedWare Plus operating system; AMF Plus edge node; Vista Manager EX and AMF-Security compatible; VCStack up to 4 units and VCStack LD; EPSRing transit node with Super-Loop Protection; Continuous PoE (by licence) to keep endpoints powered through a switch restart; Active Fiber Monitoring; tri-authentication (802.1X, MAC and web); ETS quality of service; NETCONF/RESTCONF with YANG; IPFIX; web-based GUI; IPv6 Ready certified.
Layer 3 Lite Routing
Static routing and RIP for IPv4, static routing for IPv6, and ECMP routing.
Typical Deployments
Network edge for offices and schools rolling out Wi-Fi 6, where a few access points need 2.5G/5G links and the remaining ports power IP phones, cameras and other PoE devices.
Selection Tip
For 48 PoE+ ports including eight Multi-Gigabit ports, choose the GS980MX/52PSm. If you do not need PoE, the GS980MX/28 is the 24-port non-PoE model. For up to 90W PoE++ on every port, see the GS980MX/10HSm or GS980MX/18HSm.
Package Contents & GS980MX Series Ordering Information
Power Cord
The -30 suffix in AT-GS980MX/28PSm-30 denotes the UK power cord version.
GS980MX Series Models
| Model | Key difference |
| GS980MX/28PSm (this listing) | 20 x 10/100/1000T PoE+ and 4 x 100M/1/2.5/5G PoE+, 4 x SFP+ |
| GS980MX/28 | 24 x 10/100/1000T, 4 x SFP+, no PoE |
| GS980MX/52PSm | 40 x 10/100/1000T PoE+ and 8 x 100M/1/2.5/5G PoE+, 4 x SFP+ |
| GS980MX/52 | 48 x 10/100/1000T, 4 x SFP+, no PoE |
| GS980MX/18HSm | 16 x 100M/1/2.5/5G PoE++, 2 x SFP+ |
| GS980MX/10HSm | 8 x 100M/1/2.5/5G PoE++, 2 x SFP+ |
All GS980MX models have a single fixed power supply.
Related Licences & Accessories
| AT-FL-G98MX-CP | Continuous PoE licence (PSm models), one per stack member |
| AT-FL-G98MX-UD | UDLD (UniDirectional Link Detection) licence, one per stack member |
| AT-VT-Kit3 | USB to serial console management cable |
| SFP+ modules | e.g. AT-SP10SR, AT-SP10LRa/I, AT-SP10TM, AT-SP10TW1 / AT-SP10TW3 direct attach cables |
Datasheet & Downloads
| GS980MX Series page | GS980MX Series on alliedtelesis.com |
| GS980MX Series datasheet | GS980MX Series Datasheet (PDF) |
Frequently Asked Questions — Allied Telesis GS980MX/28PSm
Which ports support 2.5G and 5G?
Four of the 24 copper ports are 100M/1/2.5/5G Multi-Gigabit; the other 20 are 10/100/1000T. All 24 support PoE+.
How many ports can deliver full 30W PoE+?
The 370W budget supports 12 ports at 30W, or all 24 ports at 15.4W.
How many units can be stacked?
Up to four GS980MX switches in a VCStack, using any port.
Does it have redundant power?
No. It has a single fixed power supply.
What warranty do I get?
Supplied by SourceIT with local warranty and a GST invoice.
