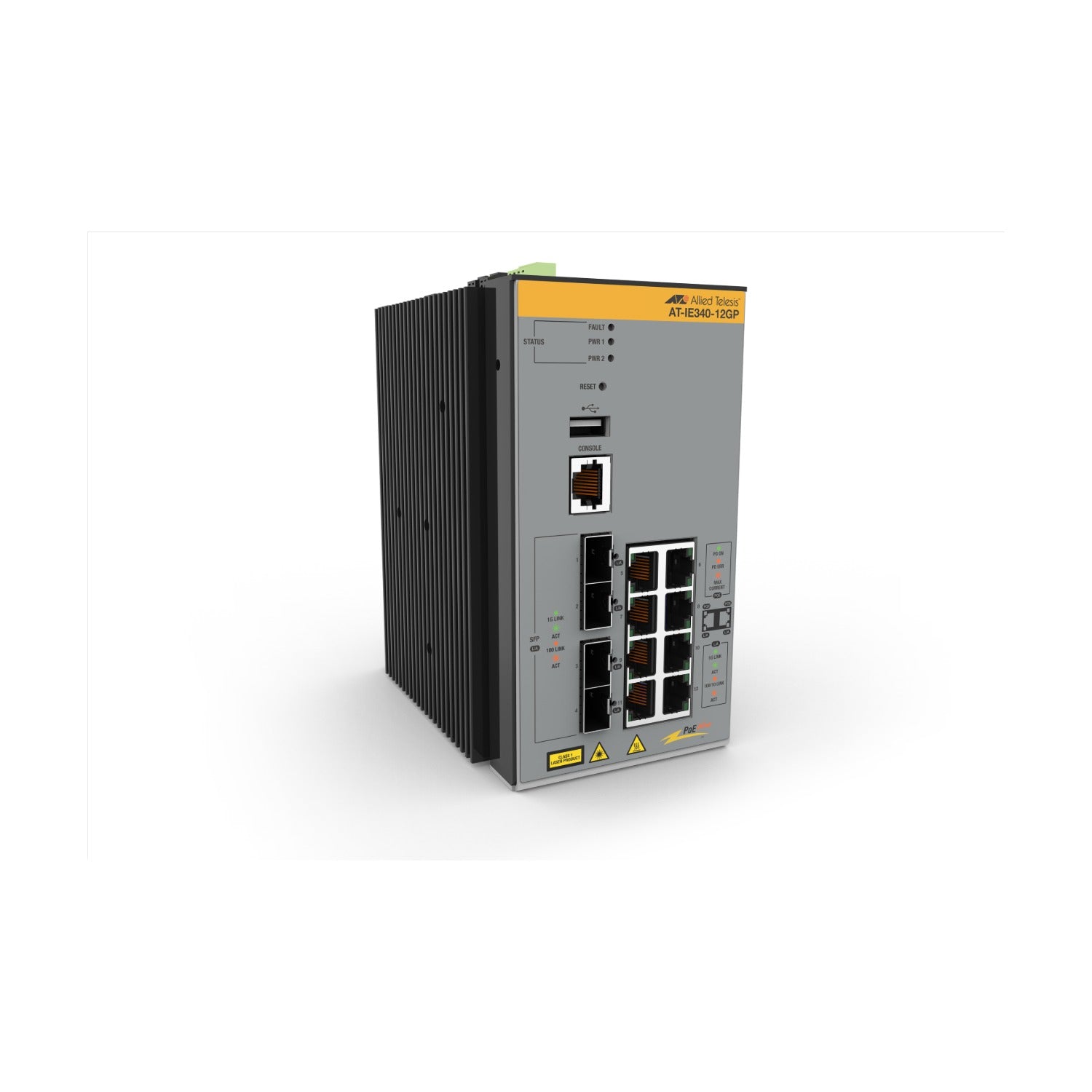

Allied Telesis IE340-12GP Industrial 8-Port Gigabit PoE+ Layer 3 Switch with 4 x SFP
PRODUCT DESCRIPTION
Allied Telesis IE340-12GP Industrial PoE+ Layer 3 Switch - Local Warranty
Hardened for Factories, Roadsides and Outdoor Cabinets
The IE340-12GP is a fanless, IP30-rated industrial switch in an aluminium and sheet-metal housing. It runs from -40°C to 75°C, mounts on a DIN rail or a wall, and meets industrial standards for vibration, shock and electrical noise, so it can sit in control cabinets and enclosures where office switches would fail.
PoE+ for Cameras, Access Points and IoT Devices
All eight Gigabit copper ports can source IEEE 802.3at PoE+ at up to 30W each from a 240W PoE budget. Dynamic PoE power allocation shares that budget efficiently, and Continuous PoE helps keep powered endpoints such as IP cameras online.
Layer 3 Routing and Fast-Recovering Rings
Beyond Layer 2 switching, the IE340 supports static and dynamic routing including RIP, OSPF, BGP and ECMP (advanced routing via the IE340 Premium licence). EPSRing, ITU-T G.8032 ERPS and MRP build protected ring topologies that can recover in as little as 50ms.
Made for Industrial Automation
PROFINET certification, Modbus/TCP and IEEE 1588 PTP Transparent Clock support make the IE340-12GP suited to automation and control networks, while NETCONF/RESTCONF, OpenFlow v1.3 and AMF Plus bring centralised management and automation.
IE340-12GP Datasheet — Technical Specifications
General
| Product Name | Allied Telesis IE340-12GP Industrial Ethernet Layer 3 Switch with PoE+ |
| Model | IE340-12GP |
| Order Code | AT-IE340-12GP-80 |
| Series | IE340 Series |
| Order Code Suffix | -80 = standard country of origin (-980 = TAA-compliant country of origin) |
| Operating System | AlliedWare Plus |
Ports & Interfaces
| Copper Ports | 8 x 10/100/1000T RJ-45 (all PoE+) |
| Fiber Uplinks | 4 x 100/1000X SFP |
| Total Ports | 12 |
| Console | 1 x serial console (UART), RJ-45 |
| USB | 1 x USB 2.0 Type A |
| Alarm Input | 1 x 2-pin terminal block (320µA @3.3Vdc) |
| Alarm Output | 1 x 2-pin terminal block (1A @30Vdc) |
Performance
| Switching Fabric | 24 Gbps |
| Forwarding Rate | 17.8 Mpps |
| Latency | 2.44µs at 1Gbps; 5.46µs at 100Mbps |
| RAM / Flash | 512MB DDR SDRAM / 128MB flash |
| MAC Address Table | 16K entries |
| Packet Buffer | 1.5 MBytes (16 Mbits) |
| Priority Queues | 8 |
| VLANs | 4K simultaneous (VLAN ID 1–4094) |
| Jumbo Frames | 9KB Layer 2 |
| MTBF | 500,000 hours |
Power & PoE
| Input Voltage | 18~57V DC, redundant power inputs |
| PoE Input Requirement | 48Vdc for 802.3at Type 1 (PoE); 54Vdc for 802.3at Type 2 (PoE+) |
| PoE Ports | 8 x PoE+ (up to 30W per port) |
| PoE Budget | 240W, dynamic allocation |
| Max Power Consumption | 24W (no PoE load); 271W (full PoE load) |
| Max Heat Dissipation | 81.9 BTU/hr (no PoE load); 105.8 BTU/hr (full PoE load) |
| Cooling | Fanless |
Physical
| Dimensions (W x D x H) | 91 x 139 x 153 mm (3.58 x 5.47 x 6.02 in) |
| Weight | DIN rail: 2.34 kg; wall mount: 2.23 kg |
| Enclosure | Aluminium / sheet metal shell |
| Mounting | DIN rail (EN 50022 / EN 60715), wall mount |
| Protection Rating | IP30 |
Environmental
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing (operating and storage) |
| Operating Altitude | 3,000 m maximum |
| Shock (IEC 60068-2-27) | Operational: 20g (DIN rail), 45g (wall mount); non-operational: 65g |
| Vibration (IEC 60068-2-6) | Operational: 2g @10~500Hz |
| Industry Standards | EN 50121-4 railway (S/T apparatus), NEMA TS 2 traffic controller, ANSI/ISA S71.04 class G3 corrosive |
Features & Applications
Key Software Features
| AMF Plus | Allied Telesis Autonomous Management Framework Plus for centralised management and network automation |
| Ring Resiliency | EPSRing, ITU-T G.8032 ERPS and MRP (IEC 62439-2), recovery in as little as 50ms |
| Active Fiber Monitoring | Watches fiber uplinks for tampering and can shut the port or raise an alert |
| Industrial Protocols | PROFINET RT (certified), Modbus/TCP, IEEE 1588 PTP Transparent Clock |
| PoE Management | Dynamic PoE power allocation, Continuous PoE |
| Automation | NETCONF/RESTCONF, OpenFlow v1.3 |
| Security | SSL, SSH, 802.1X, MAC and IP filtering, RADIUS, TACACS+, VLANs |
| Management | Web GUI, SNMP, Telnet, SSH, AMF Plus |
Typical Deployments
Manufacturing lines, transportation, physical security and IP surveillance, building automation and facility management, and smart-city cabinets where PoE devices need a rugged, fanless edge switch.
Selection Tip
Choose the IE340-12GP for 8 PoE+ ports with 4 SFP uplinks. If you do not need PoE, the IE340-12GT has the same port layout without PoE. For 16 PoE+ ports choose the IE340-20GP, and for environments with corrosive contaminants choose a conformal-coated /C model.
Package Contents & IE340 Series Ordering Information
In the Box
1 x IE340-12GP switch with DIN rail and wall mount kits. The management serial console cable is not included, and the 48/54V DC power supply is ordered separately.
Order Code Suffix
-80 denotes the standard country of origin; -980 denotes the TAA-compliant country of origin.

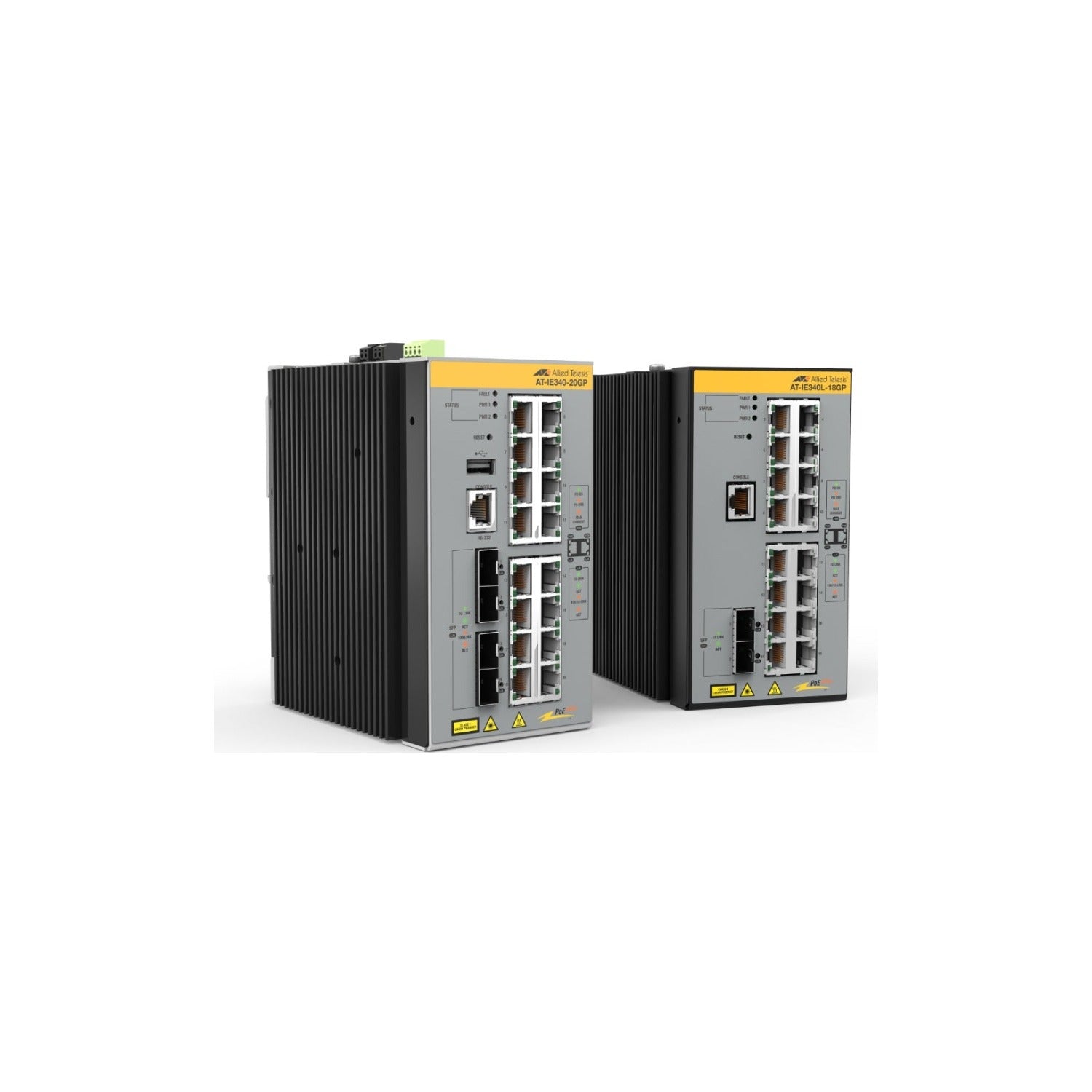

IE340 Series Models
| Model | Key difference |
| IE340-12GP (this listing) | 8 x 10/100/1000T PoE+, 4 x 100/1000X SFP |
| IE340-12GP/C | As IE340-12GP with conformal coating |
| IE340-12GT | 8 x 10/100/1000T (no PoE), 4 x 100/1000X SFP |
| IE340-20GP | 16 x 10/100/1000T PoE+, 4 x 100/1000X SFP |
| IE340-20GP/C | As IE340-20GP with conformal coating |
| IE340L-18GP | 16 x 10/100/1000T PoE+, 2 x 1000X SFP, -40°C to 65°C |
Related Official Accessories & Licences
| AT-IE048-240-20 / AT-IE048-480-20 | 240W / 480W @48Vdc industrial AC/DC DIN rail power supplies |
| AT-SDR240-48 / AT-SDR480-48 | 240W / 480W @48Vdc industrial AC/DC DIN rail power supplies |
| AT-IE340-FL01 | IE340 Series Premium licence (BGP, OSPF, RIP, PIM routing features) |
| SFP transceivers | e.g. AT-SPSX/I, AT-SPLX10/E, AT-SPBD20LC/I industrial-temperature modules |
Datasheet & Downloads
| IE340 Series page | IE340 Series on alliedtelesis.com |
| IE340 Series datasheet | IE340 Series Datasheet (PDF) |
| Power supply matrix | Power Supplies for Allied Telesis Industrial Products (PDF) |
Frequently Asked Questions — Allied Telesis IE340-12GP
What does the -80 in AT-IE340-12GP-80 mean?
It is the standard country-of-origin version. The -980 suffix is the TAA-compliant version.
What power input does it need?
18~57V DC through redundant inputs. To source PoE+ (802.3at Type 2) the input must be 54Vdc; 48Vdc enables standard PoE (Type 1). The power supply is purchased separately.
How much PoE power is available?
Up to 30W per port on all 8 copper ports, from a total PoE budget of 240W.
Can it run outdoors or in hot cabinets?
It is rated for -40°C to 75°C operation with a fanless, IP30 design. It still needs to be installed in a suitable enclosure.
What warranty do I get?
Supplied by SourceIT with local warranty and a GST invoice.
