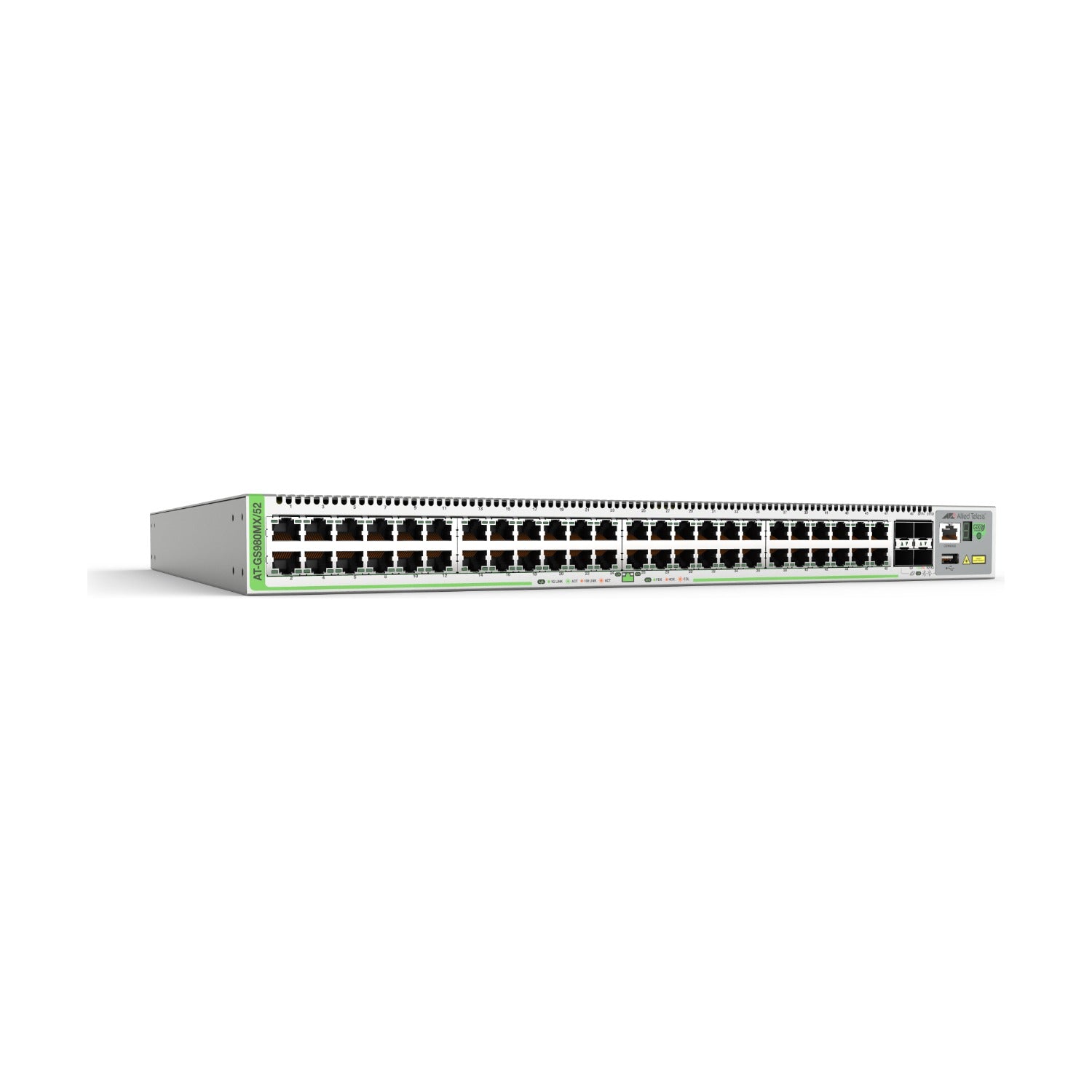

Allied Telesis GS980MX/52 48-Port Gigabit Stackable Layer 3 Lite Switch with 4 x 10G SFP+
PRODUCT DESCRIPTION
Allied Telesis GS980MX/52 48-Port Gigabit Stackable Layer 3 Lite Switch - Local Warranty
48 Gigabit Ports with Four 10G Uplinks
The CentreCOM GS980MX/52 packs 48 10/100/1000T copper ports and four 1/10G SFP+ uplinks into a 1RU chassis, with 176Gbps of switching capacity for wirespeed forwarding across every port.
Stack Up to Four Switches
VCStack lets up to four GS980MX switches be managed as a single unit, and any port can be used for stacking. VCStack LD extends the stack over fibre for distributed sites.
Layer 3 Lite with Enterprise-Class Software
Running AlliedWare Plus, the switch adds static routing and RIP for IPv4 plus static IPv6 routing to a full Layer 2 feature set, with EPSRing transit-node support for fast-recovering ring networks.
Managed by AMF Plus
As an AMF Plus edge node, the GS980MX/52 can be centrally managed, backed up and upgraded automatically, and monitored graphically in Vista Manager EX.
GS980MX/52 Datasheet — Technical Specifications
General
| Product Name | Allied Telesis CentreCOM GS980MX/52 Stackable Layer 3 Lite Switch |
| Model | GS980MX/52 |
| Order Code | AT-GS980MX/52-30 |
| Series | CentreCOM GS980MX Series |
| Operating System | AlliedWare Plus |
Ports
| 10/100/1000T (RJ-45) Copper Ports | 48 |
| 1/10 Gigabit SFP+ Ports | 4 |
| Stacking | Any port can be used for stacking |
| PoE | Not supported |
| Management | Front-panel console port, USB interface |
Performance
| Switching Fabric | 176Gbps |
| Forwarding Rate | 130.9Mpps |
| MAC Addresses | Up to 16K |
| VLANs | 4094 configurable |
| Jumbo Frames | 10KB L2, 9KB L3 |
| Memory | 1GB DDR3 SDRAM |
| Packet Buffer | 3MB |
| Latency | 8.34μs (100Mbps), 7.75μs (1Gbps), 1.67μs (10Gbps) |
| MTBF | 210,000 hours |
Power
| Power Supply | Single fixed internal PSU |
| Max Power Consumption | 60W |
| Max Heat Dissipation | 205 BTU/h |
| Noise | 42 dBA (under 30 °C ambient, ISO7779) |
Physical
| Dimensions (W x D x H) | 441 x 323 x 44 mm |
| Mounting | Rack-mount |
| Weight | 4.8 kg unpackaged; 6.8 kg packaged |
| Packaged Dimensions | 563 x 534 x 128 mm |
Environmental
| Operating Temperature | 0 °C to 50 °C (derated by 1 °C per 305 m) |
| Storage Temperature | -25 °C to 70 °C |
| Operating Humidity | 5% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Operating Altitude | Up to 3,000 m |
Features & Applications
Key Software Features
AlliedWare Plus operating system; AMF Plus edge node; Vista Manager EX and AMF-Security compatible; VCStack up to 4 units and VCStack LD; EPSRing transit node with Super-Loop Protection; Active Fiber Monitoring; tri-authentication (802.1X, MAC and web); ETS quality of service; NETCONF/RESTCONF with YANG; IPFIX; web-based GUI; Eco-friendly mode; IPv6 Ready certified.
Layer 3 Lite Routing
Static routing and RIP for IPv4, static routing for IPv6, and ECMP routing.
Typical Deployments
High-density Gigabit access for desktops, printers and servers in offices and campuses, with 10G uplinks to the core and stacking for simpler management.
Selection Tip
If you need PoE, the GS980MX/52PSm adds PoE+ on all 48 ports including eight 2.5G/5G Multi-Gigabit ports. For 24 ports, choose the GS980MX/28. For a larger stack (up to eight units), dual PSUs or full Layer 3 routing options, consider the x530L Series.
Package Contents & GS980MX Series Ordering Information
Power Cord
The -30 suffix in AT-GS980MX/52-30 denotes the UK power cord version.

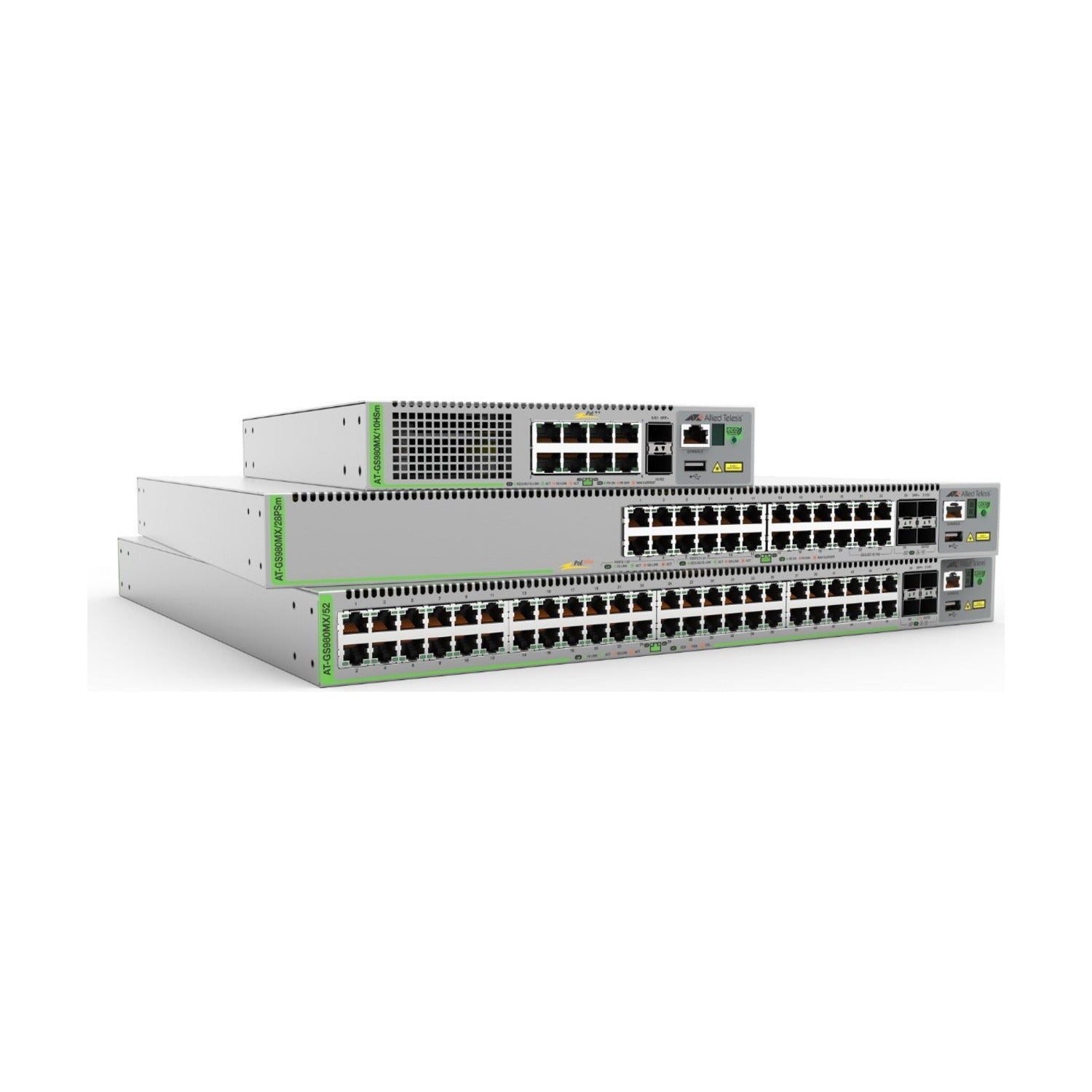

GS980MX Series Models
| Model | Key difference |
| GS980MX/52 (this listing) | 48 x 10/100/1000T, 4 x SFP+, no PoE |
| GS980MX/52PSm | 40 x 10/100/1000T PoE+ and 8 x 100M/1/2.5/5G PoE+, 4 x SFP+ |
| GS980MX/28 | 24 x 10/100/1000T, 4 x SFP+, no PoE |
| GS980MX/28PSm | 20 x 10/100/1000T PoE+ and 4 x 100M/1/2.5/5G PoE+, 4 x SFP+ |
| GS980MX/18HSm | 16 x 100M/1/2.5/5G PoE++, 2 x SFP+ |
| GS980MX/10HSm | 8 x 100M/1/2.5/5G PoE++, 2 x SFP+ |
All GS980MX models have a single fixed power supply.
Related Licences & Accessories
| AT-FL-G98MX-UD | UDLD (UniDirectional Link Detection) licence, one per stack member |
| AT-BRKT-J22 | Wall-mount kit for GS980MX/28 and /52 |
| AT-VT-Kit3 | USB to serial console management cable |
| SFP+ modules | e.g. AT-SP10SR, AT-SP10LRa/I, AT-SP10TM, AT-SP10TW1 / AT-SP10TW3 direct attach cables |
Datasheet & Downloads
| GS980MX Series page | GS980MX Series on alliedtelesis.com |
| GS980MX Series datasheet | GS980MX Series Datasheet (PDF) |
Frequently Asked Questions — Allied Telesis GS980MX/52
Does the GS980MX/52 support PoE?
No. It is the non-PoE 48-port model. The GS980MX/52PSm is the PoE+ version.
How many units can be stacked?
Up to four GS980MX switches in a VCStack, at any port speed.
What does Layer 3 Lite include?
Static routing and RIP for IPv4, and static routing for IPv6.
Does it have redundant power?
No. It has a single fixed power supply.
What warranty do I get?
Supplied by SourceIT with local warranty and a GST invoice.
