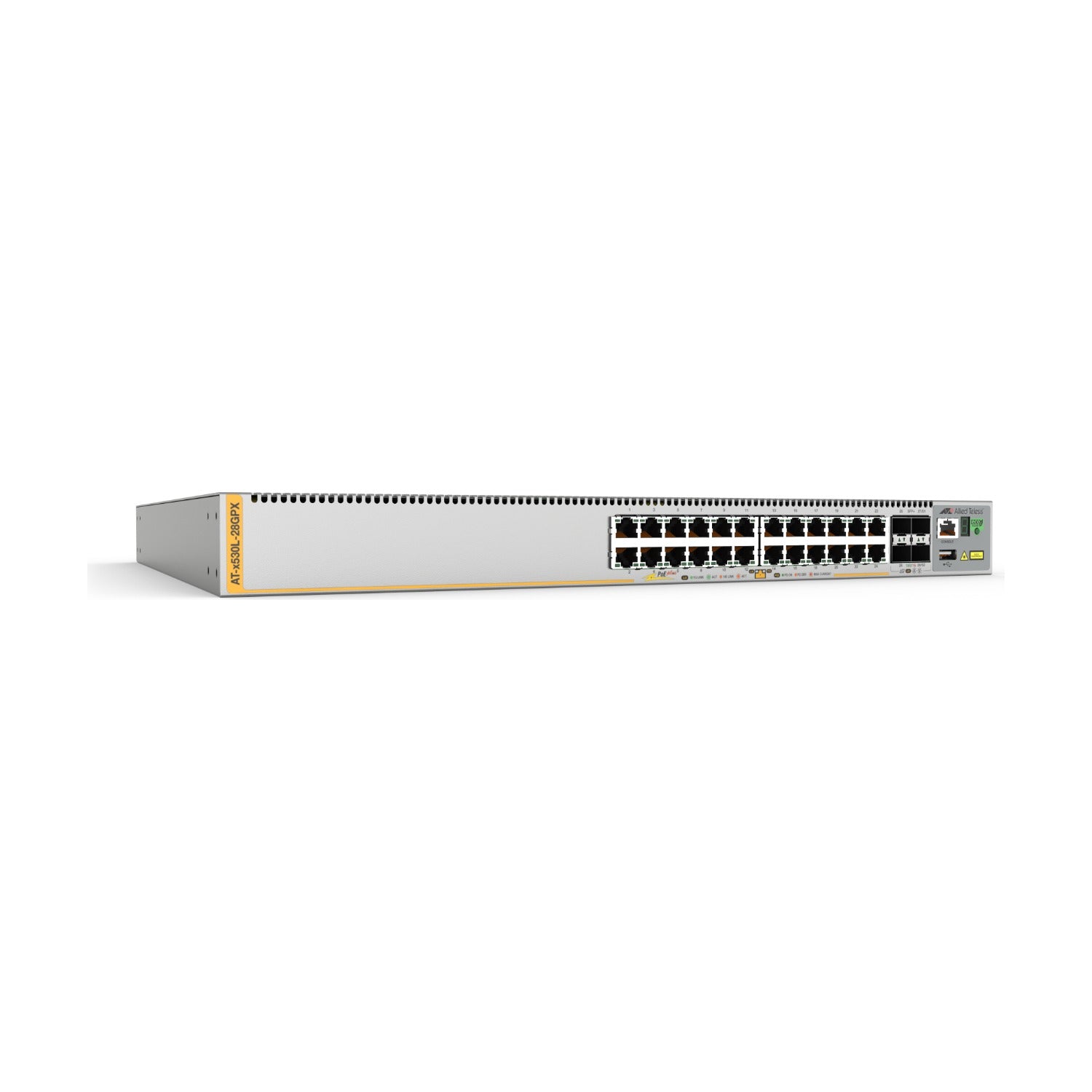

Allied Telesis x530L-28GPX 24-Port Gigabit PoE+ Stackable Layer 3 Switch with 4 x SFP+ and Dual PSU
PRODUCT DESCRIPTION
Allied Telesis x530L-28GPX 24-Port PoE+ Stackable Layer 3 Switch - Local Warranty
Full 30W PoE+ on All 24 Ports
With a 740W PoE budget, the x530L-28GPX can deliver full 30W PoE+ to every one of its 24 Gigabit copper ports at once, powering access points, IP phones and security cameras without separate power runs.
Two Built-In Power Supplies
Dual fixed, load-sharing power supplies keep the switch and its connected PoE devices running if one supply fails, and online stack reconfiguration is near-hitless, so routine maintenance does not interrupt service.
10G Uplinks and VCStack
Four 1/10G SFP+ ports handle uplinks and stacking. Up to eight x530L units (four over 1G links) can be stacked into one managed switch, including over long-distance fibre with VCStack LD.
AMF Plus Network Automation
Run it as an AMF Plus master or member for centralised management, automatic backups and upgrades, and zero-touch replacement, with visual monitoring in Vista Manager EX.
x530L-28GPX Datasheet — Technical Specifications
General
| Product Name | Allied Telesis x530L-28GPX Stackable Intelligent Layer 3 Switch |
| Model | x530L-28GPX |
| Order Code | AT-x530L-28GPX-30 |
| Series | x530L Series |
| Operating System | AlliedWare Plus |
Ports
| 10/100/1000T (RJ-45) Copper Ports | 24 (all PoE+) |
| 1/10 Gigabit SFP+ Ports | 4 |
| Stacking Ports | 2 (SFP+ stacking ports can be used as extra 1G/10G Ethernet ports when not stacked) |
| Management | Front-panel console port, USB interface |
Performance
| Switching Fabric | 128Gbps |
| Forwarding Rate | 95.2Mpps |
| Stacking Bandwidth | 440Gbps using front-panel 10G SFP+ ports |
| MAC Addresses | 16K |
| VLANs | 4094 configurable |
| Jumbo Frames | 10KB L2, 9KB L3 |
| Routing | 1,000 static IPv4 and IPv6 routes; 256 dynamic routes with Premium licence |
| Memory | 1GB DDR3 SDRAM, 256MB NAND flash |
| Packet Buffer | 1.5MB |
| MTBF | 200,000 hours |
Power & PoE
| Power Supplies | 2 x fixed internal, load-sharing |
| AC Input | 90-264V auto-ranging, 50-60Hz |
| Max PoE Power | 740W |
| PoE Sourcing Ports | 24 at 7.5W / 24 at 15.4W / 24 at 30W (PoE+) |
| Max Power Consumption | 70W (no PoE load); 890W (full PoE+ load) |
| Max Heat Dissipation | 239 BTU/h (no PoE load); 3037 BTU/h (full PoE+ load) |
| Noise | 42 dBA (under 30 °C ambient, ISO7779) |
Physical
| Dimensions (W x D x H) | 441 x 421 x 44 mm |
| Mounting | Rack-mount |
| Weight | 6.2 kg unpackaged; 8.4 kg packaged |
| Packaged Dimensions | 577 x 548 x 153 mm |
Environmental
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -25 °C to 70 °C |
| Operating Humidity | 5% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Operating Altitude | 3,048 m maximum |
Features & Applications
Key Software Features
AMF Plus master or member; VCStack and VCStack LD; EPSRing (EPSR master or transit) and G.8032 ERPS ring protection (G.8032 by licence); Active Fiber Monitoring; Continuous PoE (by licence) to keep endpoints powered through a switch restart or firmware upgrade; tri-authentication (802.1X, MAC and web); OpenFlow v1.3 (by licence); PTP transparent mode; NETCONF/RESTCONF with YANG; sFlow and IPFIX; IPv6 Ready certified.
Layer 3 Capability
The base licence includes Layer 2 and basic Layer 3 with static routing. The x530L Premium licence adds RIP, OSPF, BGP4 and PIM multicast routing.
Typical Deployments
PoE+ access for offices, classrooms and retail sites; powering Wi-Fi access points, IP phones and cameras where every port may need full 30W; resilient stacked edge or distribution switching.
Selection Tip
Need 48 PoE+ ports? Choose the x530L-52GPX. For 24 ports without PoE, the x530L-28GTX. For 2.5G/5G Multi-Gigabit and up to 90W PoE++, see the x530L-10GHXm or x530L-18GHXm.
Package Contents & x530L Series Ordering Information
Power Cord
The -30 suffix in AT-x530L-28GPX-30 denotes the UK power cord version.

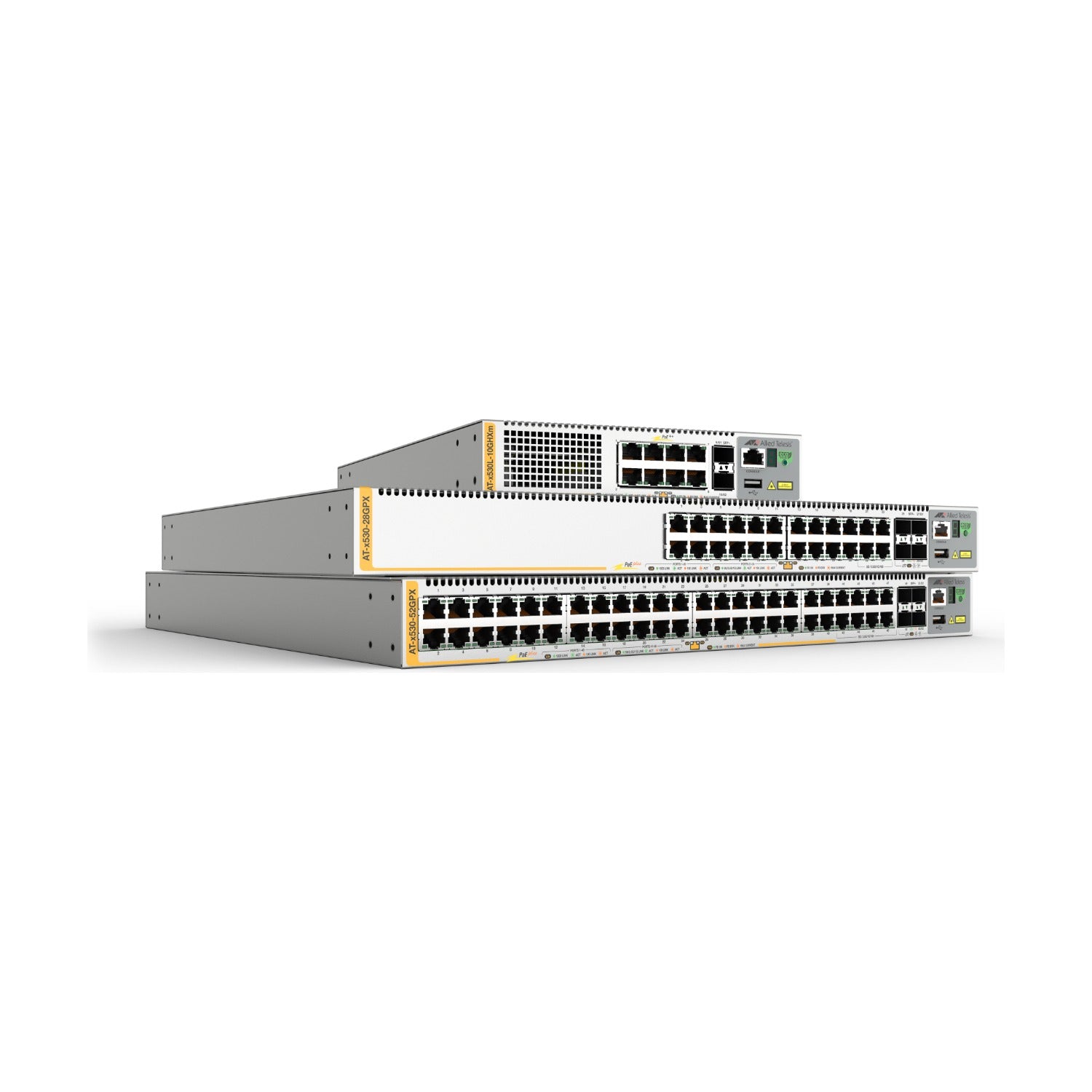

x530L Series Models
| Model | Key difference |
| x530L-28GPX (this listing) | 24 x 10/100/1000T PoE+, 4 x SFP+, 2 fixed PSUs |
| x530L-28GTX | 24 x 10/100/1000T, 4 x SFP+, 2 fixed PSUs (no PoE) |
| x530L-52GPX | 48 x 10/100/1000T PoE+, 4 x SFP+, 2 fixed PSUs |
| x530L-52GTX | 48 x 10/100/1000T, 4 x SFP+, 2 fixed PSUs (no PoE) |
| x530L-18GHXm | 16 x 100M/1/2.5/5G PoE++, 2 x SFP+, single fixed PSU |
| x530L-10GHXm | 8 x 100M/1/2.5/5G PoE++, 2 x SFP+, single fixed PSU |
Related Licences & Accessories
| AT-FL-x530L-01 | x530L Premium licence (dynamic routing, multicast routing, Q-in-Q, UDLD, VLAN translation, PTP transparent mode) |
| AT-SW-APM10-1YR / -5YR | AMF Plus Master licence, up to 10 nodes, 1 or 5 years |
| AT-FL-x53L-CPOE | Continuous PoE licence (GHXm and GPX models) |
| AT-FL-x53L-8032 | ITU-T G.8032 and Ethernet CFM licence |
| AT-FL-x53L-MSTK | Mixed stacking licence (stack with x530 Series) |
| AT-VT-Kit3 | USB to serial console management cable |
| SFP+ modules | e.g. AT-SP10SR, AT-SP10LRa/I, AT-SP10TW1 / AT-SP10TW3 direct attach cables |
Datasheet & Downloads
| x530L Series page | x530L Series on alliedtelesis.com |
| x530L Series datasheet | x530L Series Datasheet (PDF) |
Frequently Asked Questions — Allied Telesis x530L-28GPX
Can all 24 ports deliver 30W PoE+ at the same time?
Yes. The 740W PoE budget supports 30W on all 24 ports.
Does it have redundant power?
Yes. It has two built-in, load-sharing power supplies.
How many switches can be stacked?
Up to eight units with VCStack, or four if 1Gbps ports are used for stacking.
Does it support dynamic routing such as OSPF or BGP?
Static routing is included. RIP, OSPF, BGP4 and PIM are added with the AT-FL-x530L-01 Premium licence.
What warranty do I get?
Supplied by SourceIT with local warranty and a GST invoice.
