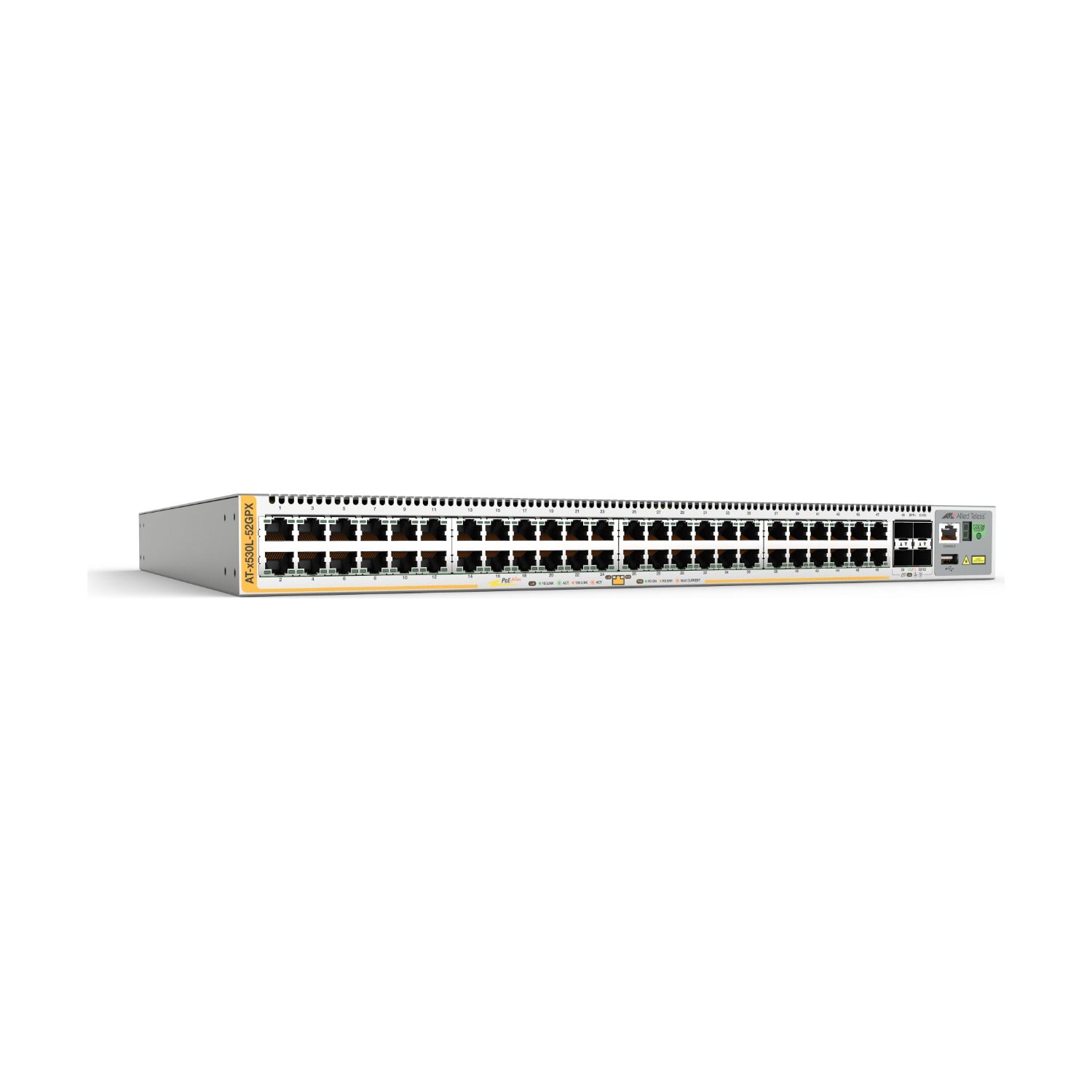

Allied Telesis x530L-52GPX 48-Port Gigabit PoE+ Stackable Layer 3 Switch with 4 x SFP+ and Dual PSU
PRODUCT DESCRIPTION
Allied Telesis x530L-52GPX 48-Port PoE+ Stackable Layer 3 Switch - Local Warranty
48 Gigabit PoE+ Ports with a 740W Budget
Every one of the 48 copper ports on the x530L-52GPX can source PoE, with a 740W total budget that drives all 48 ports at 15.4W or 24 ports at the full 30W PoE+ level. That covers wireless access points, IP phones and surveillance cameras across a whole floor from a single 1RU switch.
Dual Built-In Power Supplies
Two fixed, load-sharing power supplies are built in, so the switch keeps running if one supply or feed fails. Combined with near-hitless online stack reconfiguration, maintenance work does not have to mean network downtime.
Stack Up to Eight Units with VCStack
Four 1/10G SFP+ ports provide uplinks or stacking links. Up to eight x530L switches (four when stacking over 1G) can be managed as one virtual chassis, locally or across fibre with long-distance VCStack LD, and mixed stacking with the x530 Series is available by licence.
Automated Management with AMF Plus
The x530L can act as an AMF Plus master or member, bringing auto-backup, auto-upgrade, zero-touch provisioning and recovery to the network, with graphical monitoring in Vista Manager EX.
x530L-52GPX Datasheet — Technical Specifications
General
| Product Name | Allied Telesis x530L-52GPX Stackable Intelligent Layer 3 Switch |
| Model | x530L-52GPX |
| Order Code | AT-x530L-52GPX-30 |
| Series | x530L Series |
| Operating System | AlliedWare Plus |
Ports
| 10/100/1000T (RJ-45) Copper Ports | 48 (all PoE+) |
| 1/10 Gigabit SFP+ Ports | 4 |
| Stacking Ports | 2 (SFP+ stacking ports can be used as extra 1G/10G Ethernet ports when not stacked) |
| Management | Front-panel console port, USB interface |
Performance
| Switching Fabric | 176Gbps |
| Forwarding Rate | 130.9Mpps |
| Stacking Bandwidth | 440Gbps using front-panel 10G SFP+ ports |
| MAC Addresses | 16K |
| VLANs | 4094 configurable |
| Jumbo Frames | 10KB L2, 9KB L3 |
| Routing | 1,000 static IPv4 and IPv6 routes; 256 dynamic routes with Premium licence |
| Memory | 1GB DDR3 SDRAM, 256MB NAND flash |
| Packet Buffer | 3MB |
| MTBF | 140,000 hours |
Power & PoE
| Power Supplies | 2 x fixed internal, load-sharing |
| AC Input | 90-264V auto-ranging, 50-60Hz |
| Max PoE Power | 740W |
| PoE Sourcing Ports | 48 at 7.5W / 48 at 15.4W / 24 at 30W (PoE+) |
| Max Power Consumption | 95W (no PoE load); 950W (full PoE+ load) |
| Max Heat Dissipation | 324 BTU/h (no PoE load); 3242 BTU/h (full PoE+ load) |
| Noise | 42 dBA (under 30 °C ambient, ISO7779) |
Physical
| Dimensions (W x D x H) | 441 x 421 x 44 mm |
| Mounting | Rack-mount |
| Weight | 6.7 kg unpackaged; 8.9 kg packaged |
| Packaged Dimensions | 577 x 548 x 153 mm |
Environmental
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -25 °C to 70 °C |
| Operating Humidity | 5% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Operating Altitude | 3,048 m maximum |
Features & Applications
Key Software Features
AMF Plus master or member; VCStack and VCStack LD; EPSRing (EPSR master or transit) and G.8032 ERPS ring protection (G.8032 by licence); Active Fiber Monitoring; Continuous PoE (by licence) to keep endpoints powered through a switch restart or firmware upgrade; tri-authentication (802.1X, MAC and web); OpenFlow v1.3 (by licence); PTP transparent mode; NETCONF/RESTCONF with YANG; sFlow and IPFIX; IPv6 Ready certified.
Layer 3 Capability
The base licence includes Layer 2 and basic Layer 3 with static routing. The x530L Premium licence adds RIP, OSPF, BGP4 and PIM multicast routing.
Typical Deployments
High-density PoE+ access for offices, campuses and schools; powering Wi-Fi access points, IP phones and cameras; distribution switching in stacked or long-distance stacked designs.
Selection Tip
Choose the x530L-28GPX for 24 PoE+ ports, or the x530L-52GTX if you need 48 ports without PoE. For 2.5G/5G Multi-Gigabit and up to 90W PoE++, look at the x530L-10GHXm or x530L-18GHXm.
Package Contents & x530L Series Ordering Information
Power Cord
The -30 suffix in AT-x530L-52GPX-30 denotes the UK power cord version.
x530L Series Models
| Model | Key difference |
| x530L-52GPX (this listing) | 48 x 10/100/1000T PoE+, 4 x SFP+, 2 fixed PSUs |
| x530L-52GTX | 48 x 10/100/1000T, 4 x SFP+, 2 fixed PSUs (no PoE) |
| x530L-28GPX | 24 x 10/100/1000T PoE+, 4 x SFP+, 2 fixed PSUs |
| x530L-28GTX | 24 x 10/100/1000T, 4 x SFP+, 2 fixed PSUs (no PoE) |
| x530L-18GHXm | 16 x 100M/1/2.5/5G PoE++, 2 x SFP+, single fixed PSU |
| x530L-10GHXm | 8 x 100M/1/2.5/5G PoE++, 2 x SFP+, single fixed PSU |
Related Licences & Accessories
| AT-FL-x530L-01 | x530L Premium licence (dynamic routing, multicast routing, Q-in-Q, UDLD, VLAN translation, PTP transparent mode) |
| AT-SW-APM10-1YR / -5YR | AMF Plus Master licence, up to 10 nodes, 1 or 5 years |
| AT-FL-x53L-CPOE | Continuous PoE licence (GHXm and GPX models) |
| AT-FL-x53L-8032 | ITU-T G.8032 and Ethernet CFM licence |
| AT-FL-x53L-MSTK | Mixed stacking licence (stack with x530 Series) |
| AT-VT-Kit3 | USB to serial console management cable |
| SFP+ modules | e.g. AT-SP10SR, AT-SP10LRa/I, AT-SP10TW1 / AT-SP10TW3 direct attach cables |
Datasheet & Downloads
| x530L Series page | x530L Series on alliedtelesis.com |
| x530L Series datasheet | x530L Series Datasheet (PDF) |
Frequently Asked Questions — Allied Telesis x530L-52GPX
How many ports can deliver full 30W PoE+?
The 740W budget supports 24 ports at 30W, or all 48 ports at 15.4W.
Does it have redundant power?
Yes. The 28 and 52 port x530L models have two built-in, load-sharing power supplies.
How many switches can be stacked?
Up to eight units with VCStack, or four if 1Gbps ports are used for stacking.
Does it support dynamic routing such as OSPF or BGP?
Static routing is included. RIP, OSPF, BGP4 and PIM are added with the AT-FL-x530L-01 Premium licence.
What warranty do I get?
Supplied by SourceIT with local warranty and a GST invoice.
