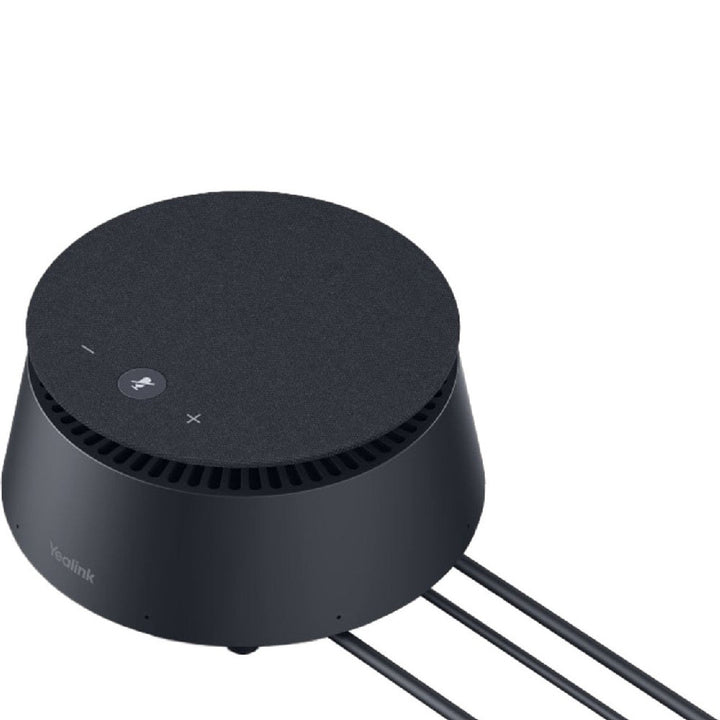

Yealink CPE40 Professional Conference Microphone
PRODUCT DESCRIPTION
Yealink CPE40 Professional Conference Microphone (1304032) - 2 Years Local Warranty
Expansion Speakerphone for the Yealink CP50
The Yealink CPE40 is the expansion unit for the Yealink CP50 conference speakerphone. Each CPE40 adds another 8-microphone 360° array and a built-in 4W speaker further down the table, so participants in medium and large Singapore boardrooms are picked up — and hear — just as clearly as those beside the main unit.
Single-Cable Daisy Chain, Powered by the CP50
The CPE40 connects to the CP50's Audio port with a single Ethernet-style cable (3 m included) that carries both audio and power — no power adapter at each seat. Two RJ45 ports let units pass through to the next in the chain: up to 3 CPE40s per CP50 with the standard adapter, or up to 7 with the optional 48V/2A adapter.
Same Professional Pickup as the Main Unit
Each CPE40 carries the same 8-microphone omnidirectional array with 6-metre pickup and Yealink's second-generation AI audio processing — intelligent noise, echo and reverberation cancellation with full-duplex audio and AGC — for consistent voice quality along the whole table.
On-Unit Controls That Sync with Your Meeting
Mute and volume buttons on every CPE40 sync with the UC software in use, and the mute LED shows call status at a glance — so anyone at the table can mute the room instantly.
Yealink CPE40 Datasheet — Technical Specifications
General
| Part Number | 1304032 |
| Product | Yealink CPE40 Expansion Speakerphone for CP50 |
| Dimensions | 151.8 × 151.8 × 75.3 mm |
| Operating conditions | 0–40°C, 10–95% RH non-condensing |
| Warranty | 2 Years Local Warranty (Singapore) |
Microphones
| Microphone array | Built-in 8-microphone omnidirectional array, 360° pickup |
| Pickup distance | 6 m |
| Frequency response | 100 Hz – 12 kHz |
| Sampling | 48 kHz / 16-bit |
| Signal-to-noise ratio | 71.8 dB SPL @ 1 kHz, A-weighted |
| Maximum SPL | 122 dB SPL @ 1 kHz, THD < 1% |
Speaker
| Speaker | 1 × 4W speaker (rated 4W, max 6W) |
| Frequency response | 100 Hz – 20 kHz |
| Sensitivity | 100 dB SPL ±3 dB @ 0.1 m, 1W; 4 Ω |
Audio Processing
| AI audio | Second-generation AI intelligent audio: intelligent noise cancellation, echo cancellation (AEC), reverberation cancellation |
| Duplex | Full-duplex technology |
| Gain | Automatic gain control (AGC) |
Connectivity & Power
| Ports | 2 × RJ45 (chain in / chain out for pass-through daisy chain), 1 × USB-C (PC debugging) |
| Power | Powered by the CP50 over the chain cable; average consumption 6W |
| Chain limits | Up to 3 × CPE40 per CP50 (standard 48V/0.7A adapter) or up to 7 × CPE40 (optional 48V/2A adapter) |
Controls
| Buttons | Mute, Volume +, Volume − (sync with UC software) |
| LED indicator | Mute LED: standby (off), muted (solid red), in call (solid green) |
Compatibility & Software Support
The CPE40 is an expansion device for the Yealink CP50 and inherits the CP50's platform connectivity:
| Requires | Yealink CP50 main unit (connects via the CP50 Audio port; powered over the chain cable) |
| Platforms | Works within CP50 setups for Microsoft Teams, Zoom and other UC platforms — via the CP50's USB-C PC connection or Yealink UVC / MeetingEye video endpoints |
| Standalone use | Not supported — the CPE40 cannot operate without a CP50 |
Package Contents & CP50 Series Ordering Information
In the box:
- Yealink CPE40 expansion speakerphone
- 3 m Ethernet cable
- Cable tie, cable cover, screw
- Quick Start Guide
Yealink conference audio at SourceIT:
| Yealink CPE40 Expansion Speakerphone (this product) | 1304032 |
| Yealink CP50 Conference Speakerphone (main unit) | 1304031 |
| Yealink Mspeech Smart USB Speakerphone | 1306047 |
| Yealink SP92 USB & Bluetooth Speakerphone | 1308167 |
| Yealink SP96 Bluetooth Speakerphone with Dongle | 1308173 |
Datasheet & Downloads
Frequently Asked Questions — Yealink CPE40
Can the CPE40 be used on its own?
No — the CPE40 is an expansion unit that connects to, and is powered by, the Yealink CP50 (1304031). For a standalone speakerphone, consider the CP50 itself or the Yealink SP92.
Does the CPE40 need its own power adapter?
No — power is delivered from the CP50 over the same single Ethernet-style chain cable that carries audio, keeping the table tidy.
How many CPE40 units can I chain to one CP50?
Up to 3 with the CP50's standard 48V/0.7A adapter, or up to 7 with the optional 48V/2A adapter — up to 8 units in total covering long tables.
Is the CPE40's pickup quality the same as the CP50's?
Yes — it has the same 8-microphone 360° array with 6 m pickup, the same 4W speaker, and the same second-generation AI noise, echo and reverberation cancellation.
How far apart should units be placed?
Each unit picks up within a 6 m radius; the included 3 m cable suits typical seat spacing along a boardroom table. SourceIT can advise on layouts for your room size.
Does the Yealink CPE40 come with local warranty in Singapore?
Yes. Every CPE40 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
