ViewSonic PGD-250 Rechargeable DLP Link 3D Glasses
PRODUCT DESCRIPTION

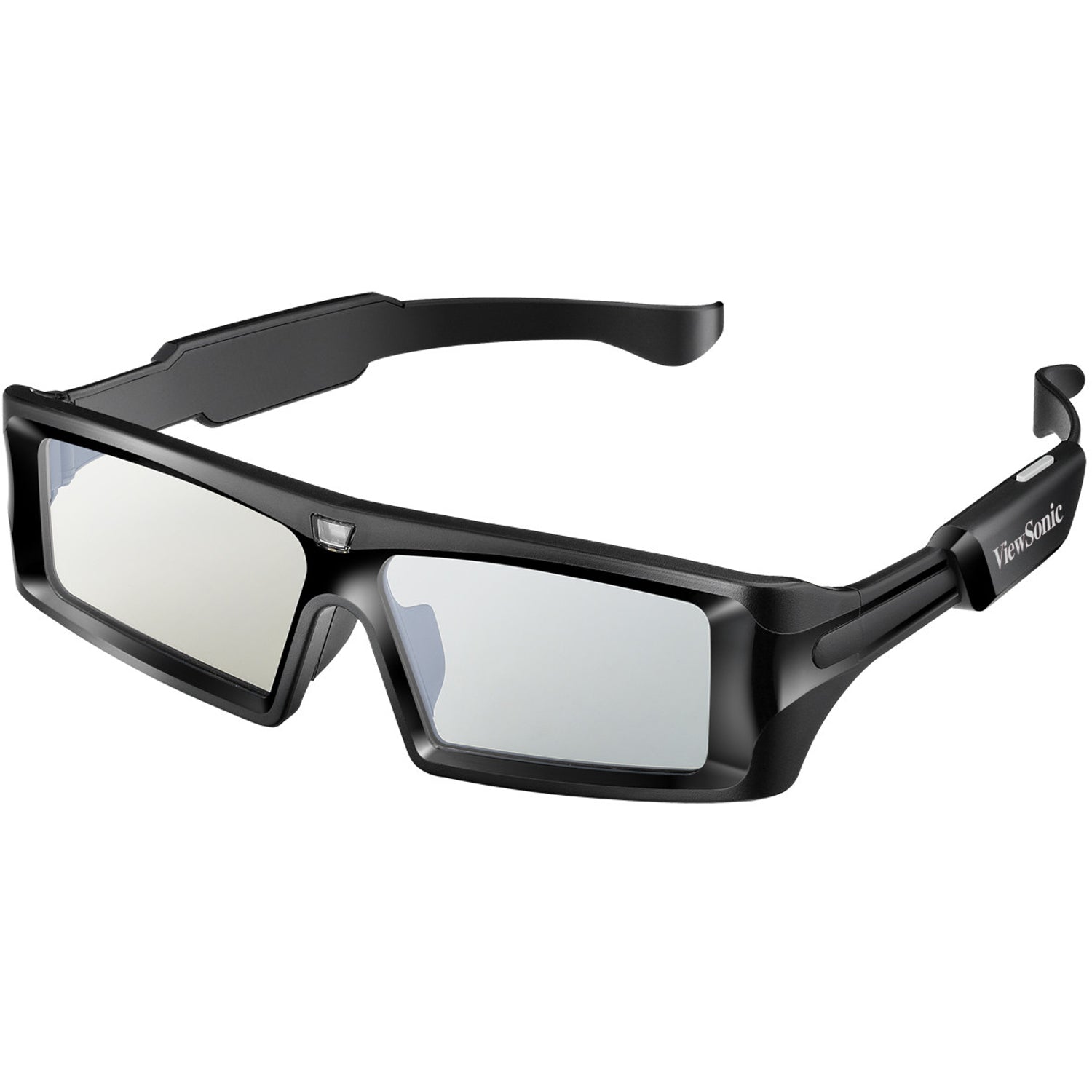

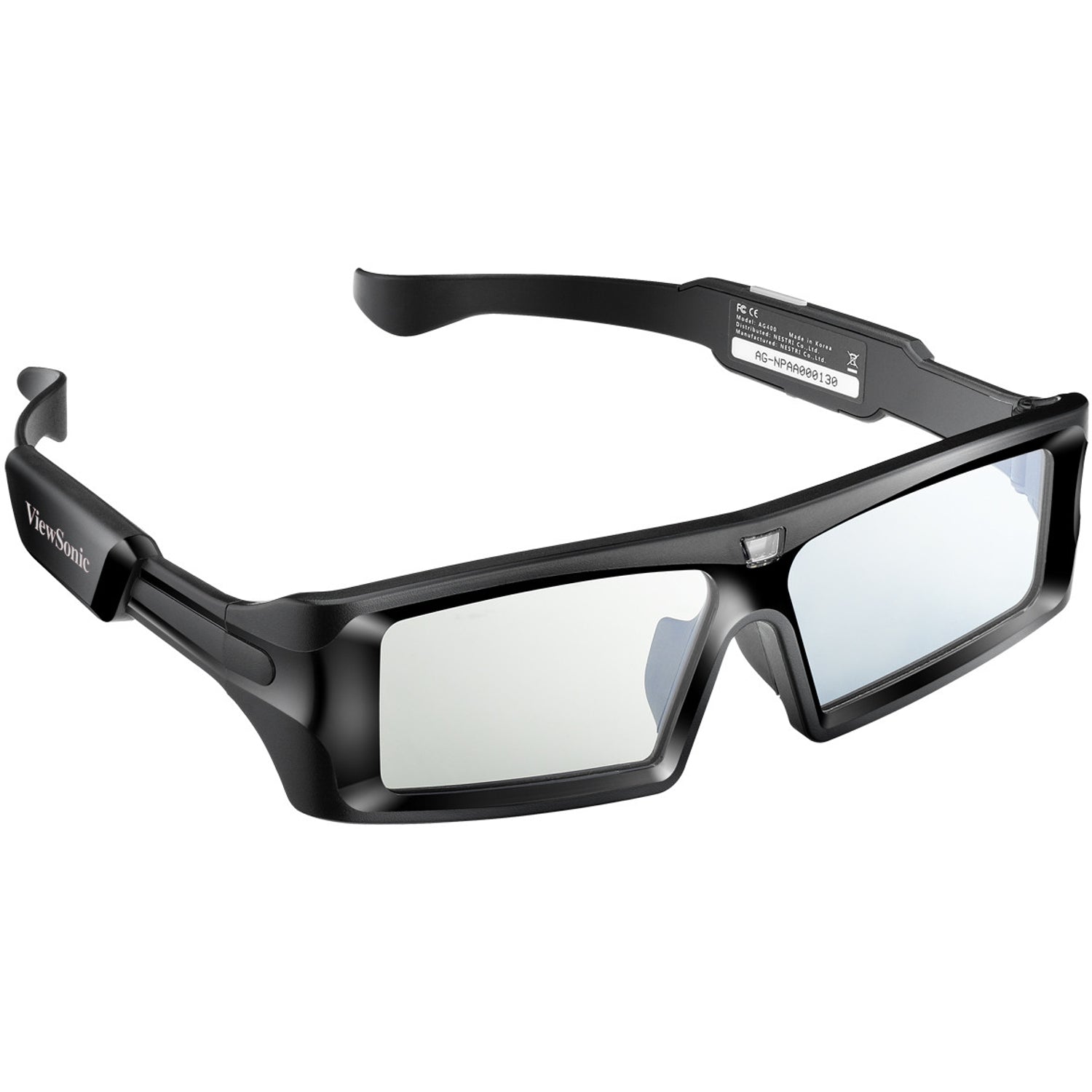

ViewSonic PGD-250 Rechargeable DLP Link 3D Shutter Glasses
DLP Link Compatible
Active shutter glasses for ViewSonic 3D-Ready and any DLP Link projectors.
Up to 44 Hours per Charge
Rechargeable battery via the supplied USB cable — no replacement batteries needed.
Lightweight and Foldable
Foldable temples for comfortable wear and portability; dust- and water-resistant (IEC60529 levels 5 and 14).
Need a quote for a classroom or meeting-room set? Email sales@sourceit.com.sg for pricing and delivery lead time.
ViewSonic PGD250 Datasheet — Technical Specifications
General
| Product Name | ViewSonic PGD-250 Stereographic 3D Glasses |
| Model | PGD-250 (order code PGD250) |
| Warranty | 1 year limited on parts and labour (per ViewSonic) |
Optics
| LCD Lens Shutter | TN type |
| Transmittance | 65% (typ) |
| Contrast Ratio | 800:1 |
| Response Time | 2 ms (typ) |
| Effective Distance | 12 m (40 ft) |
Power
| Battery | 3.7 V DC / 110 mA rechargeable |
| Charging | USB, 4–7 hours |
| Continuous Use | Up to 44 hours |
Environment
| Dust / Water Protection | IEC60529 level 5 / level 14 |
| Operating Altitude | 0–3,048 m (10,000 ft) |
In the Box
ViewSonic 3D glasses, Mini-B to Type-A USB cable, carrying pouch, cleaning wipe, user manual, quick start guide.
Compatible Projectors
DLP Link 3D Projectors
ViewSonic states the PGD-250 works with ViewSonic 3D-Ready and any DLP Link projectors.
Check Your Projector
Your projector must support DLP Link 3D output. Email sales@sourceit.com.sg with the model to confirm.
Datasheet & Downloads
| ViewSonic datasheet | PGD-250 Datasheet |
| User guide | PGD-250 User Guide (PDF, English) |
| ViewSonic product page | PGD-250 on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PGD250.
Frequently Asked Questions — ViewSonic PGD250
Is PGD250 the same as the PGD-250?
Yes. PGD250 is the distributor order code for ViewSonic's PGD-250 glasses.
How long does the battery last?
Up to 44 hours of continuous use; recharge via USB in 4–7 hours.
Do I need an IR emitter?
No. It is a DLP Link glasses model that syncs from a DLP Link projector.
How far from the screen does it work?
ViewSonic quotes an effective distance of 12 m (40 ft).
What warranty applies?
ViewSonic lists a 1-year limited warranty on parts and labour for this accessory. Supplied by SourceIT with a GST invoice.
