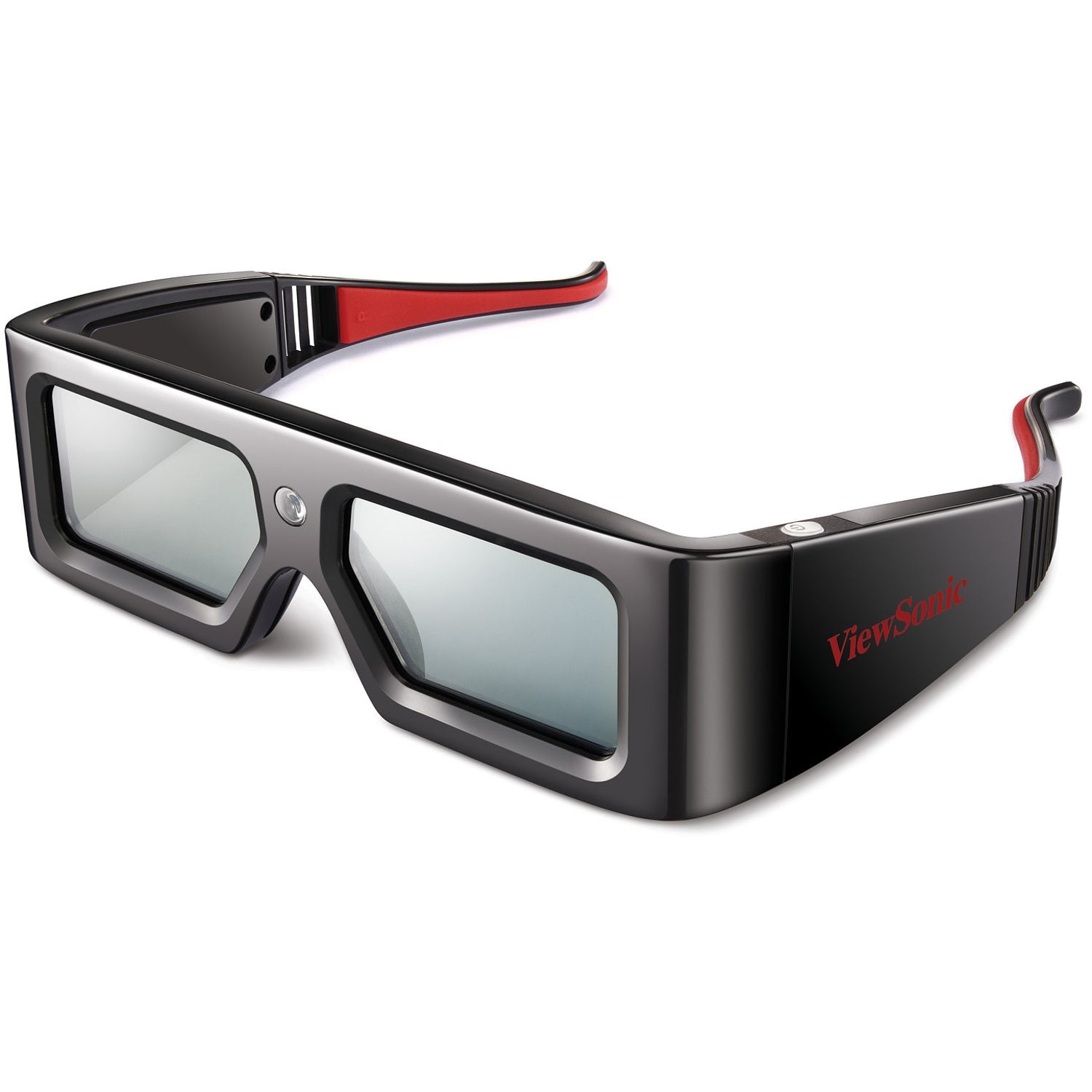

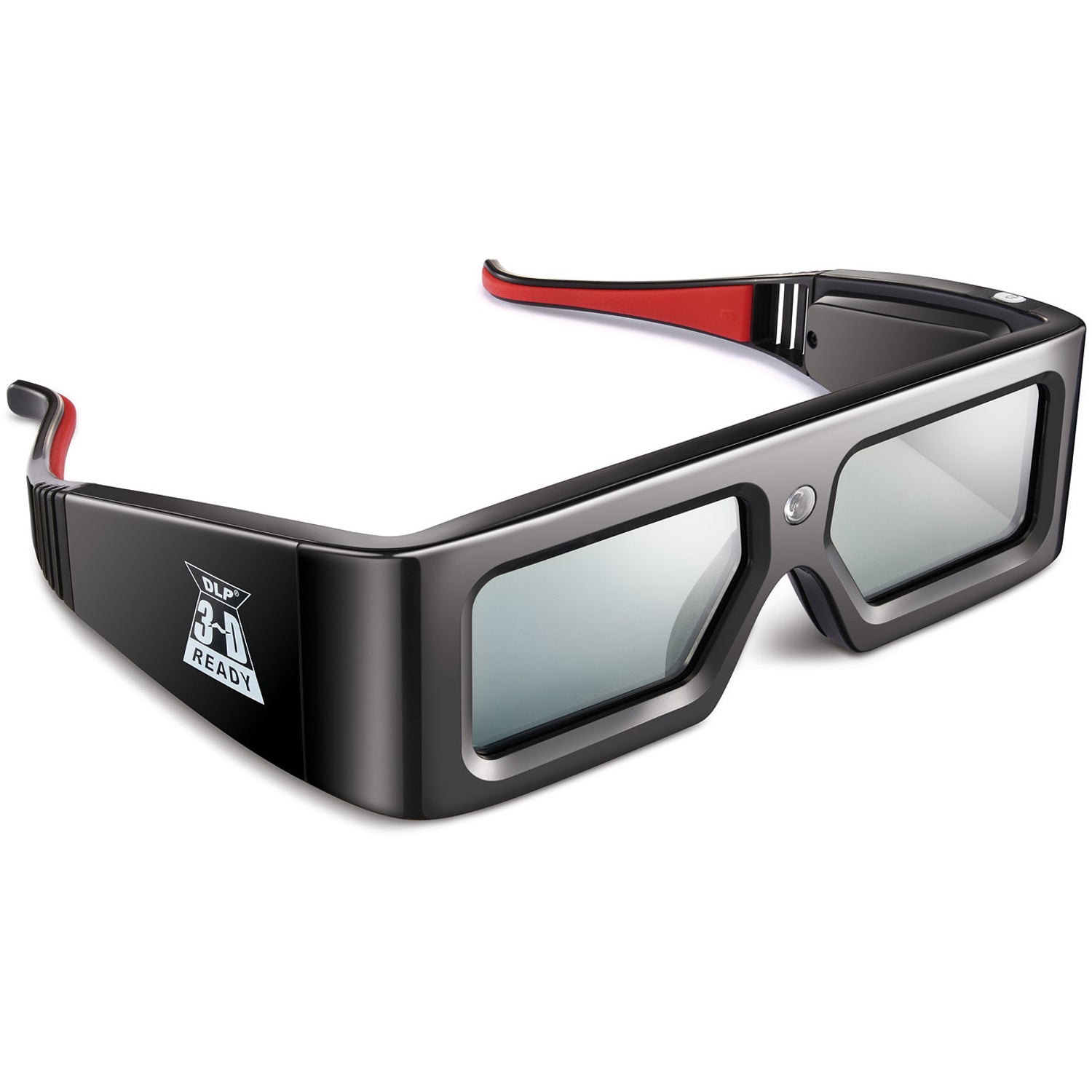

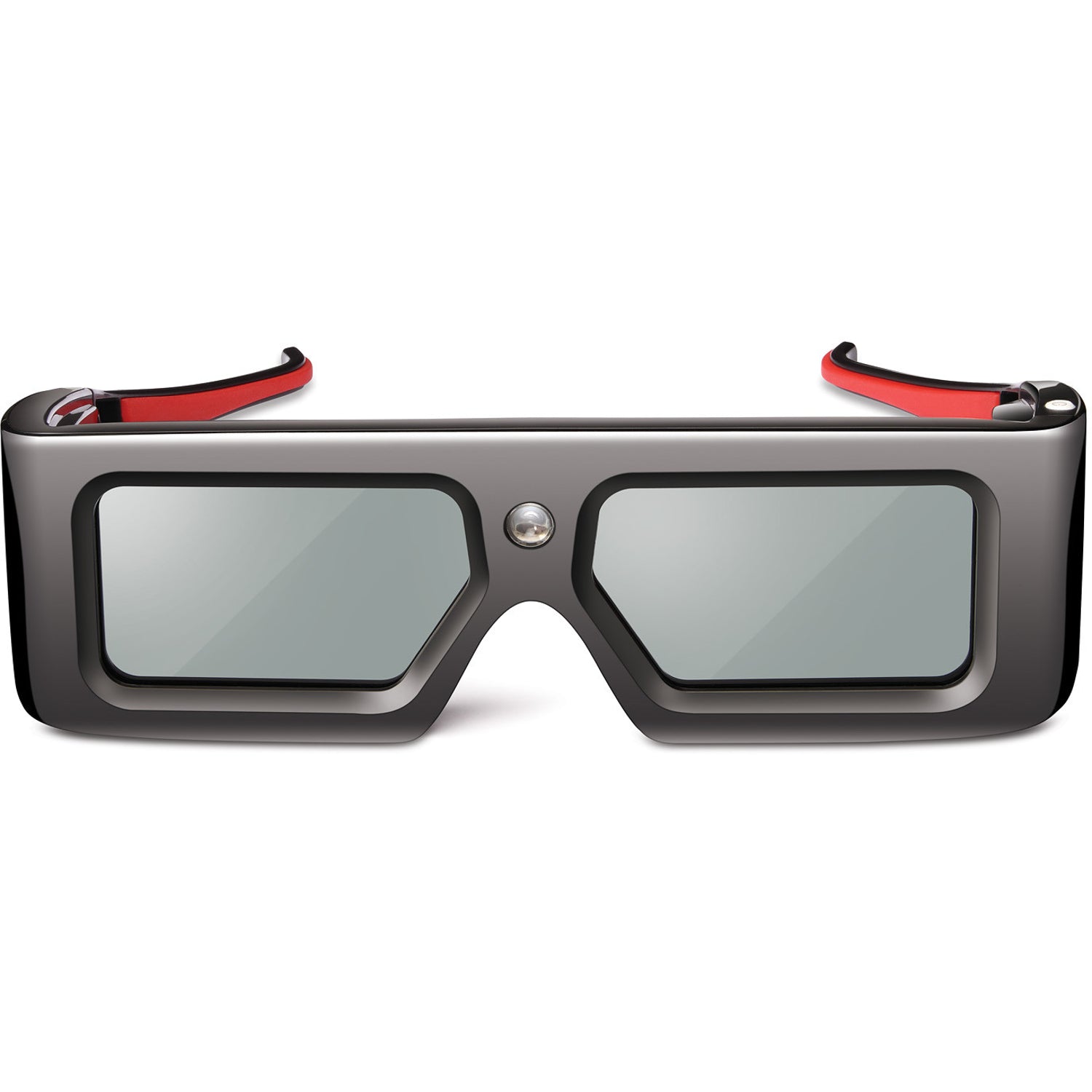

ViewSonic PGD-150 Active 3D Shutter Glasses (Classroom)
PRODUCT DESCRIPTION
ViewSonic PGD-150 Active 3D Shutter Glasses for Classrooms
Built for Classroom Use
Rugged moulded plastic, dust- and splash-resistant (IEC60529 levels 5 and 14) and easy to clean.
Up to 70 Hours of Power
Two CR2032 lithium coin cells power the active shutter lenses.
Fits Every Student
Three interchangeable nose pieces (small, medium, large).
Need a quote for a classroom or meeting-room set? Email sales@sourceit.com.sg for pricing and delivery lead time.
ViewSonic PGD-150 Datasheet — Technical Specifications
General
| Product Name | ViewSonic PGD-150 Active Stereographic 3D Shutter Glasses |
| Model | PGD-150 |
| Colour | Black |
| Warranty | 1 year limited (per ViewSonic) |
Optics
| LCD Lens Shutter | TN type |
| Transmittance | 35% (typ) |
| Contrast Ratio | 1,000:1 static (typ) |
| Response Time | 2 ms (typ) |
| Effective Distance | 15 m (50 ft) |
Power
| Battery | 2 x CR2032 (210 mAh) |
| Voltage | 4.4–6 V DC |
| Consumption | <18 mW operating |
Physical & Environment
| Dimensions (W x H x D) | 182 x 45 x 169 mm |
| Packaging | 245 x 226 x 75 mm |
| Net Weight | 100 g |
| Gross Weight | 0.35 kg |
| Dust / Water Protection | IEC60529 level 5 / level 14 (splash) |
| Operating Temperature | 5–45 °C |
| Operating Humidity | 20–90% non-condensing |
In the Box
3D glasses with batteries, 3 interchangeable nose pieces (small, medium, large), user manual.
Compatible Projectors
3D-Ready Projectors
ViewSonic does not publish a compatibility list for the PGD-150 (archived model). Email sales@sourceit.com.sg with your projector model and we will confirm before you order.
Alternatives
For DLP Link 3D projectors, the rechargeable PGD-250 and PGD-350 are also available.
Datasheet & Downloads
| ViewSonic datasheet | PGD-150 Datasheet |
| ViewSonic product page | PGD-150 on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PGD-150.
Frequently Asked Questions — ViewSonic PGD-150
Are the batteries replaceable?
Yes. It uses two standard CR2032 coin cells, rated for up to 70 hours.
Is it suitable for students?
Yes. It is designed for heavy classroom use, dust- and splash-resistant, with three nose-piece sizes.
How far from the screen does it work?
ViewSonic quotes an effective distance of 15 m (50 ft).
Will it work with my projector?
Send us your projector model and we will confirm compatibility before you order.
What warranty applies?
ViewSonic lists a 1-year limited warranty on parts and labour for this accessory. Supplied by SourceIT with a GST invoice.
