ViewSonic LSD600W 6,000 ANSI Lumens WXGA Laser Installation Projector
Prices in SGD, excluding 9% GST.
PRODUCT DESCRIPTION
ViewSonic LSD600W 6,000 ANSI Lumens WXGA Laser Installation Projector - 3 Years Local Warranty
6,000 ANSI Lumens WXGA
Bright 1280 x 800 images from a 0.65" DMD chip with a 3,000,000:1 contrast ratio.
Ultra-large Screen
30" to 300" images; 100" at about 2.54 m with 1.3x optical zoom.
3rd-Gen Laser, Sealed Engine
Up to 20,000 hours (Normal) / 30,000 hours (Eco) from a filter-free, IP6X sealed optical engine, rated for 24/7 operation.
Flexible Installation
H/V keystone, 360° projection, portrait mode and a Golf colour mode.
Need projectors for several meeting rooms, classrooms or venues? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic LSD600W Datasheet — Technical Specifications
General
| Product Name | ViewSonic LSD600W 6,000 ANSI Lumens WXGA Laser Installation Projector |
| Model | LSD600W |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); laser light source, no lamp to replace |
Optical
| Projection System | 0.65" WXGA DLP |
| Native Resolution | 1280 x 800 |
| Brightness | 6,000 ANSI lumens (6,600 centre lumens) |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | Laser phosphor |
| Light Source Life | 20,000 hours (Normal) / 30,000 hours (Eco) |
| Lens | F=2.43–2.78, f=16.90–21.61 mm |
| Throw Ratio | 1.18–1.54 |
| Optical Zoom | 1.3x |
| Digital Zoom | 0.8x–2.0x |
| Image Size | 30"–300" |
| Throw Distance | 0.76–9.95 m (100" at 2.54 m) |
| Projection Offset | 124% ±10% |
| Keystone | H: ±30°; V: ±30° |
| Input Lag | 25 ms |
Compatibility
| Resolution Support | VGA to WUXGA RB (1920 x 1200) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency | 15–102 kHz |
| Vertical Scan Rate | 24–120 Hz |
Connectivity

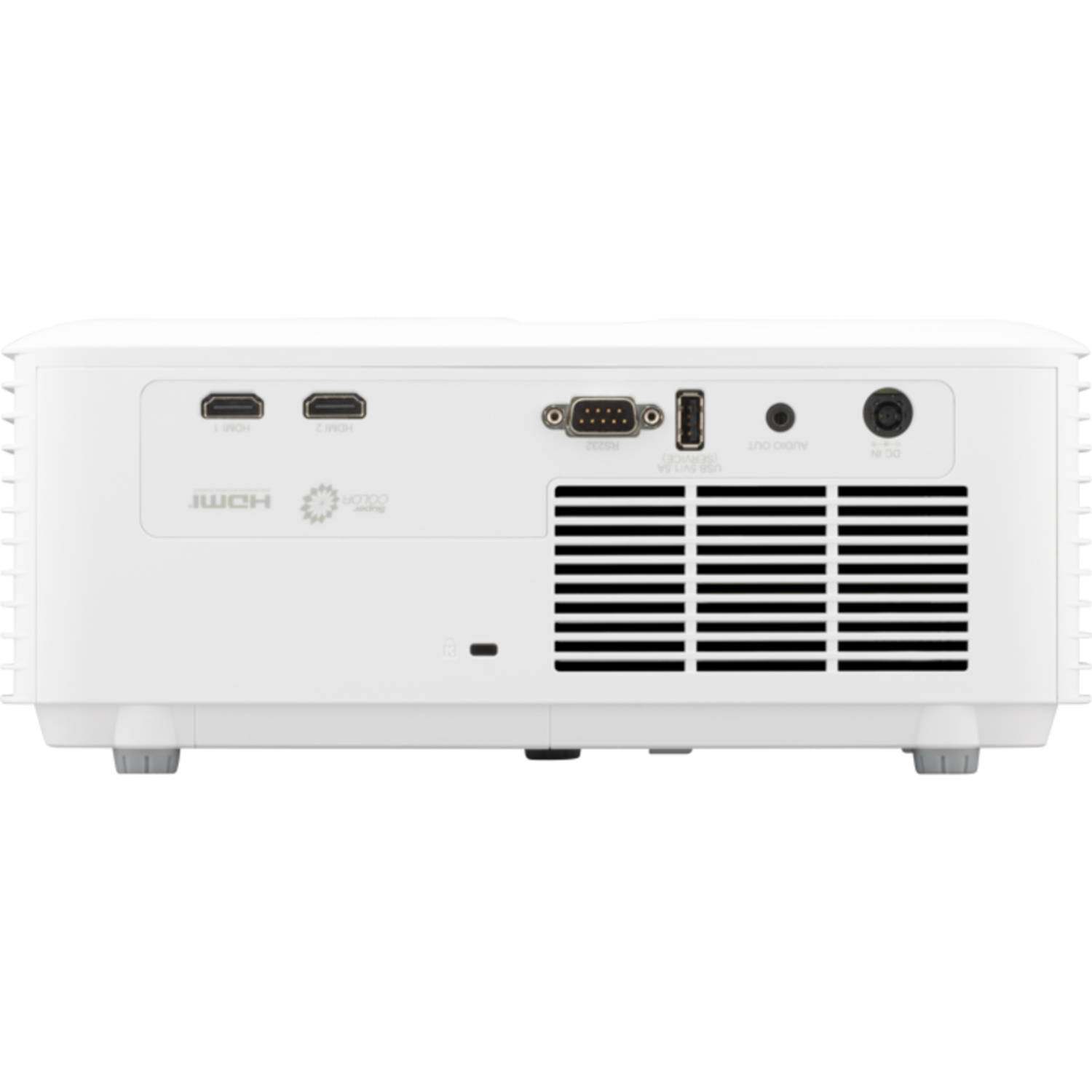

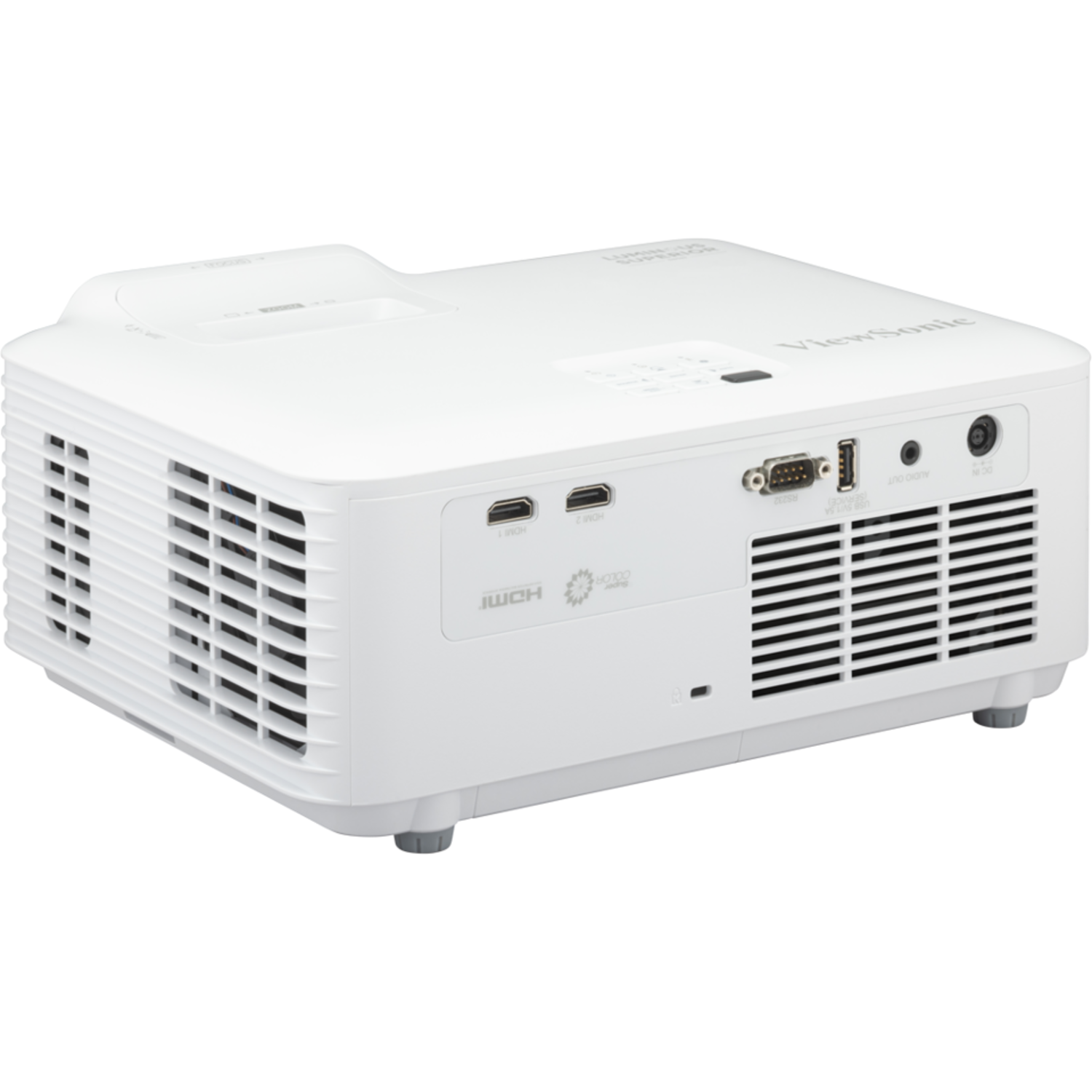

| HDMI In | 2 x HDMI 1.4 (HDCP 1.4) |
| Audio Out | 1 x 3.5 mm |
| Speaker | 15 W |
| USB Type-A | 1 x 5 V / 1.5 A power; 1 x service |
| Control | 1 x RS232 (DB9) |
Power & Environmental
| Power Supply | External adapter: 100–240 V AC in; 19.5 V DC / 11.79 A out |
| Power Consumption | 163 W (Normal); <0.5 W standby |
| Audible Noise | 32 dB (Normal); 27 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 286 x 216 x 129 mm (with adjustment foot) |
| Net Weight | 2.9 kg |
| Gross Weight | 4.6 kg |
| Packaging | 400 x 280 x 155 mm |
| OSD Languages | 23 |
Compatibility & Software Support
Sources
Two HDMI 1.4 inputs (HDCP 1.4) accept sources up to WUXGA (1920 x 1200); a 5 V / 1.5 A USB-A port powers a wireless casting dongle such as ViewShare WPD-900.
Room Control
RS232 (DB9) for control systems; ViewSonic does not list an RJ45 LAN control port for this model. Firmware updates via USB with ViewSonic's projector software update tool.
Typical Use
Meeting rooms, classrooms, hotel lobbies, banquet halls and golf simulators (dedicated Golf colour mode); 360° projection and portrait mode for signage-style installs.
Package Contents & ViewSonic Laser & LED Projector Ordering Information
In the Box
LSD600W projector, power cord (with external power adapter), remote control, quick start guide.
Optional Accessories
| Wall/ceiling mount | PJ-WMK-007 |
| Carry bag | PJ-CASE-008 |
| HDBaseT dongle | HB10B |
| Wireless screen casting kit | ViewShare WPD-900 |
ViewSonic Laser & LED Business Projectors
| Model | Key feature |
| LS500WHE | 3,000 lm WXGA, LED |
| LSD400W | 4,000 lm WXGA, laser |
| LSD400HD | 4,000 lm 1080p, laser |
| LS711HD | 4,200 lm 1080p, short throw laser |
| LS740W | 5,000 lm WXGA, laser |
| LS740HD | 5,000 lm 1080p, laser |
| LS832WU | 5,000 lm WUXGA, ultra short throw laser |
| LS860WU | 5,000 lm WUXGA, short throw laser, HDBaseT |
| LS920WU | 6,000 lm WUXGA, laser, 1.6x zoom |
| LS921WU | 6,000 lm WUXGA, short throw laser |
| LSD600W (this listing) | 6,000 lm WXGA, laser (LS740W successor) |
Datasheet & Downloads
| ViewSonic datasheet | LSD600W Datasheet |
| User guide | LSD500HD/LSD600W User Guide (PDF, English) |
| Quick start guide | LSD600W Quick Start Guide (PDF) |
| ViewSonic product page | LSD600W on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LSD600W.
Frequently Asked Questions — ViewSonic LSD600W
How far from the screen does it go?
The 1.18–1.54 throw ratio places a 100" image at about 2.54 m, from 30" up to 300".
Is it a replacement for the LS740W?
Yes. Our distributor lists the LSD600W as the LS740W replacement: 6,000 ANSI lumens WXGA in a compact 2.9 kg body.
Does the optical engine need filter cleaning?
No. ViewSonic specifies a filter-free, IP6X sealed optical engine.
Does it need lamp replacements?
No. The laser light source is rated up to 20,000 hours (Normal) or 30,000 hours (Eco).
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island). Supplied by SourceIT with a GST invoice.
