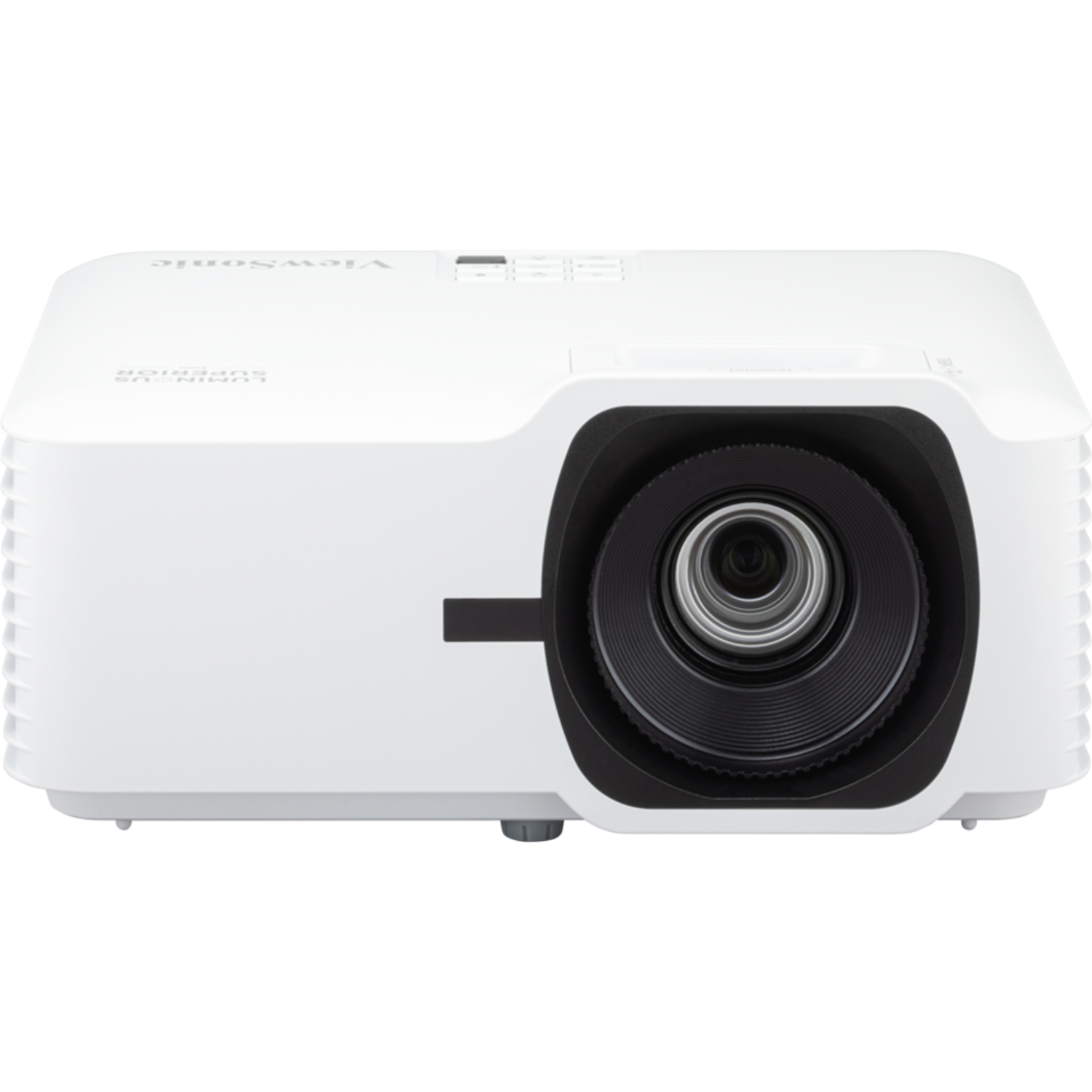

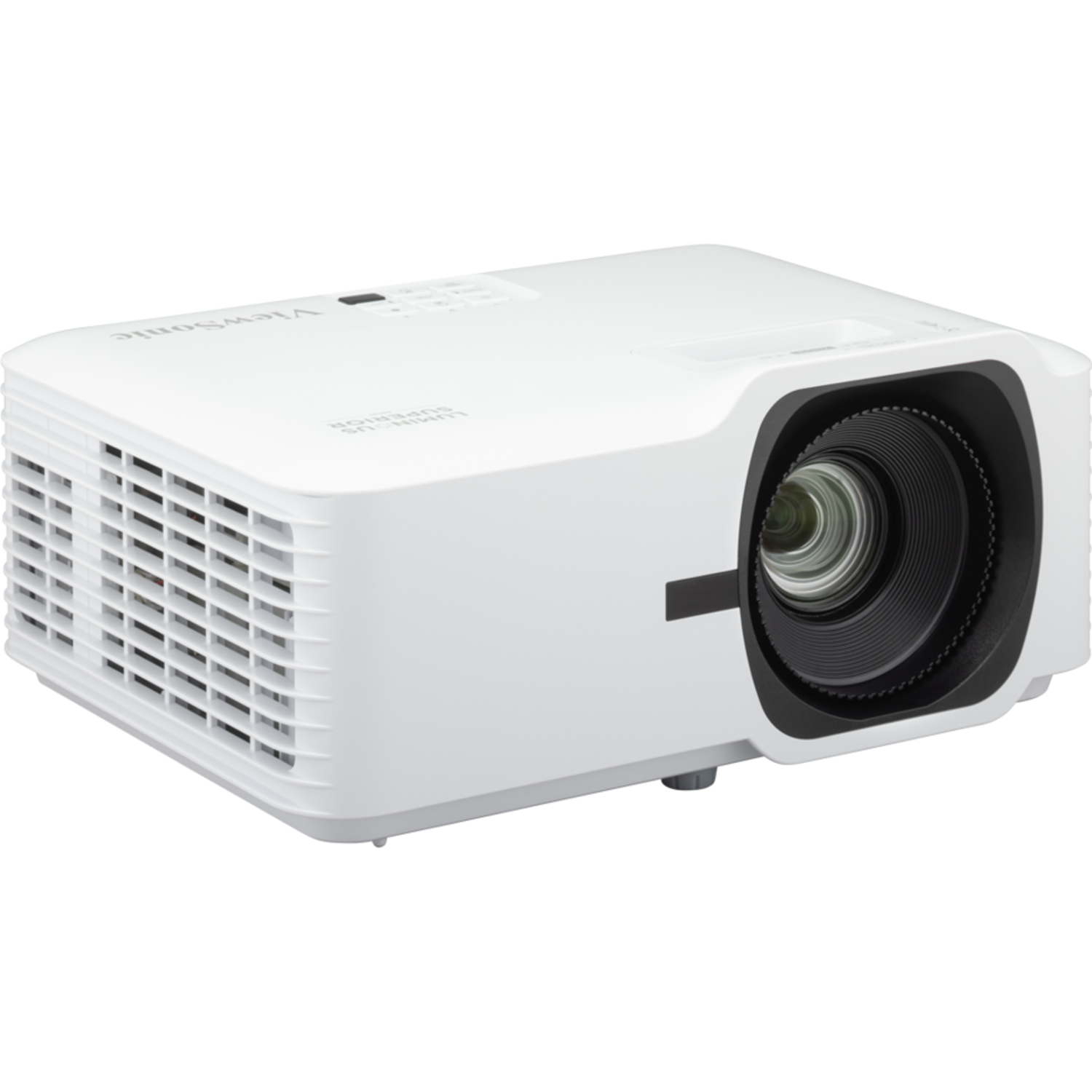

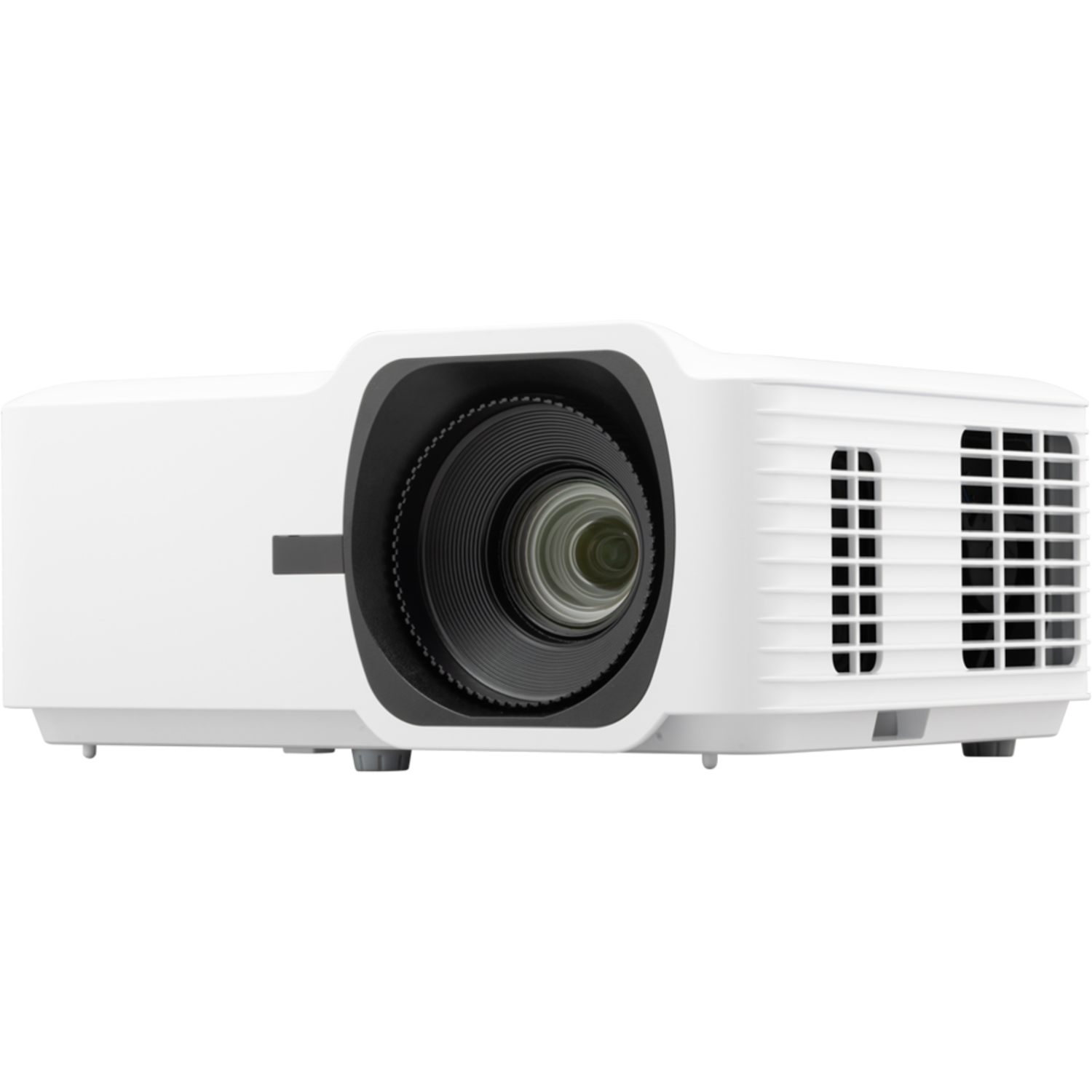

ViewSonic LSD500HD 5,500 ANSI Lumens 1080p Laser Installation Projector
PRODUCT DESCRIPTION
ViewSonic LSD500HD 5,500 ANSI Lumens 1080p Laser Installation Projector - 3 Years Local Warranty
5,500 ANSI Lumens, 1080p
Full HD 1920 x 1080 images from a 0.65" DMD chip, bright enough for lit meeting rooms, lobbies and halls.
HDR-Ready 4K Input
HDMI 2.0b with HDR/HLG and 4K UHD input; up to 300" images, 100" at about 2.50 m.
3rd-Gen Laser, 24/7
Up to 20,000 hours (Normal) / 30,000 hours (Eco), lamp-free and rated for 24/7 operation.
Flexible, Managed Installation

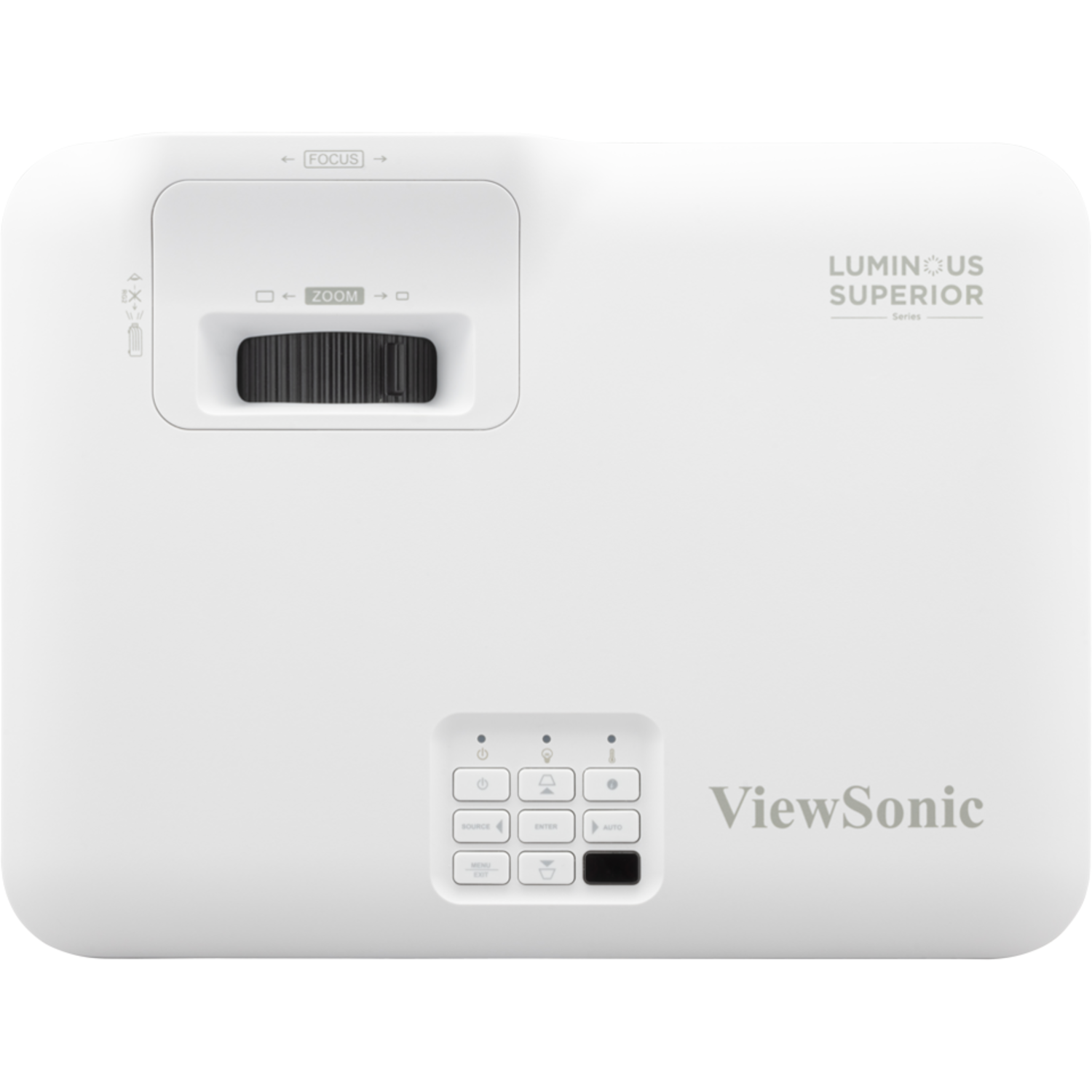

1.3x optical zoom, H/V keystone, 360° projection, portrait mode, Golf mode and centralised LAN control.
Need projectors for several meeting rooms, classrooms or venues? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic LSD500HD Datasheet — Technical Specifications
General
| Product Name | ViewSonic LSD500HD 5,500 ANSI Lumens 1080p Laser Installation Projector |
| Model | LSD500HD |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); laser light source, no lamp to replace |
Optical
| Projection System | 0.65" 1080p DLP |
| Native Resolution | 1920 x 1080 |
| Brightness | 5,500 ANSI lumens (6,000 centre lumens) |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | Laser phosphor |
| Light Source Life | 20,000 hours (Normal) / 30,000 hours (Eco) |
| Lens | F=2.43–2.78, f=16.90–21.61 mm |
| Throw Ratio | 1.13–1.47 |
| Optical Zoom | 1.3x |
| Digital Zoom | 0.8x–2.0x |
| Image Size | 30"–300" |
| Throw Distance | 0.75–9.76 m (100" at 2.50 m) |
| Projection Offset | 132% ±10% |
| Keystone | H: ±30°; V: ±30° |
| Input Lag | 16.8 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency | 15–135 kHz |
| Vertical Scan Rate | 24–120 Hz |

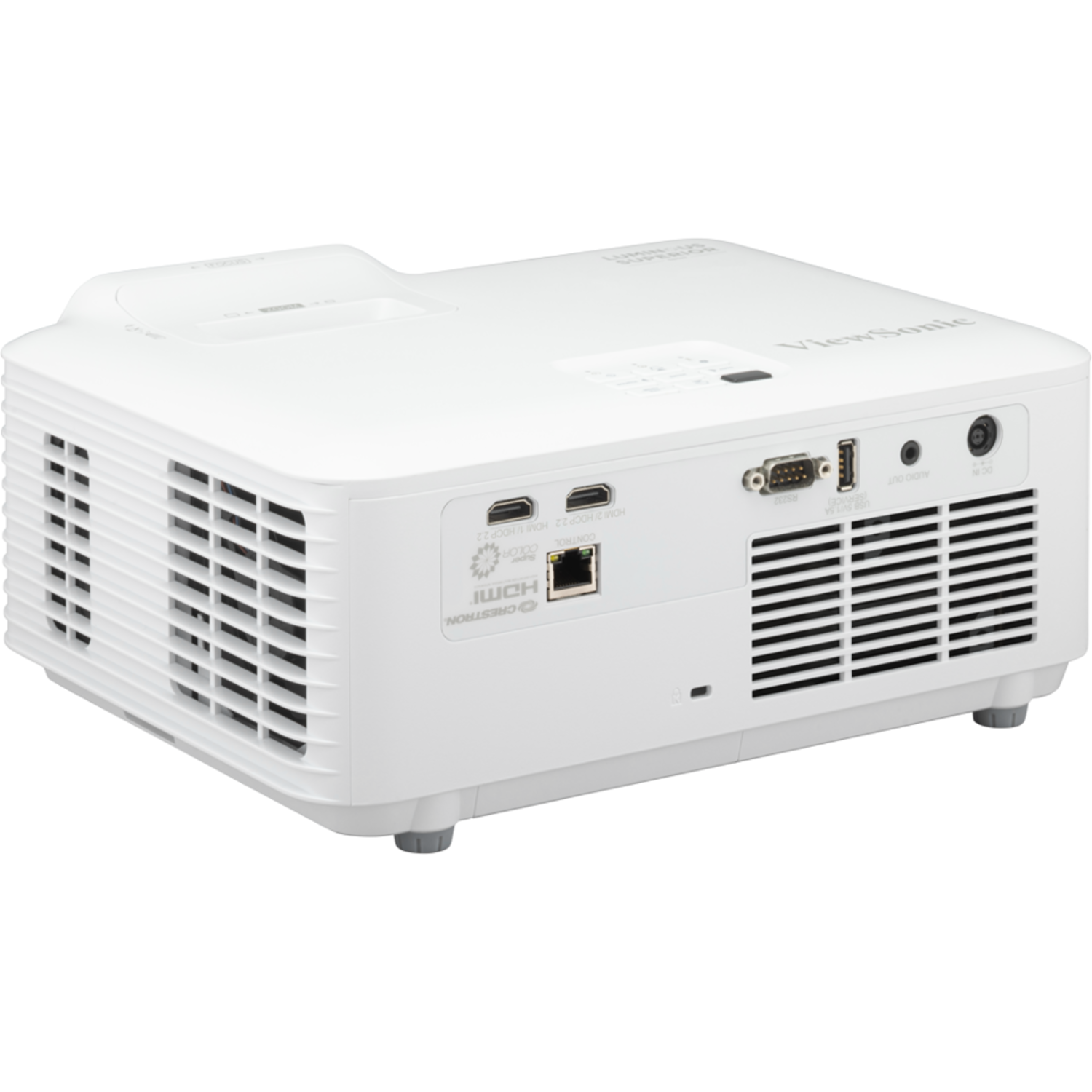

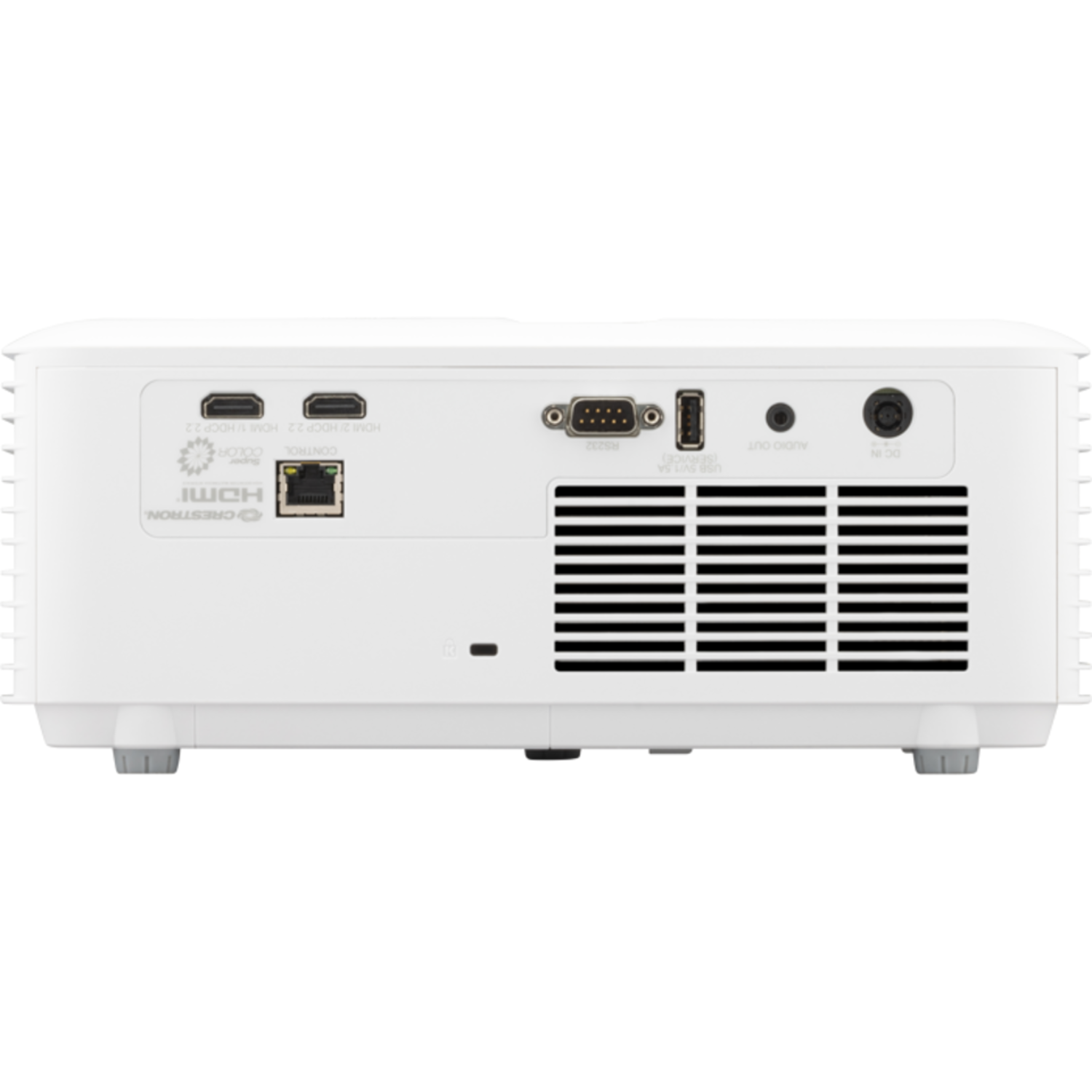

Connectivity
| HDMI In | 2 x HDMI 2.0 (HDCP 2.2) |
| Audio Out | 1 x 3.5 mm |
| Speaker | 15 W |
| USB Type-A | 1 x 5 V / 1.5 A power; 1 x service |
| Control | 1 x RS232 (DB9); 1 x RJ45 LAN |
Power & Environmental
| Power Supply | External adapter: 100–240 V AC in; 19.5 V DC / 11.79 A out |
| Power Consumption | 165 W (Normal); <0.5 W standby |
| Audible Noise | 32 dB (Normal); 27 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 286 x 216 x 129 mm (with adjustment foot) |
| Net Weight | 2.9 kg |
| Gross Weight | 4.6 kg |
| Packaging | 400 x 280 x 155 mm |
| OSD Languages | 23 |
Compatibility & Software Support
Sources
Two HDMI 2.0 inputs (HDCP 2.2) accept 4K UHD sources with HDR10/HLG; a 5 V / 1.5 A USB-A port powers a wireless casting dongle such as ViewShare WPD-900.
Room Control
RJ45 LAN control (Crestron, AMX, PJLink, ATEN and Extron compatible per ViewSonic) plus RS232 (DB9). Firmware updates via USB with ViewSonic's projector software update tool.
Typical Use
Meeting rooms, classrooms, hotel lobbies, banquet halls and golf simulators (dedicated Golf colour mode); 360° projection and portrait mode for signage-style installs.
Package Contents & ViewSonic Laser & LED Projector Ordering Information
In the Box
LSD500HD projector, power cord (with external power adapter), remote control, quick start guide.
Optional Accessories
| Wall/ceiling mount | PJ-WMK-007 |
| Carry bag | PJ-CASE-008 |
| HDBaseT dongle | HB10B |
| Wireless screen casting kit | ViewShare WPD-900 |
ViewSonic Laser & LED Business Projectors
| Model | Key feature |
| LS500WHE | 3,000 lm WXGA, LED |
| LSD400W | 4,000 lm WXGA, laser |
| LSD400HD | 4,000 lm 1080p, laser |
| LS711HD | 4,200 lm 1080p, short throw laser |
| LS740W | 5,000 lm WXGA, laser |
| LS740HD | 5,000 lm 1080p, laser |
| LS832WU | 5,000 lm WUXGA, ultra short throw laser |
| LS860WU | 5,000 lm WUXGA, short throw laser, HDBaseT |
| LS920WU | 6,000 lm WUXGA, laser, 1.6x zoom |
| LS921WU | 6,000 lm WUXGA, short throw laser |
| LSD500HD (this listing) | 5,500 lm 1080p, laser, HDR (LS740HD successor) |
Datasheet & Downloads
| ViewSonic datasheet | LSD500HD Datasheet |
| User guide | LSD500HD/LSD600W User Guide (PDF, English) |
| Quick start guide | LSD500HD Quick Start Guide (PDF) |
| ViewSonic product page | LSD500HD on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LSD500HD.
Frequently Asked Questions — ViewSonic LSD500HD
How far from the screen does it go?
The 1.13–1.47 throw ratio places a 100" image at about 2.50 m, from 30" up to 300".
Is it a replacement for the LS740HD?
Yes. Our distributor lists the LSD500HD as the LS740HD replacement: 5,500 ANSI lumens 1080p in a compact 2.9 kg body.
Can it run all day?
ViewSonic rates the LSD500HD for 24/7 operation, with a lamp-free laser light source.
Does it need lamp replacements?
No. The laser light source is rated up to 20,000 hours (Normal) or 30,000 hours (Eco).
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island). Supplied by SourceIT with a GST invoice.
