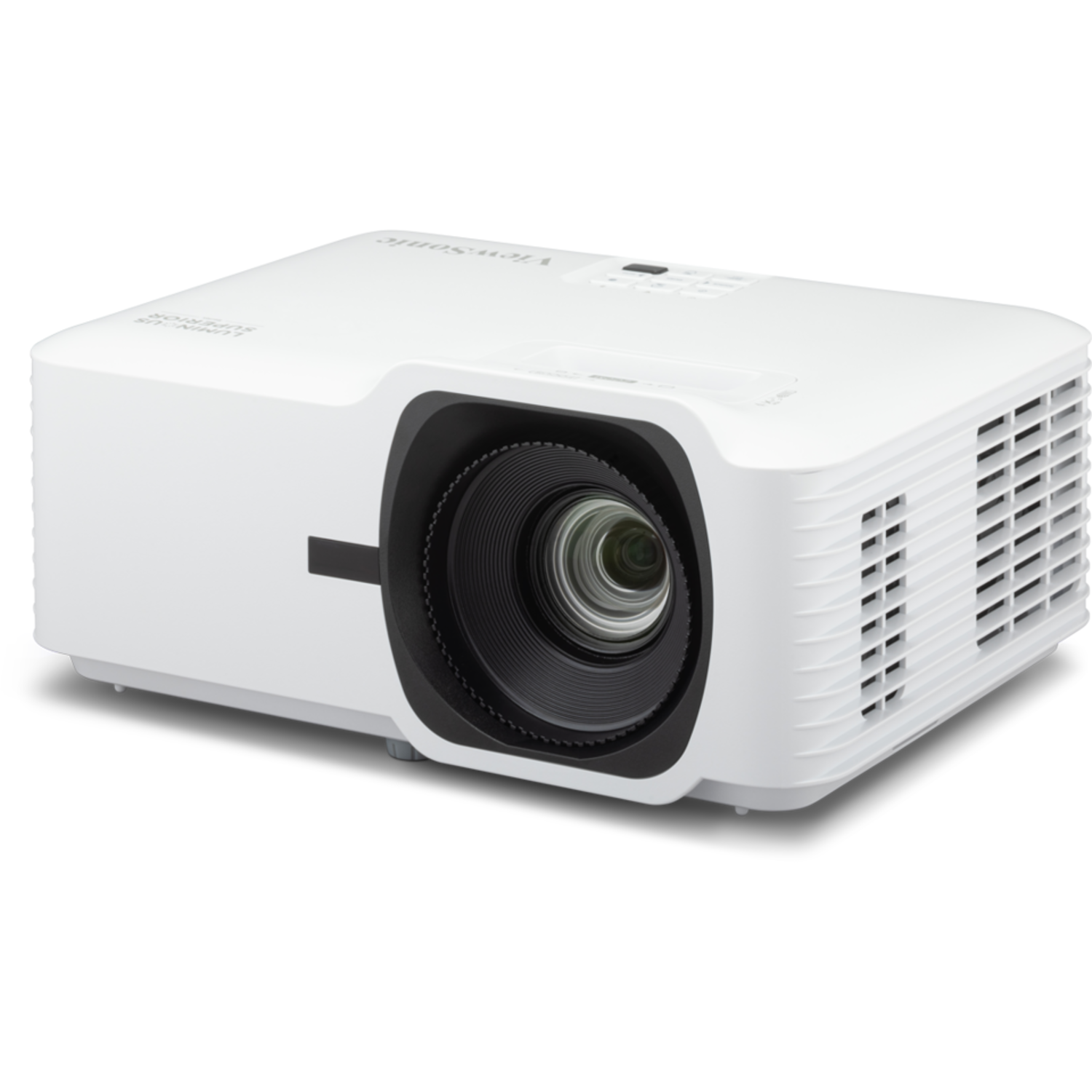

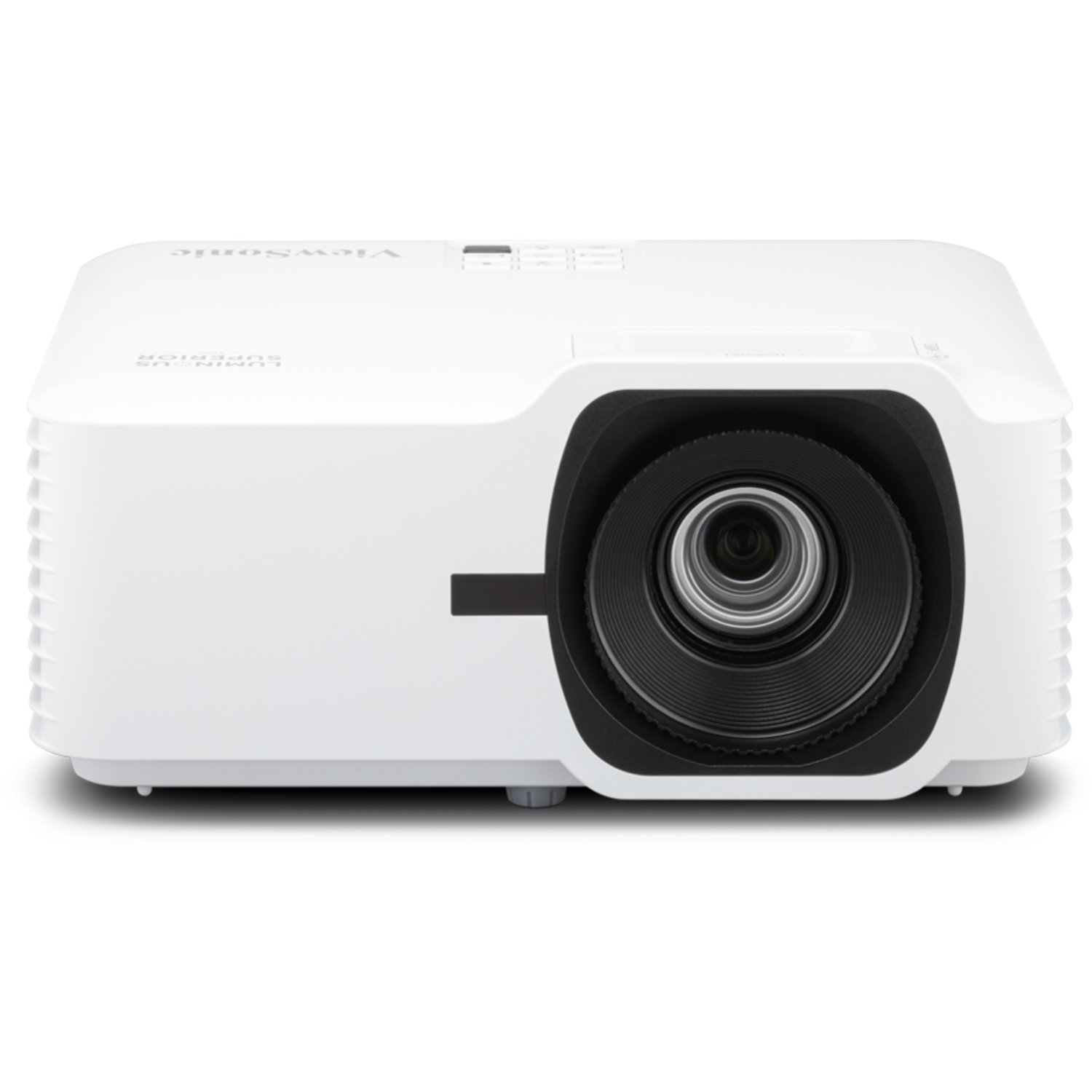

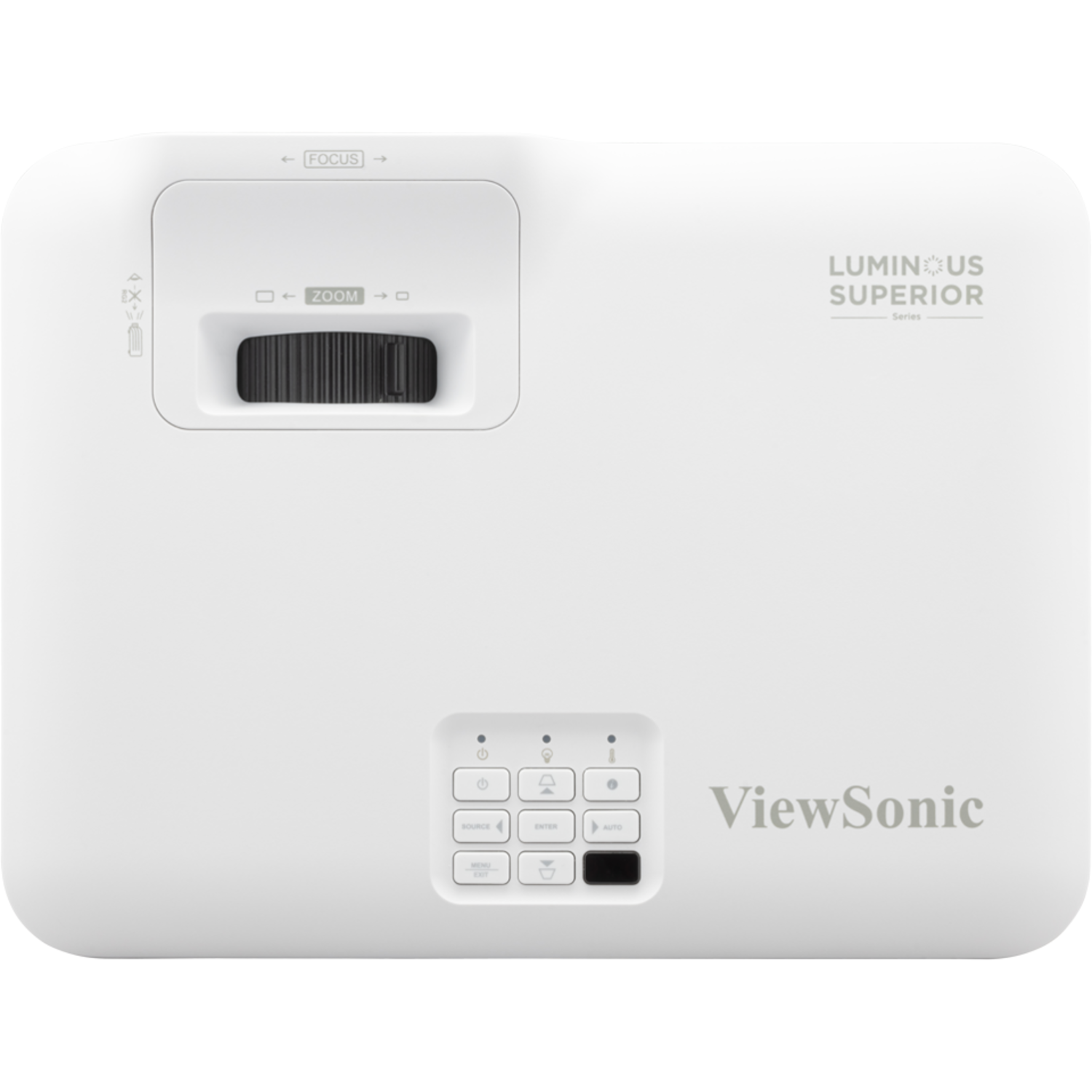

ViewSonic LSD401HD 4,000 ANSI Lumens 1080p Laser Business & Education Projector
PRODUCT DESCRIPTION
ViewSonic LSD401HD 4,000 ANSI Lumens 1080p Laser Business/Education Projector - 3 Years Local Warranty
4,000 ANSI Lumens, 1080p
Full HD 1920 x 1080 images from a 0.65" DMD chip with DLP technology and a 3,000,000:1 contrast ratio.
HDR-Ready 4K Input
HDMI 2.0b with HDR10/HLG support at 60 Hz; up to 300" images, 100" at about 2.50 m.
3rd-Gen Laser Phosphor
Up to 20,000 hours (Normal) / 30,000 hours (SuperEco) with no lamp to replace.
Flexible, Managed Installation
1.3x optical zoom, H/V keystone, 4-corner adjustment, 360° projection and LAN control (Crestron/Q-SYS certified per ViewSonic).
Need projectors for several meeting rooms, classrooms or venues? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic LSD401HD Datasheet — Technical Specifications
General
| Product Name | ViewSonic LSD401HD 4,000 ANSI Lumens 1080p Laser Business/Education Projector |
| Model | LSD401HD |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); laser light source, no lamp to replace |
Optical
| Projection System | 0.65" 1080p DLP |
| Native Resolution | 1920 x 1080 |
| Brightness | 4,000 ANSI lumens (4,400 centre lumens) |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | Laser phosphor |
| Light Source Life | 20,000 hours (Normal) / 30,000 hours (SuperEco) |
| Lens | F=2.43–2.78, f=16.90–21.61 mm |
| Throw Ratio | 1.13–1.47 |
| Optical Zoom | 1.3x |
| Digital Zoom | 0.8x–2.0x |
| Image Size | 30"–300" |
| Throw Distance | 0.75–9.76 m (100" at 2.50 m) |
| Projection Offset | 132% ±10% |
| Keystone | H: ±30°; V: ±30°; 4-corner adjustment |
| Input Lag | 16.7 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency | 15–135 kHz |
| Vertical Scan Rate | 24–120 Hz |

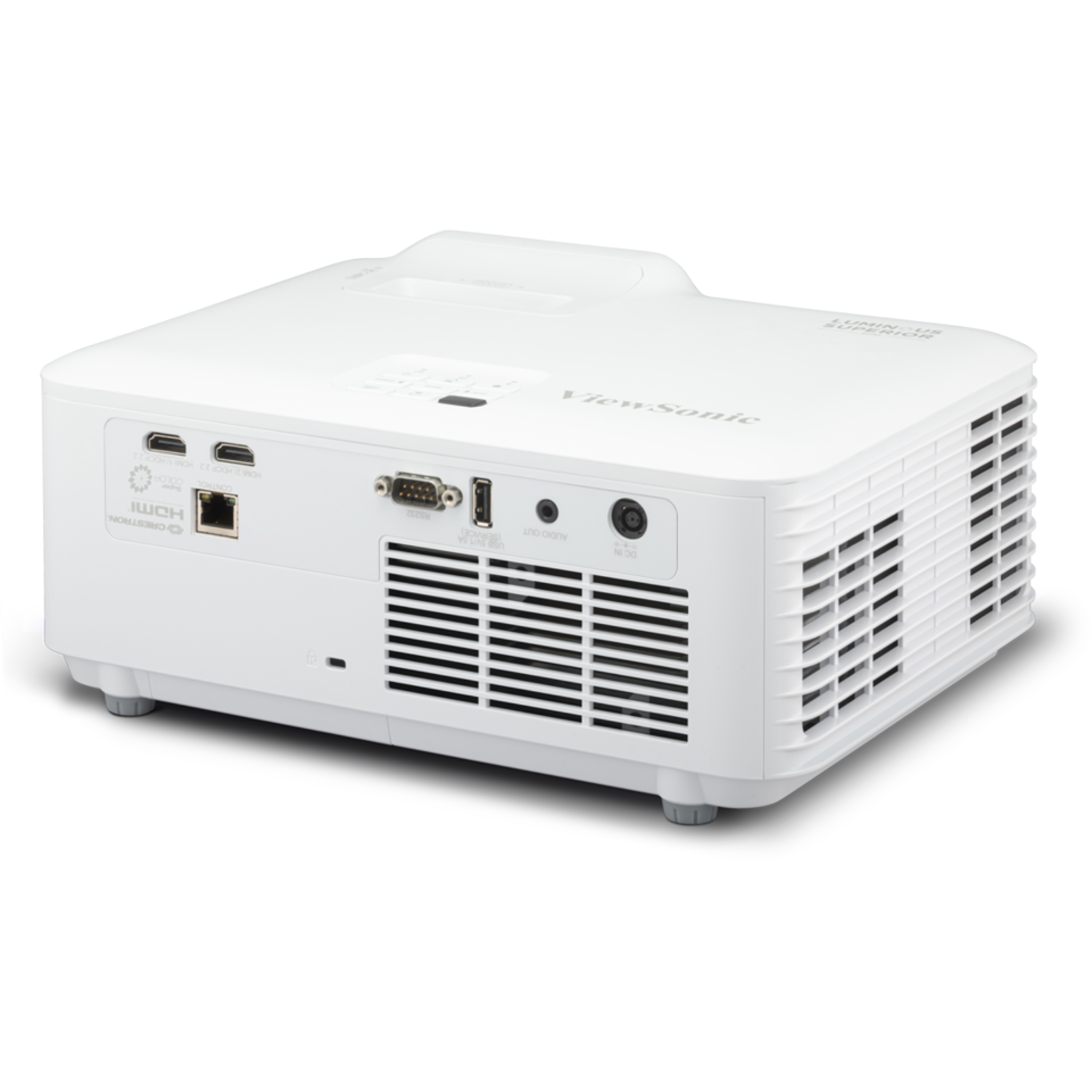

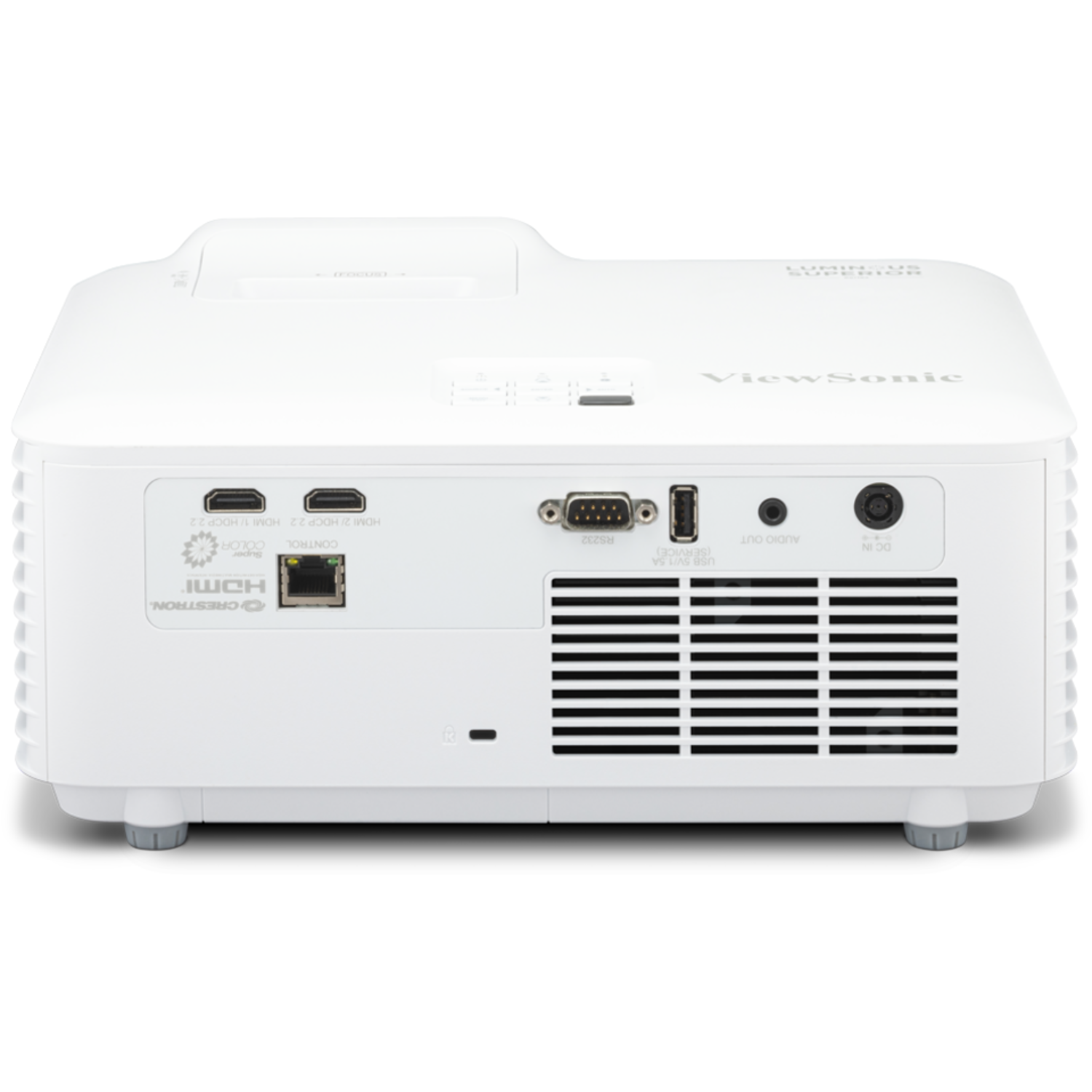

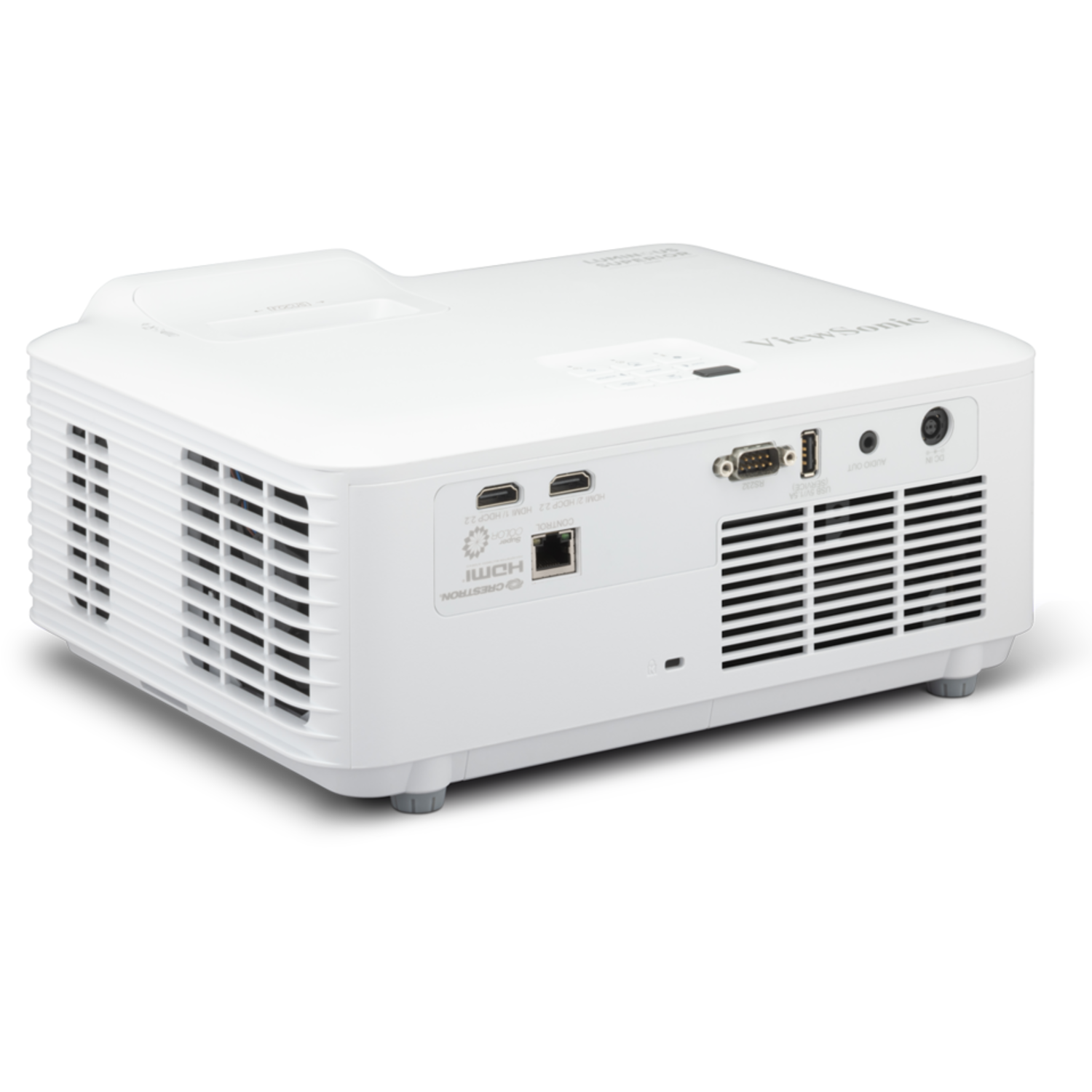

Connectivity
| HDMI In | 2 x HDMI 2.0 (HDCP 2.2) |
| Audio Out | 1 x 3.5 mm |
| Speaker | 15 W |
| USB Type-A | 1 x 5 V / 1.5 A power; 1 x service |
| Control | 1 x RS232 (DB9); 1 x RJ45 LAN |
Power & Environmental
| Power Supply | External adapter: 100–240 V AC in; 19.5 V DC / 9.23 A out |
| Power Consumption | 143 W (Normal); <0.5 W standby |
| Audible Noise | 32 dB (Normal); 27 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 286 x 216 x 129 mm (with adjustment foot) |
| Net Weight | 3 kg |
| Gross Weight | 4.5 kg |
| Packaging | 400 x 280 x 155 mm |
| OSD Languages | 23 |
Compatibility & Software Support
Sources
Two HDMI 2.0 inputs (HDCP 2.2) accept 4K UHD sources with HDR10/HLG; a 5 V / 1.5 A USB-A port powers a wireless casting dongle such as ViewShare WPD-900.
Room Control
RJ45 LAN control (Crestron, AMX, PJLink, ATEN and Extron compatible per ViewSonic) plus RS232 (DB9). Firmware updates via USB with ViewSonic's projector software update tool.
Typical Use
Meeting rooms, classrooms, hotel lobbies, banquet halls and golf simulators (dedicated Golf colour mode); 360° projection and portrait mode for signage-style installs.
Package Contents & ViewSonic Laser & LED Projector Ordering Information
In the Box
LSD401HD projector, power cord (with external power adapter), remote control, quick start guide.
Optional Accessories
| Wall/ceiling mount | PJ-WMK-007 |
| Carry bag | PJ-CASE-008 |
| Wireless screen casting kit | ViewShare WPD-900 |
ViewSonic Laser & LED Business Projectors
| Model | Key feature |
| LS500WHE | 3,000 lm WXGA, LED |
| LSD400W | 4,000 lm WXGA, laser |
| LSD400HD | 4,000 lm 1080p, laser |
| LS711HD | 4,200 lm 1080p, short throw laser |
| LS740W | 5,000 lm WXGA, laser |
| LS740HD | 5,000 lm 1080p, laser |
| LS832WU | 5,000 lm WUXGA, ultra short throw laser |
| LS860WU | 5,000 lm WUXGA, short throw laser, HDBaseT |
| LS920WU | 6,000 lm WUXGA, laser, 1.6x zoom |
| LS921WU | 6,000 lm WUXGA, short throw laser |
| LSD401HD (this listing) | 4,000 lm 1080p, laser, HDR, 1.3x zoom |
Datasheet & Downloads
| ViewSonic datasheet | LSD401HD Datasheet |
| User guide | LSD401HD User Guide (PDF, English) |
| Quick start guide | LSD401HD Quick Start Guide (PDF) |
| ViewSonic product page | LSD401HD on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LSD401HD.
Frequently Asked Questions — ViewSonic LSD401HD
How far from the screen does it go?
The 1.13–1.47 throw ratio places a 100" image at about 2.50 m, from 30" up to 300".
How does it differ from the LSD400HD?
Both are 4,000 lumen 1080p laser models; ViewSonic lists HDR10/HLG over HDMI 2.0b and Crestron/Q-SYS certification for the LSD401HD.
Can it run in portrait or face the ceiling?
Yes. 360° projection and 90° portrait mode are supported.
Does it need lamp replacements?
No. The laser light source is rated up to 20,000 hours (Normal) or 30,000 hours (SuperEco).
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island). Supplied by SourceIT with a GST invoice.
