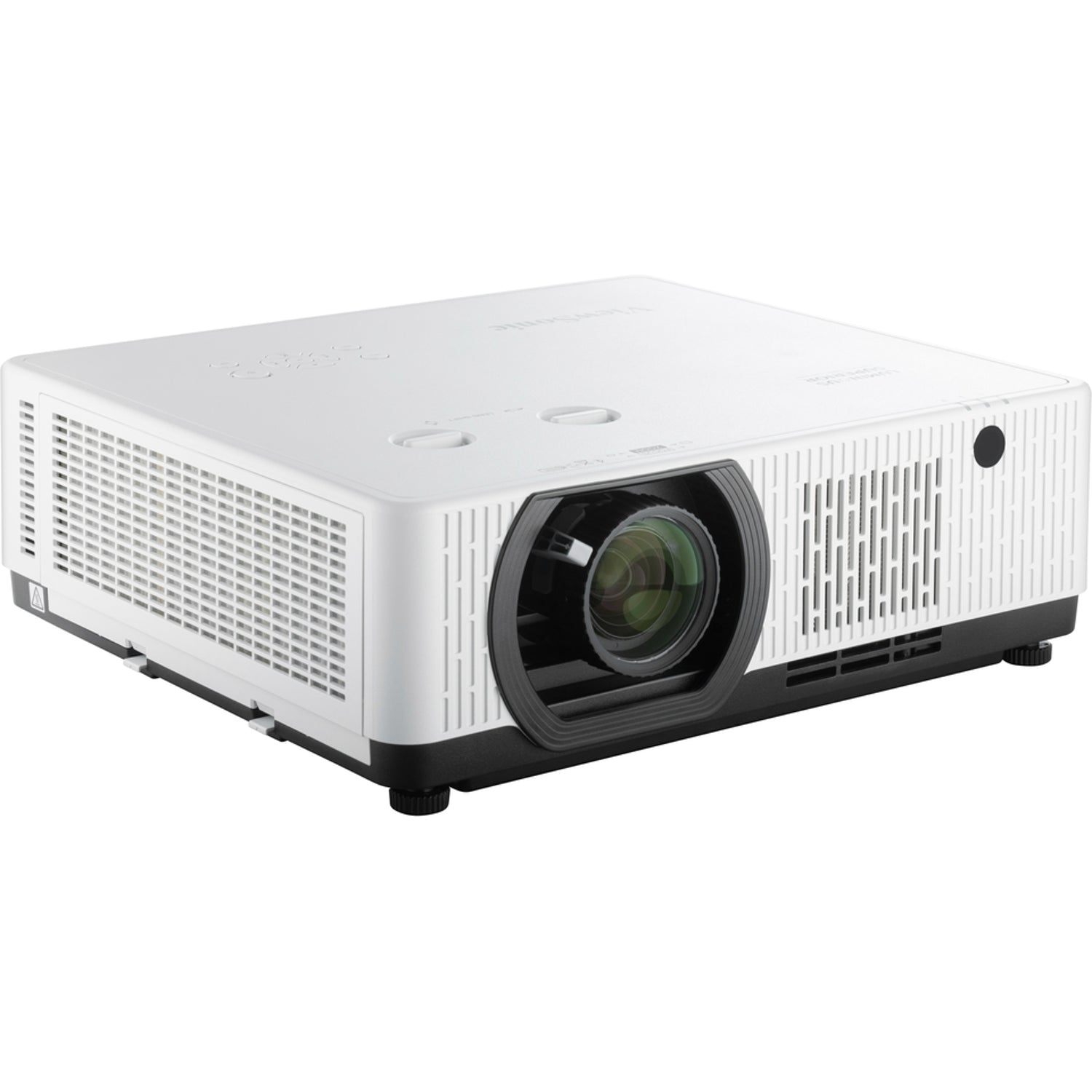

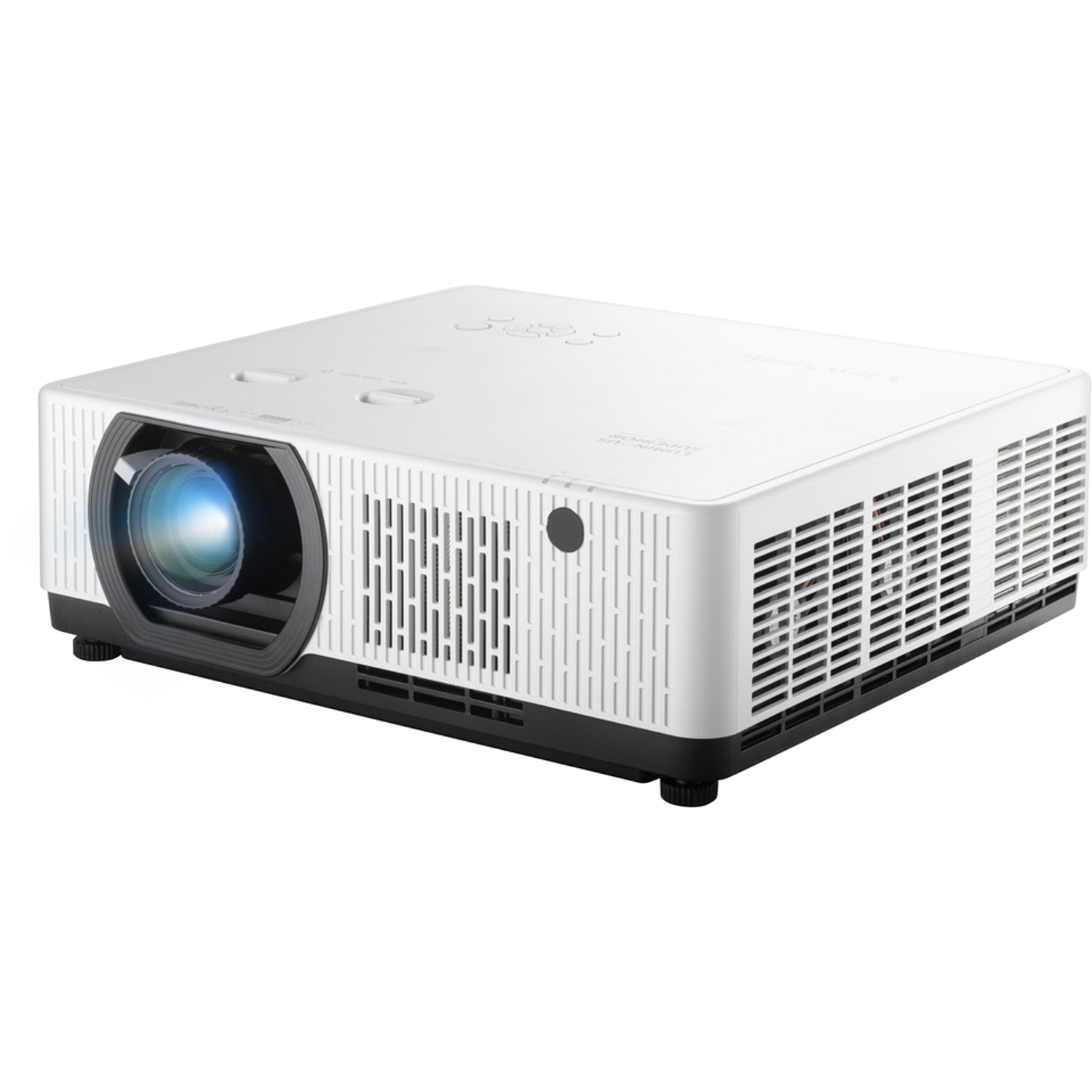

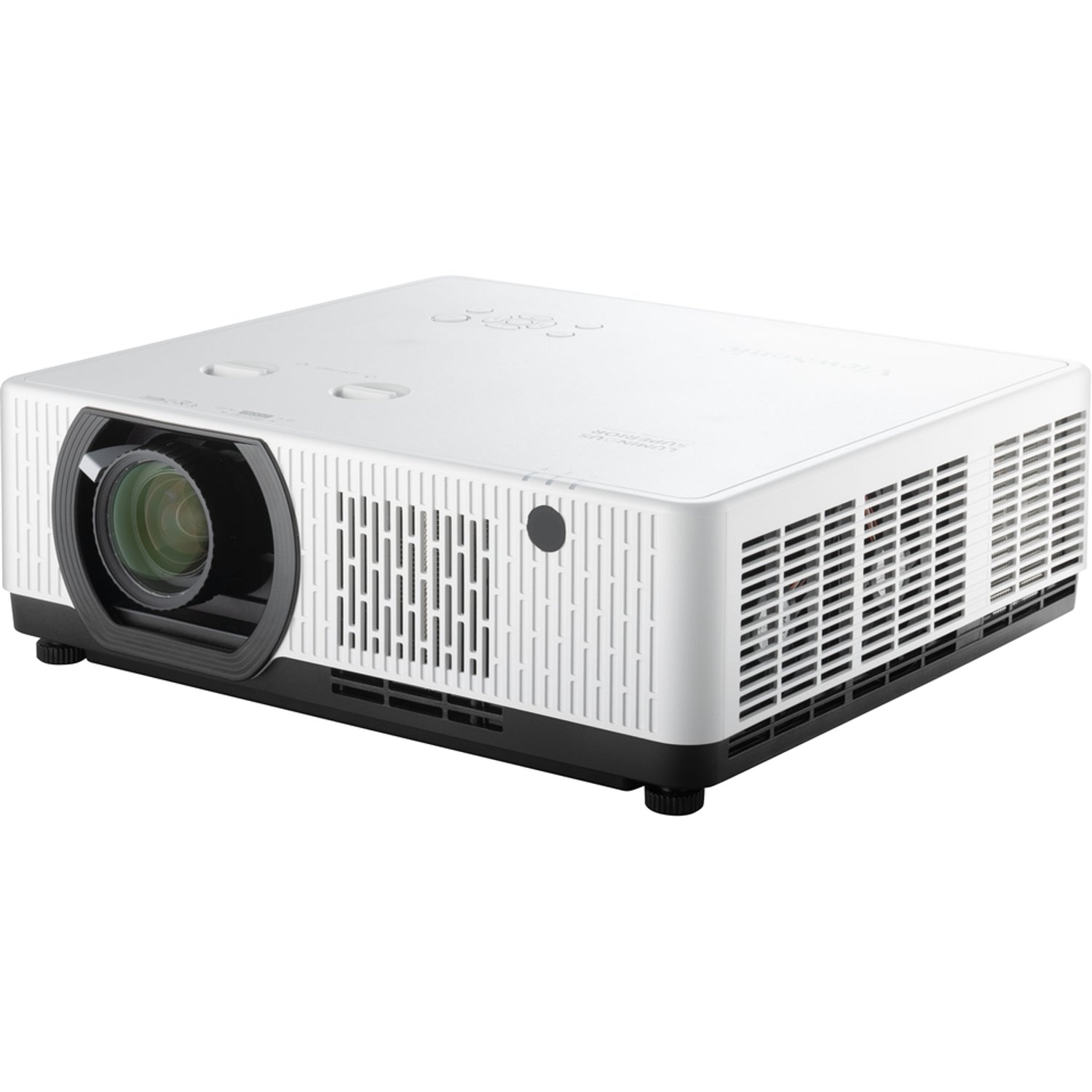

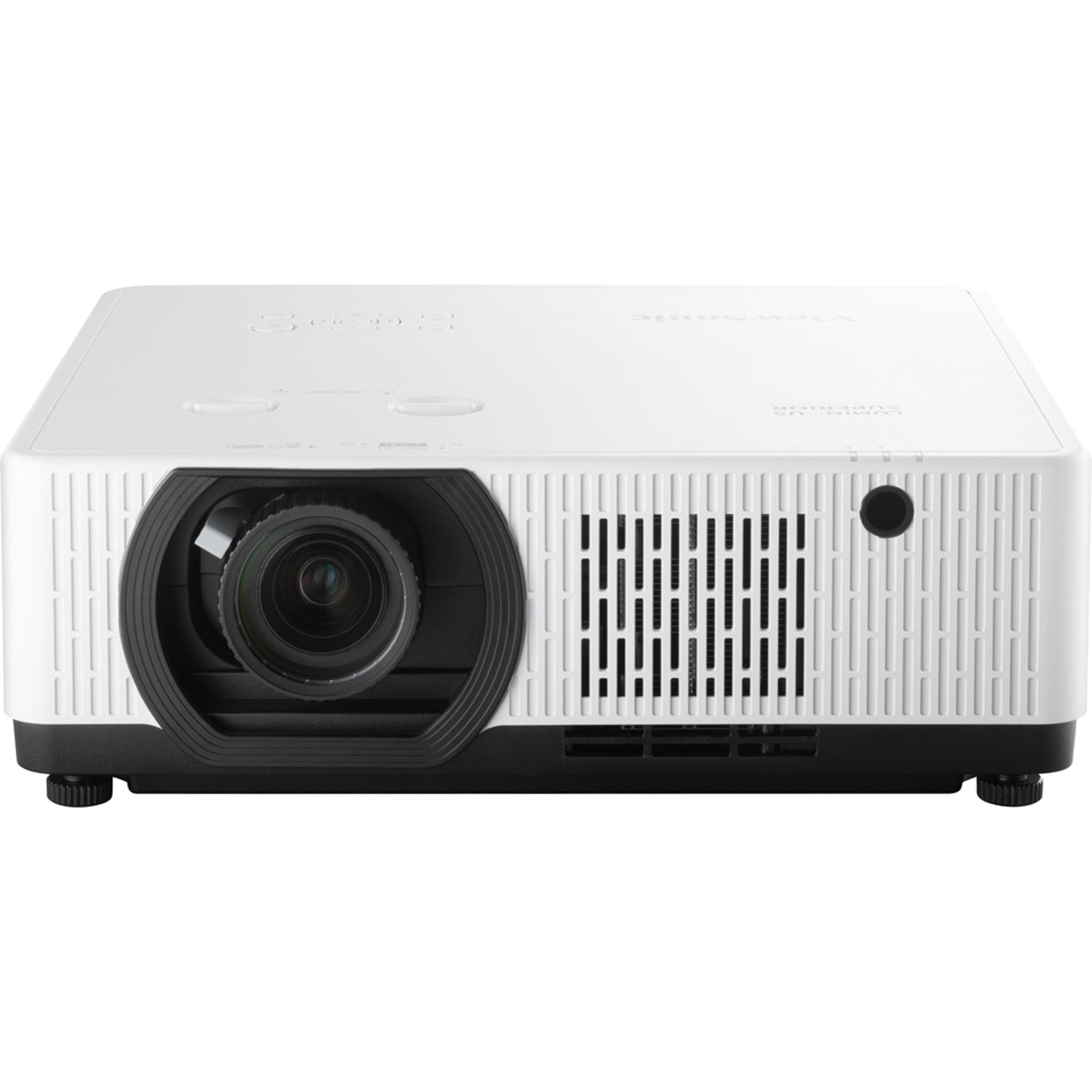

ViewSonic LSC801WU 8,000 ANSI Lumens WUXGA Laser Installation Projector
PRODUCT DESCRIPTION
ViewSonic LSC801WU 8,000 ANSI Lumens WUXGA Laser Installation Projector - 3 Years Local Warranty
8,000 ANSI Lumens WUXGA
Bright 1920 x 1200 images from a 3LCD (3 x 0.64" with MLA) laser engine for large, well-lit venues, with 21:9 support for Microsoft Teams Rooms.
Ultra-large Screen
30" to 300" images with a lower cost-per-inch; 100" at about 2.58 m.
Installation Flexibility

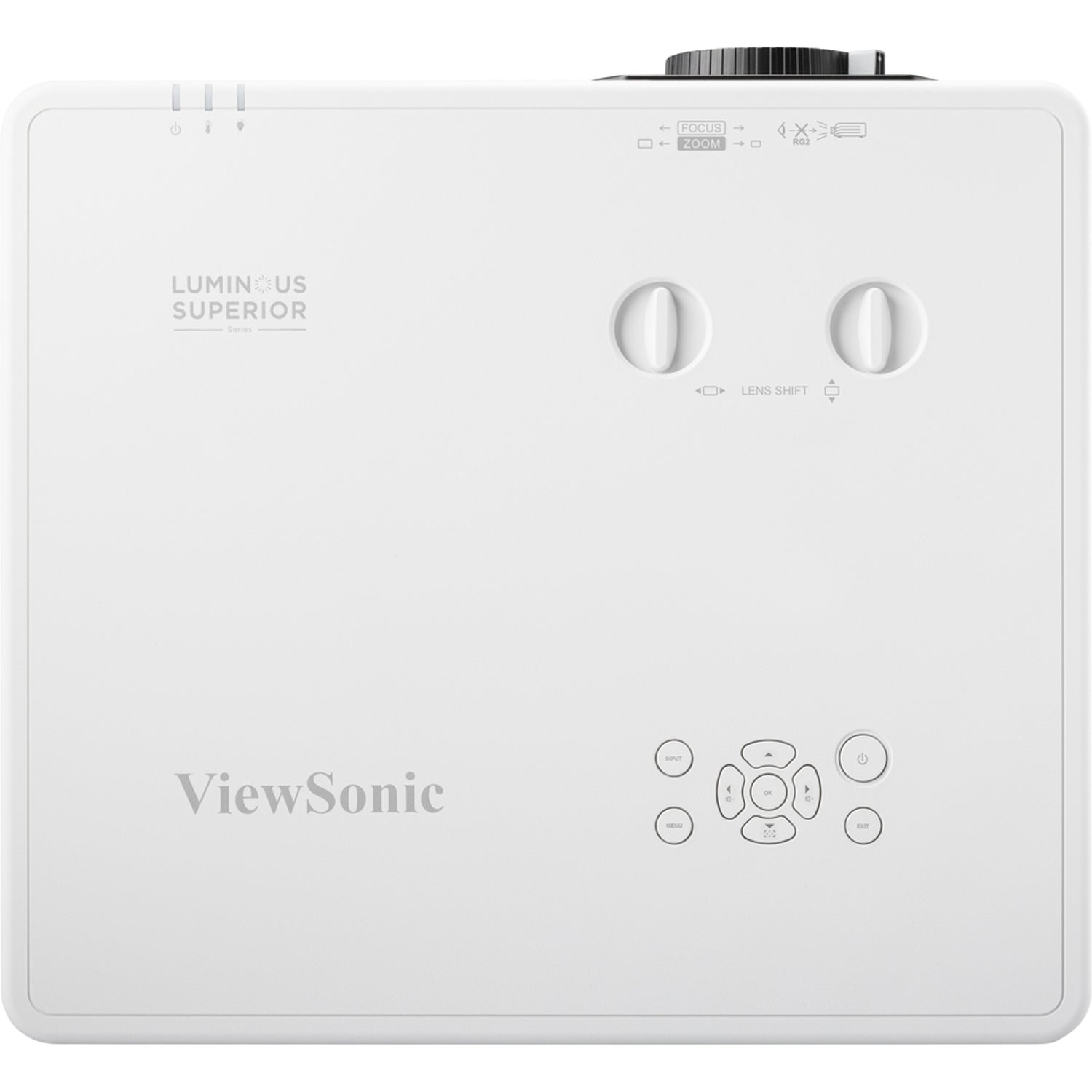

1.6x optical zoom, +60% vertical / ±29% horizontal lens shift and H/V keystone with auto vertical keystone.
Laser Phosphor, HDBaseT
Up to 20,000 hours (Normal) / 30,000 hours (Eco), with HDBaseT input and centralised LAN control.
Need projectors for several meeting rooms, classrooms or venues? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic LSC801WU Datasheet — Technical Specifications
General
| Product Name | ViewSonic LSC801WU 8,000 ANSI Lumens WUXGA Laser Installation Projector |
| Model | LSC801WU |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); laser light source, no lamp to replace |
Optical
| Projection System | 3LCD (3 x 0.64" with MLA) |
| Native Resolution | 1920 x 1200 |
| Brightness | 8,000 ANSI lumens (8,500 centre lumens) |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | Laser phosphor |
| Light Source Life | 20,000 hours (Normal) / 30,000 hours (Eco) |
| Lens | F=1.5–2.08, f=17.2–27.7 mm |
| Throw Ratio | 1.2–2.0 |
| Optical Zoom | 1.6x |
| Digital Zoom | 1.0x–4.0x |
| Image Size | 30"–300" |
| Throw Distance | 0.78–12.99 m (100" at 2.58 m) |
| Lens Shift | V: +60%, 0%; H: ±29% |
| Keystone | H: ±25°; V: ±30° (auto vertical ±30°) |
| Input Lag | 60 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to 4K (3840 x 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency | 15–100 kHz |
| Vertical Scan Rate | 23–85 Hz |

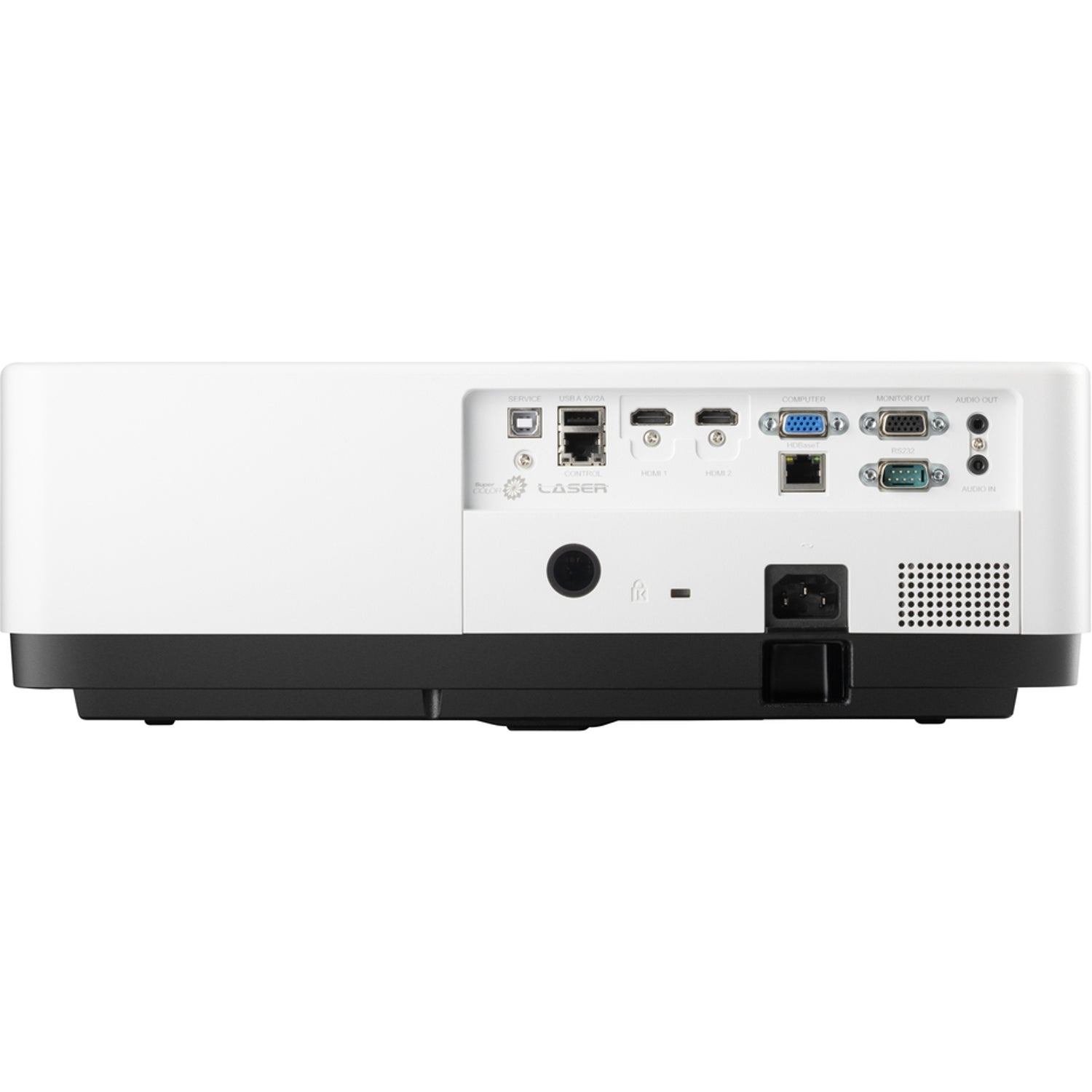

Connectivity
| HDMI In | 2 x HDMI 1.4 (HDCP 1.4) |
| Computer In | 1 x VGA (shared with component) |
| Audio In | 1 x 3.5 mm |
| USB Type-A | 1 x 5 V / 2 A (power, shared with USB-A input) |
| HDBaseT | 1 |
| Monitor Out | 1 |
| Audio Out | 1 x 3.5 mm |
| Speaker | 16 W |
| Control | 1 x RS232 (DB9); 1 x RJ45 LAN; 1 x USB Type-B (service) |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 385 W (Normal); <0.5 W standby |
| Audible Noise | 37 dB (Normal); 27 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 405 x 358 x 137 mm (with adjustment foot) |
| Net Weight | 7.9 kg |
| Gross Weight | 10.93 kg |
| Packaging | 510 x 498 x 260 mm |
| OSD Languages | 25 |
Compatibility & Software Support
Sources
Two HDMI inputs plus VGA/component cover laptops, document cameras and AV sources, with HDBaseT for long cable runs; a monitor output feeds a confidence display.
Room Control
RJ45 LAN control for centralised management plus RS232 (DB9) for control systems; ViewSonic publishes the LSC Series RS-232/LAN control protocol.
Typical Use
Lecture halls, auditoriums, boardrooms, galleries, golf simulators and Microsoft Teams Rooms (21:9 aspect ratio supported).
Package Contents & ViewSonic Laser & LED Projector Ordering Information
In the Box
LSC801WU projector, power cord, remote control, air filter, quick start guide.
Optional Accessories
| Replacement air filter | RSPL |
| Wall/ceiling mount | PJ-WMK-007 |
| HDBaseT dongle | HB10B |
| Wireless screen casting kit | WPD-700 / ViewShare WPD-900 |
ViewSonic Laser & LED Business Projectors
| Model | Key feature |
| LS500WHE | 3,000 lm WXGA, LED |
| LSD400W | 4,000 lm WXGA, laser |
| LSD400HD | 4,000 lm 1080p, laser |
| LS711HD | 4,200 lm 1080p, short throw laser |
| LS740W | 5,000 lm WXGA, laser |
| LS740HD | 5,000 lm 1080p, laser |
| LS832WU | 5,000 lm WUXGA, ultra short throw laser |
| LS860WU | 5,000 lm WUXGA, short throw laser, HDBaseT |
| LS920WU | 6,000 lm WUXGA, laser, 1.6x zoom |
| LS921WU | 6,000 lm WUXGA, short throw laser |
| LSC801WU (this listing) | 8,000 lm WUXGA, 3LCD laser, HDBaseT, lens shift |
Datasheet & Downloads
| ViewSonic datasheet | LSC801WU Datasheet |
| User guide | LSC Series User Guide (PDF, English) |
| Quick start guide | LSC650WU/LSC730WU/LSC800WU Quick Start Guide (PDF) |
| RS-232 / LAN control protocol | LSC Series RS-232/LAN Control Protocol (PDF) |
| ViewSonic product page | LSC801WU on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LSC801WU.
Frequently Asked Questions — ViewSonic LSC801WU
How far from the screen does it go?
The 1.2–2.0 throw ratio places a 100" image at about 2.58 m, from 30" up to 300".
Is the lens adjustable?
Yes. 1.6x optical zoom with +60% vertical and ±29% horizontal lens shift.
Can I connect over HDBaseT?
Yes. The LSC801WU has an HDBaseT input for video over a single Cat cable (ViewSonic lists the HB10B dongle as compatible).
Does it need lamp replacements?
No. The laser light source is rated up to 20,000 hours (Normal) or 30,000 hours (Eco); a replaceable air filter is included.
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island). Supplied by SourceIT with a GST invoice.
