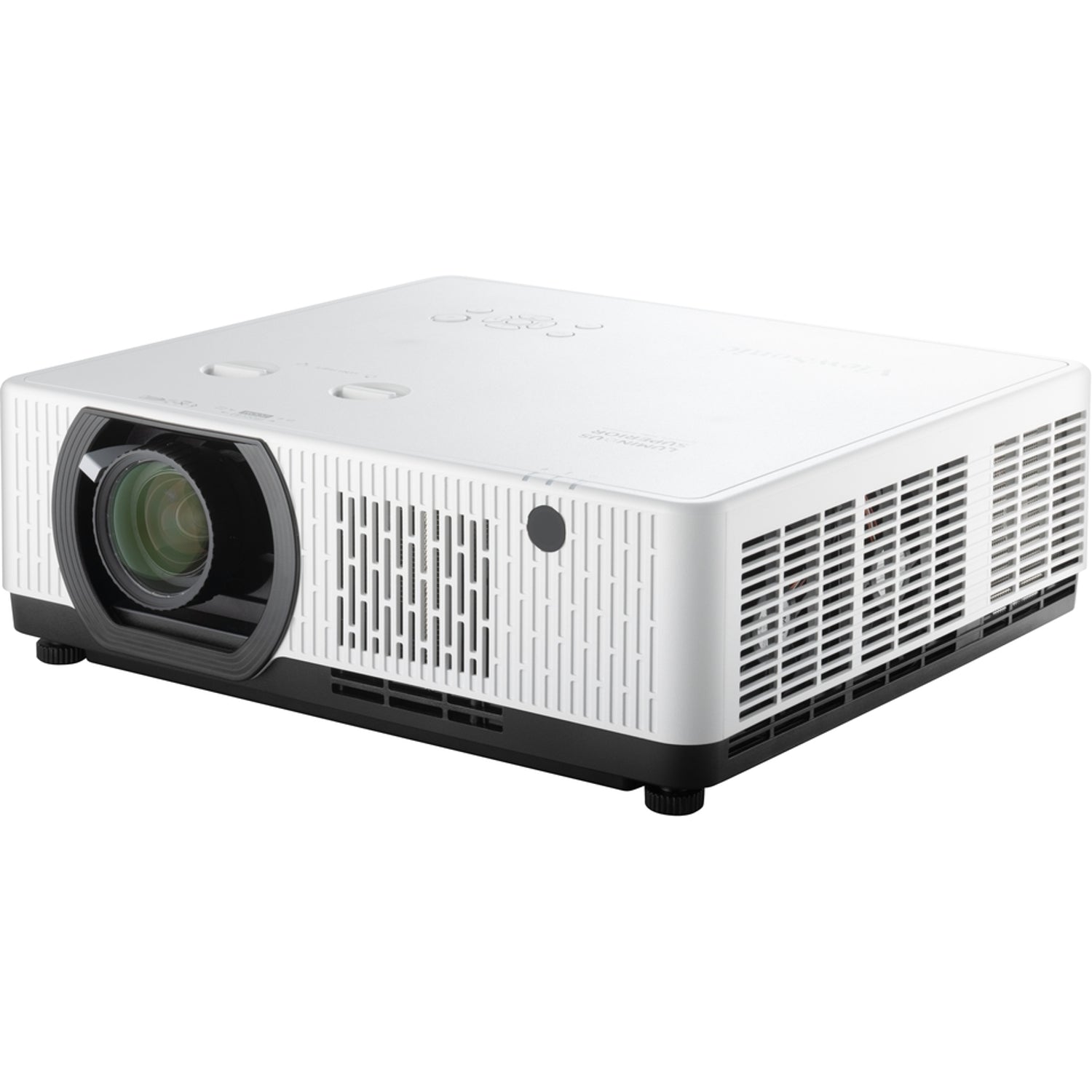

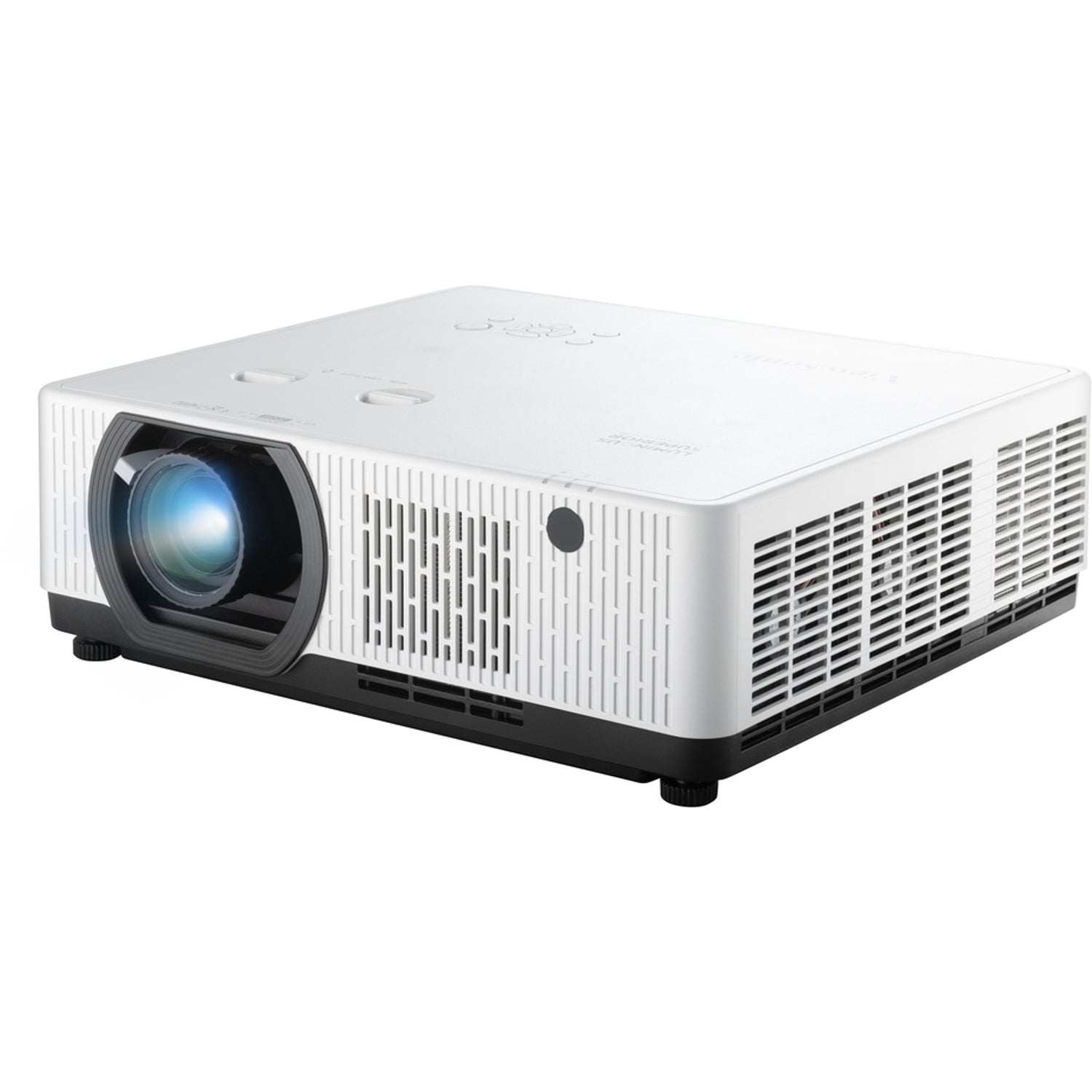

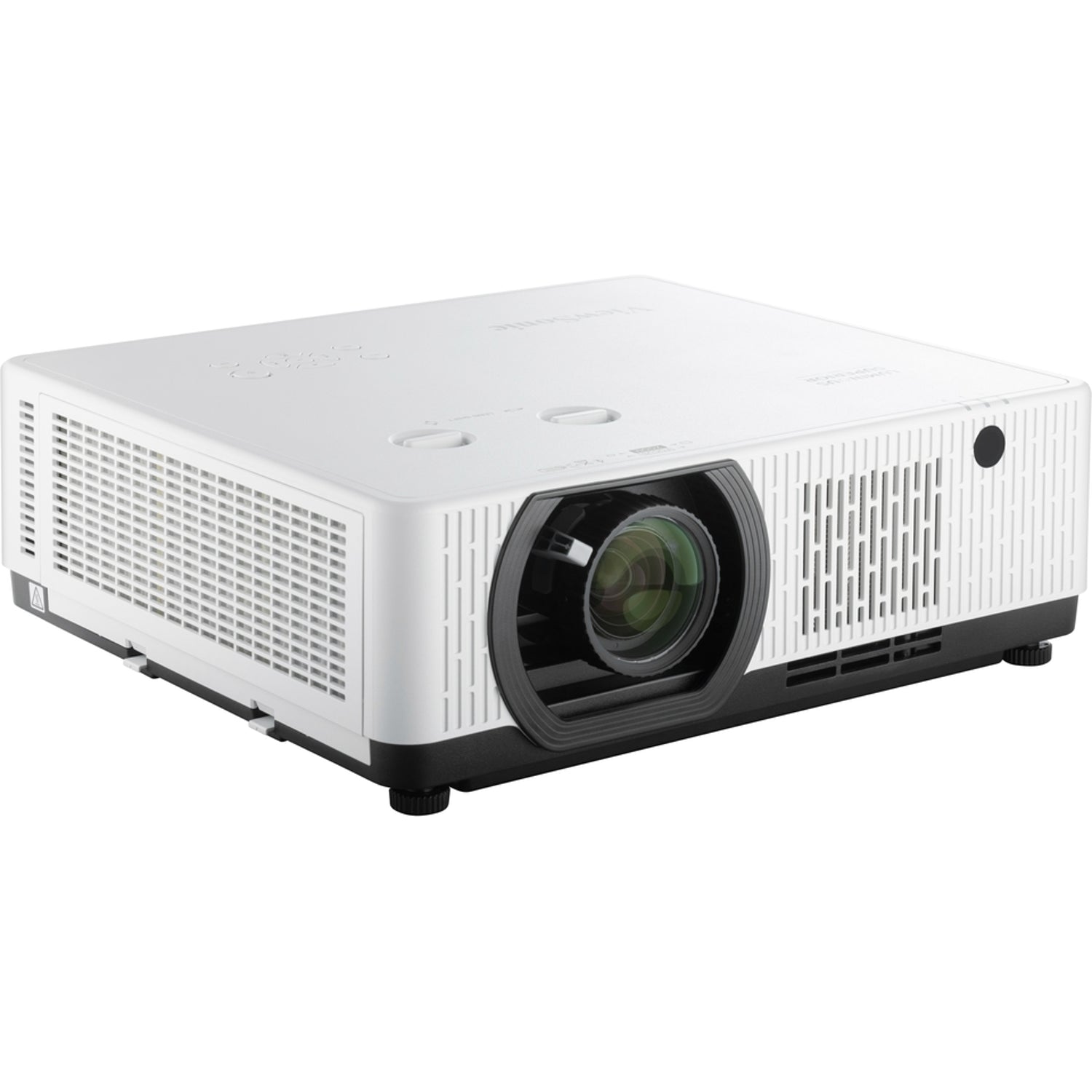

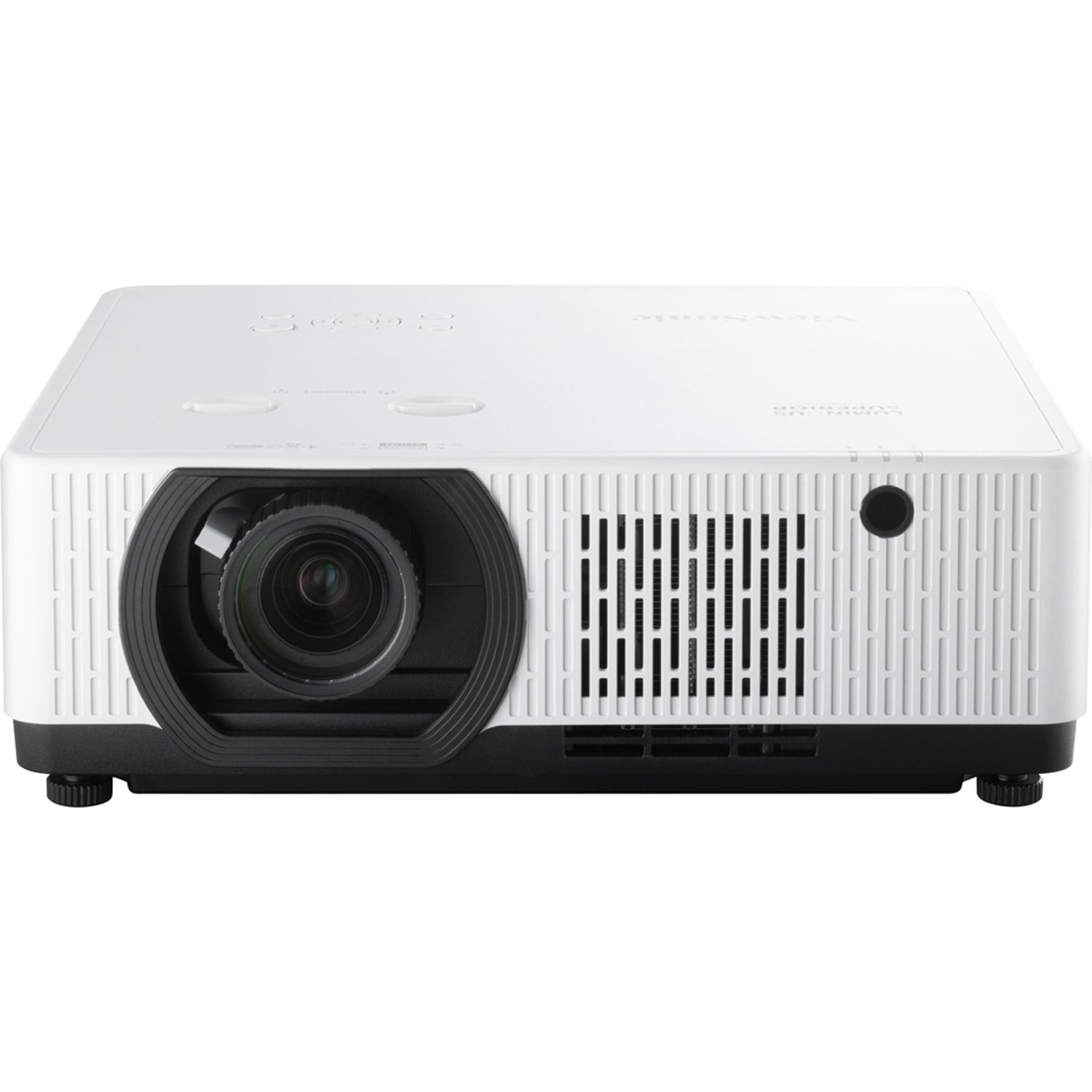

ViewSonic LSC730WU 7,300 ANSI Lumens WUXGA Laser Installation Projector
PRODUCT DESCRIPTION
ViewSonic LSC730WU 7,300 ANSI Lumens WUXGA Laser Installation Projector - 3 Years Local Warranty
7,300 ANSI Lumens WUXGA
Bright 1920 x 1200 images from a 3LCD (3 x 0.64" with MLA) laser engine, with 21:9 support for Microsoft Teams Rooms.
Ultra-large Screen
30" to 300" images with a lower cost-per-inch; 100" at about 2.58 m.
Installation Flexibility

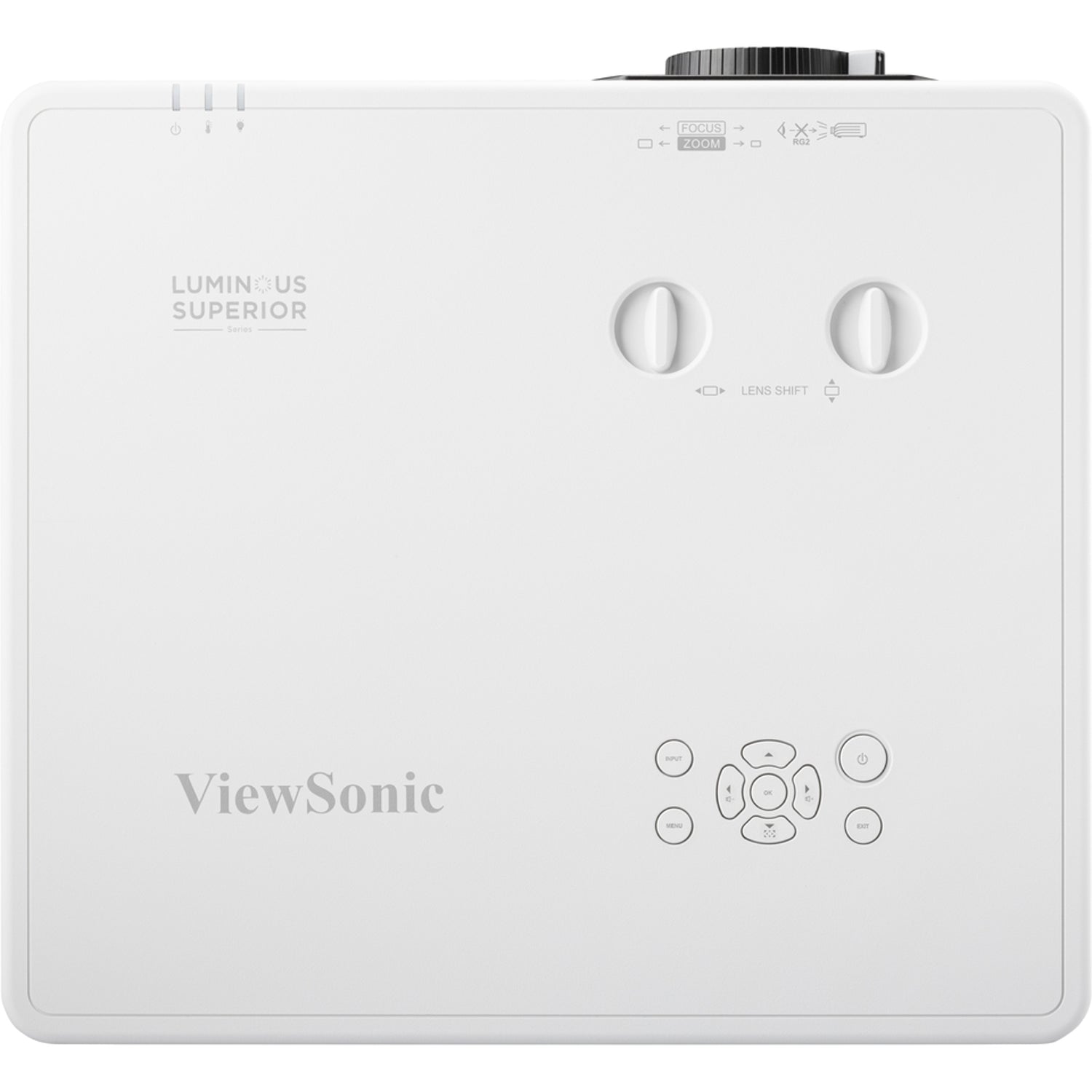

1.6x optical zoom, +60% vertical / ±29% horizontal lens shift and H/V keystone with auto vertical keystone.
Laser Phosphor, LAN Managed
Up to 20,000 hours (Normal) / 30,000 hours (SuperEco), with centralised LAN and RS232 control.
Need projectors for several meeting rooms, classrooms or venues? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic LSC730WU Datasheet — Technical Specifications
General
| Product Name | ViewSonic LSC730WU 7,300 ANSI Lumens WUXGA Laser Installation Projector |
| Model | LSC730WU |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); laser light source, no lamp to replace |
Optical
| Projection System | 3LCD (3 x 0.64" with MLA) |
| Native Resolution | 1920 x 1200 |
| Brightness | 7,300 ANSI lumens (7,800 centre lumens) |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | Laser phosphor |
| Light Source Life | 20,000 hours (Normal) / 30,000 hours (SuperEco) |
| Lens | F=1.5–2.08, f=17.2–27.7 mm |
| Throw Ratio | 1.2–2.0 |
| Optical Zoom | 1.6x |
| Digital Zoom | 1.0x–4.0x |
| Image Size | 30"–300" |
| Throw Distance | 0.78–12.99 m (100" at 2.58 m) |
| Projection Offset | 0% ±5% |
| Lens Shift | V: +60%, 0%; H: ±29% |
| Keystone | H: ±25°; V: ±30° (auto vertical ±30°) |
| Input Lag | 60 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to 4K (3840 x 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency | 15–100 kHz |
| Vertical Scan Rate | 23–85 Hz |

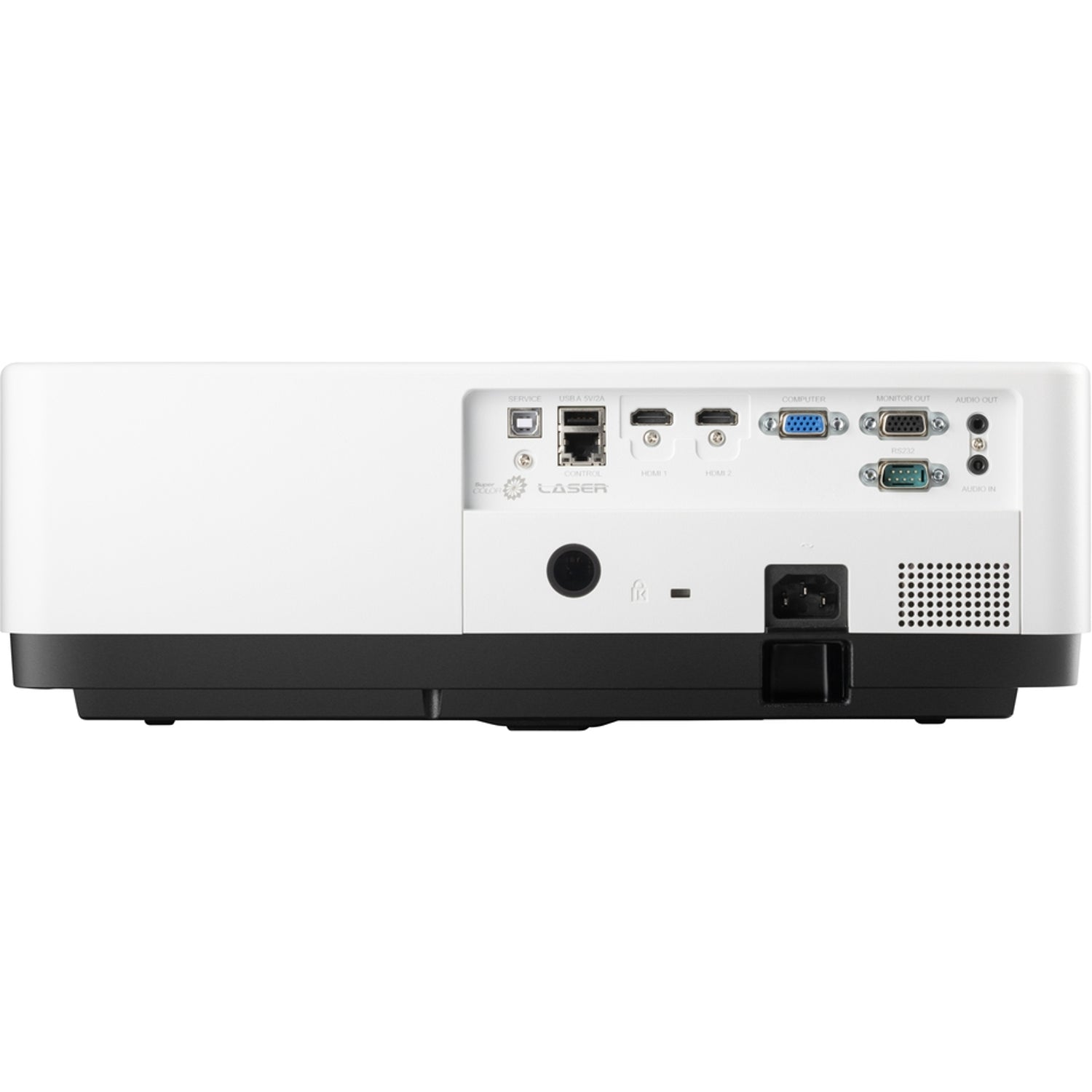

Connectivity
| HDMI In | 2 x HDMI 1.4 (HDCP 1.4) |
| Computer In | 1 x VGA (shared with component) |
| Audio In | 1 x 3.5 mm |
| USB Type-A | 1 x 5 V / 2 A (power, shared with USB-A input) |
| Monitor Out | 1 |
| Audio Out | 1 x 3.5 mm |
| Speaker | 16 W |
| Control | 1 x RS232 (DB9); 1 x RJ45 LAN; 1 x USB Type-B (service) |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 365 W (Normal); <0.5 W standby |
| Audible Noise | 37 dB (Normal); 27 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 405 x 358 x 137 mm (with adjustment foot) |
| Net Weight | 7.9 kg |
| Gross Weight | 10.1 kg |
| Packaging | 510 x 498 x 260 mm |
| OSD Languages | 25 |
Compatibility & Software Support
Sources
Two HDMI inputs plus VGA/component cover laptops, document cameras and AV sources; a monitor output feeds a confidence display.
Room Control
RJ45 LAN control for centralised management plus RS232 (DB9) for control systems; ViewSonic publishes the LSC Series RS-232/LAN control protocol.
Typical Use
Lecture halls, auditoriums, boardrooms, galleries, golf simulators and Microsoft Teams Rooms (21:9 aspect ratio supported).
Package Contents & ViewSonic Laser & LED Projector Ordering Information
In the Box
LSC730WU projector, power cord, remote control, air filter, quick start guide.
Optional Accessories
| Replacement air filter | RSPL |
| Wall/ceiling mount | PJ-WMK-007 |
| Wireless screen casting kit | WPD-700 / ViewShare WPD-900 |
ViewSonic Laser & LED Business Projectors
| Model | Key feature |
| LS500WHE | 3,000 lm WXGA, LED |
| LSD400W | 4,000 lm WXGA, laser |
| LSD400HD | 4,000 lm 1080p, laser |
| LS711HD | 4,200 lm 1080p, short throw laser |
| LS740W | 5,000 lm WXGA, laser |
| LS740HD | 5,000 lm 1080p, laser |
| LS832WU | 5,000 lm WUXGA, ultra short throw laser |
| LS860WU | 5,000 lm WUXGA, short throw laser, HDBaseT |
| LS920WU | 6,000 lm WUXGA, laser, 1.6x zoom |
| LS921WU | 6,000 lm WUXGA, short throw laser |
| LSC730WU (this listing) | 7,300 lm WUXGA, 3LCD laser, lens shift |
Datasheet & Downloads
| ViewSonic datasheet | LSC730WU Datasheet |
| User guide | LSC Series User Guide (PDF, English) |
| Quick start guide | LSC650WU/LSC730WU/LSC800WU Quick Start Guide (PDF) |
| RS-232 / LAN control protocol | LSC Series RS-232/LAN Control Protocol (PDF) |
| ViewSonic product page | LSC730WU on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LSC730WU.
Frequently Asked Questions — ViewSonic LSC730WU
How far from the screen does it go?
The 1.2–2.0 throw ratio places a 100" image at about 2.58 m, from 30" up to 300".
Is the lens adjustable?
Yes. 1.6x optical zoom with +60% vertical and ±29% horizontal lens shift.
Does it support HDBaseT?
HDBaseT is not listed for the LSC730WU; for HDBaseT choose the LSC801WU. WPD-700/WPD-900 wireless casting kits are compatible.
Does it need lamp replacements?
No. The laser light source is rated up to 20,000 hours (Normal) or 30,000 hours (SuperEco); a replaceable air filter is included.
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island). Supplied by SourceIT with a GST invoice.
