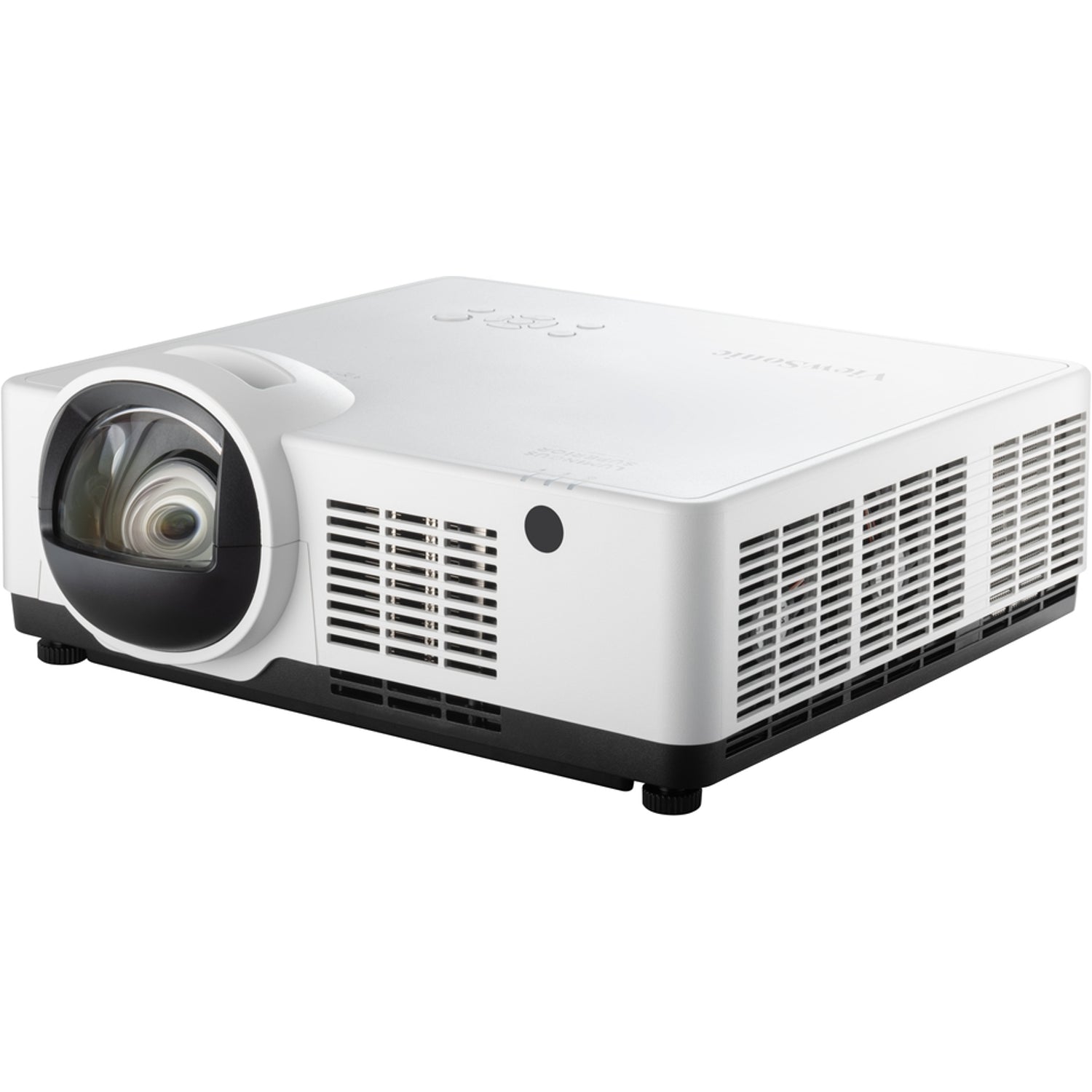

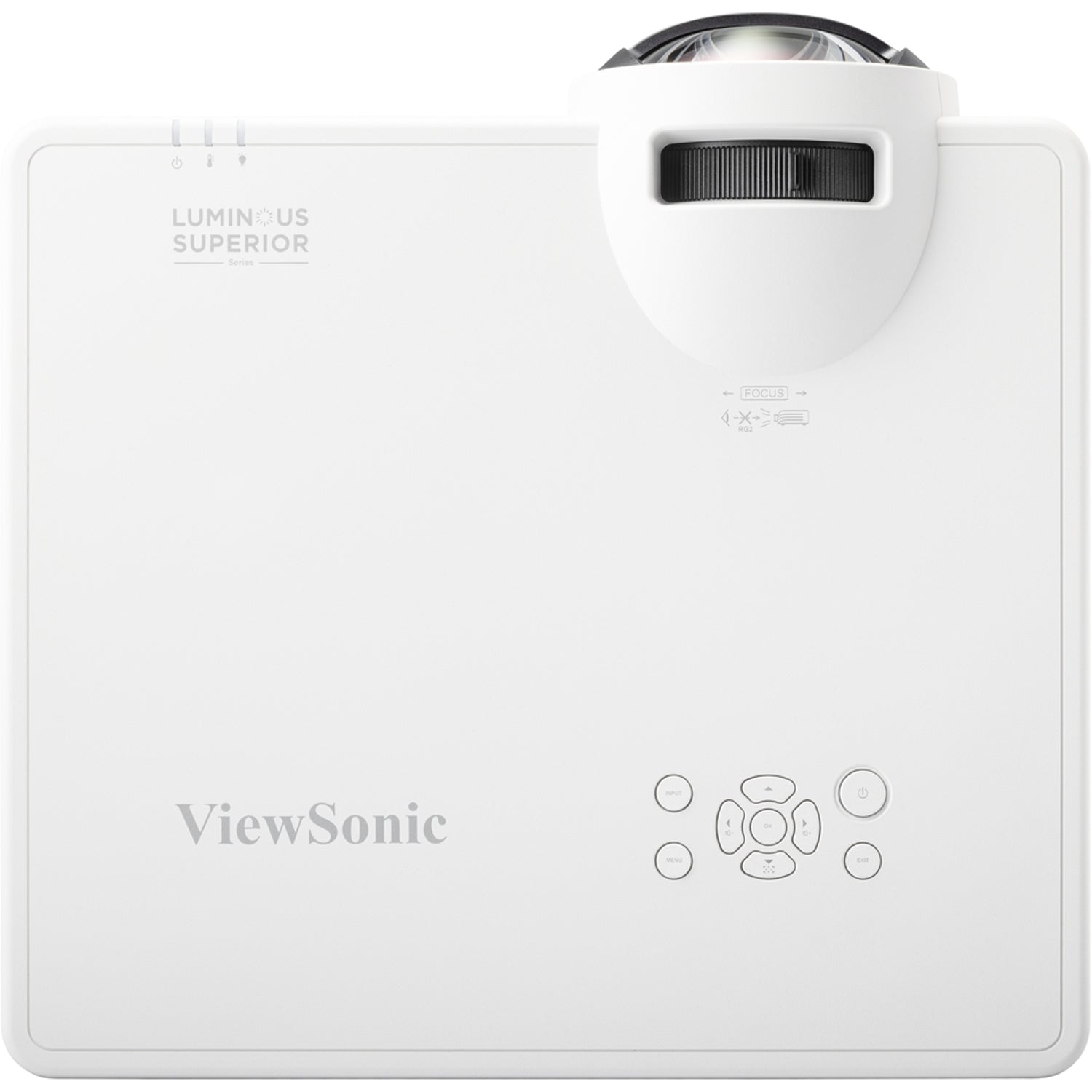

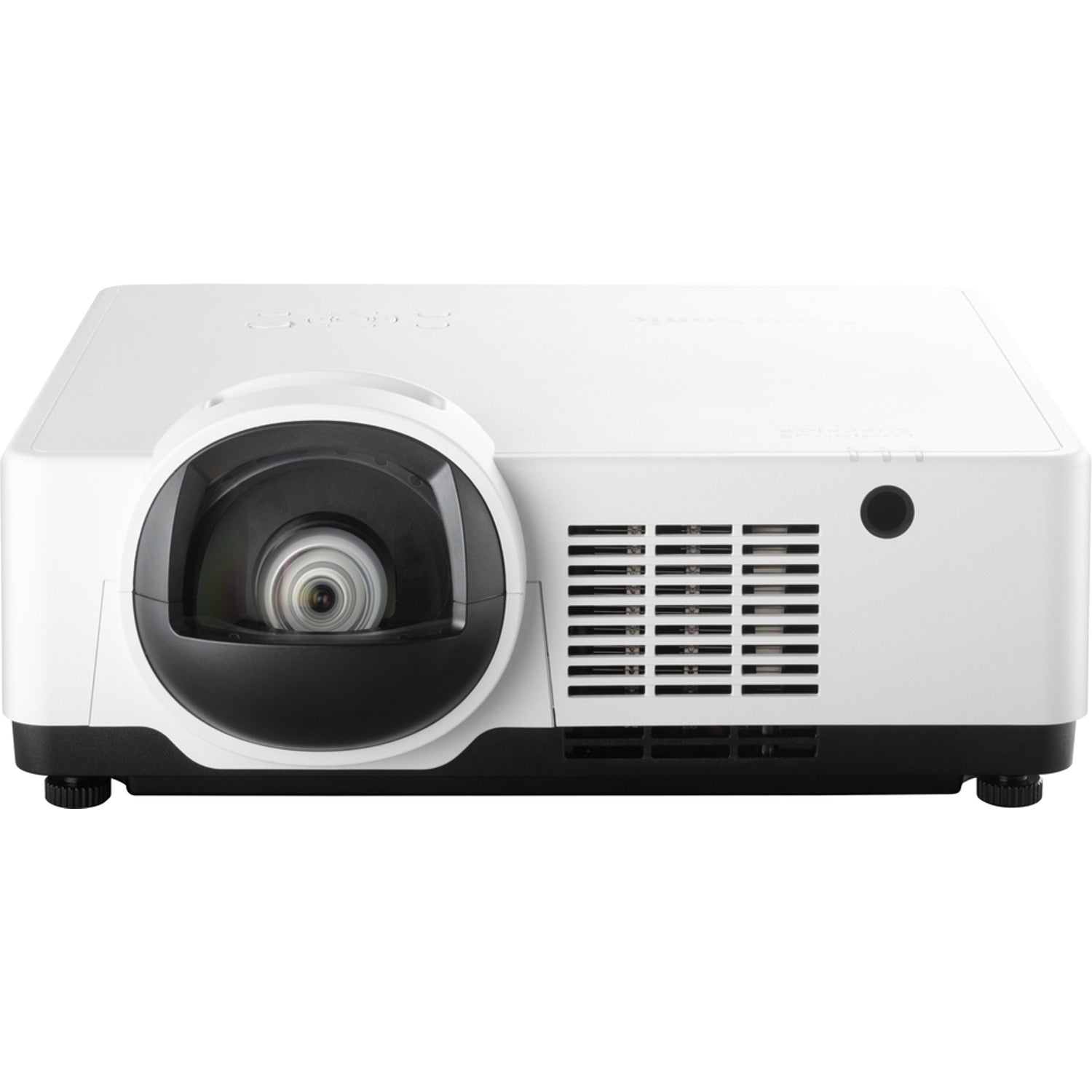

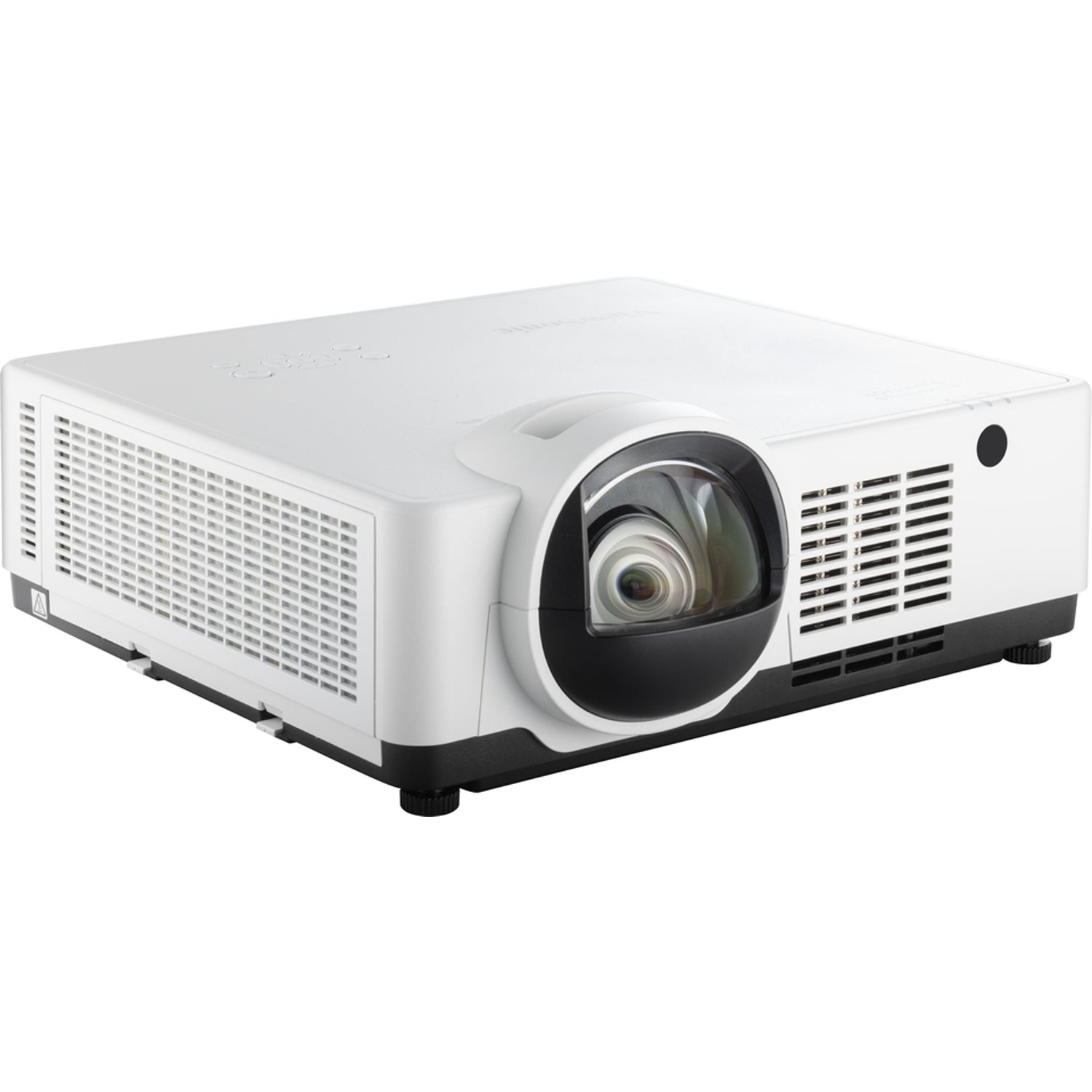

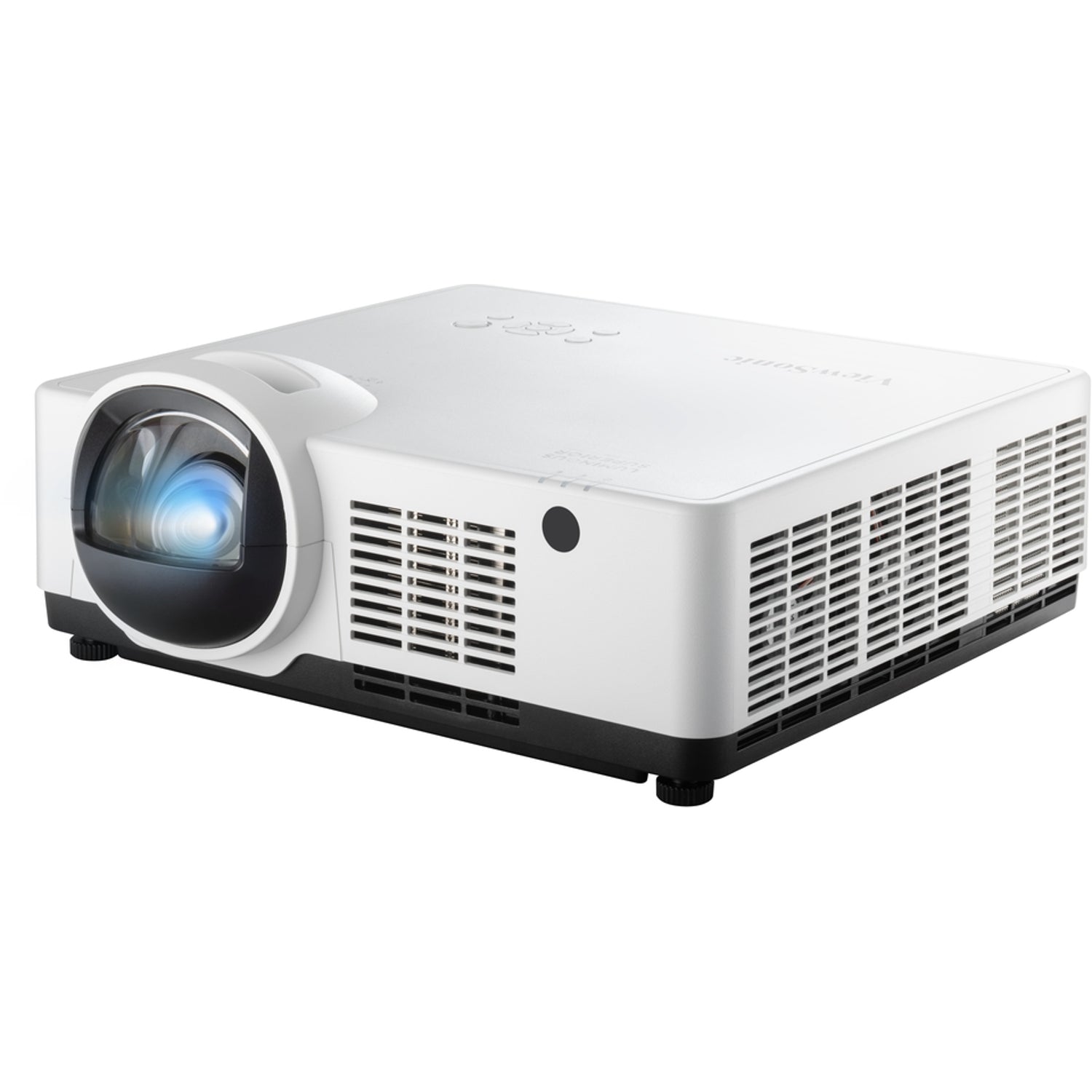

ViewSonic LSC600WU-ST 6,000 ANSI Lumens WUXGA Short Throw Laser Installation Projector
PRODUCT DESCRIPTION
ViewSonic LSC600WU-ST 6,000 ANSI Lumens WUXGA Short Throw Laser Installation Projector - 3 Years Local Warranty
6,000 ANSI Lumens WUXGA
Bright 1920 x 1200 images from a 3LCD (3 x 0.64" with MLA) laser engine, with 21:9 support for Microsoft Teams Rooms.
0.44 Short Throw
A 100" image from about 0.95 m, up to 180", for shadow-free presenting close to the screen.
Installation Flexibility
H/V keystone correction (±15°), auto vertical keystone, 360° projection and warping.
Laser Phosphor, LAN Managed
Up to 20,000 hours (Normal) / 30,000 hours (Eco), with centralised LAN and RS232 control.
Need projectors for several meeting rooms, classrooms or venues? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic LSC600WU-ST Datasheet — Technical Specifications
General
| Product Name | ViewSonic LSC600WU-ST 6,000 ANSI Lumens WUXGA Short Throw Laser Installation Projector |
| Model | LSC600WU-ST |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); laser light source, no lamp to replace |
Optical
| Projection System | 3LCD (3 x 0.64" with MLA) |
| Native Resolution | 1920 x 1200 |
| Brightness | 6,000 ANSI lumens (6,500 centre lumens) |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | Laser phosphor |
| Light Source Life | 20,000 hours (Normal) / 30,000 hours (Eco) |
| Lens | F=1.6, f=6.39 mm |
| Throw Ratio | 0.44 |
| Optical Zoom | Fixed |
| Digital Zoom | 1.0x–4.0x |
| Image Size | 55"–180" |
| Throw Distance | 0.521–1.71 m (100" at 0.948 m) |
| Projection Offset | 98% ±5% |
| Keystone | H: ±15°; V: ±15° (auto vertical ±15°) |
| Input Lag | 60 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to 4K (3840 x 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency | 15–100 kHz |
| Vertical Scan Rate | 23–85 Hz |

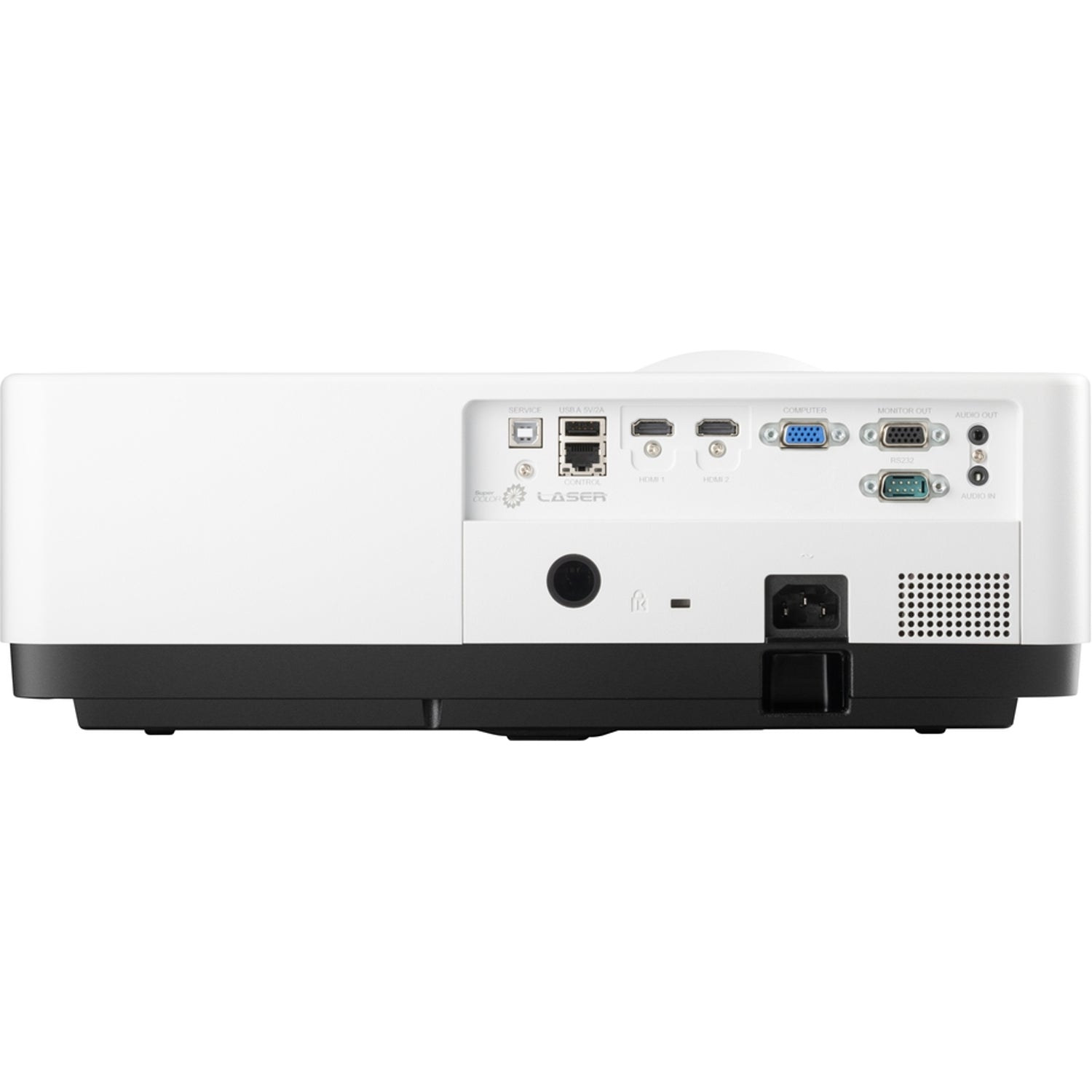

Connectivity
| HDMI In | 2 x HDMI 1.4 (HDCP 1.4) |
| Computer In | 1 x VGA (shared with component) |
| Audio In | 1 x 3.5 mm |
| USB Type-A | 1 x 5 V / 2 A (power, shared with USB-A input) |
| Monitor Out | 1 |
| Audio Out | 1 x 3.5 mm |
| Speaker | 16 W |
| Control | 1 x RS232 (DB9); 1 x RJ45 LAN; 1 x USB Type-B (service) |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 335 W (Normal); <0.5 W standby |
| Audible Noise | 35 dB (Normal); 25 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 405 x 404 x 164 mm (with adjustment foot) |
| Net Weight | 8 kg |
| Gross Weight | 10.3 kg |
| Packaging | 510 x 498 x 260 mm |
| OSD Languages | 25 |
Compatibility & Software Support
Sources
Two HDMI inputs plus VGA/component cover laptops, document cameras and AV sources; a monitor output feeds a confidence display.
Room Control
RJ45 LAN control for centralised management plus RS232 (DB9) for control systems; ViewSonic publishes the LSC Series RS-232/LAN control protocol.
Typical Use
Lecture halls, auditoriums, boardrooms, galleries, golf simulators and Microsoft Teams Rooms (21:9 aspect ratio supported).
Package Contents & ViewSonic Laser & LED Projector Ordering Information
In the Box
LSC600WU-ST projector, power cord, remote control, air filter, quick start guide.
Optional Accessories
| Replacement air filter | RSPL |
| Wall/ceiling mount | PJ-WMK-007 |
| Wireless screen casting kit | WPD-700 / ViewShare WPD-900 |
ViewSonic Laser & LED Business Projectors
| Model | Key feature |
| LS500WHE | 3,000 lm WXGA, LED |
| LSD400W | 4,000 lm WXGA, laser |
| LSD400HD | 4,000 lm 1080p, laser |
| LS711HD | 4,200 lm 1080p, short throw laser |
| LS740W | 5,000 lm WXGA, laser |
| LS740HD | 5,000 lm 1080p, laser |
| LS832WU | 5,000 lm WUXGA, ultra short throw laser |
| LS860WU | 5,000 lm WUXGA, short throw laser, HDBaseT |
| LS920WU | 6,000 lm WUXGA, laser, 1.6x zoom |
| LS921WU | 6,000 lm WUXGA, short throw laser |
| LSC600WU-ST (this listing) | 6,000 lm WUXGA, 3LCD short throw laser |
Datasheet & Downloads
| ViewSonic datasheet | LSC600WU-ST Datasheet |
| User guide | LSC Series User Guide (PDF, English) |
| Quick start guide | LSC600W-ST/LSC600WU-ST Quick Start Guide (PDF) |
| RS-232 / LAN control protocol | LSC Series RS-232/LAN Control Protocol (PDF) |
| ViewSonic product page | LSC600WU-ST on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LSC600WU-ST.
Frequently Asked Questions — ViewSonic LSC600WU-ST
How close to the screen does it go?
The fixed 0.44 throw ratio places a 100" image at about 0.95 m, from 55" up to 180".
Is it DLP or 3LCD?
3LCD: three 0.64" LCD panels with micro-lens arrays (MLA) and a laser phosphor light source.
Does it support HDBaseT?
HDBaseT is not listed for the LSC600WU-ST. Inputs are 2 x HDMI 1.4 and VGA/component; ViewSonic lists WPD-700/WPD-900 wireless casting kits as compatible.
Does it need lamp replacements?
No. The laser light source is rated up to 20,000 hours (Normal) or 30,000 hours (Eco); a replaceable air filter is included.
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island). Supplied by SourceIT with a GST invoice.
