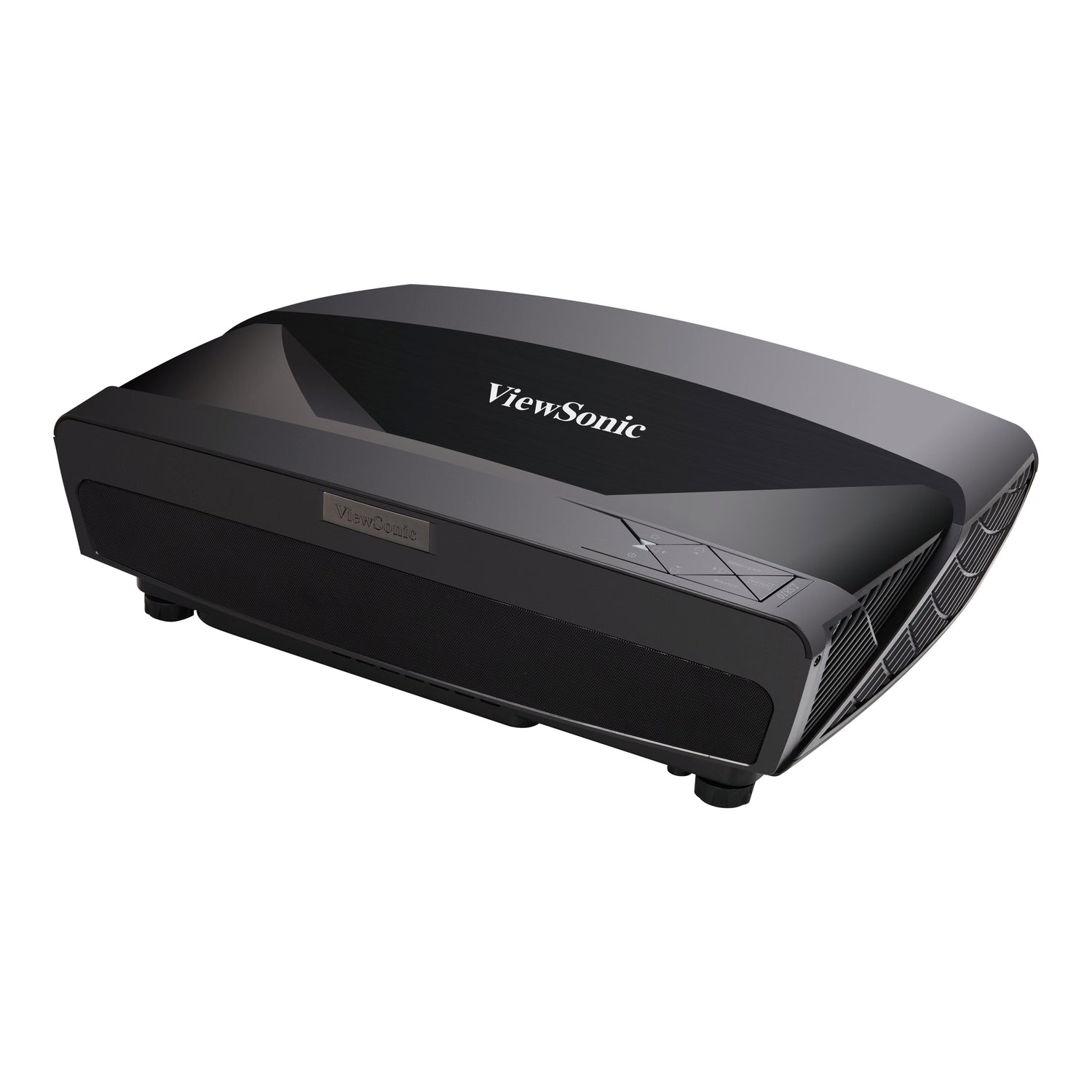

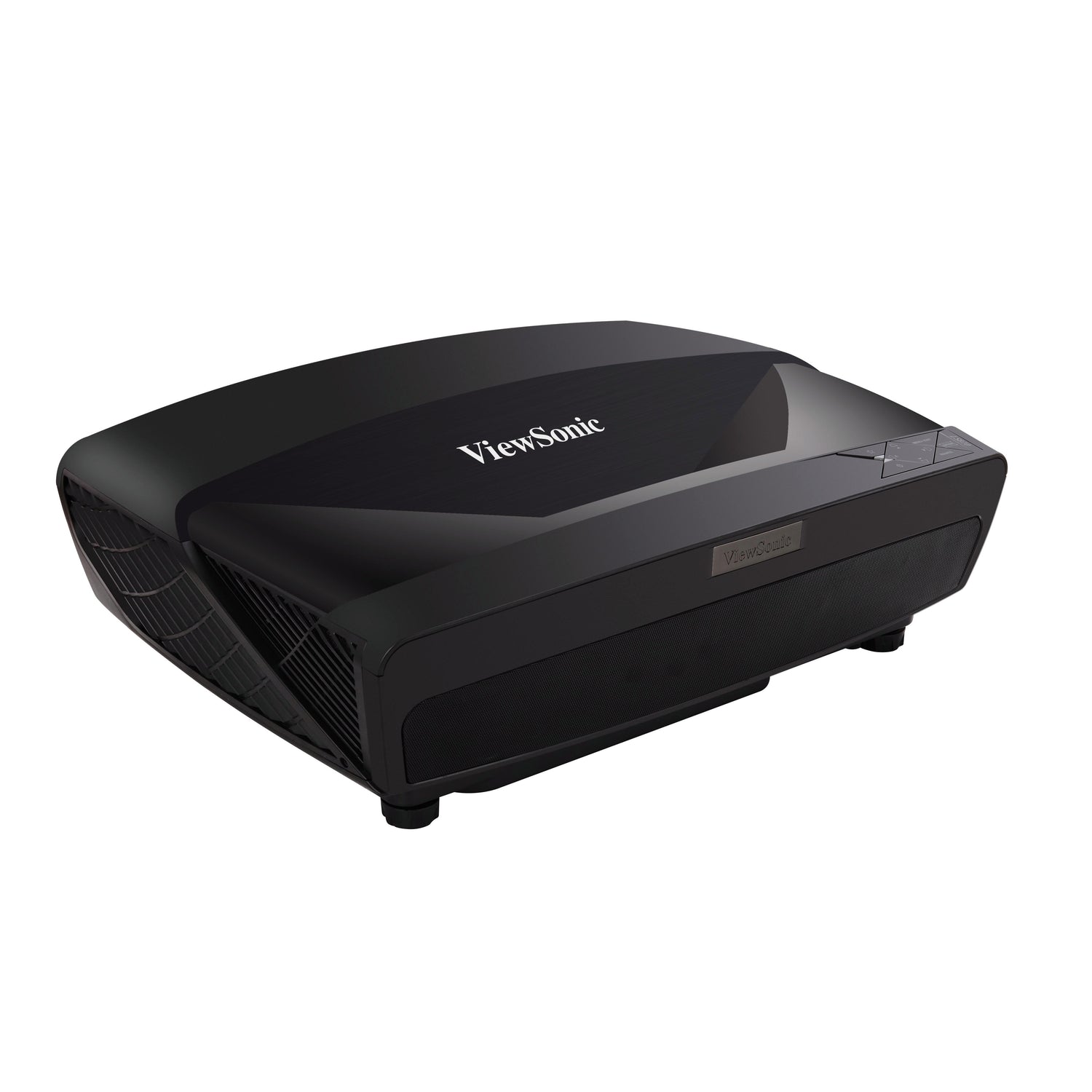

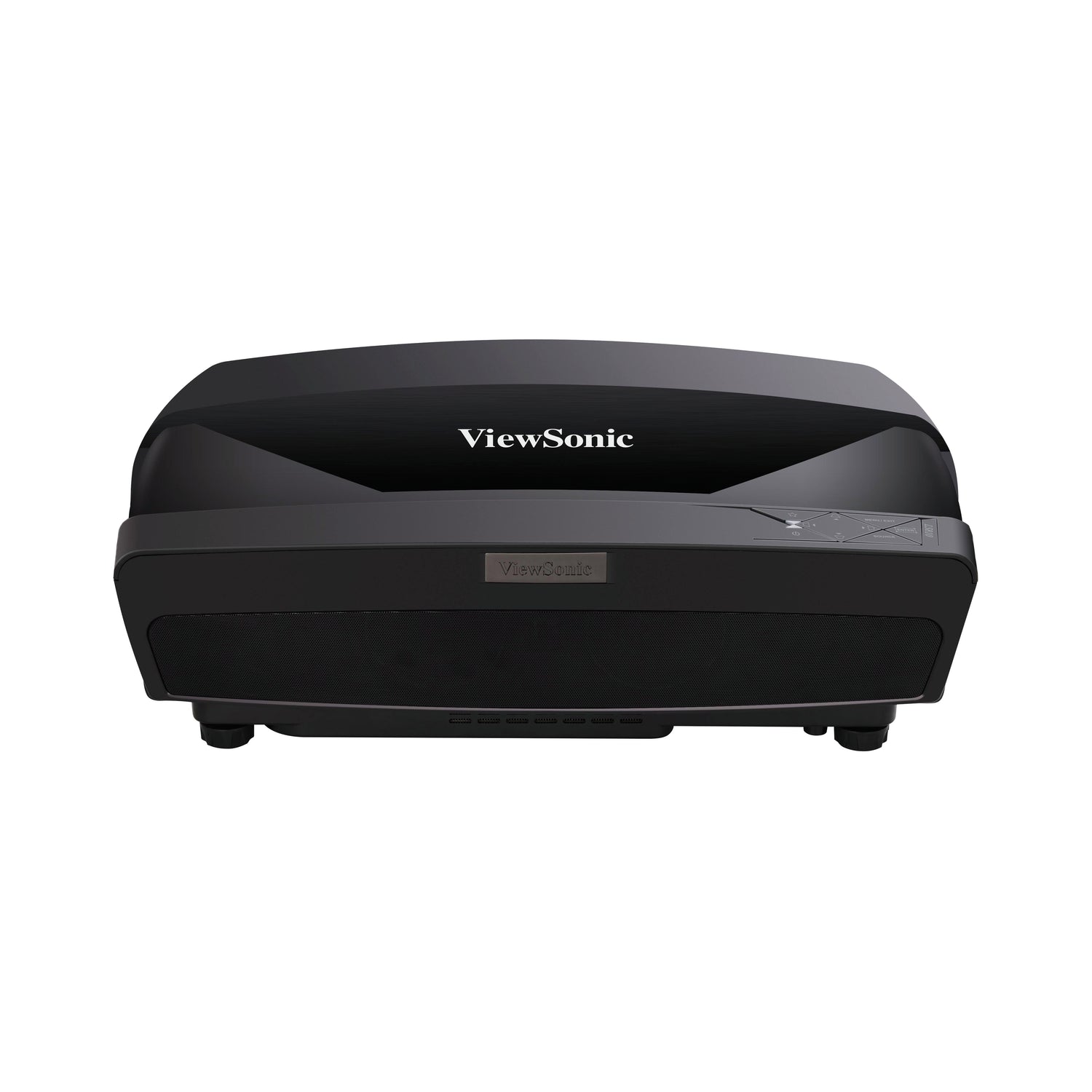

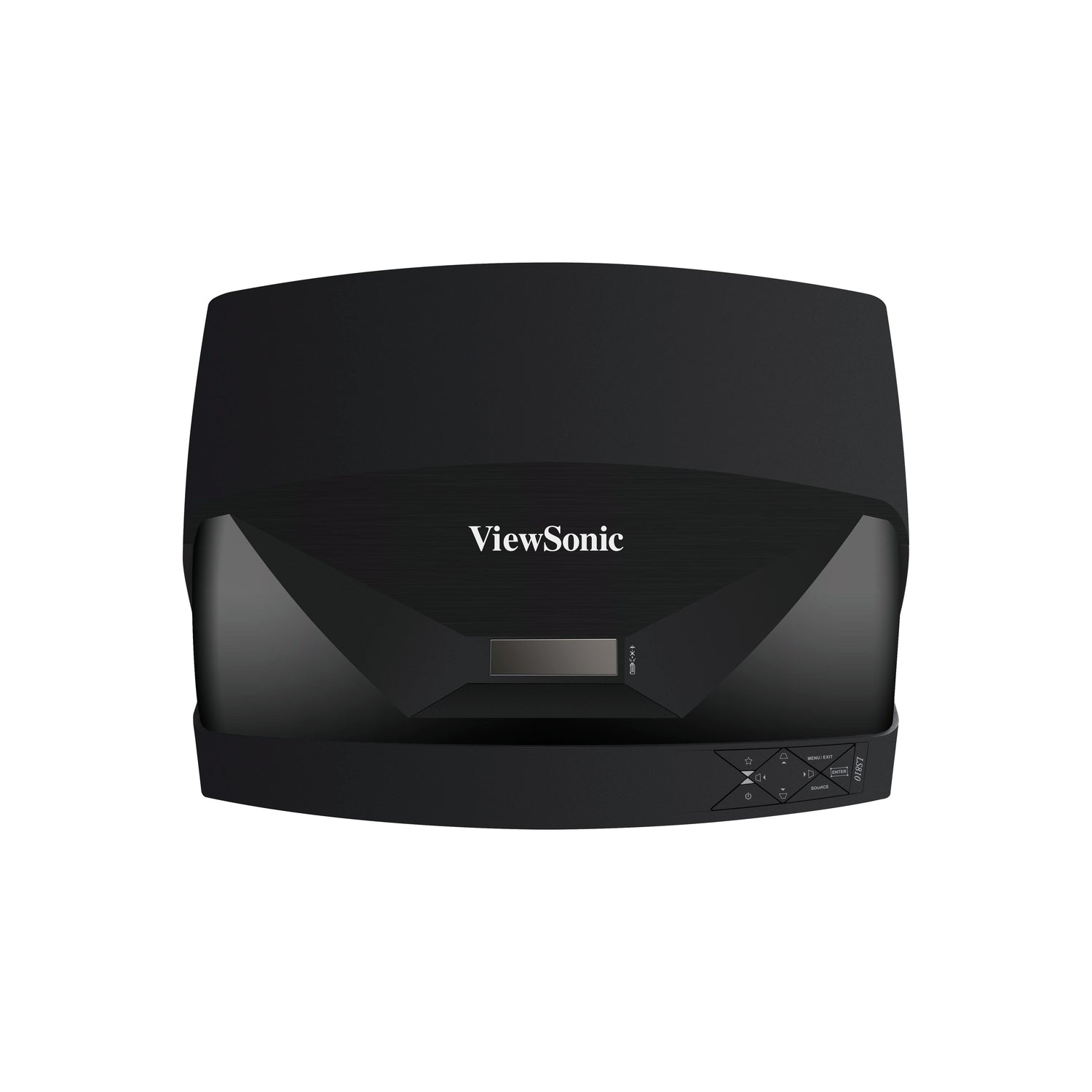

ViewSonic LS810 5,200 Lumens WXGA Ultra Short Throw Laser Projector
PRODUCT DESCRIPTION
ViewSonic LS810 5,200 Lumens WXGA Ultra Short Throw Laser Installation Projector - 3 Years Local Warranty
Ultra Short Throw 0.24
Projects an 80"–150" image from just 0.43–0.8 m, cutting shadows and glare for presenters.
5,200 ANSI Lumens
Bright WXGA images with a 100,000:1 contrast ratio and a dual colour wheel for vivid colour.
Laser Phosphor Light Source
Up to 15,000 hours (Normal) / 20,000 hours (Eco) with no lamp replacement.
Full Connectivity
Two HDMI (one MHL), dual VGA in, VGA out, LAN, RS232 and 3D VESA sync.
Need projectors for several meeting rooms, classrooms or venues? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic LS810 Datasheet — Technical Specifications
General
| Product Name | ViewSonic LS810 5,200 Lumens WXGA Ultra Short Throw Laser Installation Projector |
| Model | LS810 |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); laser light source, no lamp to replace |
Optical
| Display | TI DMD 0.65" |
| Native Resolution | 1280 x 800 (WXGA) |
| Brightness | 5,200 ANSI lumens |
| Contrast Ratio | 100,000:1 |
| Display Colour | 1.07 billion colours (30-bit) |
| Colour Wheel | Dual wheel system (RYGW) |
| Light Source | Laser phosphor |
| Light Source Life | 15,000 hours (Normal) / 20,000 hours (Eco) |
| F Stop | 2.4 |
| Focus | Adjustable by OSD menu |
| Throw Ratio | 0.241 |
| Image Size | 80"–150" |
| Throw Distance | 0.43–0.8 m |
| Optical Offset | 137.6% ±5% |
| Keystone | ±30° (H/V); auto vertical keystone |
Compatibility
| PC / Mac | Up to 1920 x 1080 @ 60 Hz |
| Video | 480i, 576i, 480p, 576p, 720p, 1080i, 1080p |
| Frequency (H/V) | 15–100 kHz / 24–120 Hz |

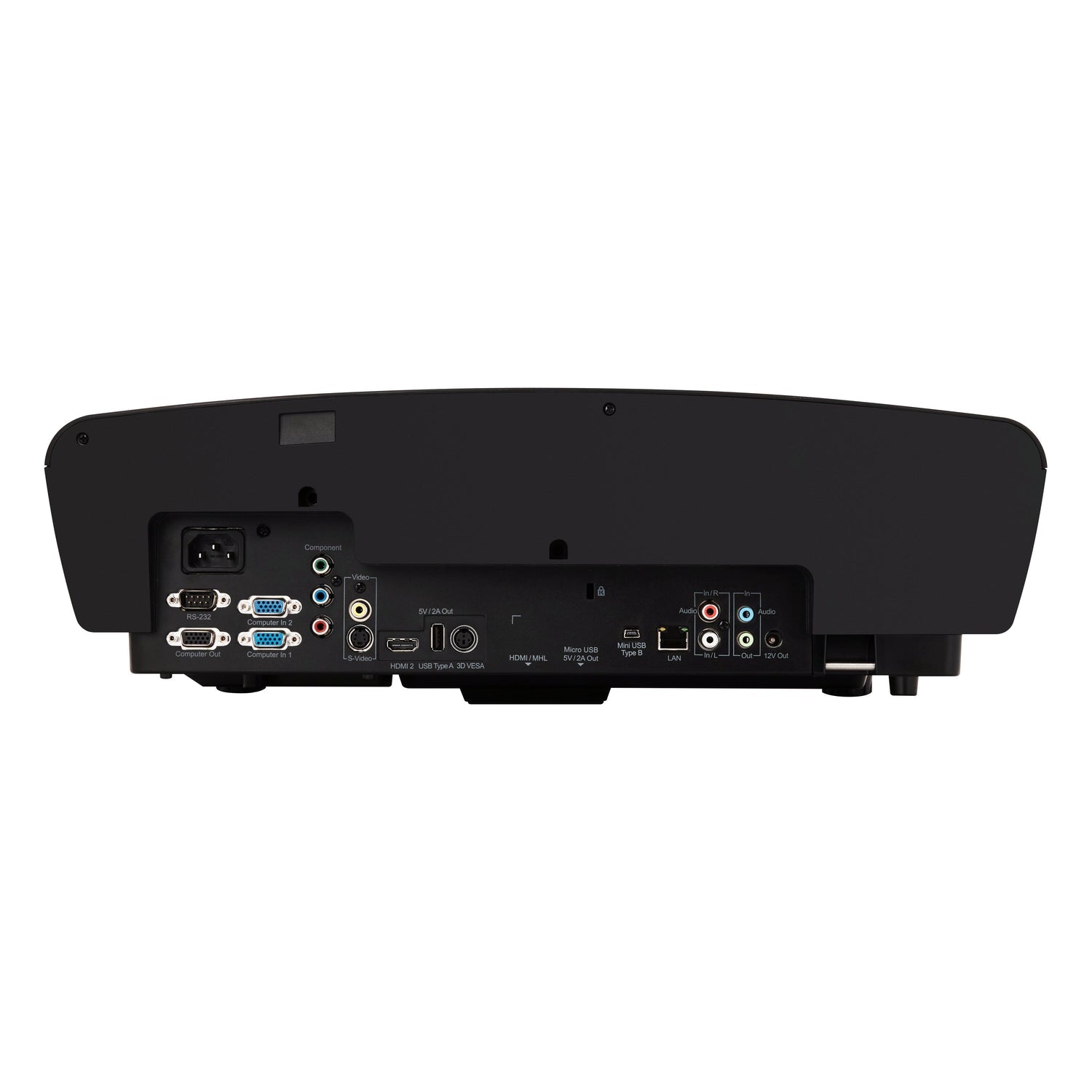

Connectivity
| HDMI | 1 x HDMI; 1 x HDMI (MHL 2.0) |
| VGA In | 2 (shared with component) |
| VGA Out | 1 |
| Composite | 1 x RCA |
| S-Video | 1 |
| Audio In | 1 x 3.5 mm; 1 x RCA (L/R) |
| Audio Out | 1 x 3.5 mm; 1 x RCA (L/R) |

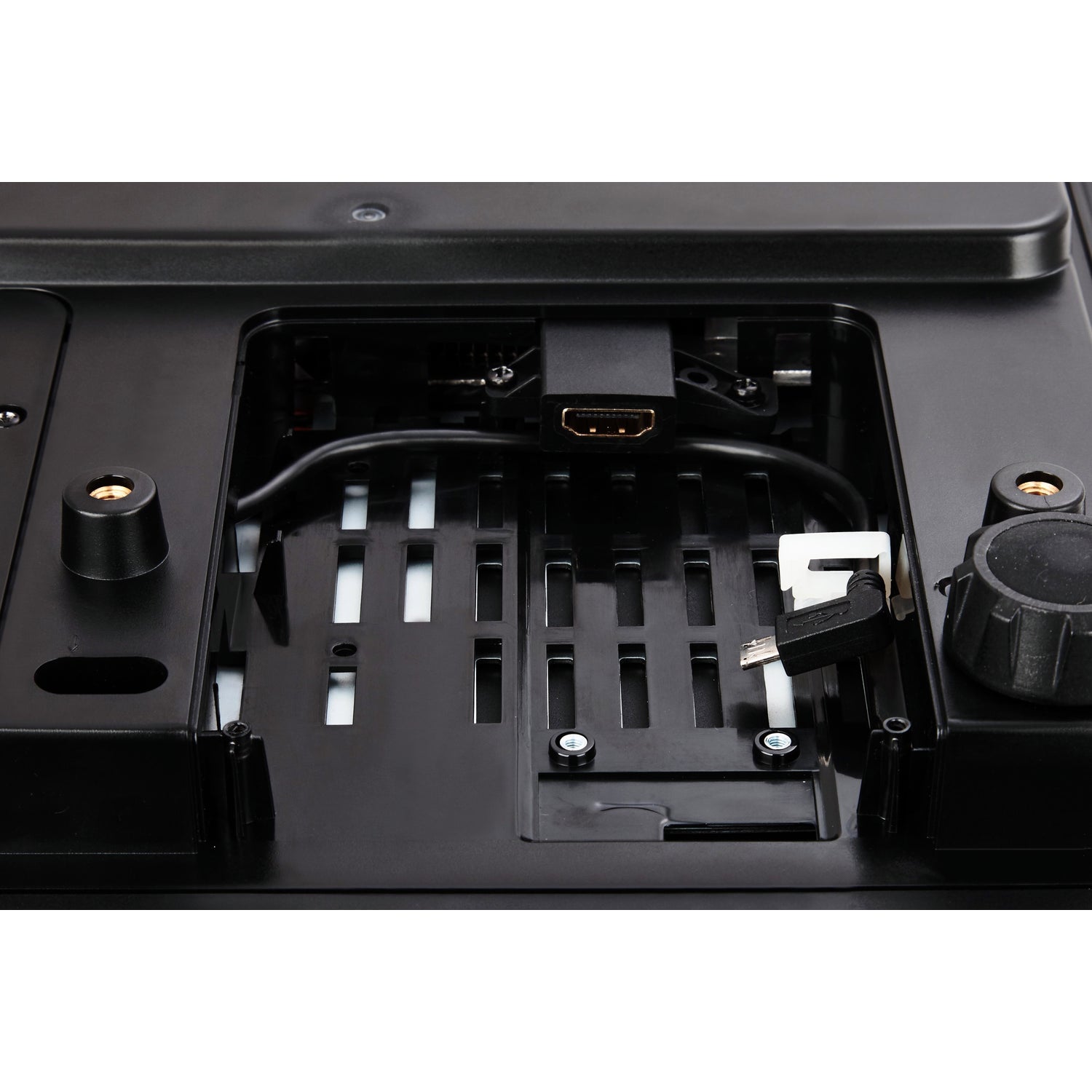

| USB | 1 x Type-A (power); 1 x Mini-B (service/mouse); 1 x Micro USB wire (power) |
| Control | 1 x RS232; 1 x RJ45 LAN |
| 3D VESA Sync | 1 |
| DC Output | 1 |
| Speaker | 8 W x 2 |
Power & Environmental
| Power Supply | 100–240 V AC, 50/60 Hz (auto switching) |
| Power Consumption | 450 W (max); <0.5 W standby |
| Audible Noise | 28 dB (Eco) |
| Operating Temperature | 0–40 °C |
| Humidity | 0–90% (non-condensing) |
Physical
| Dimensions (W x D x H) | 508 x 392 x 165 mm |
| Net Weight | 13.6 kg |
| Certifications | CB, cTUVus, FCC, CE, EMC, CCC, GS |
Compatibility & Software Support
Sources
HDMI (with MHL for compatible mobile devices), dual VGA and composite/S-Video inputs, plus VGA and audio outputs for daisy-chaining a monitor or amplifier.
Room Control
RJ45 LAN control for centralised management plus RS232 (DB9) for control systems. Firmware updates via ViewSonic's projector software update tool.
Typical Use
Classrooms, lobbies, digital signage and meeting rooms where the projector must sit close to the wall, such as with ViewSonic's BrilliantColorPanel BCP100 screen.
Package Contents & ViewSonic Laser & LED Projector Ordering Information
In the Box
LS810 projector, power cord, VGA cable, HDMI cable, remote control with batteries (laser pointer), quick start guide, ViewSonic CD wizard.
Optional Accessories
| 100" BrilliantColorPanel | BCP100 |
| 120" BrilliantColorPanel | BCP120 |
| HDBaseT dongle | HB10B |
| Wireless presentation dongle | VC10 |
ViewSonic Laser & LED Business Projectors
| Model | Key feature |
| LS500WHE | 3,000 lm WXGA, LED |
| LSD400W | 4,000 lm WXGA, laser |
| LSD400HD | 4,000 lm 1080p, laser |
| LS711HD | 4,200 lm 1080p, short throw laser |
| LS740W | 5,000 lm WXGA, laser |
| LS740HD | 5,000 lm 1080p, laser |
| LS832WU | 5,000 lm WUXGA, ultra short throw laser |
| LS860WU | 5,000 lm WUXGA, short throw laser, HDBaseT |
| LS810 (this listing) | 5,200 lm WXGA, ultra short throw laser |
| LS920WU | 6,000 lm WUXGA, laser, 1.6x zoom |
| LS921WU | 6,000 lm WUXGA, short throw laser |
Datasheet & Downloads
| ViewSonic datasheet | LS810 Datasheet |
| User guide | LS810/LS820/LS830 User Guide (PDF, English) |
| Quick start guide | LS810 Quick Start Guide (PDF) |
| ViewSonic product page | LS810 on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LS810.
Frequently Asked Questions — ViewSonic LS810
How close to the wall does it sit?
With a 0.241 throw ratio it projects 80"–150" from 0.43–0.8 m.
Which screen should I pair it with?
ViewSonic's BrilliantColorPanel BCP100 (100") or BCP120 (120") ambient-light-rejecting panels are designed for this ultra short throw projector.
Does it need lamp replacements?
No. The laser light source is rated up to 15,000 hours (Normal) or 20,000 hours (Eco).
What resolution is it?
Native WXGA (1280 x 800); it accepts PC and Mac signals up to 1920 x 1080 at 60 Hz.
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island). Supplied by SourceIT with a GST invoice.
