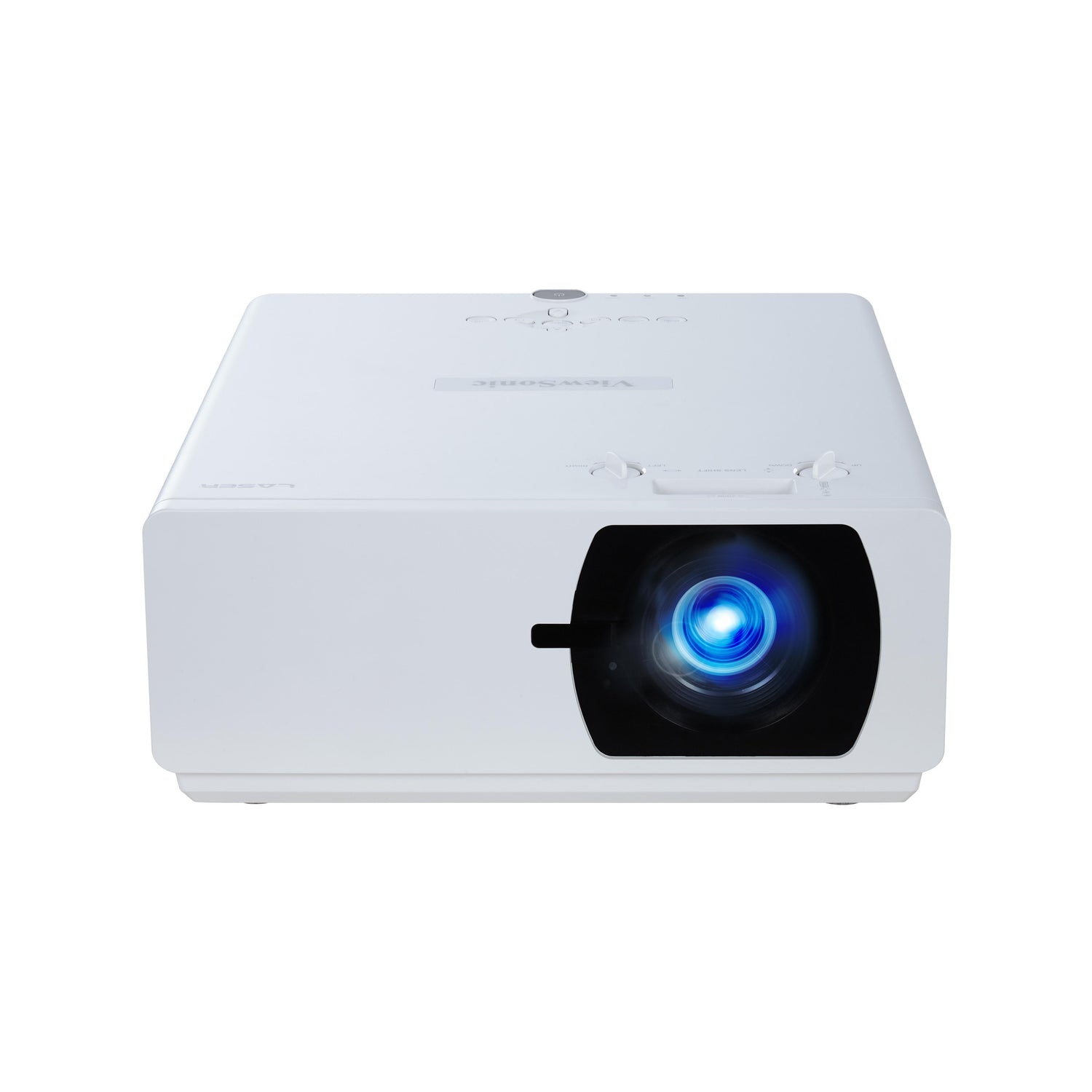

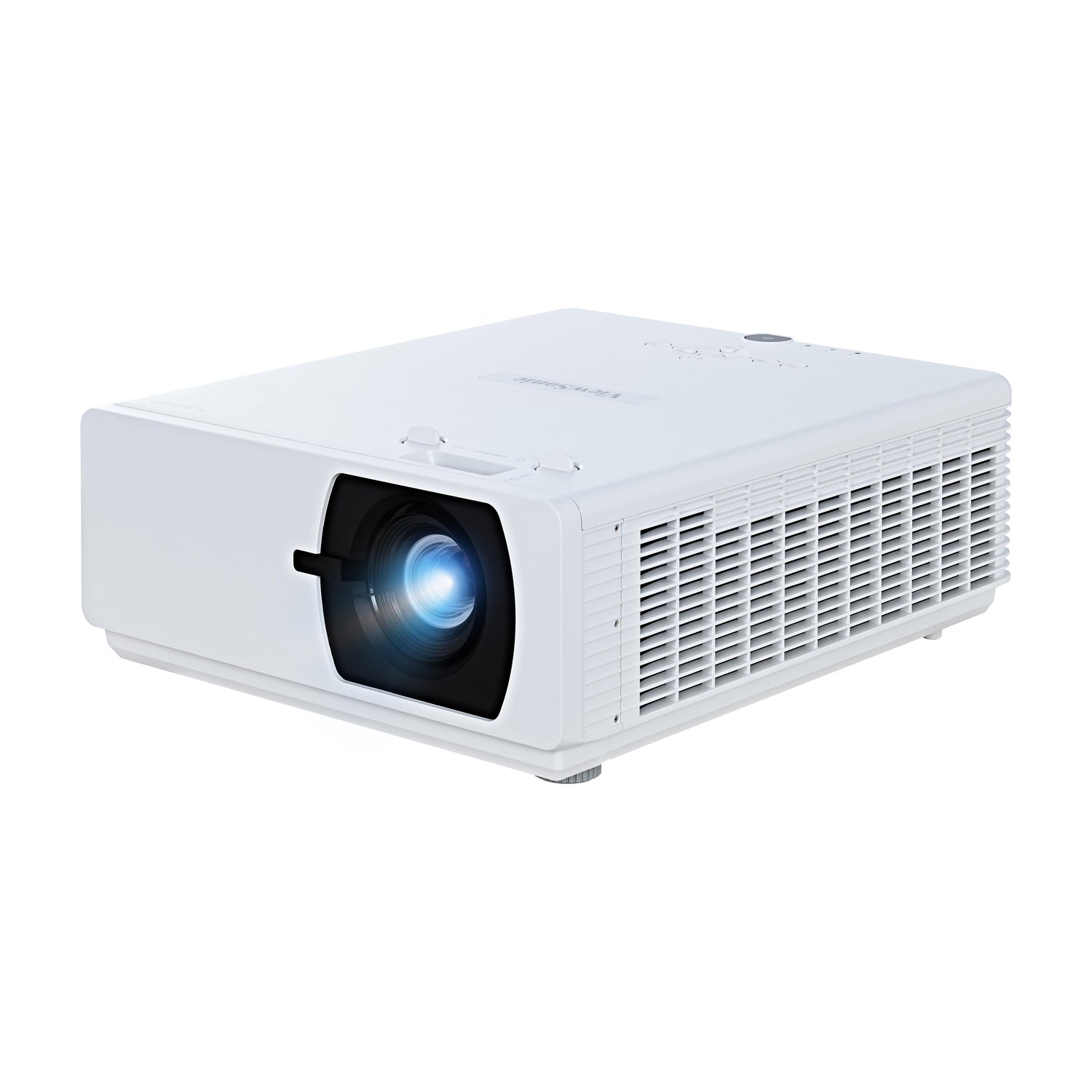

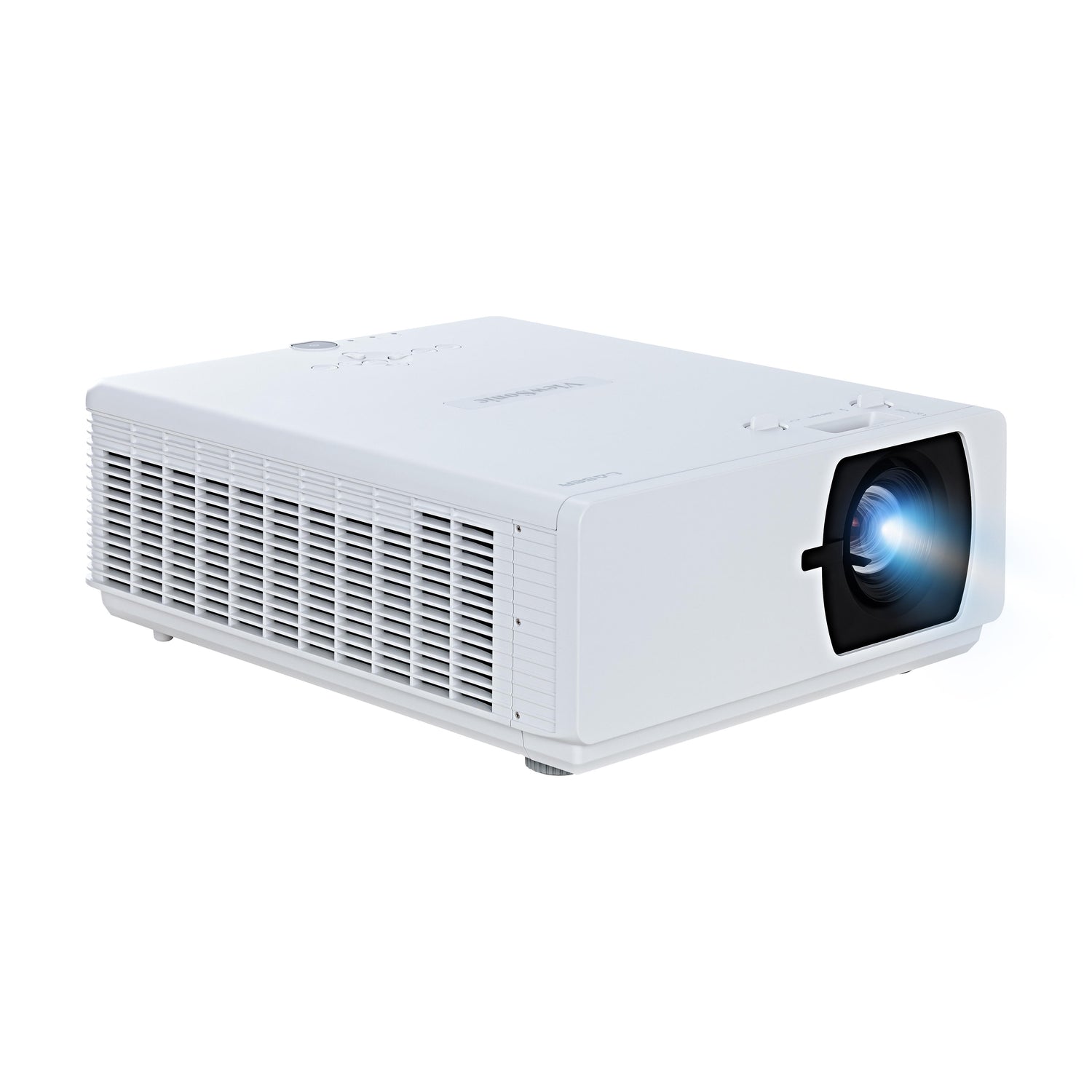

ViewSonic LS800HD 5,000 ANSI Lumens 1080p Laser Installation Projector
PRODUCT DESCRIPTION
ViewSonic LS800HD 5,000 ANSI Lumens 1080p Laser Installation Projector - 3 Years Local Warranty
Laser Phosphor Light Source
Up to 20,000 hours (Normal) / 30,000 hours (SuperEco) with no lamp replacement.
5,000 ANSI Lumens Full HD
Native 1920 x 1080 images that stay bright in large meeting rooms and lecture halls.
Flexible Installation
1.65x optical zoom (1.15–1.9 throw ratio) with H/V lens shift places a 100" image at about 2.55 m.
Built-in HDBaseT
Receive video and control over a single Cat cable for long ceiling runs.
Need projectors for several meeting rooms, classrooms or venues? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic LS800HD Datasheet — Technical Specifications
General
| Product Name | ViewSonic LS800HD 5,000 ANSI Lumens 1080p Laser Installation Projector |
| Model | LS800HD |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); laser light source, no lamp to replace |
Optical
| Projection System | 0.65" 1080p |
| Native Resolution | 1920 x 1080 |
| Brightness | 5,000 ANSI lumens |
| Contrast Ratio | 100,000:1 (SuperEco mode) |
| Display Colour | 1.07 billion colours |
| Light Source | Laser phosphor |
| Light Source Life | 20,000 hours (Normal) / 30,000 hours (SuperEco) |
| Lens | F=2.45–3.13, f=17.23–27.9 mm |
| Throw Ratio | 1.15–1.9 |
| Optical Zoom | 1.65x |
| Image Size | 50"–300" |
| Throw Distance | 1.27–7.64 m (100" at 2.55 m) |
| Projection Offset | 145% ±10% |
| Lens Shift | V: -2.9% to +11.8%; H: ±2.5% |
| Keystone | H: ±30°; V: ±25° |
Compatibility
| Resolution Support | VGA (640 x 480) to WUXGA_RB (1920 x 1200) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM |
| Horizontal Frequency | 15–102 kHz |
| Vertical Scan Rate | 23–120 Hz |

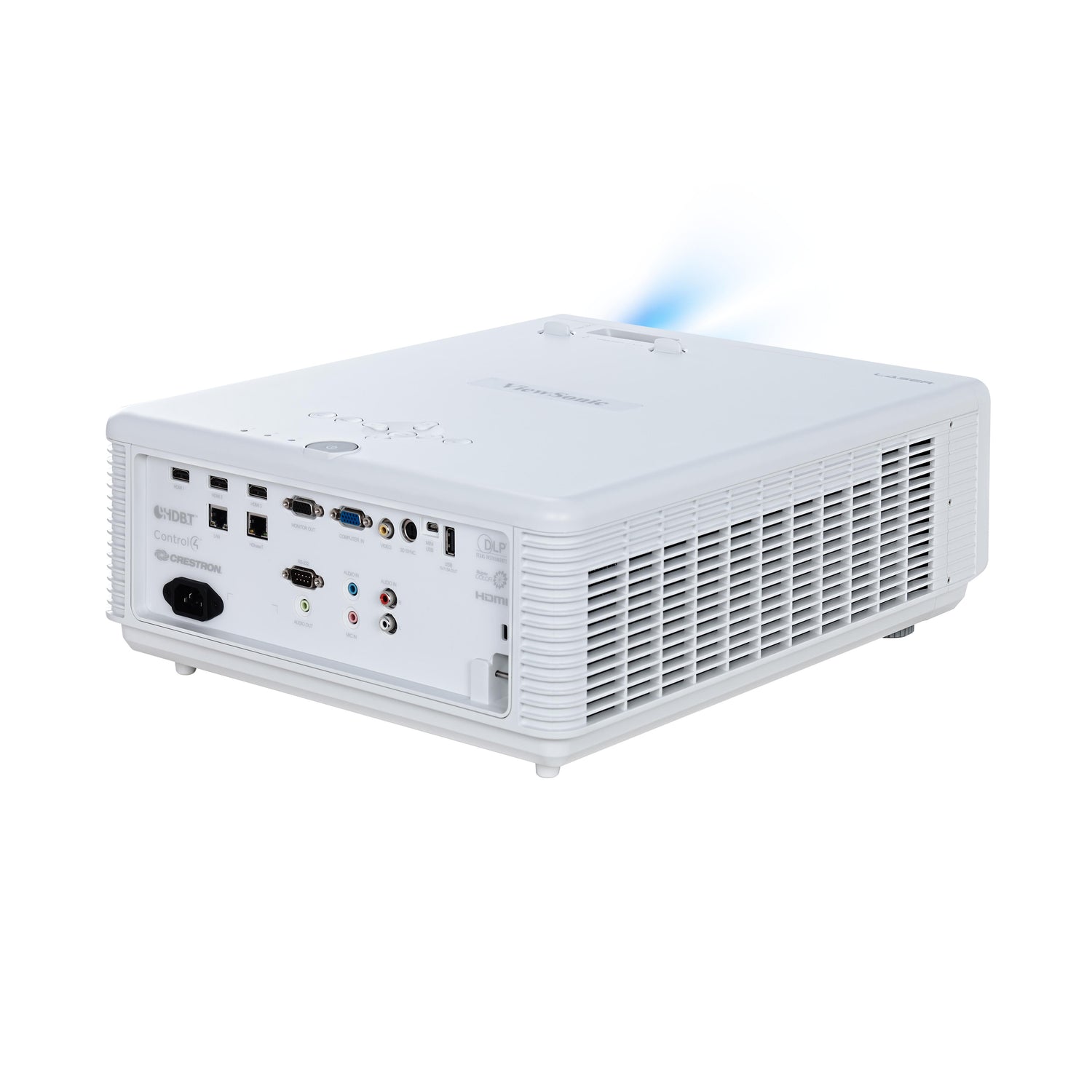

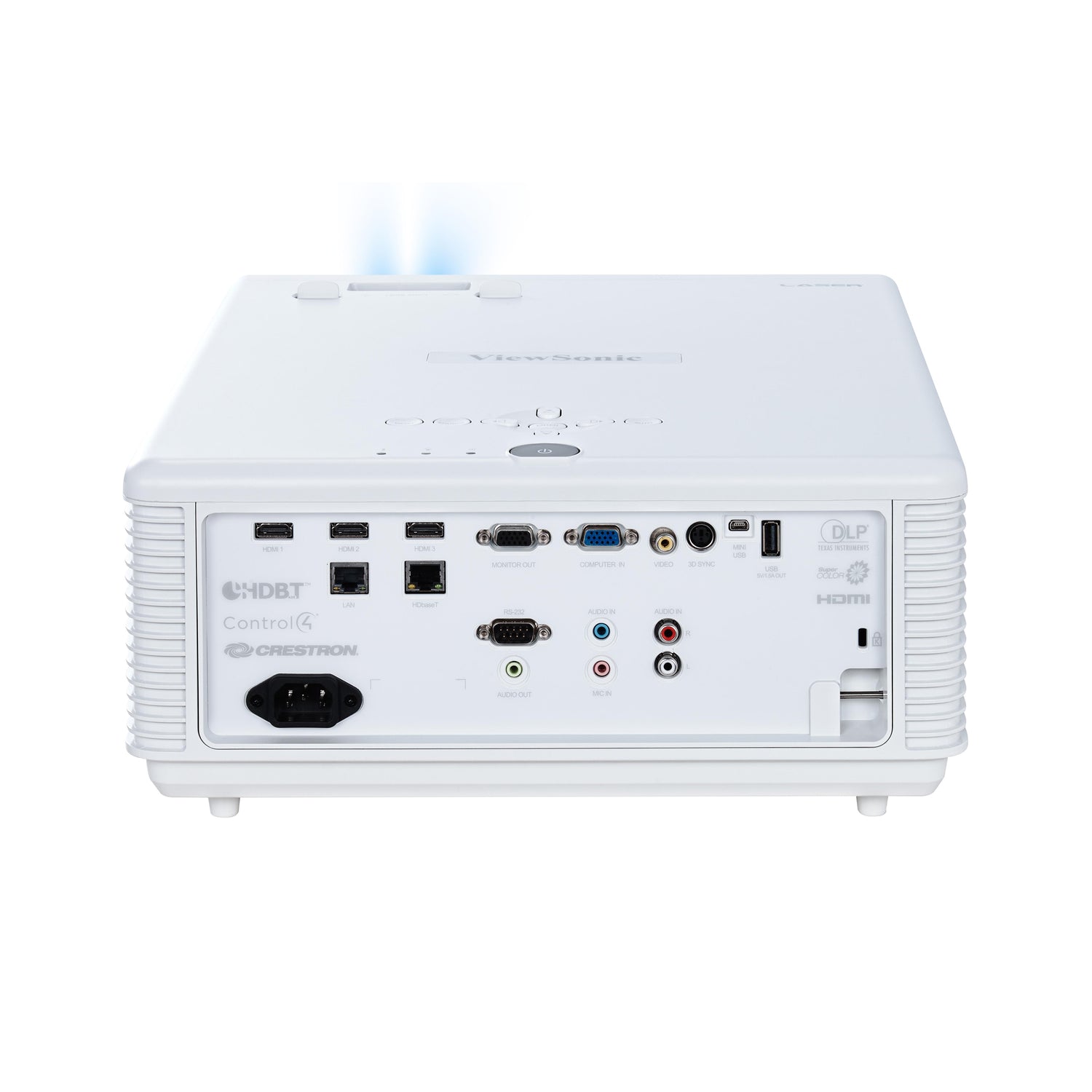

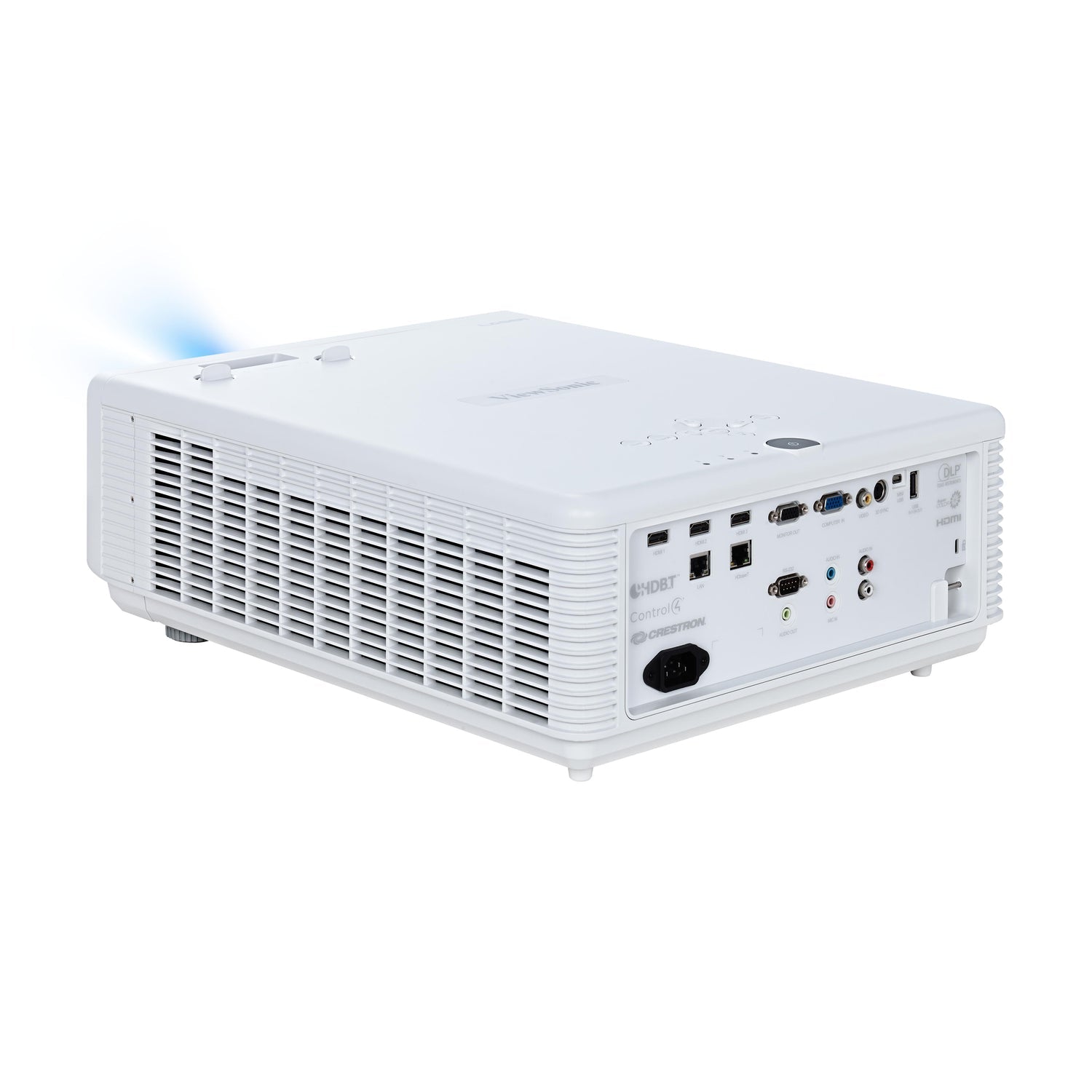

Connectivity
| HDMI | 3 x HDMI 1.4 (HDCP 1.4) |
| HDBaseT | 1 |
| Computer In | 1 x VGA (shared with component) |
| Composite | 1 |
| Audio In | 1 x 3.5 mm; 1 x RCA (L/R); 1 x microphone |
| 3D VESA Sync | 1 |
| Monitor Out | 1 |
| Audio Out | 1 x 3.5 mm |
| USB Power | 1 x USB Type-A, 5 V / 1.5 A |
| Control | 1 x RS232; 1 x RJ45 LAN; 1 x Mini USB (service) |
| Speaker | 5 W x 2 |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz AC |
| Power Consumption | 430 W (Normal); <0.5 W standby |
| Audible Noise | 32 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 360 x 440 x 161 mm (with adjustment foot) |
| Net Weight | 11.0 kg |
| OSD Languages | 22 |
Compatibility & Software Support
Sources
Three HDMI inputs, HDBaseT, VGA and composite cover PCs, media players and AV matrix switchers; the USB-A port powers an HDMI streaming stick or wireless presentation dongle.
Room Control
RJ45 LAN control for centralised management plus RS232 (DB9) for control systems. Firmware updates via ViewSonic's projector software update tool.
Typical Use
Large meeting rooms, lecture theatres, houses of worship and training rooms that need a bright, lamp-free ceiling-mount projector.
Package Contents & ViewSonic Laser & LED Projector Ordering Information
In the Box
LS800HD projector, power cord, VGA cable, remote control (with laser pointer), quick start guide.
Optional Accessories
| HDBaseT dongle | HB10B |
| Wireless presentation dongle | VC10 |
ViewSonic Laser & LED Business Projectors
| Model | Key feature |
| LS500WHE | 3,000 lm WXGA, LED |
| LSD400W | 4,000 lm WXGA, laser |
| LSD400HD | 4,000 lm 1080p, laser |
| LS711HD | 4,200 lm 1080p, short throw laser |
| LS740W | 5,000 lm WXGA, laser |
| LS740HD | 5,000 lm 1080p, laser |
| LS800HD (this listing) | 5,000 lm 1080p, laser, lens shift, HDBaseT |
| LS832WU | 5,000 lm WUXGA, ultra short throw laser |
| LS860WU | 5,000 lm WUXGA, short throw laser, HDBaseT |
| LS920WU | 6,000 lm WUXGA, laser, 1.6x zoom |
| LS921WU | 6,000 lm WUXGA, short throw laser |
Datasheet & Downloads
| ViewSonic datasheet | LS800HD Datasheet |
| User guide | LS800WU/LS800HD User Guide (PDF, English) |
| ViewSonic product page | LS800HD on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LS800HD.
Frequently Asked Questions — ViewSonic LS800HD
How far from the screen does it go?
The 1.15–1.9 throw ratio places a 100" image at about 2.55 m, from 50" up to 300".
Can I adjust the image without moving the projector?
Yes. It has 1.65x optical zoom plus vertical and horizontal lens shift.
Can I send the signal over a long cable?
Yes. The built-in HDBaseT receiver takes video and control over a single Cat cable from an HDBaseT transmitter such as ViewSonic HB10B.
Does it need lamp replacements?
No. The laser light source is rated up to 20,000 hours (Normal) or 30,000 hours (SuperEco).
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island). Supplied by SourceIT with a GST invoice.
