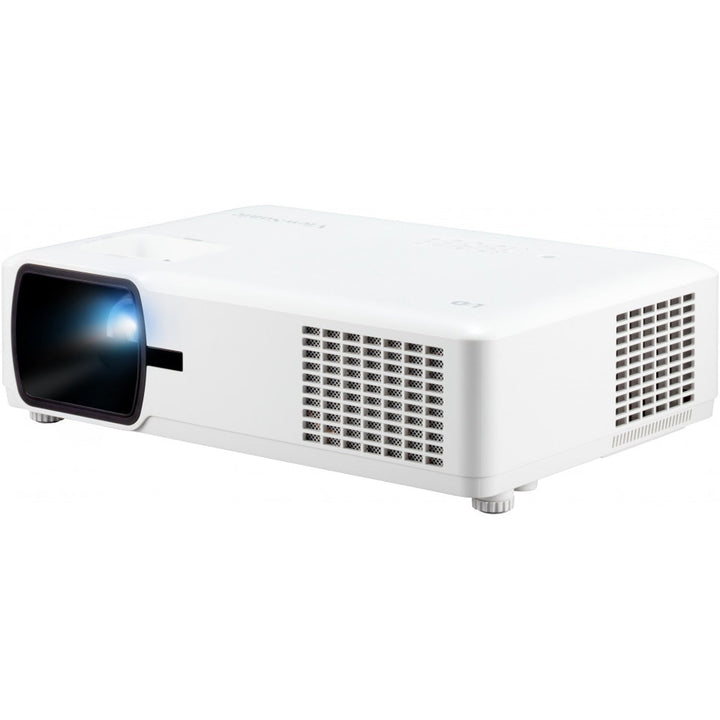

ViewSonic LS600W 3,000 ANSI Lumens WXGA LED Business Projector
PRODUCT DESCRIPTION
ViewSonic LS600W 3,000 ANSI Lumens WXGA LED Business/Education Projector - 3 Years Local Warranty
30,000-Hour LED Light Source
Lamp free, mercury free and maintenance free, with instant power on/off and no cool-down wait.
3,000 ANSI Lumens
Bright WXGA images in any environment, with Cinema SuperColor+ covering 125% of Rec.709.
Flexible Installation
1.2x optical zoom (1.37–1.64 throw ratio) places a 100" image at about 2.95 m, with ±40° H/V keystone and 360° projection.
Comprehensive LAN Control
RJ45 control compatible with Crestron, AMX, Extron, PJLink and ATEN, plus RS232.
Need projectors for several meeting rooms, classrooms or venues? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic LS600W Datasheet — Technical Specifications
General
| Product Name | ViewSonic LS600W 3,000 ANSI Lumens WXGA LED Business/Education Projector |
| Model | LS600W |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); LED light source, no lamp to replace |
Optical
| Projection System | 0.65" WXGA |
| Native Resolution | 1280 x 800 (WXGA) |
| Brightness | 3,000 ANSI lumens |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | RGBB LED |
| Light Source Life | Up to 30,000 hours (Normal mode) |
| Lens | F=1.6–1.75, f=19.16–23.02 mm |
| Throw Ratio | 1.37–1.64 |
| Optical Zoom | 1.2x |
| Digital Zoom | 0.8x–2.0x |
| Image Size | 30"–300" |
| Throw Distance | 0.86–10.60 m (100" at 2.95 m) |
| Projection Offset | 79% ±9% |
| Keystone | H: ±40°; V: ±40° |
| Input Lag | 16 ms |
Compatibility
| Resolution Support | VGA to Full HD (1920 x 1080) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM |
| Horizontal Frequency | 15–102 kHz |
| Vertical Scan Rate | 23–120 Hz |
Connectivity
| HDMI | 2 x HDMI 1.4 (HDCP 1.4) |
| Computer In | 1 x VGA (shared with component) |
| Composite | 1 |
| Audio In | 1 x 3.5 mm |
| Audio Out | 1 x 3.5 mm |
| USB Power | 1 x USB Type-A, 5 V / 1.5 A |
| Control | 1 x RS232 (DB9); 1 x RJ45 LAN |
| Speaker | 10 W |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 270 W (Normal); <0.5 W standby |
| Audible Noise | 31 dB (Normal); 25 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 386 x 276 x 116 mm |
| Net Weight | 5 kg |
| Packaging | 490 x 376 x 268 mm |
| OSD Languages | 23 |
Compatibility & Software Support
Sources
Two HDMI inputs plus VGA and composite cover laptops, PCs and media players; the USB-A port powers an HDMI streaming stick or wireless presentation dongle.
Room Control
RJ45 LAN control compatible with Crestron, AMX, Extron, PJLink and ATEN; RS232 also provided. Firmware can be updated with ViewSonic's projector software update tool.
Typical Use
Meeting rooms, classrooms and lecture spaces that want a lamp-free projector with low running costs.
Package Contents & ViewSonic Laser & LED Projector Ordering Information
In the Box
LS600W projector, power cord, VGA cable, remote control, quick start guide.
Optional Accessories
| HDBaseT dongle | HB10B |
ViewSonic Laser & LED Business Projectors
| Model | Key feature |
| LS500WHE | 3,000 lm WXGA, LED |
| LS600W (this listing) | 3,000 lm WXGA, LED, 1.2x zoom |
| LSD400W | 4,000 lm WXGA, laser |
| LSD400HD | 4,000 lm 1080p, laser |
| LS711HD | 4,200 lm 1080p, short throw laser |
| LS740W | 5,000 lm WXGA, laser |
| LS740HD | 5,000 lm 1080p, laser |
| LS832WU | 5,000 lm WUXGA, ultra short throw laser |
| LS860WU | 5,000 lm WUXGA, short throw laser, HDBaseT |
| LS920WU | 6,000 lm WUXGA, laser, 1.6x zoom |
| LS921WU | 6,000 lm WUXGA, short throw laser |
Datasheet & Downloads
| ViewSonic datasheet | LS600W Datasheet |
| User guide | LS600W User Guide (PDF, English) |
| Quick start guide | LS600W Quick Start Guide (PDF) |
| ViewSonic product page | LS600W on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LS600W.
Frequently Asked Questions — ViewSonic LS600W
How big an image can I get?
From 30" up to 300". A 100" image needs about 2.95 m between the lens and the screen.
Does it need lamp replacements?
No. The LED light source is rated up to 30,000 hours, so there is no lamp to buy or replace.
Can I connect two sources?
Yes, it has two HDMI inputs plus VGA and composite.
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island). Supplied by SourceIT with a GST invoice.
