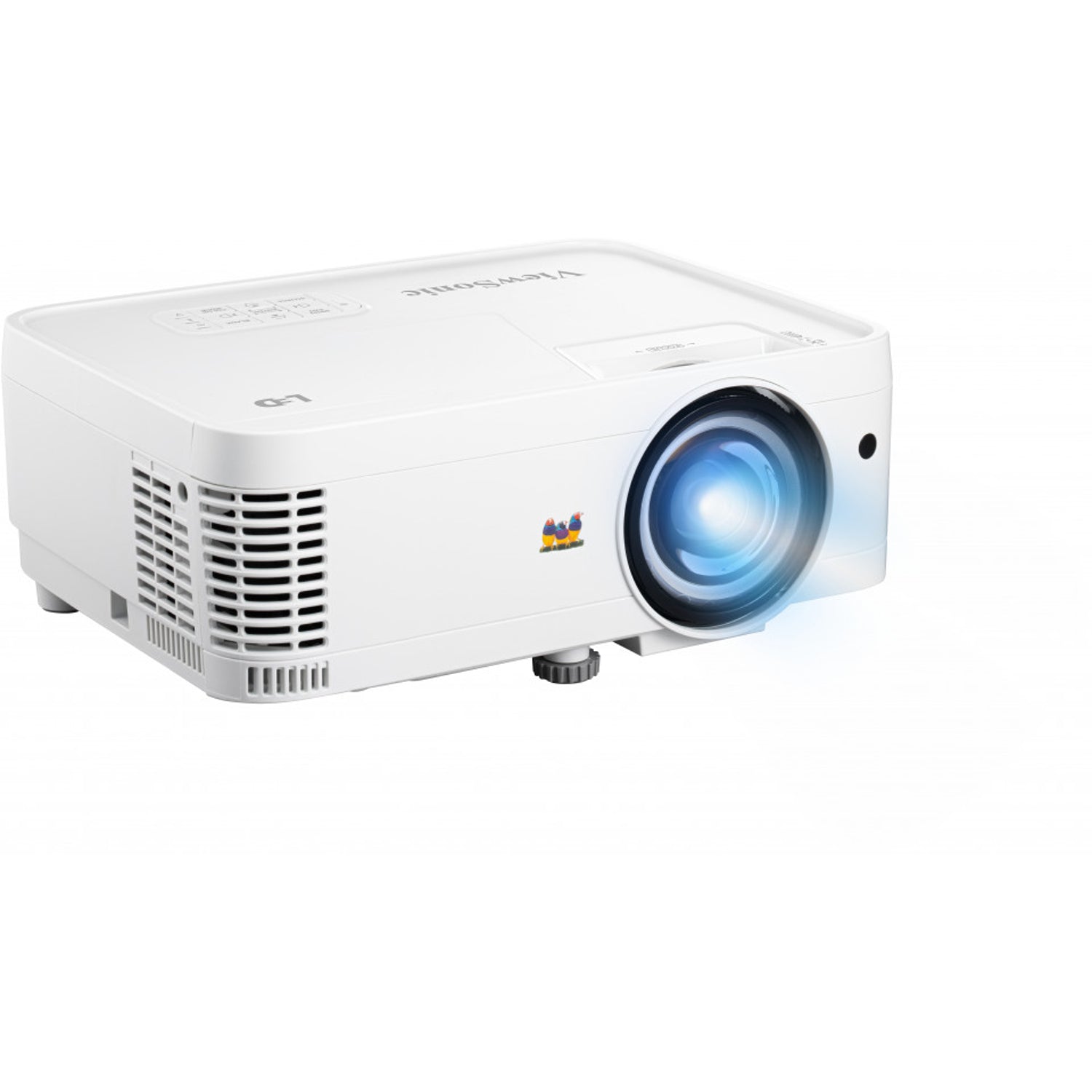

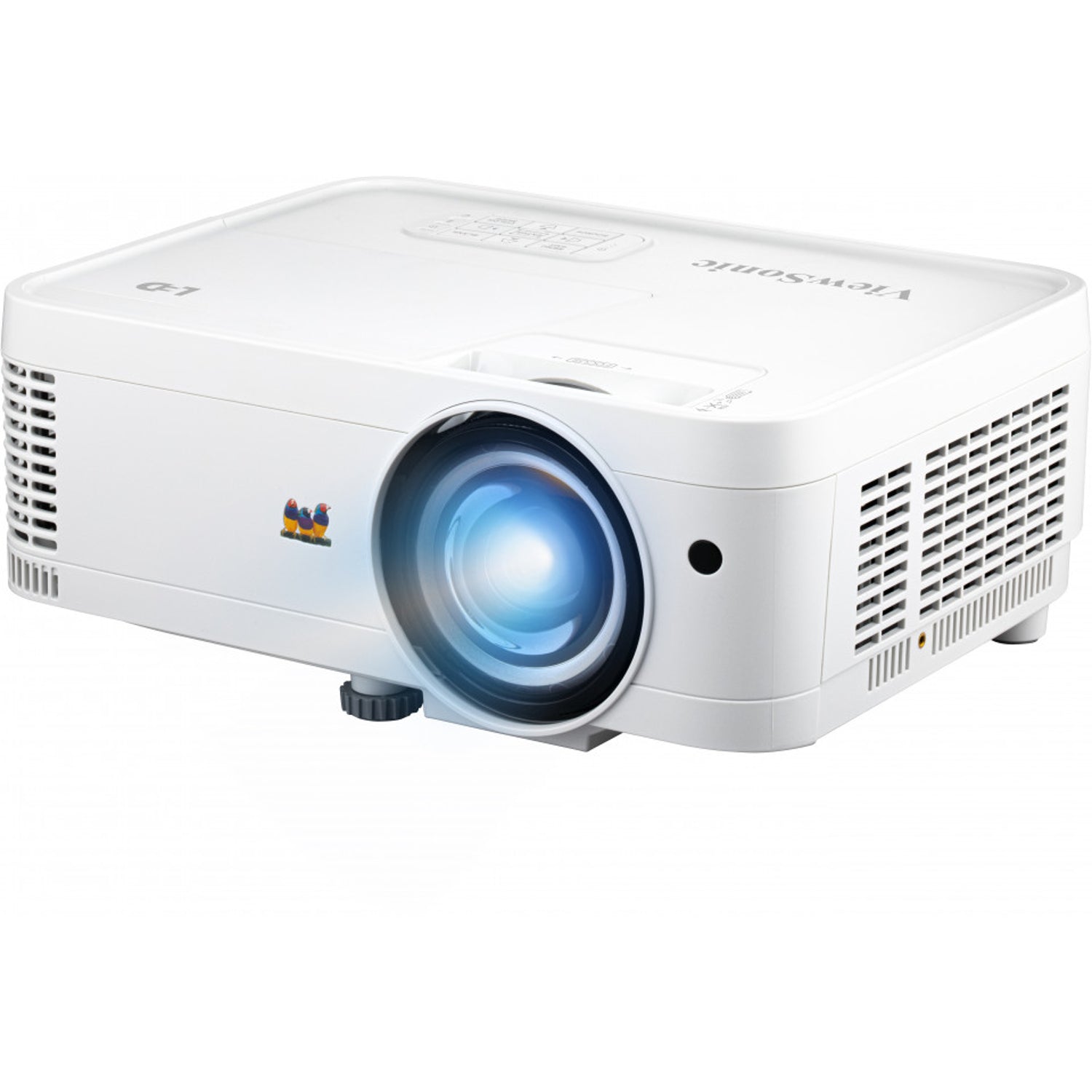

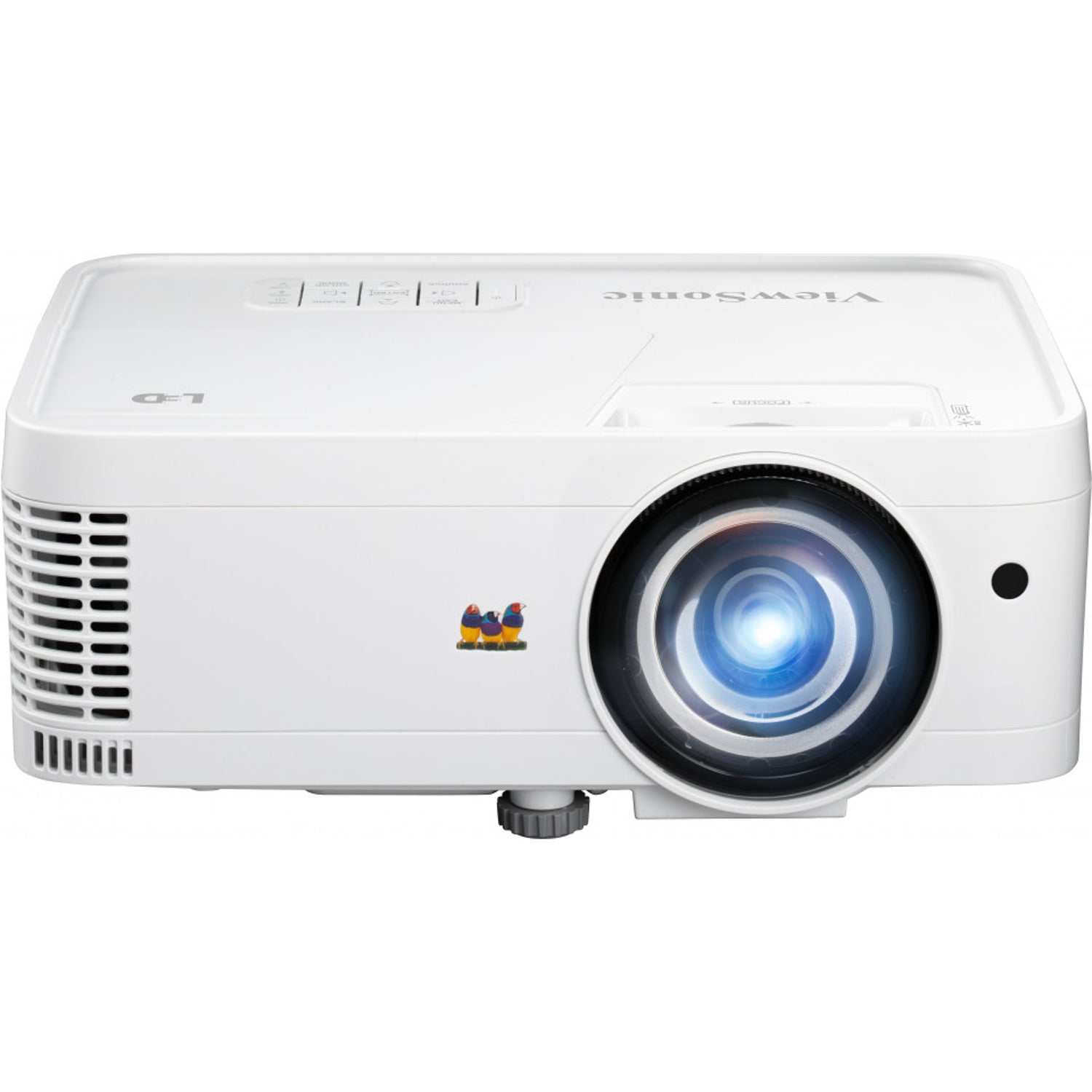

ViewSonic LS550WHE 3,000 ANSI Lumens WXGA Short Throw LED Projector
PRODUCT DESCRIPTION
ViewSonic LS550WHE 3,000 ANSI Lumens WXGA Short Throw LED Business/Education Projector - 3 Years Local Warranty
Lamp-Free LED Projection
3rd-generation LED rated up to 30,000 hours: lamp free, mercury free and maintenance free, with instant on/off.
Short Throw for Small Rooms
A 0.49 throw ratio projects a 100" image from just 1.06 m, cutting shadows and glare in classrooms and meeting rooms.
3,000 ANSI Lumens
Bright, clear WXGA images in lit or dim spaces with a 3,000,000:1 contrast ratio.
360° Projection and LAN Control
Rotate freely for ceiling or angled-surface projection; RJ45 control works with Crestron, AMX, PJLink, Extron and ViewSonic vController.
Need projectors for several meeting rooms, classrooms or venues? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic LS550WHE Datasheet — Technical Specifications
General
| Product Name | ViewSonic LS550WHE 3,000 ANSI Lumens WXGA Short Throw LED Business/Education Projector |
| Model | LS550WHE |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); LED light source, no lamp to replace |
Optical
| Projection System | 0.65" WXGA |
| Native Resolution | 1280 x 800 (WXGA) |
| Brightness | 3,000 ANSI lumens |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | RGB LED |
| Light Source Life | Up to 30,000 hours (Normal mode) |
| Lens | F=2.6, f=6.9 mm |
| Throw Ratio | 0.49 (short throw) |
| Optical Zoom | Fixed |
| Digital Zoom | 0.8x–2.0x |
| Throw Distance | 0.63–1.58 m (100" at 1.06 m) |
| Projection Offset | 110% ±5% |
| Keystone | H: ±40°; V: +36° / -40° |
| Input Lag | 16 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to Full HD (1920 x 1080) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency | 15–102 kHz |
| Vertical Scan Rate | 23–120 Hz |
| Interactive | Optional vTouch-10s camera |

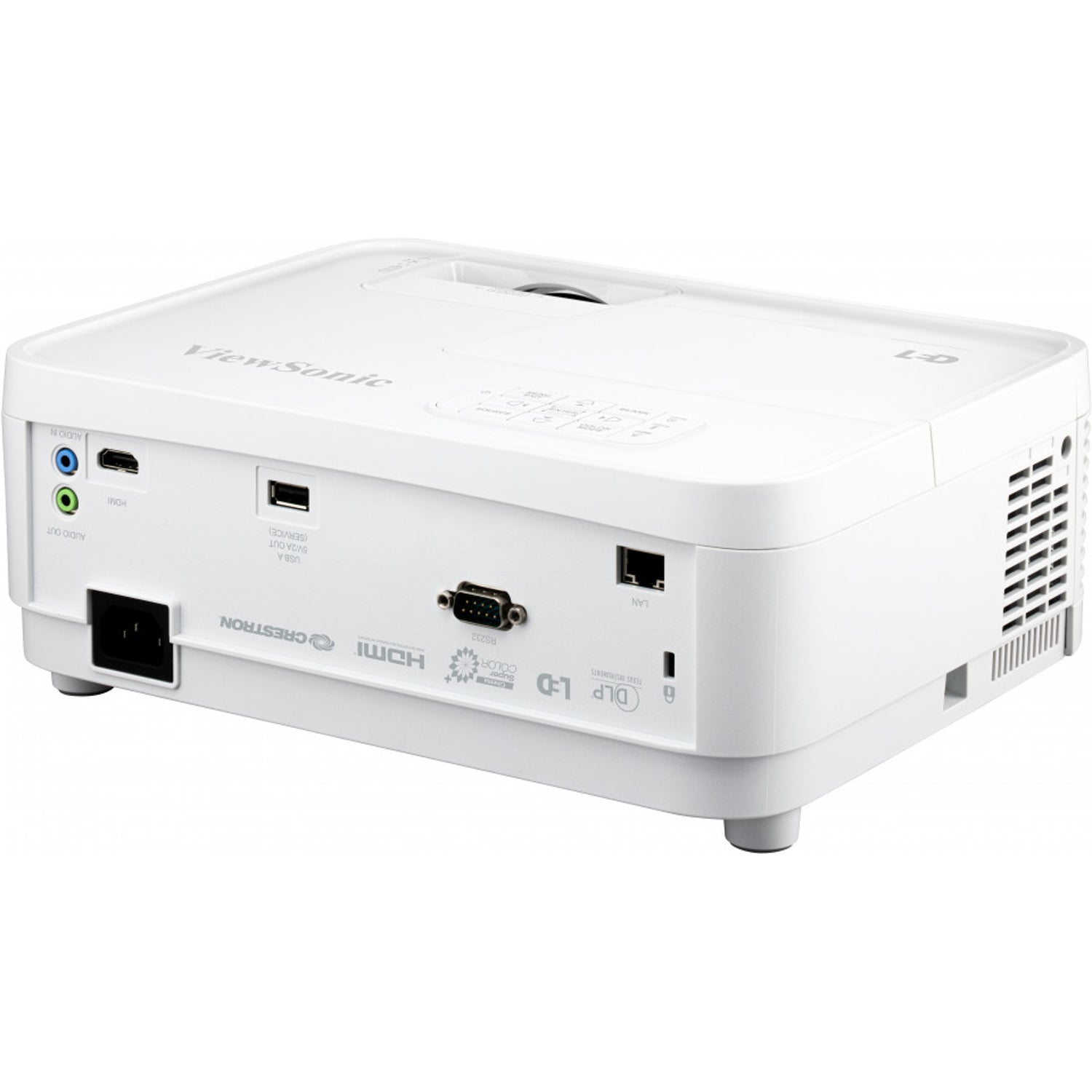

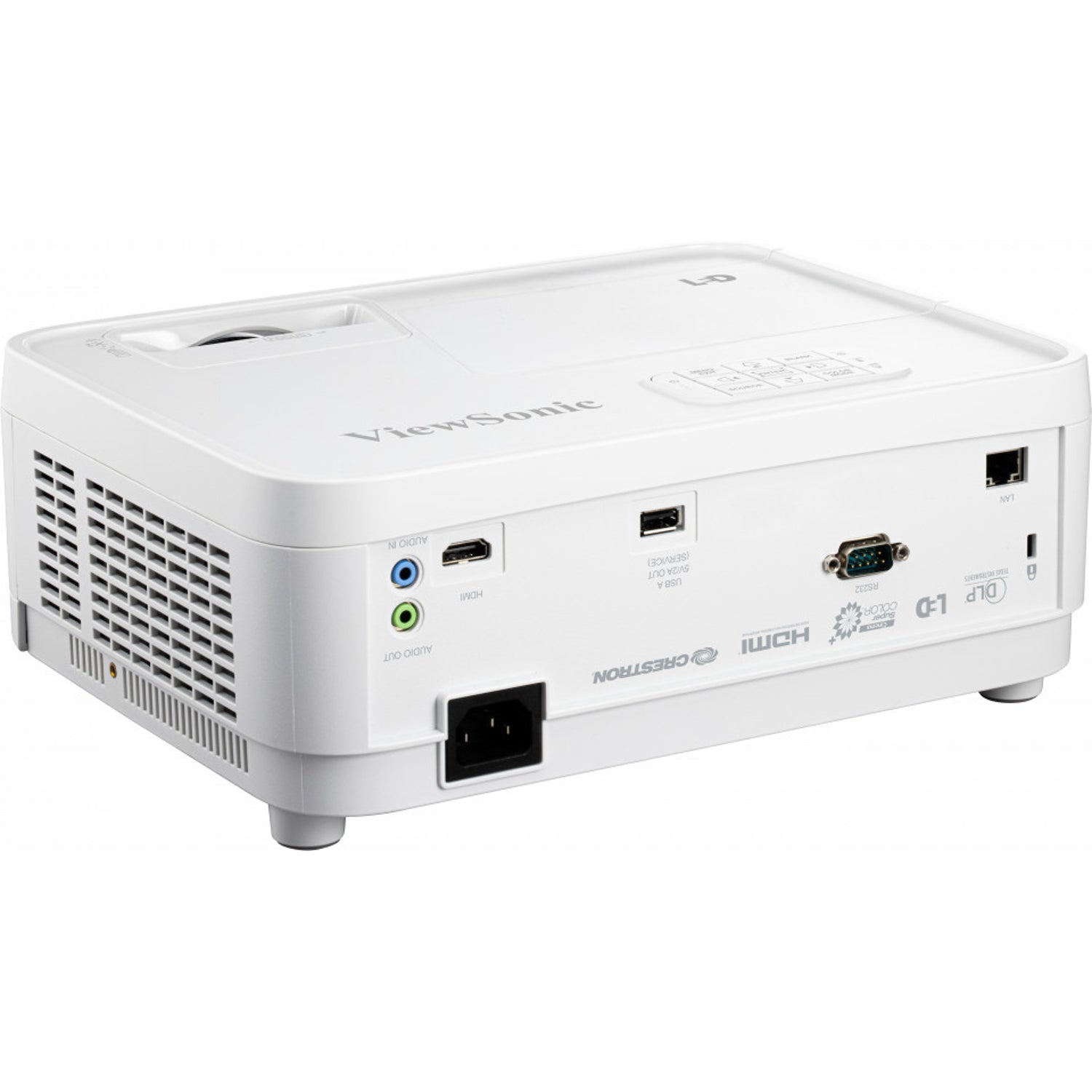

Connectivity
| HDMI | 1 x HDMI 1.4 (HDCP 1.4) |
| Audio In | 1 x 3.5 mm |
| Audio Out | 1 x 3.5 mm |
| USB Power | 1 x USB Type-A, 5 V / 2 A (shared with service) |
| Control | 1 x RS232 (DB9); 1 x RJ45 LAN |
| Speaker | 2 W |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 157 W (Normal); <0.5 W standby |
| Audible Noise | 30 dB (Normal); 26 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 293 x 221 x 115 mm (with adjustment foot) |
| Net Weight | 2.45 kg |
| Packaging | 365 x 300 x 188 mm; 3.55 kg gross |
| OSD Languages | 24 |
Compatibility & Software Support
Sources
Connect a laptop, PC or media player over HDMI. The USB-A port supplies 5 V / 2 A to power an HDMI streaming stick or wireless presentation dongle.
Room Control
RJ45 LAN control is compatible with Crestron, AMX, PJLink, ATEN, Extron and ViewSonic vController; RS232 is also provided.
Typical Use
Classrooms, huddle rooms and meeting rooms where the projector must sit close to the screen.
Package Contents & ViewSonic Laser & LED Projector Ordering Information
In the Box
LS550WHE projector, power cord, remote control, lens cover, quick start guide.
Optional Accessories
| Wall/ceiling mount | PJ-WMK-305, PJ-WMK-007 |
| Carry bag | PJ-CASE-008 |
| HDBaseT dongle | HB10B |
| Interactive camera | vTouch-10s |
ViewSonic Laser & LED Business Projectors
| Model | Key feature |
| LS500WHE | 3,000 lm WXGA, LED |
| LS550WHE (this listing) | 3,000 lm WXGA, short throw LED |
| LSD400W | 4,000 lm WXGA, laser |
| LSD400HD | 4,000 lm 1080p, laser |
| LS711HD | 4,200 lm 1080p, short throw laser |
| LS740W | 5,000 lm WXGA, laser |
| LS740HD | 5,000 lm 1080p, laser |
| LS832WU | 5,000 lm WUXGA, ultra short throw laser |
| LS860WU | 5,000 lm WUXGA, short throw laser, HDBaseT |
| LS920WU | 6,000 lm WUXGA, laser, 1.6x zoom |
| LS921WU | 6,000 lm WUXGA, short throw laser |
Datasheet & Downloads
| ViewSonic datasheet | LS550WHE Datasheet |
| ViewSonic product page | LS550WHE on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LS550WHE.
Frequently Asked Questions — ViewSonic LS550WHE
How close to the screen does it need to be?
With a 0.49 throw ratio, a 100" image needs only about 1.06 m between the lens and the screen.
Does it need lamp replacements?
No. The LED light source is rated up to 30,000 hours, so there is no lamp to buy or replace.
Can it be controlled over the network?
Yes, via RJ45 with Crestron, AMX, PJLink, ATEN, Extron or ViewSonic vController, and via RS232.
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island). Supplied by SourceIT with a GST invoice.
