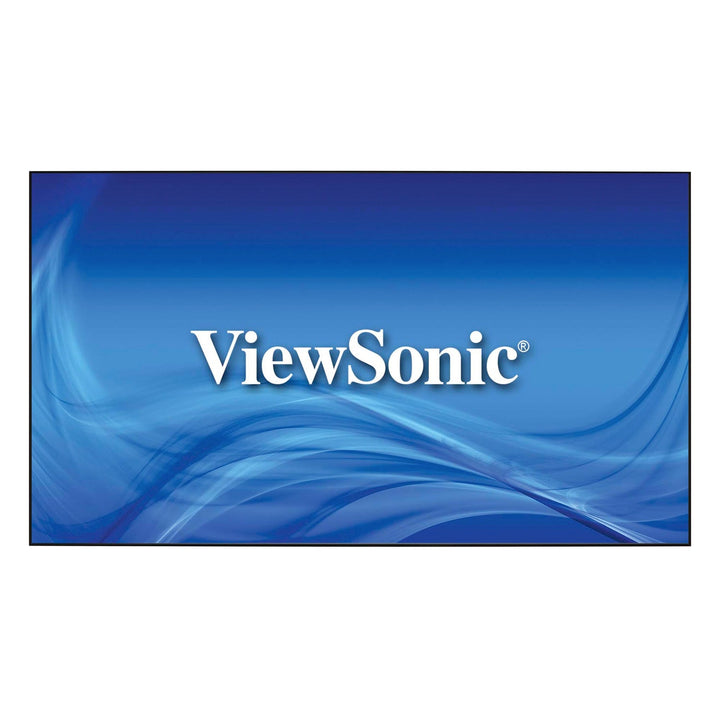

ViewSonic BCP100 100" BrilliantColorPanel ALR Screen for UST Projectors
PRODUCT DESCRIPTION
ViewSonic BCP100 100" BrilliantColorPanel Ambient Light Rejecting Screen - 3 Years Local Warranty
Rejects Up to 90% of Ambient Light
Panel surface engineered for ViewSonic ultra-short-throw laser projectors, for bright rooms without blackout.
100" 16:9, 4x Contrast
ViewSonic quotes four-times enhanced contrast versus common projector screens, with a 160° viewing angle.
Easy to Ship and Install
Rolls into a soft screen plus frame kit; 12.5 kg assembled and wall-hung with the supplied brackets.
Supplied with an ultra-short-throw projector purchase. Email sales@sourceit.com.sg for a projector + screen bundle quote.
ViewSonic BCP100 Datasheet — Technical Specifications
General
| Product Name | ViewSonic BCP100 100" BrilliantColorPanel |
| Model | BCP100 |
| Local Warranty (Singapore) | 3 years |
Screen
| Screen Size / Aspect Ratio | 100" / 16:9 |
| Image Area | 2214 x 1245 mm |
| Film Type | TPU |
| Peak Gain | 0.6 ± 0.05 |
| Horizontal Half-Gain Angle | 80° |
| Lens Pitch | 300 µm |
| Frame Width | 11 mm |
| Optimal Projector | Throw ratio below 0.3 (ultra short throw) |
Physical
| Assembled Dimensions | 2236 x 1267 x 35 mm |
| Carton | 2330 x 380 x 160 mm |
| Net Weight | 12.5 kg |
| Gross Weight | 23 kg |
| Safety / EMC | RoHS |
In the Box
Screen, 4 main frames, 4 modified boxes, 4 L-shaped angle irons, 2 wall brackets, 8 M5 15 mm screws, 16 M5 8 mm screws, 2 screen-height fine adjustment screws, 80 spring hooks, 4 mounting screws, 4 plastic plugs, quick setup guide.
Compatible Projectors
Ultra-Short-Throw Laser Projectors
Designed for projectors with a throw ratio below 0.3. ViewSonic's Singapore page lists the LS810 laser installation projector as a matching model.
Datasheet & Downloads
| ViewSonic datasheet | BCP100 Datasheet |
| Quick setup guide | BCP100/BCP120 Quick Setup Guide (PDF) |
| ViewSonic product page | BCP100 on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting BCP100.
Frequently Asked Questions — ViewSonic BCP100
Can I buy the screen on its own?
It is supplied together with an ultra-short-throw projector. Email sales@sourceit.com.sg for a bundle quote.
How much ambient light does it reject?
ViewSonic quotes up to 90% of environmental ambient light.
How heavy is it to hang?
12.5 kg assembled; wall brackets and screws are included.
What is the viewing angle?
ViewSonic quotes a 160° viewing angle (80° horizontal half-gain angle).
What warranty do I get?
3 years local warranty. Supplied by SourceIT with a GST invoice.
