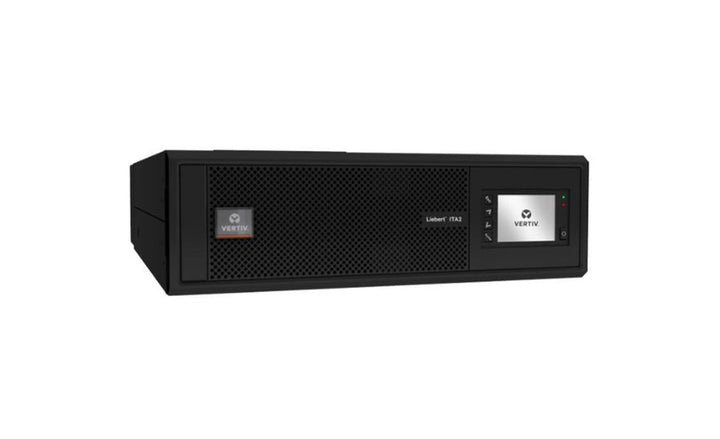

Vertiv Liebert ITA2 5kVA/5kW 230V Single-Phase Online Double-Conversion Rack/Tower UPS - Long Backup Model
PRODUCT DESCRIPTION
Vertiv Liebert ITA2 5 kVA / 5 kW Online UPS, Long Backup (ITA-05k00AL1102P00, 01202670) - 3 Years Local Warranty
Compact Online Double-Conversion UPS at Unity Power Factor
The Vertiv™ Liebert® ITA2 5 kVA (ITA-05k00AL1102P00) is an online double-conversion UPS rated 5 kVA / 5 kW — the output power factor is unity, so the full 5 kW is available to the load. It is a single-phase unit (230 V in, 230 V out) for server rooms and edge sites fed from a normal single-phase supply.
Vertiv rates double-conversion efficiency at up to 95.5% and ECO mode at up to 99%. The 0.99 input power factor and input current THD below 3% make it an easy load for the building supply or a standby generator.
Long Backup Model: Runtime Sized to Your Site
This is the long backup version: it has no internal battery and needs at least one external battery cabinet (Liebert ITA2 battery cabinet 02010024, sold separately). The benefit is flexibility — you choose how many cabinets to fit for the runtime you need, and a powerful built-in charger (5 A) recharges large battery banks quickly.
The input window is wide: 176–288 VAC at full load, down to 100 VAC with linear derating, so the UPS rides through poor mains without going to battery.
Rack or Tower, Built for Hot and Dusty Edge Sites

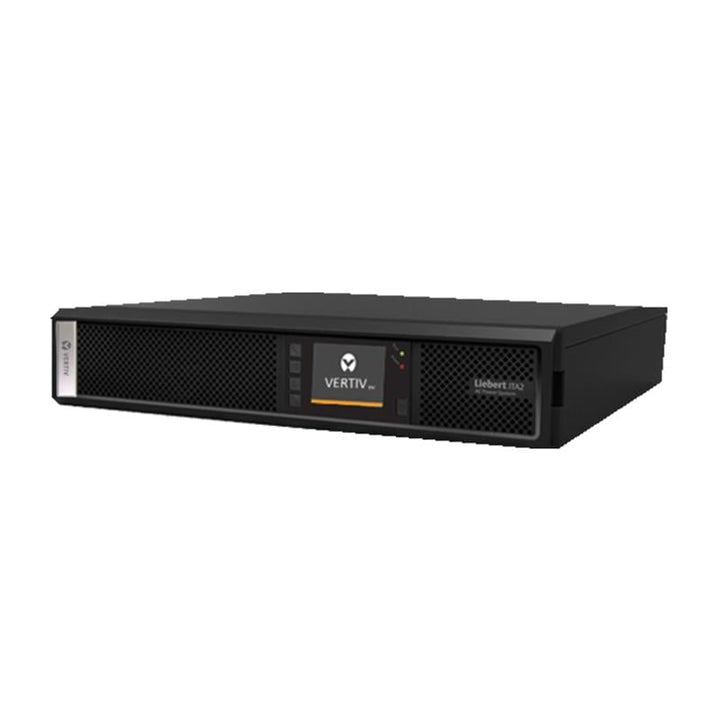

The ITA2 is a compact 2U-high chassis (430 x 480 x 85 mm W x D x H) that mounts in a 19-inch rack or stands as a tower; the gravity-sensing LCD rotates to suit. Vertiv designed it with channelled airflow and a dust-resistant construction, and rates it to operate at up to 50 °C ambient (derating conditions apply) and 3,000 m altitude without derating.
Programmable output with cascade protection lets you prioritise key devices. Units can be paralleled for capacity or redundancy.
Monitoring, Bypass and Start-Up
Each unit ships with Vertiv’s IS-UNITY-DP SNMP/Web card for network monitoring. For serviceability Vertiv offers matching service bypass panels and 1+1 power output distribution (POD) units for this rating (see Ordering Information).
Supplied in Singapore by SourceIT
SourceIT supplies the Liebert ITA2 5 kVA with a GST invoice and local support, backed by Vertiv’s 3-year South-East Asia warranty (the Singapore distributor lists it as 3 Years Next Business Day). Send your load, supply type and runtime target to sales@sourceit.com.sg and we will size the battery cabinets and bypass.
Vertiv Liebert ITA2 5 kVA (ITA-05k00AL1102P00) Datasheet — Technical Specifications
General
| Model | ITA-05k00AL1102P00 |
| Vertiv Part Number | 01202670 |
| Series | Vertiv Liebert ITA2 5–40 kVA |
| Version | Long backup model — no internal battery, external battery cabinet required |
| Topology | Online double conversion (IEC 62040-3 VFI-SS-111) |
| Form Factor | 2U rack/tower convertible |
| Manufacturer Warranty | 3 years (Vertiv SEAP limited warranty; distributor: 3 Years Next Business Day) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, with GST invoice |
Power
| Rating | 5 kVA / 5 kW (output power factor 1) |
| Nominal Input Voltage | 220/230/240 VAC, 1-phase, 2-wire |
| Input Voltage Range | 176–288 VAC at full load; 100–176 VAC with linear derating; 100 VAC at half load |
| Input Frequency | 50/60 Hz (range 40–70 Hz) |
| Input Power Factor | 0.99 |
| Input Current THD | <3% at full linear load |
| Nominal Output Voltage | 220/230/240 VAC, 1-phase |
| Output Frequency | 50/60 Hz |
| Output Voltage THD | <2% linear load; <5% non-linear load |
| Efficiency | Up to 95.5% online (double-conversion) mode; up to 99% ECO mode |
| Overload Capacity | 105–125% for 10 min; 125–150% for 1 min; >150% for 200 ms (at 25 °C) |
Battery
| Internal Battery | None (long backup model) |
| External Battery Cabinet | Liebert ITA2 battery cabinet 02010024 (sold separately) |
| Battery Blocks per String | 12*, 15, 16, 17, 18, 19 or 20 (*derating conditions apply) |
| Battery Charger (max.) | 5 A |
Communications & Control
| Communications | Integrated communication port; IntelliSlot bay (card supplied); REPO (remote emergency power-off) input |
| Network Card | IS-UNITY-DP SNMP/Web card — supplied with the unit per the Singapore distributor configuration |
| Display | Colour LCD with gravity sensing (auto-rotating) |
| Parallel | Parallel capable (see Vertiv user manual for configuration) |
Physical & Environmental
| Dimensions (W x D x H), rack | 430 x 480 x 85 mm |
| Height | 2U |
| Weight | 11 kg |
| Operating Temperature | 0–50 °C (derating conditions apply) |
| Relative Humidity | 5–95% RH, non-condensing |
| Altitude | Up to 3,000 m without derating |
| Noise at 1 m | <55 dBA |
Compliance
| Safety | IEC/EN 62040-1 |
| EMC | IEC/EN 62040-2 |
| Performance | IEC 62040-3, VFI-SS-111 |
Compatibility & Software Support
What It Is Suited To
Server rooms, edge and branch IT, telecom, CCTV and light industrial loads. Keep the continuous load below 5 kW with headroom for growth; because the output PF is unity, the kW rating equals the kVA rating.
Electrical Connection
Input 220/230/240 VAC, 1-phase, 2-wire; output 220/230/240 VAC, 1-phase. Installation should be done by a licensed electrician to the breaker and cable sizes in the Vertiv user manual. A single-unit PDU (02010015) is available to add IEC outlets.
Monitoring and Shutdown
The supplied IS-UNITY-DP card provides web and SNMP monitoring over the network. Use it with your NMS or with Vertiv shutdown software to close down servers gracefully on a long outage.
Batteries
Long backup model: plan for at least one Liebert ITA2 battery cabinet (02010024). Runtime depends on load and the number of cabinets — ask SourceIT for a runtime calculation.
Package Contents & Liebert ITA2 Ordering Information
In the Box
Liebert ITA2 UPS (long backup model, no internal battery), IS-UNITY-DP SNMP/Web card, connection cable and mounting rail kit, plus user documentation (Singapore distributor configuration). Battery cabinets are ordered separately.
Vertiv Liebert ITA2 5–40 kVA (Long Backup) — Ordering Information
| Liebert ITA2 5 kVA (ITA-05k00AL1102P00) (this listing) | 5 kVA / 5 kW | 230V Single-Phase | 01202670 |
| Liebert ITA2 6 kVA (ITA-06k00AL1102P00) | 6 kVA / 6 kW | 230V Single-Phase | 01202671 |
| Liebert ITA2 10 kVA (ITA-10k00ALA102P00) | 10 kVA / 10 kW | 230/400V Input, 230V Output | 01202672 |
| Liebert ITA2 16 kVA (ITA-16k00AL3A02P00) | 16 kVA / 16 kW | 400V 3-Phase Input, 1- or 3-Phase Output | 01202682 |
| Liebert ITA2 20 kVA (ITA-20k00AL3A02P00) | 20 kVA / 20 kW | 400V 3-Phase Input, 1- or 3-Phase Output | 01202683 |
| Liebert ITA2 30 kVA (ITA-30k00AL3302P00) | 30 kVA / 30 kW | 400V 3-Phase | 01202660 |
| Liebert ITA2 40 kVA (ITA-40k00AL3302P00) | 40 kVA / 40 kW | 400V 3-Phase | 01202897 |
Matching Accessories
| External battery cabinet (required) | Liebert ITA2 external battery cabinet 02010024 |
| Network card (supplied) | IS-UNITY-DP SNMP/Web card |
| Service bypass panel | Service bypass panel 02010011 |
| 1+1 power output distribution (POD) | 1+1 POD 02010012 |
| Output distribution | Single-unit PDU 02010015 |
Datasheet & Downloads
| Vertiv brochure (Asia-Pacific) | Liebert ITA2 5–40 kVA Brochure — Asia-Pacific (PDF) |
| Vertiv brochure (Asia) | Liebert ITA2 5–40 kVA Brochure — Asia (PDF) |
| Vertiv user manual | Liebert ITA2 5–20 kVA User Manual — Asia (PDF) |
| Vertiv warranty | Vertiv 3-Year Limited Standard Warranty — EDGE, GXT5 750 VA–10 kVA, ITA2 5–6 kVA, SEAP (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ITA-05k00AL1102P00.
Frequently Asked Questions — Vertiv Liebert ITA2 5 kVA (ITA-05k00AL1102P00)
Does this UPS have batteries inside?
No. This is the long backup model with no internal battery — it needs at least one Liebert ITA2 external battery cabinet (02010024), sold separately. SourceIT can size the number of cabinets for your runtime.
Is it a true online UPS?
Yes. The ITA2 is online double conversion (VFI-SS-111): the load runs from the inverter continuously and the output is regulated to <2% THD on linear loads.
Single-phase or three-phase?
Input: 220/230/240 VAC, 1-phase, 2-wire. Output: 220/230/240 VAC, 1-phase.
Can it go in a rack?
Yes. It is a 2U rack/tower convertible unit; rack rails are included in the Singapore distributor configuration.
Does it support SNMP?
Yes. An IS-UNITY-DP SNMP/Web card is supplied with each unit.
What warranty do I get?
3 years from Vertiv under its South-East Asia limited warranty, with Next Business Day response via the Singapore distributor, supplied by SourceIT with a GST invoice. Extended warranty and service plans are available — ask us.
