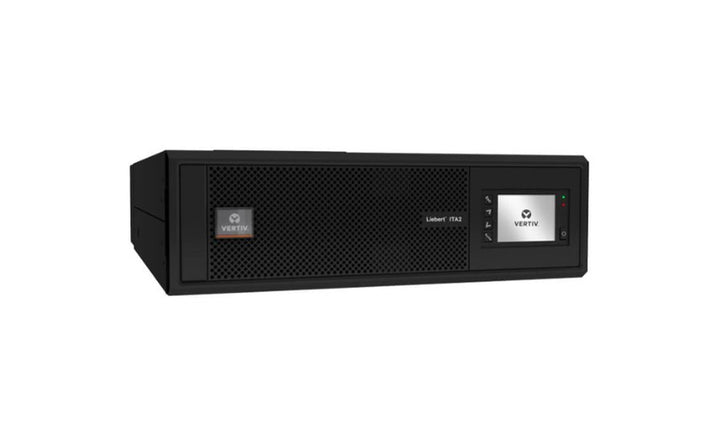

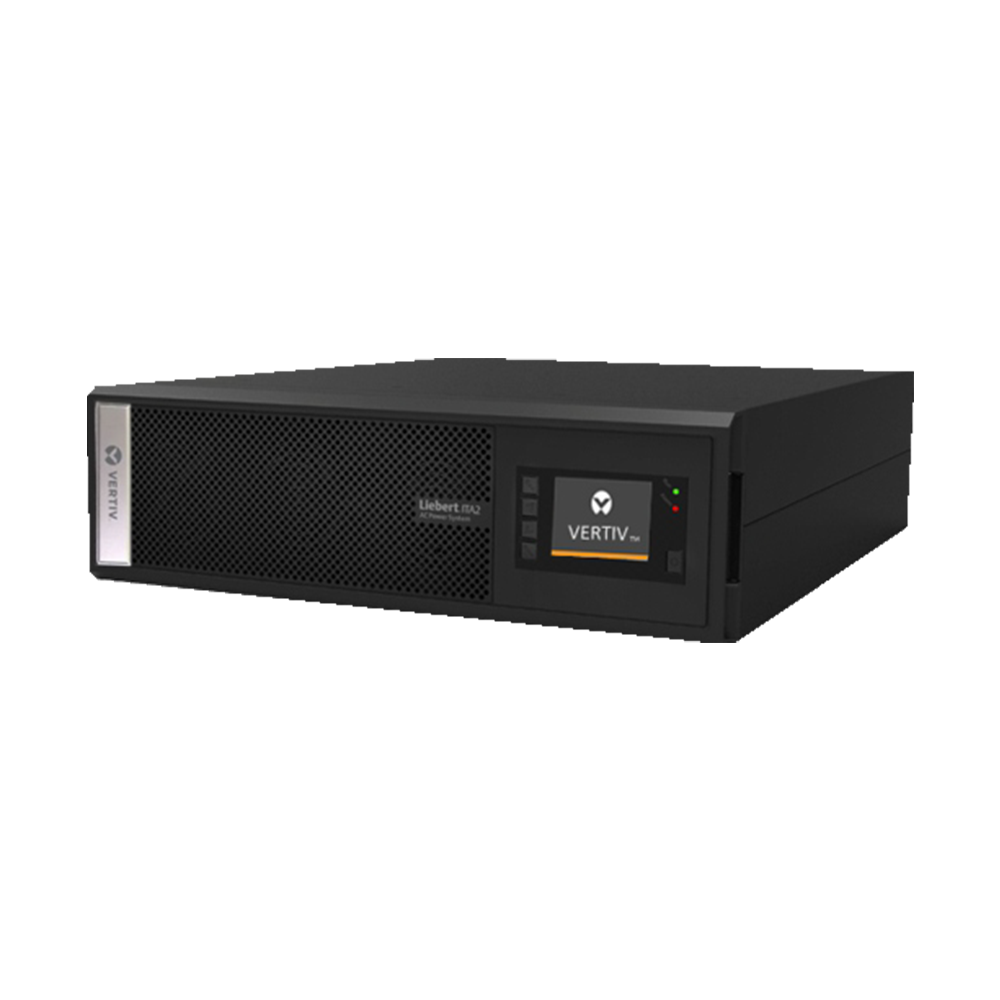

Vertiv Liebert ITA2 30KVA/30KW UPS 400V LCD Long Backup Model (01202660)
Vertiv Liebert ITA2 30KVA/30KW UPS 400V LCD Long Backup Model (01202660)- 3 Years Local Warranty
The Vertiv Liebert ITA2 30KVA/30KW UPS (01202660) is a robust uninterruptible power supply (UPS) designed to protect large-scale operations with a 30KVA (30KW) capacity. This model offers 400V input/output and is engineered for demanding environments that require extended backup times and high-performance power protection. It's ideal for industries such as data centers, telecom, and industrial operations.
Key Features:
On-Line Double Conversion Technology:
The Vertiv Liebert ITA2 utilizes on-line double-conversion technology. This ensures your equipment receives high-quality, clean, and uninterrupted power, regardless of external power conditions. The UPS continuously converts AC power to DC and back to AC, providing protection from all types of power disturbances, including sags, surges, and harmonic distortion.
High Power Capacity:
With a 30KVA (30KW) capacity, the Vertiv Liebert ITA2 30KVA is capable of handling critical, high-power applications. It’s suitable for large data centers, telecommunication equipment, industrial machinery, and other essential infrastructure that require substantial and reliable power protection.
Long Backup Times:
The Vertiv Liebert ITA2 30KVA offers long backup times, ensuring that mission-critical systems continue to operate even during extended power outages. By integrating external battery cabinets, the UPS can provide extended runtime to maintain business continuity when power loss occurs.
LCD Display for Monitoring:
The UPS features a clear LCD display that provides real-time feedback on essential parameters like input/output voltage, battery status, load levels, and system health. This makes it easy to monitor the UPS performance, troubleshoot, and manage the system, ensuring optimal uptime.
Energy Efficiency:
The Vertiv Liebert ITA2 is designed to maximize energy efficiency, helping reduce operating costs. It includes Eco Mode, which lowers power consumption when the system is running under stable conditions.
Flexible Installation Options:

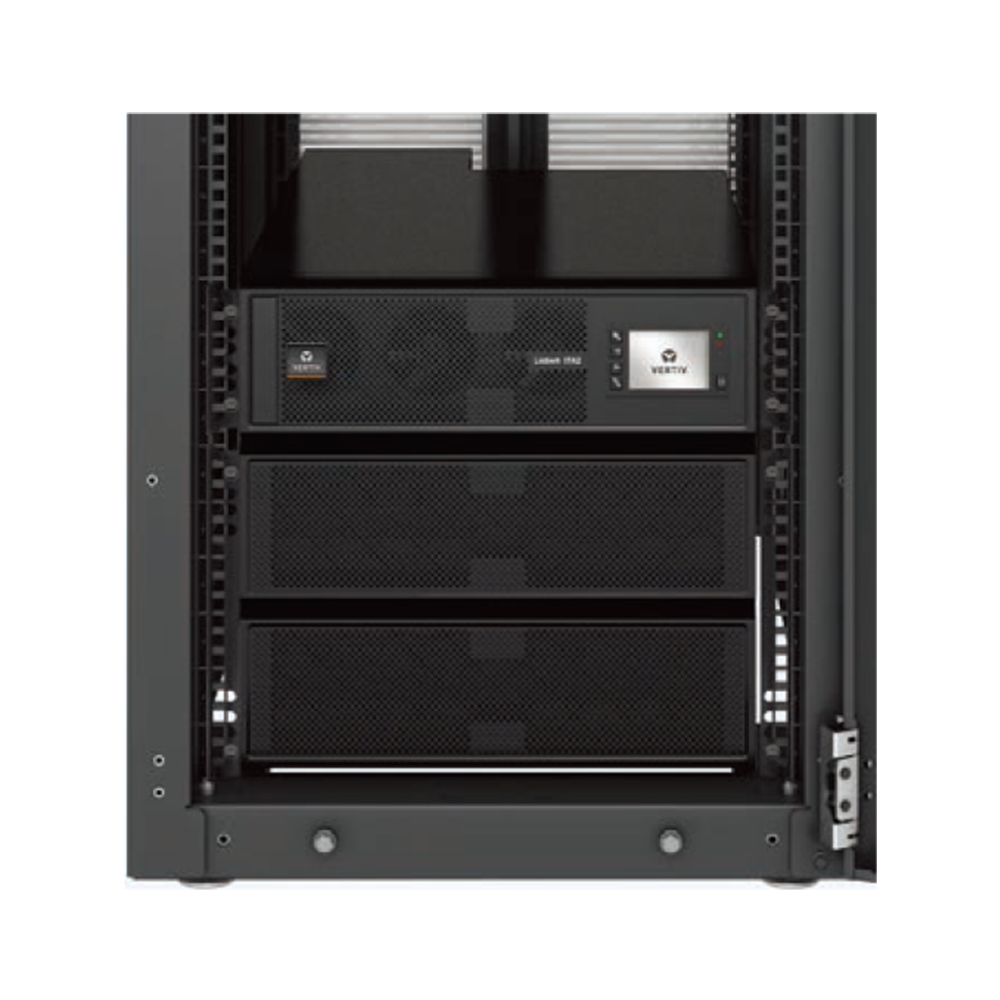

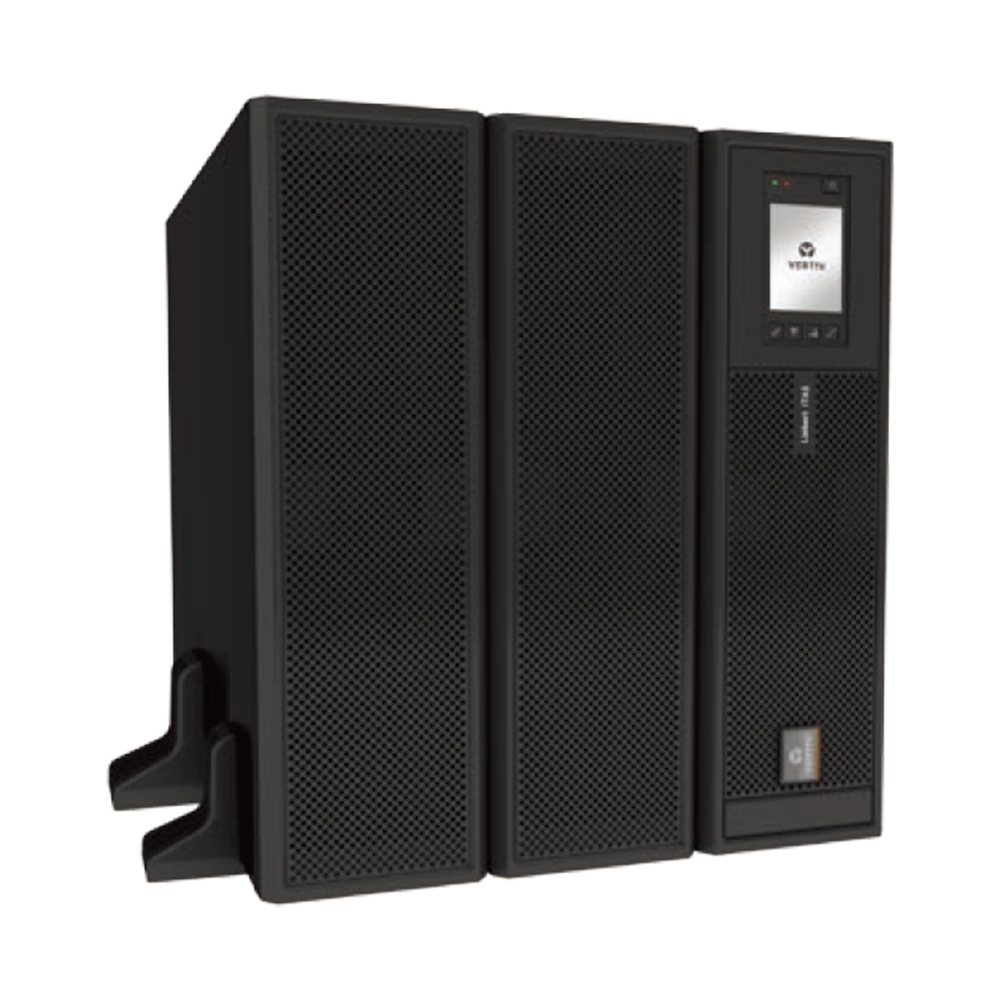

The Vertiv Liebert ITA2 30KVA can be installed in both rackmount and tower configurations, providing flexibility to fit different spaces and deployment scenarios. This adaptability ensures compatibility with a wide range of applications.
Remote Monitoring Capabilities:
The UPS supports remote monitoring through an optional Webcard interface. This allows users to track the UPS system from any location, receiving real-time alerts and status updates to enhance performance and simplify maintenance.
Technical Specifications:
- Model: Vertiv Liebert ITA2 30KVA/30KW UPS 400V LCD Long Backup Model (01202660)
- Power Capacity: 30KVA / 30KW
- Input Voltage: 400V (3-phase)
- Output Voltage: 400V (3-phase)
- Form Factor: Rack/Tower Convertible
- Battery Type: Sealed Lead-Acid (SLA) or optional Lithium-ion
- Runtime: Long backup times (depends on load and battery configuration)
- LCD Display: Yes, for real-time operational monitoring
- Web Monitoring: Yes, via optional remote monitoring card
- Eco Mode: Yes, for energy-efficient operation
- Surge Protection: Yes, providing protection from voltage spikes
- Automatic Voltage Regulation (AVR): Yes, to stabilize voltage levels
- Dimensions (L x W x H): 440mm x 438mm x 220mm (rackmount) / 440mm x 438mm x 305mm (tower)
- Weight: 65 kg
- External Battery Packs: Yes, for extended runtime
- Rail Kit Included: Yes
- GTIN/UPC: 01202660
