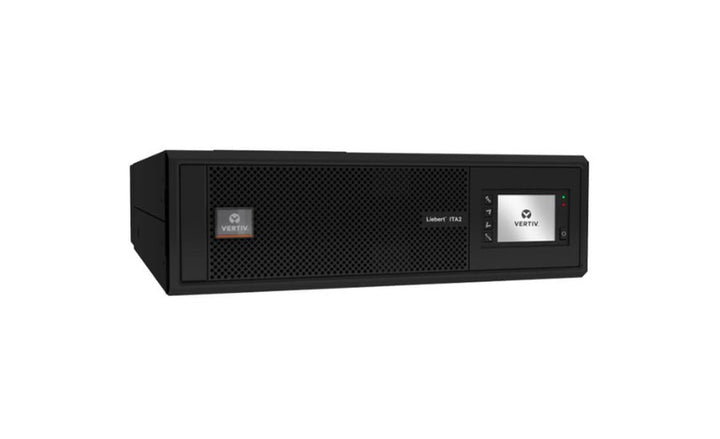

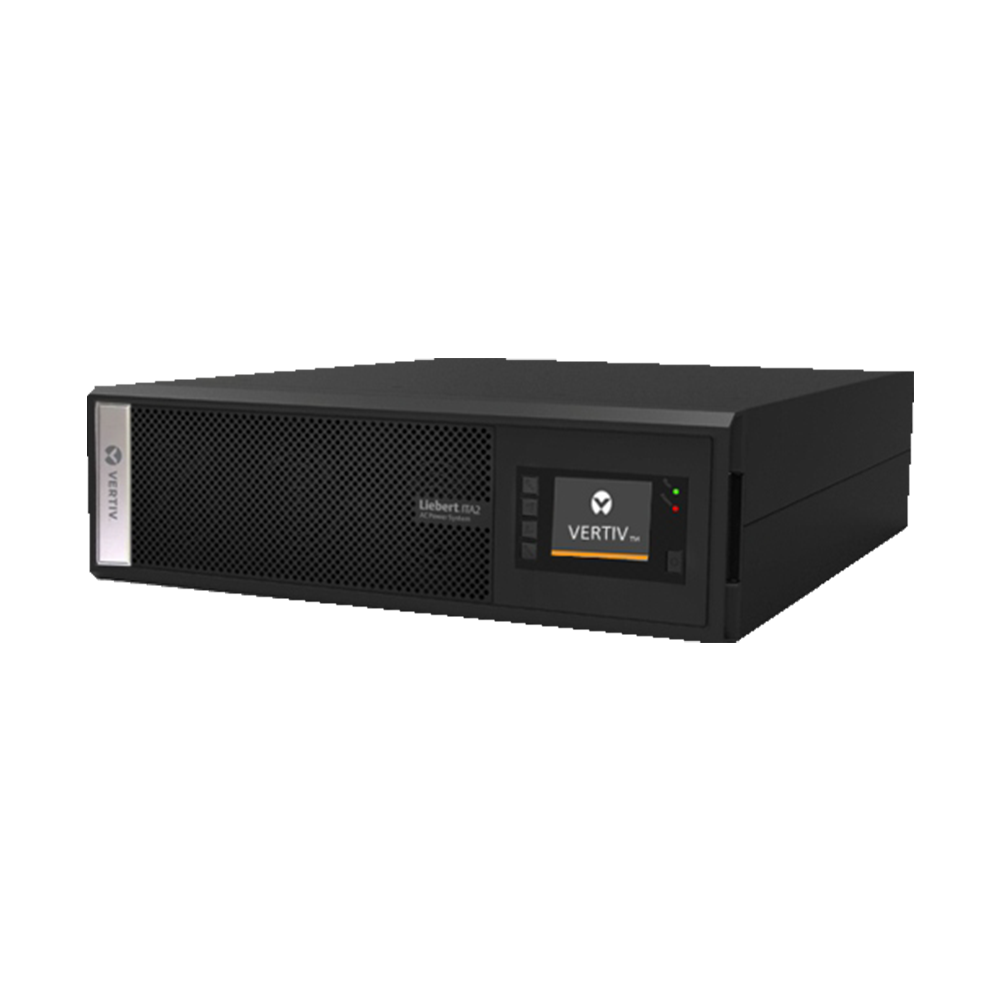

Vertiv Liebert ITA2 16KVA/16KW UPS 400V LCD Long Backup Model (01202682)
Vertiv Liebert ITA2 16KVA/16KW UPS 400V LCD Long Backup Model (01202682)- 3 Years Local Warranty
The Vertiv Liebert ITA2 16KVA/16KW UPS (01202682) is a high-performance, on-line double-conversion uninterruptible power supply (UPS) designed to provide reliable, high-quality power protection for critical IT and industrial applications. With its robust 16KVA (16KW) power capacity, 400V input/output, and LCD display, this model is ideal for protecting larger, more power-hungry equipment and systems that require continuous uptime.
Key Features:
On-Line Double Conversion Technology:
The Vertiv Liebert ITA2 utilizes on-line double-conversion technology, which continuously converts AC power to DC and then back to pure sine wave AC. This process ensures that your equipment receives clean, stable, and uninterrupted power free from power fluctuations, surges, and voltage sags, providing superior protection for critical systems like servers, network devices, and other sensitive equipment.
High Power Capacity:
With a 16KVA (16KW) capacity, the Vertiv Liebert ITA2 16KVA can support larger power loads and a variety of demanding applications, such as data centers, industrial equipment, and network infrastructures. It is well-suited for environments where high capacity and reliability are essential.
Extended Backup Time:
The 16KVA model provides long backup times, ensuring that your equipment remains operational during power outages. The system's capability to connect external battery packs offers scalability for extended runtime, making it suitable for environments where critical systems require power for extended periods during outages or interruptions.
LCD Display:
The front-mounted LCD display offers real-time monitoring of the UPS's operational parameters, including input/output voltage, battery health, load levels, and UPS status. This intuitive display allows for easy, on-site monitoring and provides quick access to important information, ensuring efficient system management.
Energy-Efficient Design:
The Vertiv Liebert ITA2 is engineered for energy efficiency, minimizing wasted energy while maintaining high performance. The system features a high-efficiency mode (Eco Mode) that reduces energy consumption when operating conditions are stable, helping reduce overall operational costs.
Flexible Installation Options:

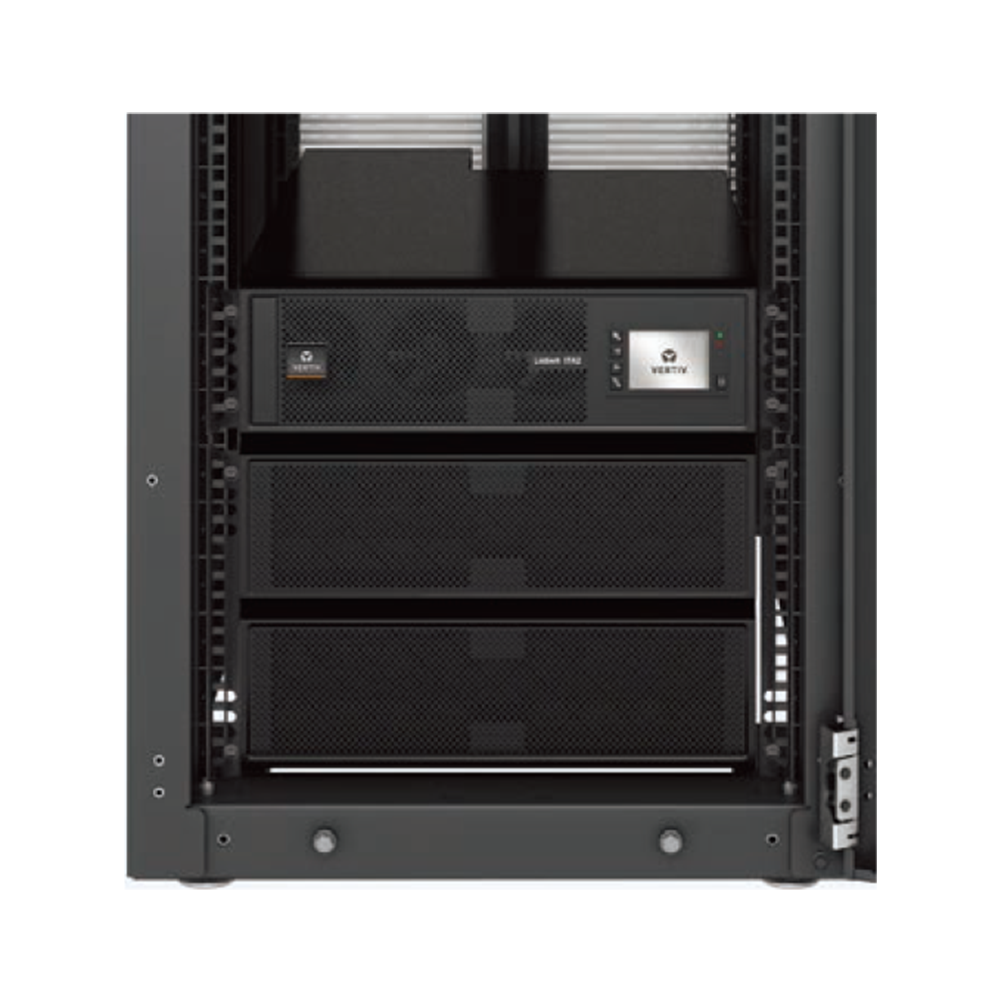

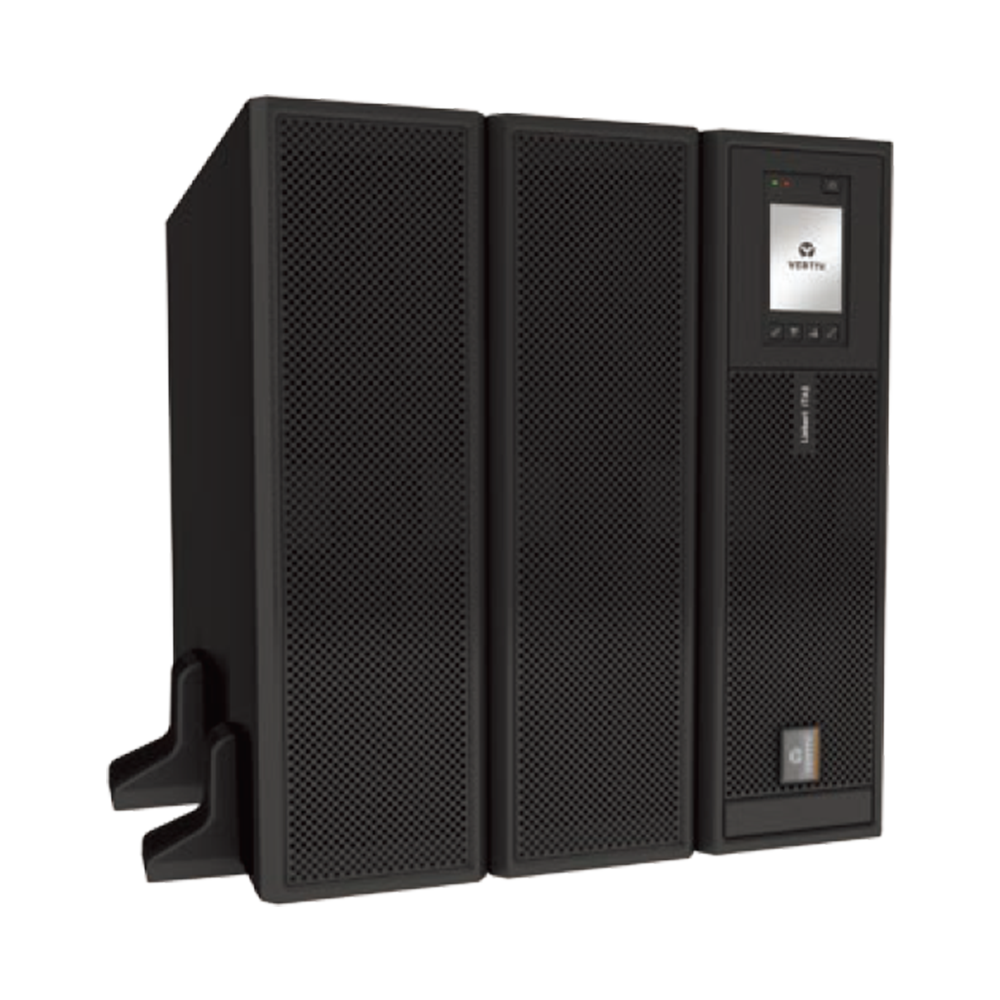

The Vertiv Liebert ITA2 is designed to be flexible and space-efficient, allowing it to be installed in rackmount or tower configurations depending on your space requirements. The rackmount design is ideal for environments where space is limited, while the tower configuration allows for more versatile installation in a variety of settings.
Remote Monitoring and Management:
The UPS offers remote monitoring capabilities via the Vertiv monitoring interface. This feature allows users to manage and monitor UPS performance remotely, providing access to critical information like battery status, load levels, and alarm notifications from anywhere, increasing overall system reliability and operational efficiency.
Technical Specifications:
- Model: Vertiv Liebert ITA2 16KVA/16KW UPS 400V LCD Long Backup Model (01202682)
- Power Capacity: 16KVA / 16KW
- Input Voltage: 400V (3-phase)
- Output Voltage: 400V (3-phase)
- Form Factor: Rack/Tower Convertible
- Battery Type: Sealed Lead-Acid (SLA) or optional Lithium-ion
- Runtime: Extended runtime (depends on load and battery configuration)
- LCD Display: Yes
- Web Monitoring: Yes (via optional remote monitoring card)
- Eco Mode: Yes
- Surge Protection: Yes
- Automatic Voltage Regulation (AVR): Yes
- Dimensions (L x W x H): 440mm x 438mm x 220mm (rackmount) / 440mm x 438mm x 305mm (tower)
- Weight: 40 kg
- External Battery Packs: Yes (for extended runtime)
- Rail Kit Included: Yes
- GTIN/UPC: 01202682
