TP-Link VIGI NVR4064H 64 Channel Network Video Recorder
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI NVR4064H 64 Channel Network Video Recorder (VIGI NVR4064H) - 5 Years Local Warranty

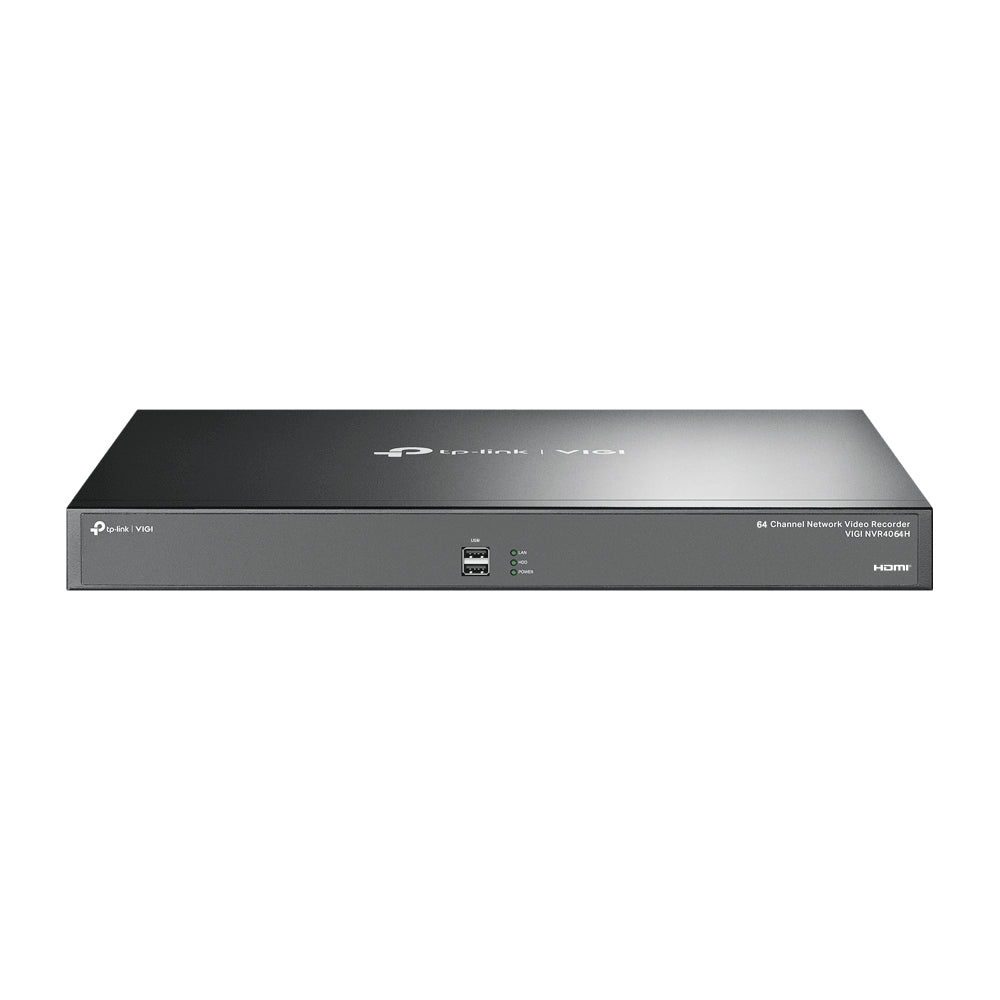

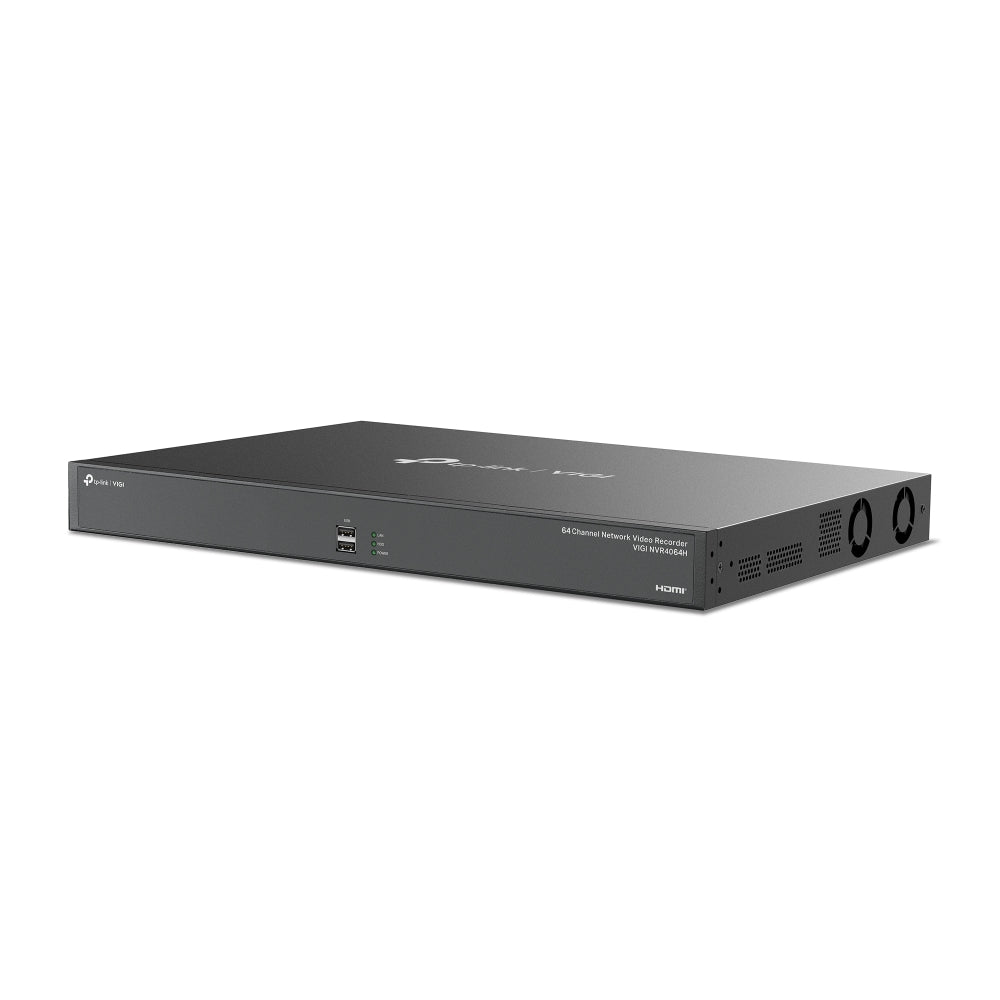

The VIGI NVR4064H is a 1U, 64-channel network video recorder for larger VIGI deployments. It accepts up to 320 Mbps of incoming camera bandwidth, holds four SATA hard drives of up to 16 TB each, outputs 4K over HDMI, and offers dual Gigabit Ethernet, eSATA, 16 alarm inputs and 4 alarm outputs — the recorder for a whole building, campus or multi-block estate rather than a single shop.
64 Channels and Up to 320 Mbps of Recording Bandwidth
The NVR takes 64 IP camera channels with 260 Mbps incoming and 180 Mbps outgoing bandwidth by default, rising to 320 Mbps in each direction in extended bandwidth mode. Record resolutions run from QCIF up to 8MP, with H.265+, H.265, H.264+ and H.264 compression to stretch retention on the same disks.
Four Drive Bays, Up to 16 TB Each
Four SATA interfaces each support a hard drive of up to 16 TB, plus an eSATA port for expansion. Drives are not included, so capacity can be sized to the camera count and retention period the site actually needs. Recording modes are manual, scheduled and motion-detection, with instant, regular, tag and event playback and regular or clip backup.
4K HDMI, Second HDMI and VGA for Guard Rooms
HDMI1 outputs up to 3840x2160 at 30 Hz, while HDMI2 and VGA output up to 1920x1080 at 60 Hz. HDMI1 runs independently of HDMI2 or VGA, so a security office can drive two different screens; HDMI2 and VGA cannot operate together. Multi-view layouts range from 1 to 64 tiles, decoding covers 16 channels at 2MP or 8 channels at 4MP, and up to 16 channels play back synchronously.
Smart Event Handling From VIGI Cameras
With suitable cameras, the NVR handles motion detection, video tampering, scene change, line crossing, intrusion, region entering and exiting, loitering, object abandoned/removal, vehicle and human detection, abnormal sound and Smart Frame, plus anomaly alarms for video loss, IP conflict, disk, login and fan exceptions. Linkage options include recording, white light alarm, buzzer, log and audible alarm, and 16 alarm inputs and 4 outputs connect to sensors, sirens or access control.
Dual Gigabit, Remote Access and Rack Mounting

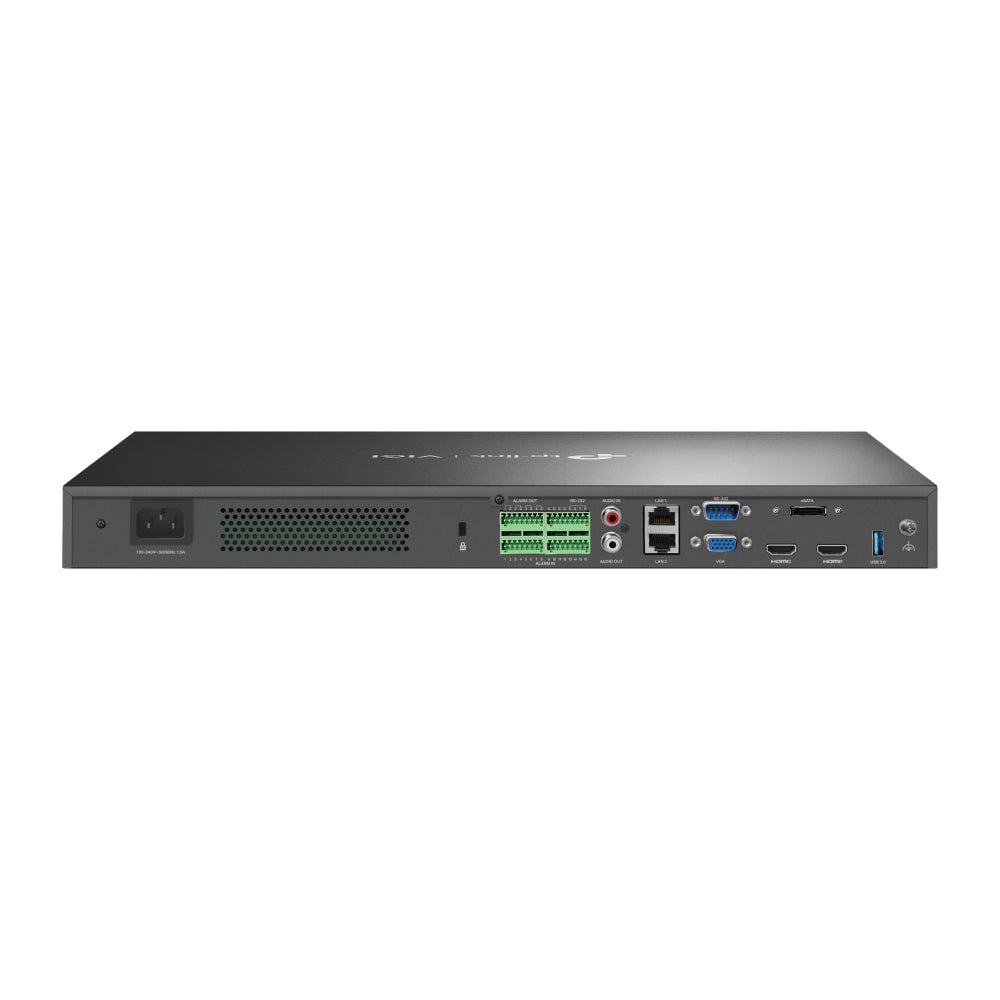

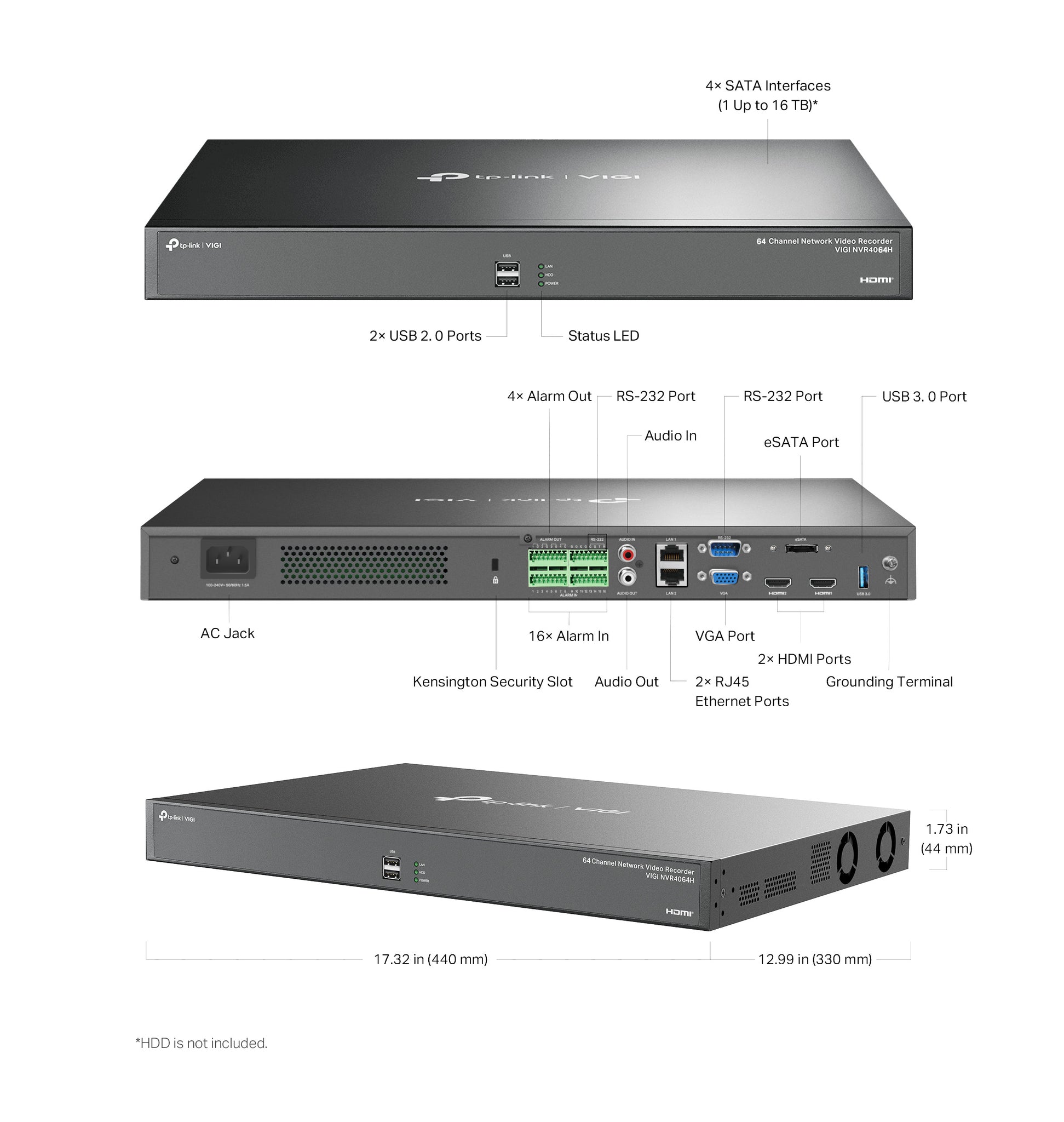

Two 10/100/1000 Mbps Ethernet ports, two front USB 2.0 ports, a rear USB 3.0 port, RCA audio in/out and RS232 complete the rear panel. The recorder is managed via its local GUI, web browser, the VIGI app on Android and iOS, and VIGI Security Manager, and works with third-party cameras over ONVIF. It ships with mounting brackets for a standard rack and draws 6.95 W without disks or 48.38 W with disks.
Ideal For
Singapore offices, schools, warehouses, factories, condominiums and multi-site operators consolidating up to 64 VIGI or ONVIF cameras onto one recorder with long retention and a guard-room video wall. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
VIGI NVR4064H Datasheet — Technical Specifications
General
| Model | VIGI NVR4064H |
| Official Product Name | VIGI 64 Channel Network Video Recorder |
| Brand | TP-Link VIGI |
| Warranty | 5 Years Local Warranty (Singapore) |
Video and Audio
| IP Video Input | 64-channel |
| Incoming Bandwidth | Default 260 Mbps; extended bandwidth mode 320 Mbps |
| Outgoing Bandwidth | Default 180 Mbps; extended bandwidth mode 320 Mbps |
| HDMI1 Output | 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| HDMI2 Output | 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output | 1 channel; 1920x1080/60Hz down to 1280x720/60Hz |
| Video Output Mode | HDMI1/HDMI2 independent; HDMI1/VGA independent. HDMI2 and VGA cannot operate simultaneously; if both are connected HDMI2 takes precedence |
| Multi-View Display | 1, 4, 6, 8, 9, 16, 25, 32, 36, 49, 64 |
Decoding
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Audio Compression | G.711A/G.711U/G.726 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-channel (may be fewer, or none, if total resolution exceeds 32MP) |
| Decoding Capability | 25 fps: 16-ch @ 2MP, 32-ch @ 720P, 64-ch @ D1; 30 fps: 4-ch @ 8MP, 6-ch @ 5MP, 8-ch @ 4MP |
Record Management
| Record Mode | Manual, scheduled, motion detection recording |
| Playback Mode | Instant, regular, tag, event playback |
| Backup Mode | Regular backup; video clip backup |
| Playback Functions | Play, pause, stop, fast forward, fast backward, play by frame, full screen, video clip, export clip, digital zoom, lock recording, audio on/off |
Hard Disk
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB per HDD (HDD not included) |
| eSATA | 1 |
Network and Interfaces
| Network Interface | 2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet |
| Protocol | UPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP (datasheet also lists IPv6, SNMP) |
| Interoperability | ONVIF Profile S, CGI (see note) |
| Mobile Access | Android, iOS |
| Web Browser | Chrome 57+, Firefox 52+, Edge 91+ |
| USB | 2x front USB 2.0, 1x rear USB 3.0 |
| Video Output | 2x HDMI, 1x VGA |
| Audio | 1-ch RCA input; 1-ch RCA output |
| Alarm In/Out | 16 / 4 |
| Serial | 1x RS232 |
| Other | 1x AC jack; 1x reset button; speaker N/A |
Alarm
| General Alarm | Motion detection, video tampering, scene change, line-crossing, intrusion, region entering, region exiting, loitering, object abandoned/removal, vehicle detection, human detection, abnormal sound detection, Smart Frame (requires camera) |
| Anomaly Alarm | Video loss, offline and IP conflict, disk exception, login exception, fan exception |
| Alarm Linkage | Recording, white light alarm, buzzer, log, audible alarm |
Physical and Power
| Dimensions (W x D x H) | 440 x 330 x 44 mm (17.32 x 12.99 x 1.73 in) |
| Net / Gross Weight | 4.0 kg / 5.0 kg |
| Power Supply | 100-240 VAC, 50-60 Hz, 1.5 A |
| Max Power Consumption | 6.95 W (without disk); 48.38 W (with disk) |
| Working Temperature | -10 to 55 C |
| Storage Temperature | -40 to 70 C |
| Humidity | 10-90% RH, non-condensing |
| Certifications | CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF |
Published Notes and Contradictions
TP-Link's Singapore product page gives interoperability as "ONVIF Profile S, CGI" with the footnote "This model currently supports ONVIF Profile S", while the datasheet reads "ONVIF Profile S/T, CGI". The datasheet protocol list also adds IPv6 and SNMP. Both halves are TP-Link's own; confirm Profile T support with SourceIT if your cameras depend on it.
TP-Link notes that, due to the weight of this model, a tray is recommended when rack mounting with angle iron; the tray is not included. A hard disk drive (not included) must be installed for operation.
Compatibility & Software Support
| VIGI Network Cameras | Full support, including VIGI smart detection events |
| Third-Party Cameras | Supported via ONVIF (Profile S; see datasheet note on Profile T) |
| Local GUI | NVR UI over HDMI/VGA with the supplied mouse |
| Web UI | Chrome 57+, Firefox 52+, Edge 91+ |
| VIGI App | Supported on Android and iOS |
| VIGI Security Manager | Supported |
| PoE | Not built in — cameras are powered by a separate PoE switch |
| Omada SDN Controller | Not applicable — VIGI is managed through VIGI tools |
Package Contents & Ordering Information
What's in the Box
| Package Contents | VIGI Network Video Recorder, Mouse, Installation Guide, Power Cord, HDD Power Cables, HDD Data Cables, Terminal Blocks, Mounting Brackets, Screws, Rubber Feet |
Hard drives are not included. Tell us the camera count and retention period and we will quote surveillance-grade drives with the recorder.
Ordering Information
| Model | VIGI NVR4064H |
| Recommended Retail Price (incl. GST) | S$959.00 |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI NVR4064H
Does it include hard drives or PoE ports?
No. It has four SATA bays for drives of up to 16 TB each (drives sold separately) and no built-in PoE, so cameras are powered from a PoE switch.
Can it record non-VIGI cameras?
Yes, via ONVIF. TP-Link's product page states Profile S support; check with us if your cameras need Profile T.
What warranty does SourceIT provide?
5 years local Singapore warranty, with a GST invoice on every order.
Is stock held locally?
Anything not in local stock is brought in on indent — ask SourceIT for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
