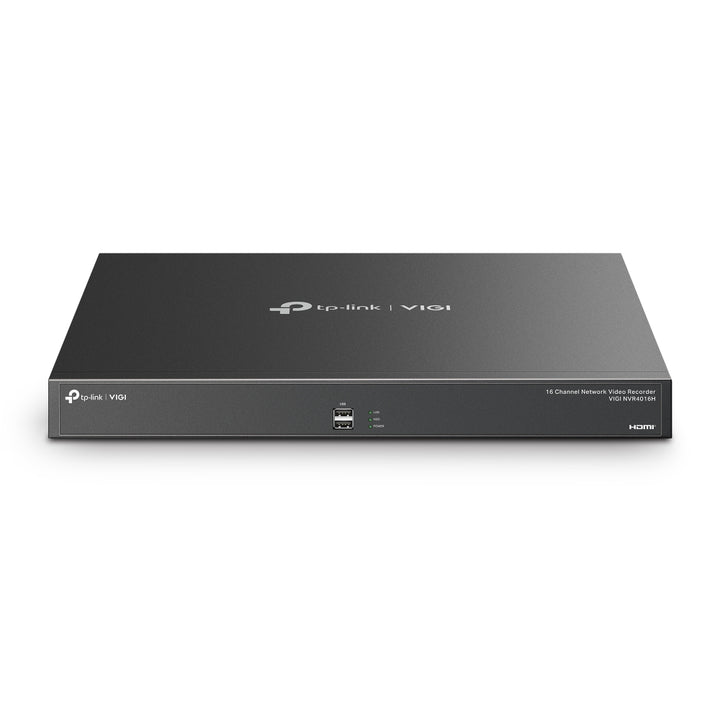

TP-Link VIGI NVR4016H 16 Channel Network Video Recorder
PRODUCT DESCRIPTION
TP-Link VIGI 16 Channel Network Video Recorder (VIGI NVR4016H) - 5 Years Local Warranty
The TP-Link VIGI NVR4016H is a 16-channel network video recorder for VIGI and ONVIF IP cameras. It takes up to four SATA hard drives of up to 16 TB each, handles 320 Mbps of incoming camera bandwidth and drives two HDMI outputs (one at 4K) plus VGA for local monitoring, with remote viewing on Android and iOS.
16-Channel Recording with 4K Output
Connect up to 16 IP cameras with 320 Mbps incoming and 320 Mbps outgoing bandwidth. HDMI1 outputs at up to 3840x2160/30Hz, and HDMI1 can run alongside HDMI2 or VGA for a second local display.
Four SATA Bays for Long Retention
Four internal SATA interfaces each accept a hard drive of up to 16 TB, plus an eSATA port and a rear USB 3.0 port for backup. Hard drives are sold separately.
Decoding and Synchronous Playback
TP-Link rates decoding at 10-ch @ 3MP or 16-ch @ 1080p at 25fps, and 4-ch @ 8MP, 6-ch @ 5MP or 8-ch @ 4MP at 30fps, with up to 16-channel synchronous playback. H.265+ compression reduces storage use.
Smart Event Alarms
When paired with cameras that support them, the recorder handles line-crossing, intrusion, region entering/exiting, loitering, object abandoned/removal, human and vehicle detection, with 16 alarm inputs and 4 alarm outputs on the rear panel.
Ideal For
Retail outlets, offices, warehouses and multi-floor sites that need 16 cameras recorded to large local storage, with a rack-width chassis and dual Gigabit network ports. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI NVR4016H Datasheet — Technical Specifications
General
| Model | VIGI NVR4016H |
| Official Product Name | VIGI 16 Channel Network Video Recorder |
| Brand | TP-Link |
| Warranty | 5 Years Local Warranty (Singapore) |
Video and Audio
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 320 Mbps |
| HDMI Output Resolution | 2 Channels • HDMI1 Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz • HDMI2 Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | • HDMI1 and HDMI2 Independent / Simultaneous output • HDMI1 and VGA Independent / Simultaneous output Note: HDMI2 and VGA cannot operate simultaneously. If both connections are made, HDMI2 will take precedence and function as the primary output. |
| Multi-View Display | 1, 4, 6, 8, 9, 16 |
Decoding
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel† |
| Capability | • 25fps: 10-ch@3MP, 16-ch@1080P • 30fps: 4-ch@8MP, 6-ch@5MP, 8-ch@4MP |
Record Management
| Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
| Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Backup Mode | • Regular Backup • Video Clip Backup |
| Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
Network
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, FTP/SFTP, IPv6, SNMP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S, CGI |
External Interface
| Network Interface | 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 16/4 |
| Serial Interface | 1, RS232 |
| Power | 1x AC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 2 |
| VGA | 1 |
Hard Disk
| SATA | 4 SATA Interfaces |
| Capacity | Up to 16 TB Capacity for Each HDD* |
Alarm
| General Alarm | • Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame Note: The alarm function requires the use of a camera. |
| Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception • Fan Exception |
| Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm Note: The alarm function requires the use of a camera. |
Physical & Environment
| Working Temperature | NVR: -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10%~90% RH Non-Condensing |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Dimensions (W x D x H) | 17.32 x 12.99 x 1.73 in (440 x 330 x 44 mm) |
| Net Weight | 4.0 Kg# |
| Gross Weight | 5.0 Kg# |
| Power Supply | 100-240 VAC, 50 to 60Hz, 1.5A |
| Max. Power Consumption | • 5.5 W (Without Disk) • 45 W (With Disk) |
| Certifications | CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF |
† The number of simultaneously playable channels may be fewer than 16, or none, if the total resolution exceeds 32MP. * HDD is not included. # Due to the weight of this model, TP-Link recommends using a tray when rack-mounting with angle iron; the tray is not included. TP-Link currently lists ONVIF Profile S support for this model.
Compatibility & Software Support
| Mobile Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S, CGI |
| PC Software (TP-Link downloads) | VIGI VMS; VIGI Config Tool |
| Storage | 4 internal SATA HDDs, up to 16 TB each (not included); eSATA; USB 3.0 |
| Cameras | VIGI IP cameras and ONVIF Profile S cameras; smart-event alarms require a camera that supports them |
Package Contents & Ordering Information
Package Contents
| Included | • VIGI Network Video Recorder • Mouse • Installation Guide • Power Cord • HDD Power Cables • HDD Data Cables • Terminal Blocks • Mounting Brackets • Screws • Rubber Feet • HDD Screws |
Hard drives are not included.
Ordering Information
| Model | VIGI NVR4016H |
| SKU | VIGI NVR4016H |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI NVR4016H
How many cameras and hard drives does the VIGI NVR4016H support?
It records up to 16 IP camera channels and has four SATA interfaces, each accepting a hard drive of up to 16 TB. Drives are purchased separately.
Can I use two monitors?
Yes. HDMI1 (up to 4K at 30Hz) can run simultaneously with HDMI2 or with VGA. HDMI2 and VGA cannot be used at the same time; if both are connected, HDMI2 takes precedence.
Does it work with non-VIGI cameras?
TP-Link lists ONVIF Profile S and CGI interoperability for this recorder.
What warranty does SourceIT provide?
SourceIT supplies the VIGI NVR4016H with a 5 Years Local Warranty (Singapore), handled locally with a GST invoice. See the TP-Link replacement warranty policy link under Datasheet & Downloads for how claims are processed.
Can SourceIT quote this for an office or a project?
Yes. SourceIT quotes the VIGI NVR4016H for single offices and multi-site projects, including matching VIGI cameras, hard drives and PoE switches. Contact SourceIT with the quantity and site details for a formal quotation.
