TP-Link VIGI NVR1108H-W 8 Channel Wi-Fi Network Video Recorder
PRODUCT DESCRIPTION
TP-Link VIGI 8 Channel Wi-Fi Network Video Recorder (VIGI NVR1108H-W) - 5 Years Local Warranty

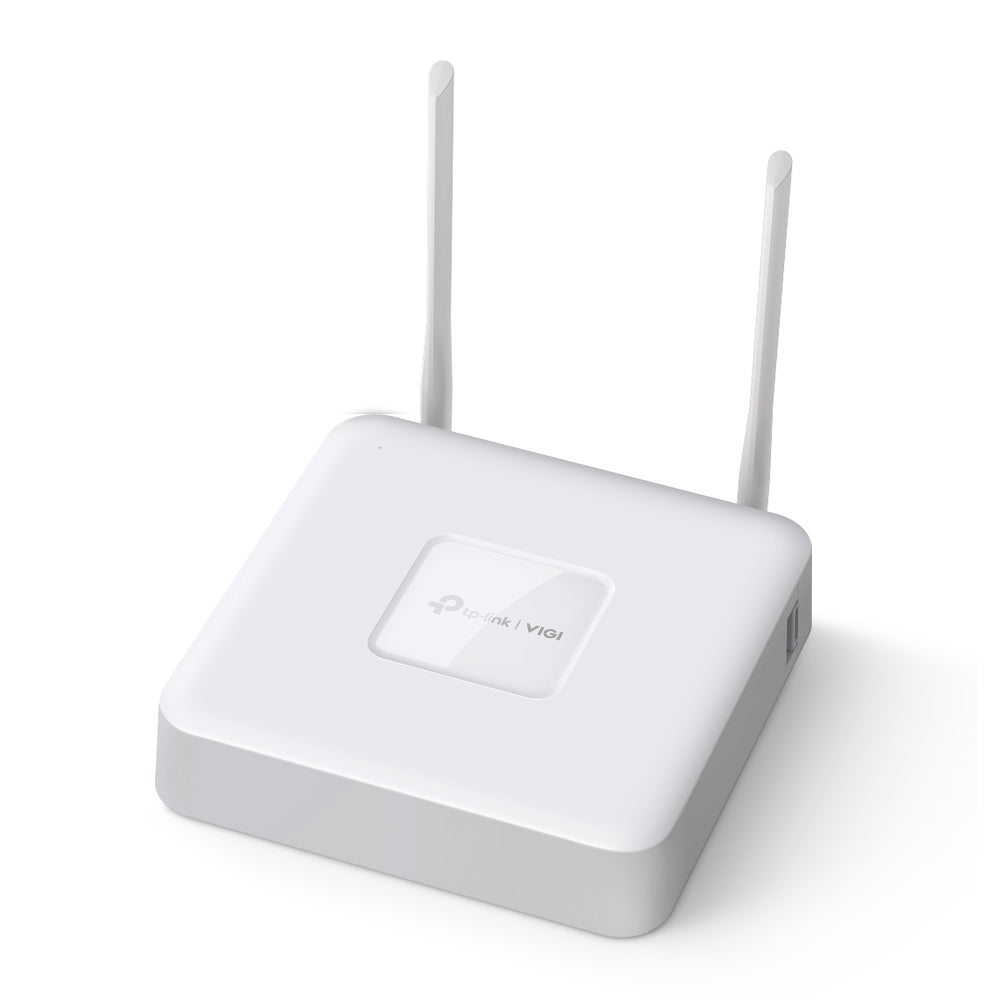

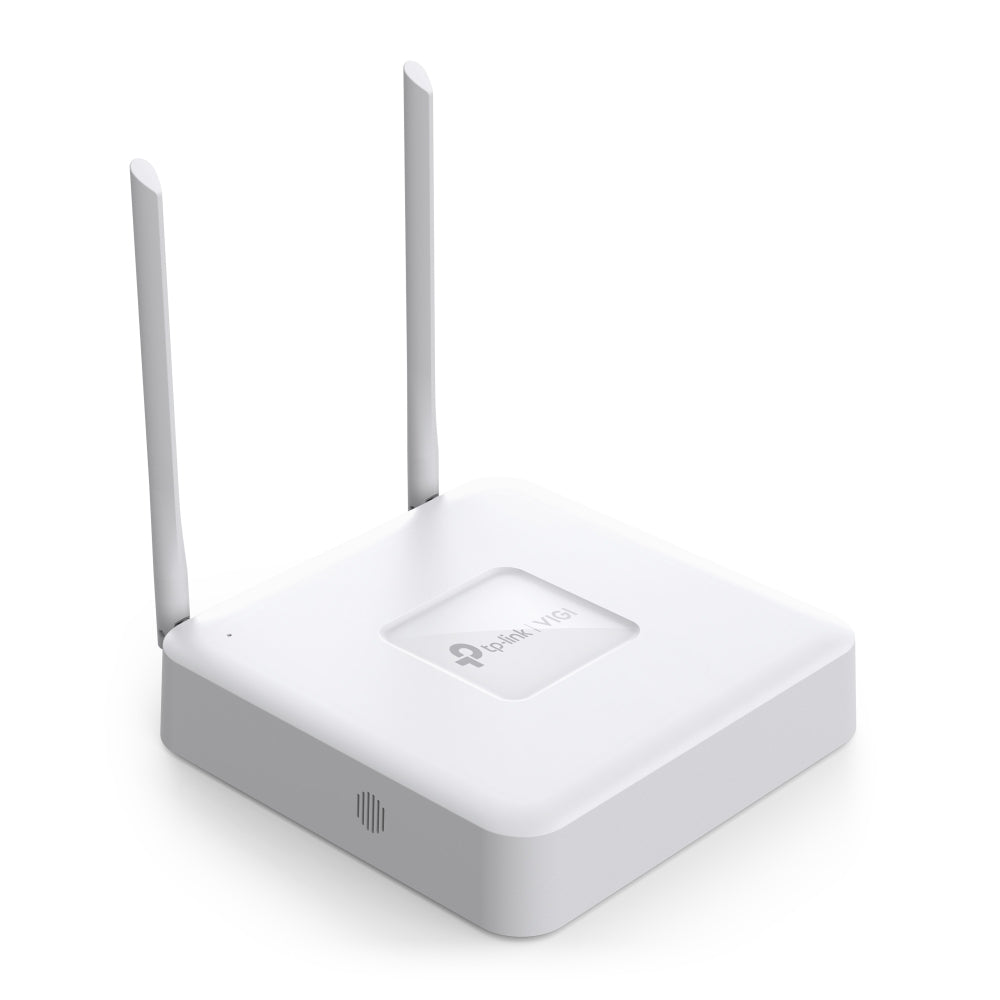

The TP-Link VIGI NVR1108H-W is an 8-channel network video recorder with a built-in 2.4 GHz 802.11n router module, so Wi-Fi cameras can pair with it directly. It takes one SATA hard drive of up to 10 TB, outputs to HDMI (up to 4K) and VGA at the same time, and has a built-in speaker.
Built-in Router Module for Wi-Fi Cameras
An integrated 2.4 GHz IEEE 802.11b/g/n radio (300 Mbps, 2x2 MIMO, WPA-PSK/WPA2-PSK) with two fixed 5.3 dBi antennas supports wireless pairing, alongside one WAN/LAN and one LAN 10/100 Mbps port.
8-Channel Live View and 4K HDMI
Eight IP camera channels with 80 Mbps incoming and 60 Mbps outgoing bandwidth. HDMI (up to 3840x2160/30Hz) and VGA output simultaneously.
Decoding and Playback
TP-Link rates decoding at 2-ch @ 8MP, 4-ch @ 4MP or 8-ch @ 2MP at 25fps, and 4-ch @ 3MP or 2-ch @ 5MP at 30fps, with up to 8-channel synchronous playback and H.265+ compression.
Compact Desktop Design
A 200.3 x 200.3 x 43 mm chassis (excluding antennas) with one SATA interface for a drive of up to 10 TB, powered by a 12V/2A external adapter.
Ideal For
Small shops, offices, clinics and homes that want up to eight cameras, including Wi-Fi cameras, recorded on one compact unit. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI NVR1108H-W Datasheet — Technical Specifications
General
| Model | VIGI NVR1108H-W |
| Official Product Name | VIGI 8 Channel Wi-Fi Network Video Recorder |
| Brand | TP-Link |
| Warranty | 5 Years Local Warranty (Singapore) |
Video and Audio
| IP Video Input | 8-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4/6/8 |
Decoding
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Record Resolution | 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 8-Channel† |
| Capability | • 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP • 30fps: 4-ch @ 3MP, 2-ch @ 5MP |
Record Management
| Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
| Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Backup Mode | • Regular Backup • Video Clip Backup |
| Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Video Clip • Export Clip • Lock Recording • Audio On/Off |
Network
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S, CGI |
Wireless
| Standards and Protocols | IEEE 802.11b/g/n |
| WiFi Channels | • UN: 1-13 • US: 1-11 |
| Wireless Name | • SSID Configuration • Radio |
| Network Switch | Yes |
| Frequency | 2.4 GHz |
| Auto Wireless Channel | N/A |
| Wireless Statistics | N/A |
| Throughput Monitoring | N/A |
| Radio Bandwidth | • Auto: Yes • 20M: Yes • 40M: Yes |
| Wireless Rate | 300Mbps (802.11n), 2 x 2 MIMO |
| Wireless Security | WPA-PSK/WPA2-PSK |
External Interface

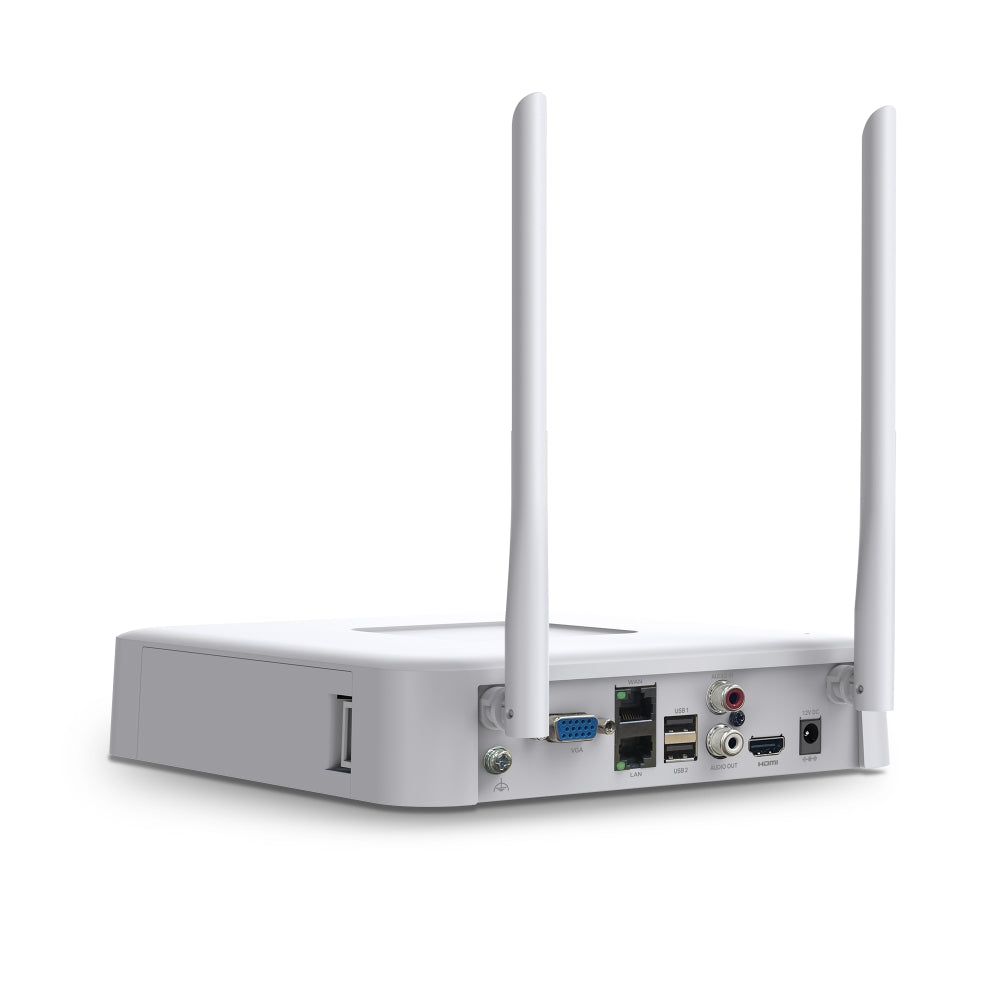

| Network Interface | • 1x RJ-45 10/100 Mbps Self-Adaptive WAN/LAN Ethernet Interface • 1x RJ-45 10/100 Mbps Self-Adaptive LAN Ethernet Interface |
| USB Interface | 2x USB 2.0 |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1x DC Jack |
| Reset Button | 1 |
| Speaker | 1; Real-time Audio Output without Needing Peripherals. |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
Hard Disk
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB Capacity for Each HDD* |
Alarm
| General Alarm | • Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame Note: The alarm function requires the use of a camera. |
| Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception Note: The alarm function requires the use of a camera. |
| Alarm Linkage | • Recording • White Light Alarm • Log • Audible Alarm Note: The alarm function requires the use of a camera. |
Physical & Environment
| Working Temperature | • NVR: -10 to 55 °C • Power Adapter: 0 to 40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Storage Temperature | -40 to 70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Dimensions (W x D x H) | Excluding Antennas: 200.3 x 200.3 x 43 mm (7.9 x 7.9 x 1.7 in) |
| External Power Supply | DC 12V/2A |
| Net Weight | 0.5 kg |
| Gross Weight | 1.0 kg |
| Max. Power Consumption | • 5.7 W (Without Disk) • 16.3 W (Without Disk) |
| Antenna | • Quantity: 2 • Type: 2.4GHz Welded Non-detachable Antenna • Gain: 5.3dBi • Radio Frequency Transmit Power: 16dBm • Length: 198.8 mm for Long Side and 189 mm for Short Side |
| Certifications | BSMI, CE, HDMI, JRF, KC, NCC, NTRA, VCCI |
† The number of simultaneously playable channels may be fewer if the total resolution exceeds 16MP. * HDD is not included. TP-Link publishes both maximum power figures labelled "Without Disk"; both are reproduced as published, and TP-Link does not state a separate with-disk figure. TP-Link currently lists ONVIF Profile S support for this model.
Compatibility & Software Support
| Mobile Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S, CGI |
| Wireless Cameras | Built-in 2.4 GHz 802.11n router module supporting wireless pairing |
| PC Software (TP-Link downloads) | VIGI VMS; VIGI Config Tool |
| Storage | 1 internal SATA HDD, up to 10 TB (not included) |
Package Contents & Ordering Information
Package Contents
| Included | • VIGI Network Video Recorder • Power Adapter • HDD Screws • Mouse • Quick Installation Guide |
Hard drive is not included.
Ordering Information
| Model | VIGI NVR1108H-W |
| SKU | VIGI NVR1108H-W |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI NVR1108H-W
Can Wi-Fi cameras connect directly to the VIGI NVR1108H-W?
Yes. It has a built-in 2.4 GHz 802.11b/g/n router module that supports wireless pairing, as well as two 10/100 Mbps Ethernet ports for wired cameras or your network.
How much storage does it take?
One SATA hard drive of up to 10 TB. The drive is not included.
Can I view HDMI and VGA at the same time?
Yes. TP-Link specifies simultaneous HDMI and VGA output, with HDMI up to 3840x2160 at 30Hz.
What warranty does SourceIT provide?
SourceIT supplies the VIGI NVR1108H-W with a 5 Years Local Warranty (Singapore), handled locally with a GST invoice. See the TP-Link replacement warranty policy link under Datasheet & Downloads for how claims are processed.
Can SourceIT quote this for an office or a project?
Yes. SourceIT quotes the VIGI NVR1108H-W for single offices and multi-site projects, including matching VIGI cameras, hard drives and PoE switches. Contact SourceIT with the quantity and site details for a formal quotation.
