TP-Link VIGI SP9030 Intelligent Solar Power Supply System, 90 W Panel with 31.2 Ah Battery
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI SP9030 Intelligent Solar Power Supply System, 90 W Panel with 31.2 Ah Battery (VIGI SP9030) - 5 Years Local Warranty

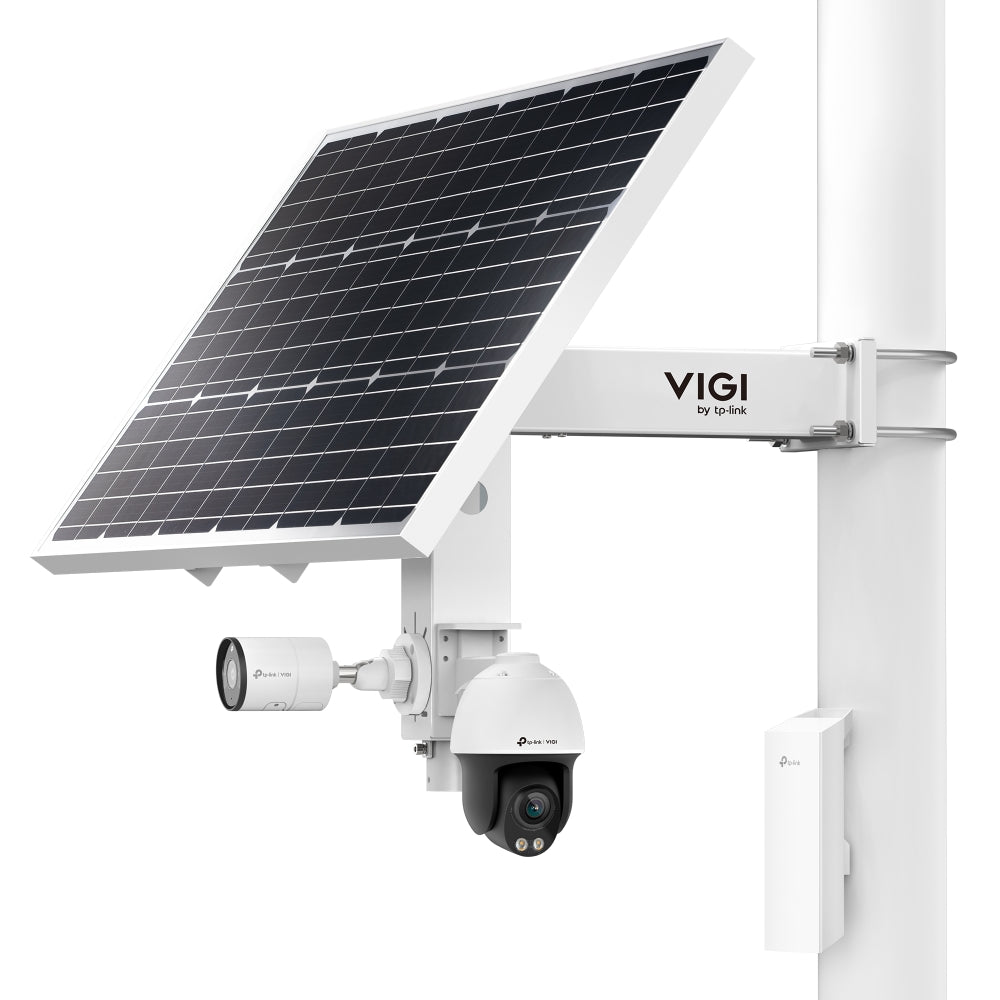

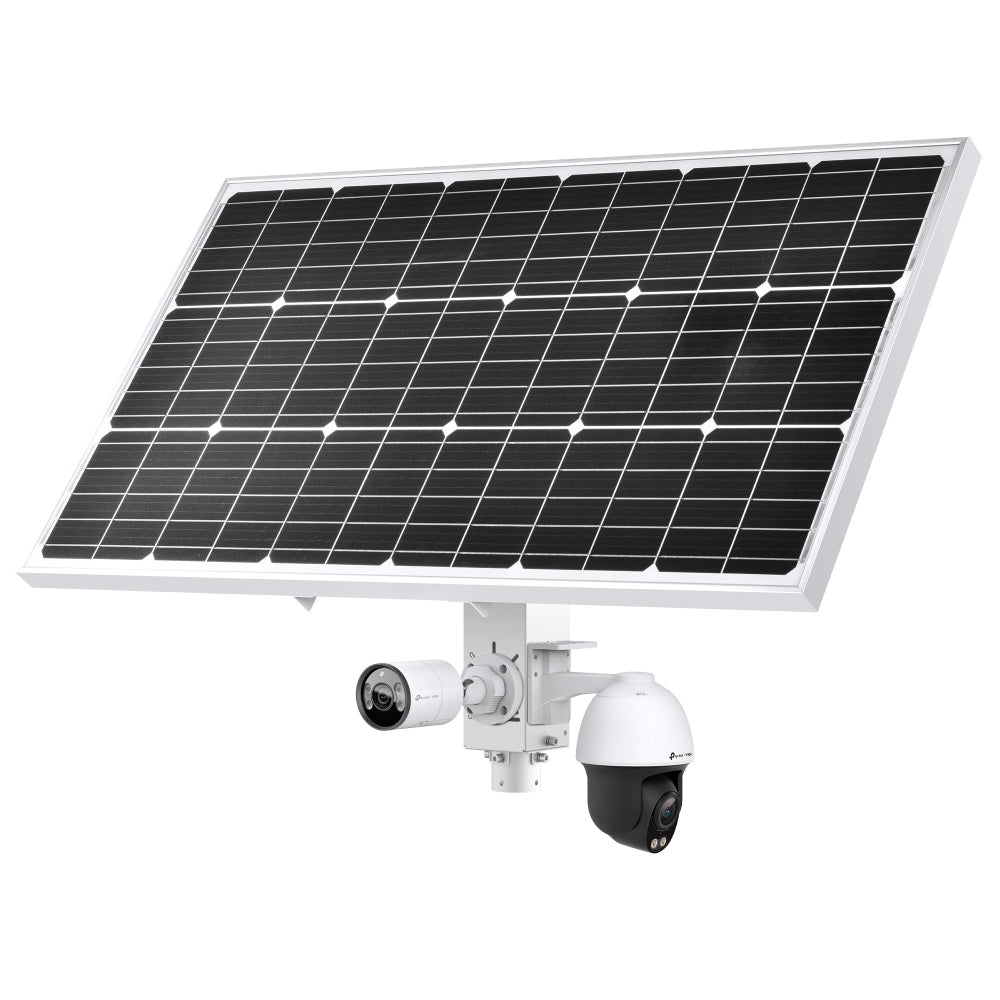

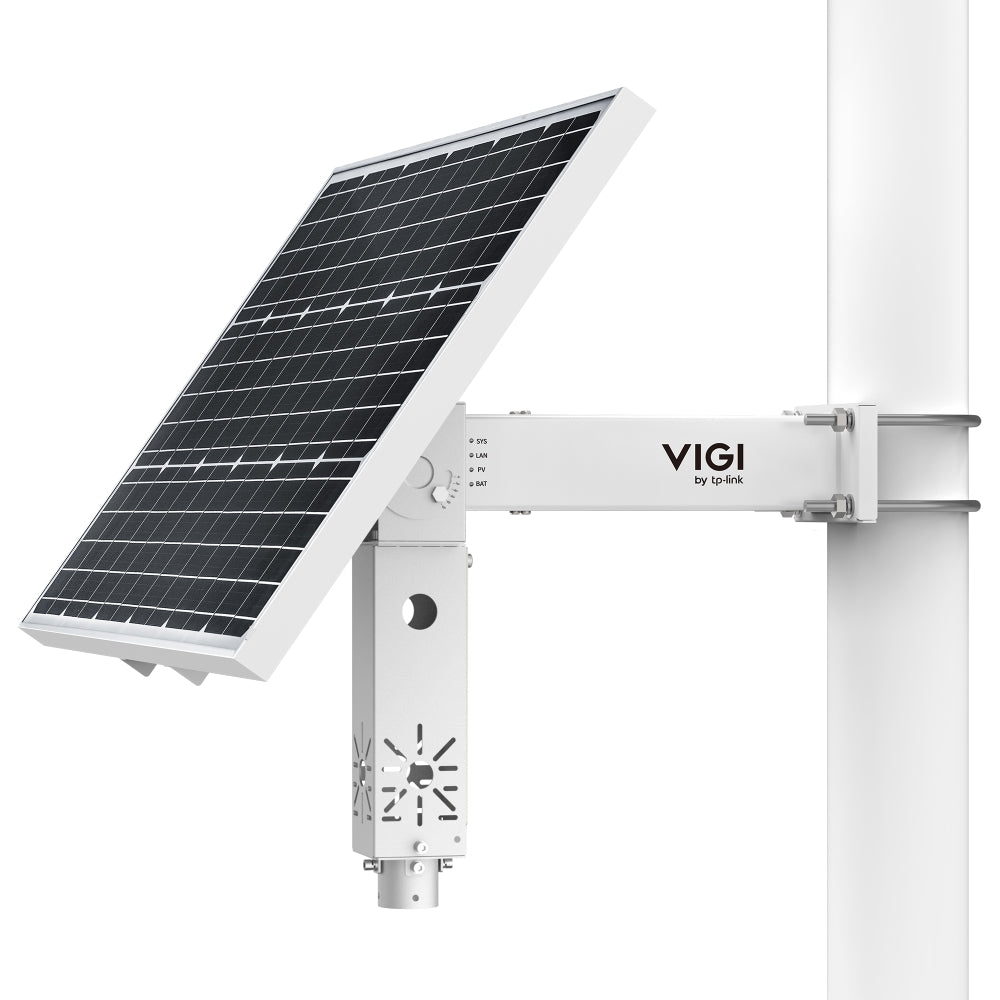

The VIGI SP9030 pairs one industrial-grade 90 W solar panel with a 31.2 Ah / 10.8 V lithium battery and MPPT controller in a modular, pole-mounted system. Three DC outputs and an RJ45 port power 4G cameras, wireless bridges and other low-voltage devices off-grid, and the whole system is monitored and maintained remotely through the VIGI app or VIGI Cloud VMS.
Manage and Maintain Without Site Visits
Managed over TCP/IP, the SP9030 lets you control multiple locations, monitor power, receive low-battery alerts and event notifications, update firmware and reboot remotely via the VIGI app or VIGI Cloud VMS. Power consumption statistics, real-time load status and battery level are all visible remotely, cutting the cost of driving to remote poles.
Industrial-Grade 90 W Panel and MPPT Charging
The Grade A 90 W, 18 V panel is rated at 21.6% conversion efficiency and a 25+ year lifespan. TP-Link's MPPT (Maximum Power Point Tracking) controller optimises panel output and, by TP-Link's figure, increases charging efficiency by 20% compared with PWM controllers.
Intelligent Auxiliary Heating for Wide Temperature Operation
The built-in smart battery uses intelligent auxiliary heating to extend charging from 0-45 degrees C to -30 to 45 degrees C, and discharging from -20-60 degrees C to -30 to 60 degrees C; TP-Link quotes a 21.14% improvement in discharge capability. The battery is rated for more than 500 cycles, which TP-Link equates to roughly a 10-year lifespan based on a 30 Ah capacity with a VIGI C540-4G.
Runtime Published for Typical Loads
TP-Link publishes three reference configurations: with a 4G camera, 10.0 days of operation on consecutive rainy days and 1.6 days to recharge on load on sunny days; with a wireless bridge plus a bullet camera, 2.6 days and 2.9 days; and with a wireless bridge plus multiple cameras, 1.7 days and 6.7 days. These figures are calculated on New York's 3.72 daily sunshine hours and are a reference only.
All-Weather Build

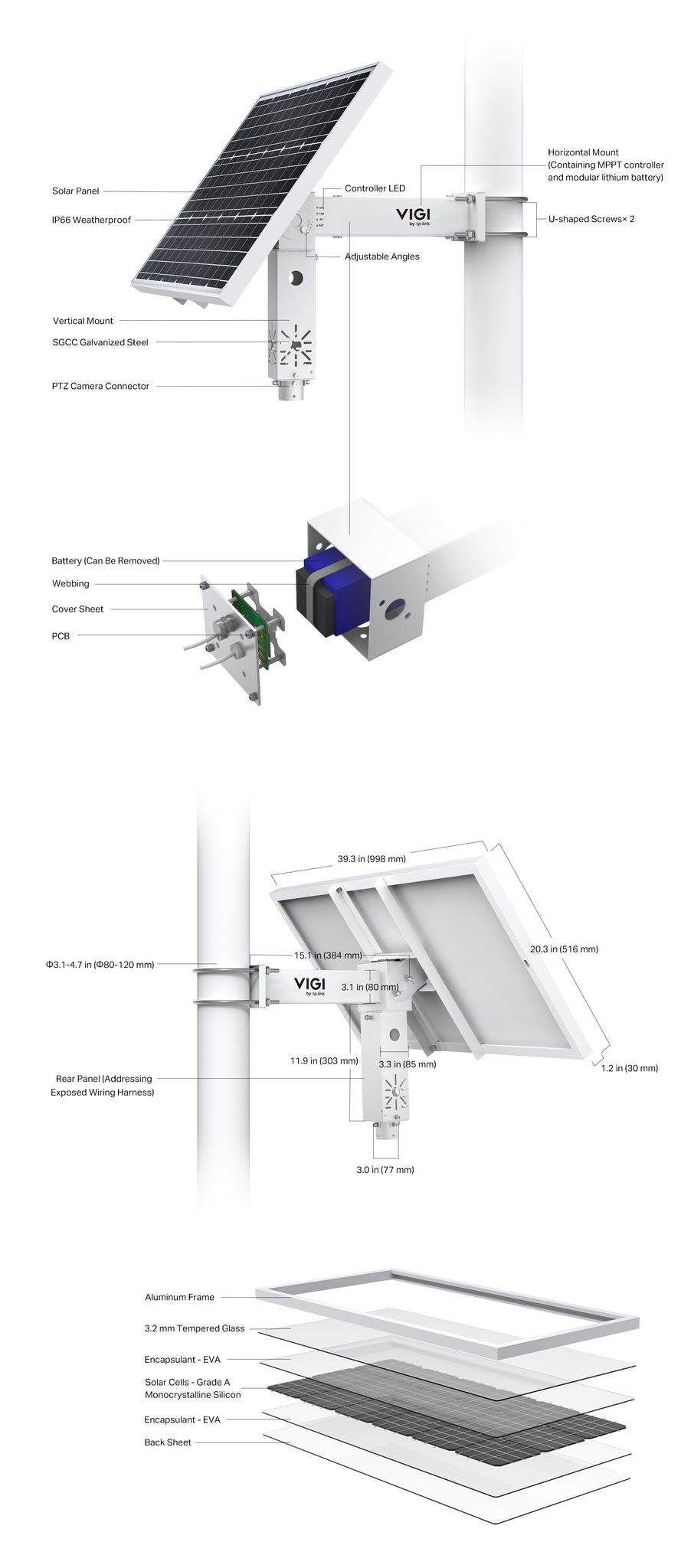

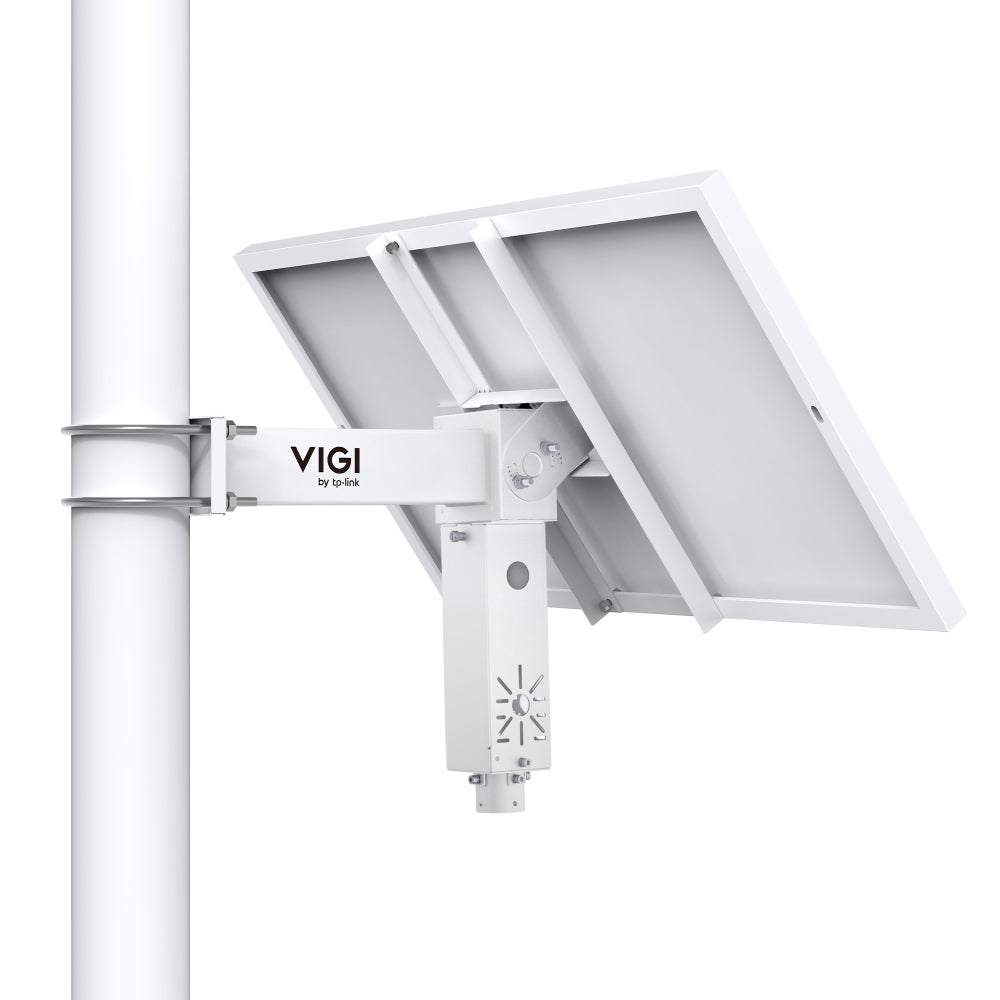

The system is IP66 weatherproof and rated for hail of 25 mm diameter at 23 m/s. The mount adjusts the panel to 5, 15, 25, 35, 45 or 55 degrees and fits poles of 80 to 120 mm diameter.
Ideal For
Singapore construction sites, parks, farms, temporary works, perimeters and remote gates where a single 4G camera or bridge needs reliable power without trenching mains cable. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
VIGI SP9030 Datasheet — Technical Specifications
General
| Model | VIGI SP9030 |
| Official Product Name | VIGI Intelligent Solar Power Supply System |
| Brand | TP-Link VIGI |
| Kit Composition | 1x VIGI Solar Panel 90W + 1x VIGI PS30 |
| Warranty | 5 Years Local Warranty (Singapore); battery 2 years |
Solar Panel
| Power | 90 W |
| Voltage | 18 V |
| Dimensions | 998 x 516 x 30 mm (39.3 x 20.3 x 1.2 in) |
| Grade / Efficiency / Lifespan | Grade A; 21.6% conversion efficiency; 25+ years |
Battery
| Type | Lithium, intelligent auxiliary heat |
| Capacity | 31.2 Ah |
| Voltage | 10.8 V; max output voltage 12.6 V |
| Life | More than 500 cycles |
| Dimensions | 242 x 70 x 65 mm (9.5 x 2.8 x 2.6 in) |
| Charging Condition | 0 to 45 C; -30 to 45 C with intelligent auxiliary heating |
| Discharging Condition | -20 to 60 C; -30 to 60 C with intelligent auxiliary heating |
Hardware
| Interfaces | 1x 10/100 Mbps RJ45; 1x photovoltaic panel connector; 3x 5.5 mm DC power plugs (#1, #2: 9-12.6 V DC / 2 A; #3: 12 V DC / 2 A) |
| Indicators | 4 blue LEDs: 1x SYS, 1x LAN, 1x PV, 1x BAT |
| Angle Adjustment (Manual) | 5 / 15 / 25 / 35 / 45 / 55 deg |
| Compatible Pole Diameter | 80-120 mm (3.1-4.7 in) |
Software Features
| Load Control | Yes |
| Protection | High and low temperature protection; over-discharge protection |
| Monitoring | Power consumption statistics; real-time load status; battery level display |
| Management | Time zone selection, schedule saving, firmware remote update, remote reboot, local LAN management, account management, remote reset, remote message push |
| Region Selection | N/A |
| Intelligent Auxiliary Heating Control | -30 to 5 C |
Physical and Environment
| Weight | Product 17.5 kg; package 20 kg |
| Box Dimensions (W x D x H) | 1110 x 615 x 225 mm (43.7 x 24.2 x 8.9 in) |
| Protection | IP66 weatherproof; hail resistance 25 mm at 23 m/s |
| Operating Temperature | -30 to 60 C (with intelligent auxiliary heating) |
| Operating Humidity | 10-90% RH, non-condensing |
| Certification | CB, PSE (battery); CE, FCC, VCCI, IC, IP66 |
Published Notes
TP-Link's runtime and on-load charge figures are calculated on New York's estimated 3.72 daily sunshine hours and the average consumption of the load equipment; actual results vary with region, season, equipment consumption and panel angle. On-load charge days is the time to charge the battery from 0% to 100% under load. A cycle is one full charge and discharge. TP-Link's product images show cameras and access points for illustration; these are not included.
Compatibility & Software Support
| Loads | Low-voltage devices on the three 5.5 mm DC outputs (9-12.6 V DC / 2 A on #1 and #2; 12 V DC / 2 A on #3) — for example VIGI 4G cameras and wireless bridges |
| VIGI App / VIGI Cloud VMS | Remote monitoring of power, low-battery alerts, event notifications, firmware update and reboot |
| Local Management | Local LAN management via the 10/100 Mbps RJ45 port |
| Omada SDN Controller | Not applicable — managed through VIGI tools |
Package Contents & Ordering Information
What's in the Box
| Kit Contents | 1x VIGI Solar Panel 90W + 1x VIGI PS30 |
| Package Contents | VIGI SP9030, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
Cameras, access points and other load devices are not included.
Ordering Information
| Model | VIGI SP9030 |
| Recommended Retail Price (incl. GST) | S$1099.00 |
| Warranty | 5 Years Local Warranty (Singapore); battery 2 years |
Datasheet & Downloads
Frequently Asked Questions — VIGI SP9030
How long will it run without sun?
TP-Link publishes 10.0 days on consecutive rainy days with a 4G camera, 2.6 days with a wireless bridge and bullet camera, and 1.7 days with a bridge and multiple cameras, based on New York sunshine hours. Send us your devices and we will check the sizing; a larger load may suit the two-panel VIGI SP18090.
Can it be managed remotely?
Yes. Power, battery level, alerts, firmware updates and reboots are handled through the VIGI app or VIGI Cloud VMS.
What warranty does SourceIT provide?
5 years local Singapore warranty on the system, with the battery covered for 2 years, and a GST invoice on every order.
Is stock held locally?
Anything not in local stock is brought in on indent — ask SourceIT for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
