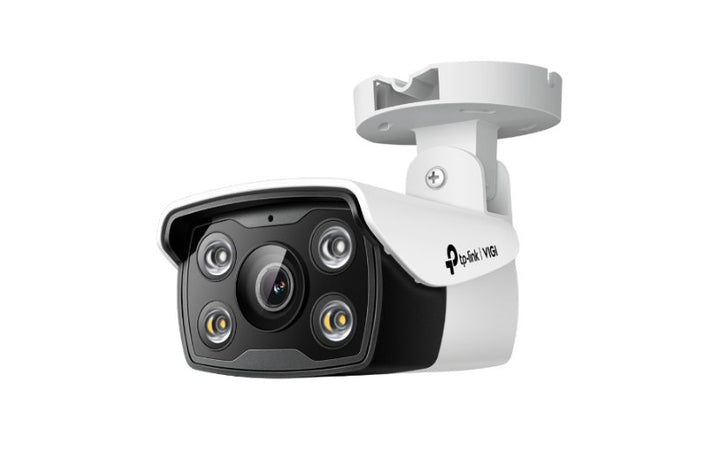

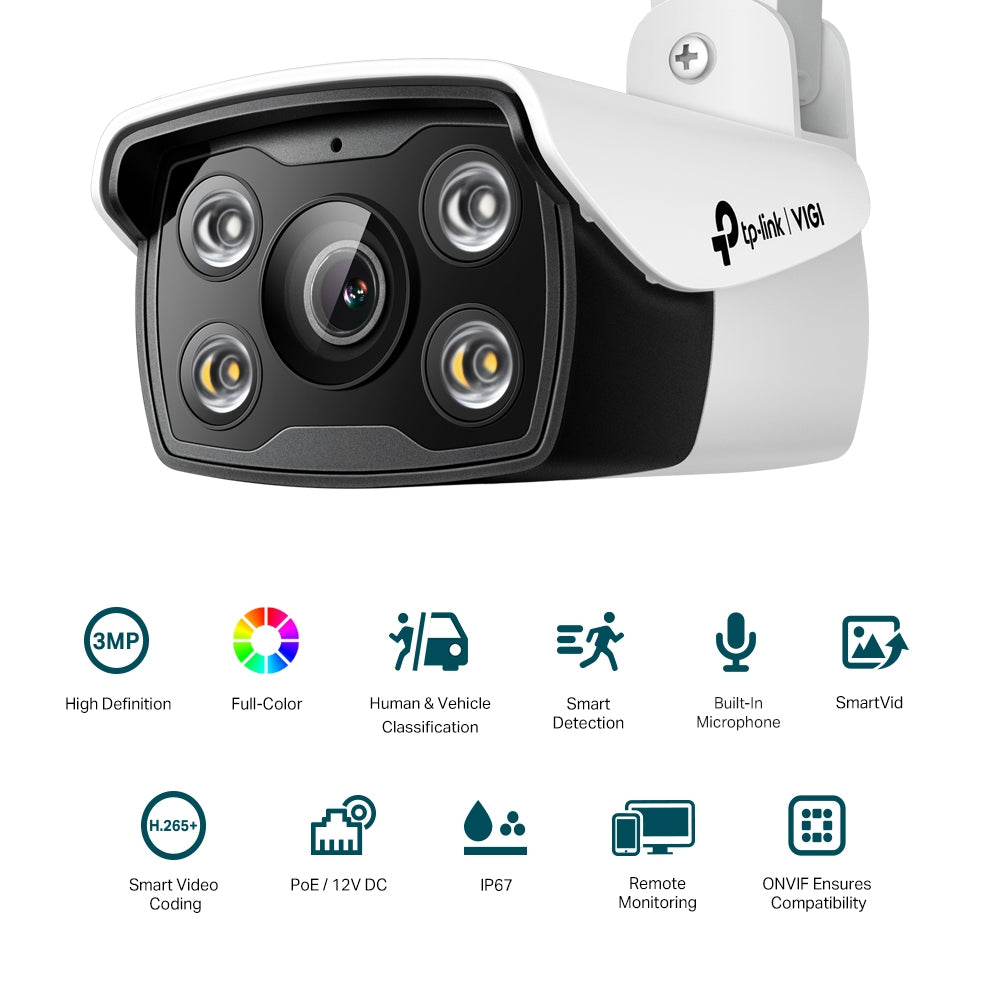

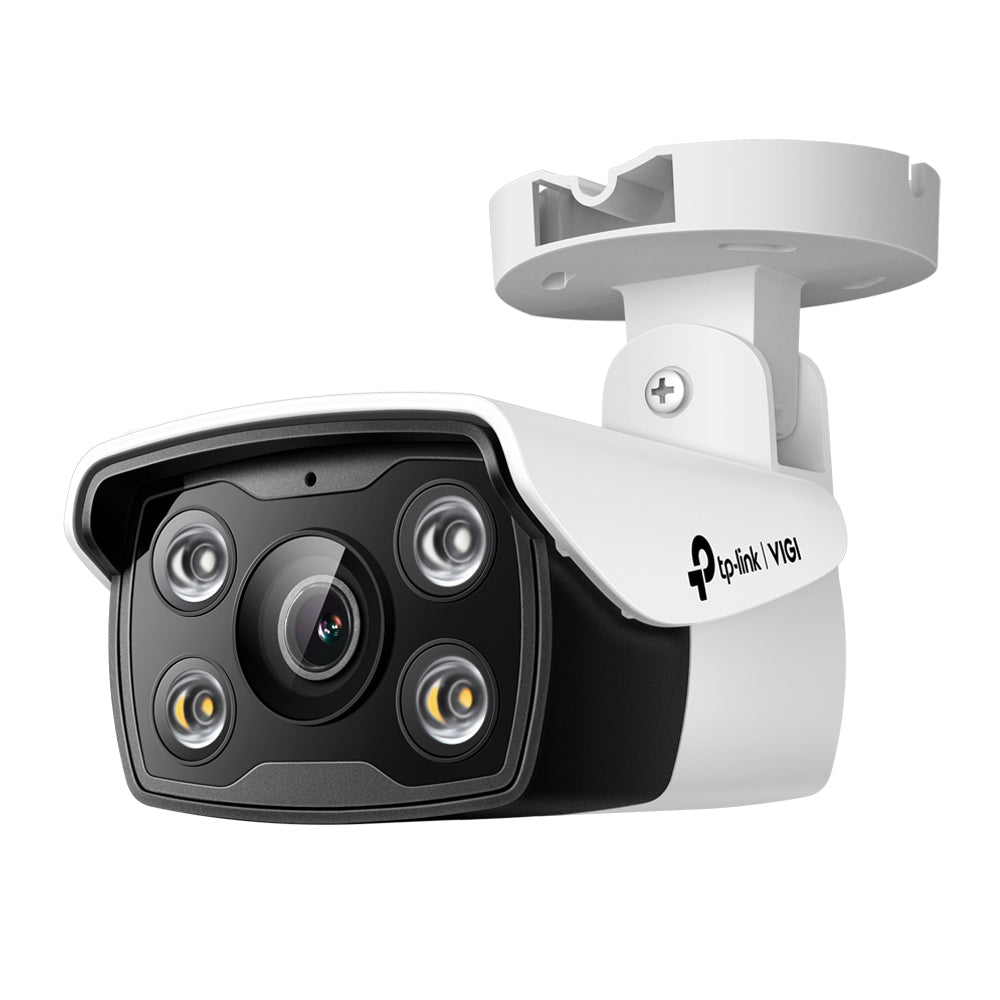

TP-Link VIGI C330 3MP Outdoor Full-Color Bullet Network Camera, 6mm Lens

TP-Link VIGI 3MP Outdoor Full-Color Bullet Network Camera, 6 mm Lens (VIGI C330) - 3 Years Local Warranty

The VIGI C330 records 2304x1296 at up to 25 fps and keeps colour after dark using two white LEDs alongside two IR LEDs, both reaching 30 m. The IP67 plastic body suits exposed Singapore mounting, and human and vehicle classification runs on the camera. This is the 6 mm long-reach version, which identifies a face to 10 m. It is a PoE camera with no on-board card slot, so it needs a recorder.

Full-Colour Night Vision, Not Just Infrared

Two 850 nm IR LEDs give monochrome vision to 30 m, and two white LEDs give full-colour vision to the same distance. Illuminator behaviour is set to auto, scheduled, always on or always off, so the white light can be reserved for alarm events instead of burning all night. Minimum illumination is 0.005 Lux, falling to 0 Lux with either illuminator active, and white-light flashing is one of the two published alarm linkages on this model.

6 mm Long-Reach Coverage

The fixed 6 mm F1.6 lens gives a 55.1 degree horizontal, 30.2 degree vertical and 64 degree diagonal field of view — the narrowest of the three C330 lens options. DORI distances at 6 mm are detect 100 m, observe 41 m, recognise 20 m and identify 10 m. Choose this lens for long driveways, fence lines, car park aisles and approach roads where you need to tell people apart at distance. The 2.8 mm and 4 mm versions trade that reach for width.

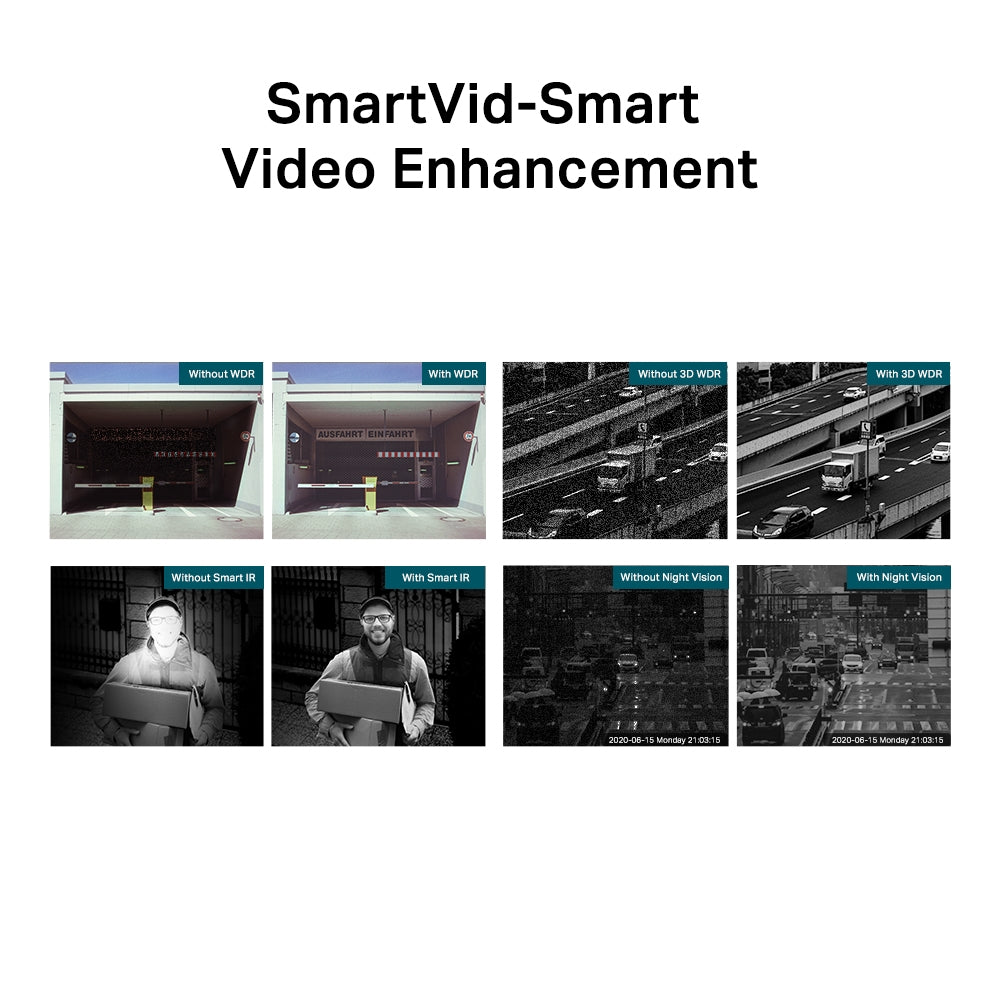

3MP Recording and DWDR

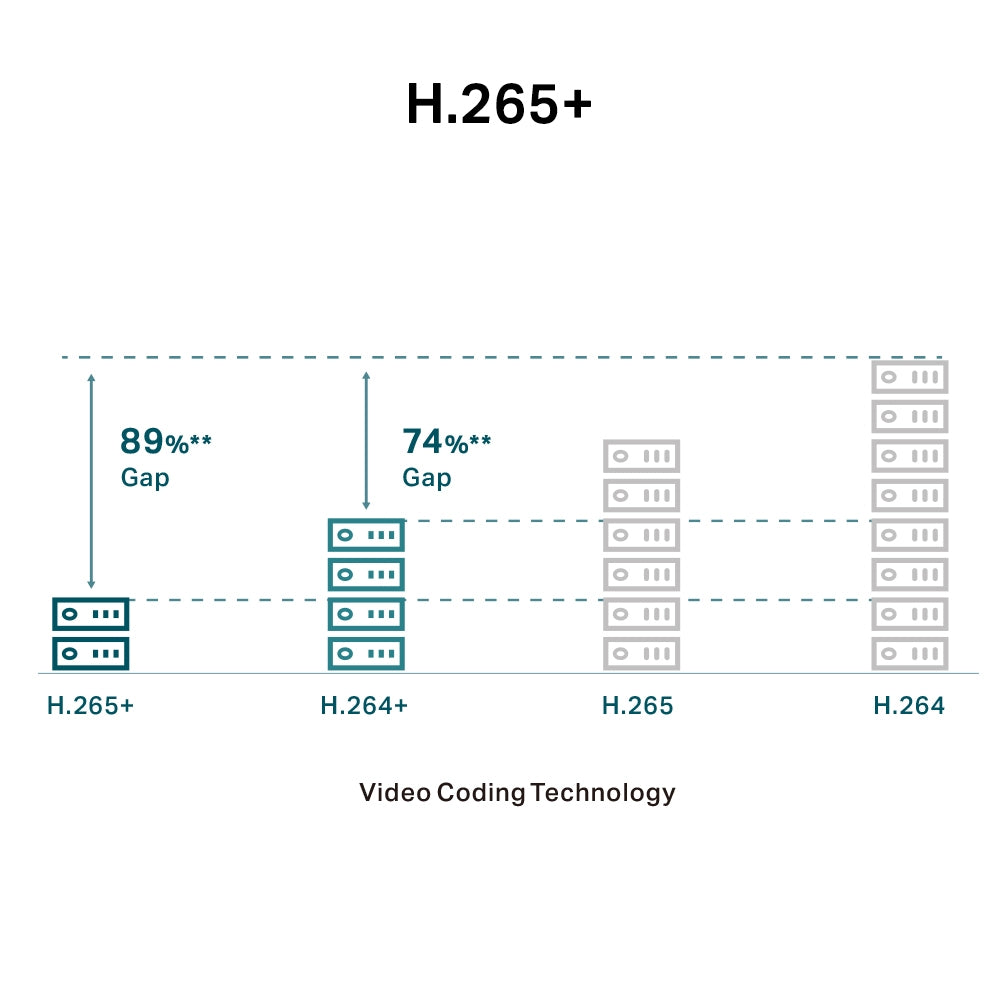

Maximum resolution is 2304x1296, with 2048x1280, 1920x1080 and 1280x720 also available, at 1, 5, 10, 15, 20 or 25 fps. Main-stream encoding is H.265+, H.265, H.264+ or H.264 at 256 Kbps to 4 Mbps; the sub-stream runs H.265 or H.264 at 64 Kbps to 512 Kbps. Note that TP-Link publishes DWDR on this model and not a 120 dB WDR figure — if you need true 120 dB WDR for a backlit doorway, look at the C345 or C385 instead.

Smart Detection With Push Alerts

Smart events cover human and vehicle classification, area intrusion, line crossing, people detection, vehicle detection, region entering and exiting, object abandoned and object removal. Basic events cover motion detection, video tampering and illegal login. TP-Link publishes only two alarm linkages here — white light flashing and message push — and does not publish loitering, abnormal sound or scene change detection for this model, nor the attribute-search feature found on the C345 and C385.

IP67 Housing, PoE Powered, Recorder Required

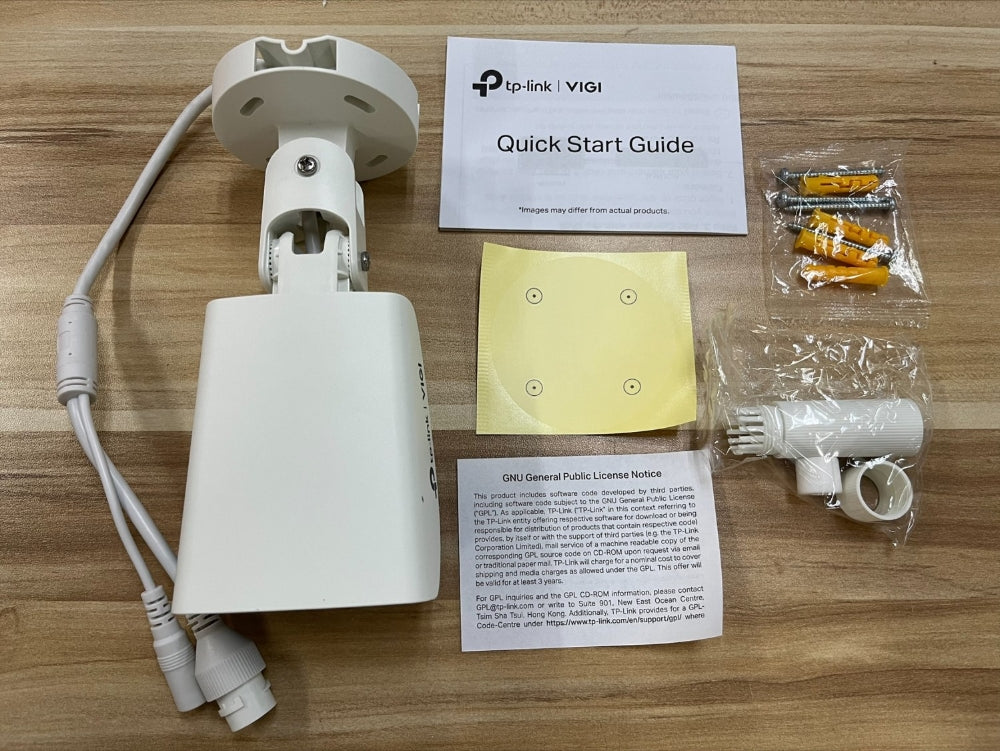

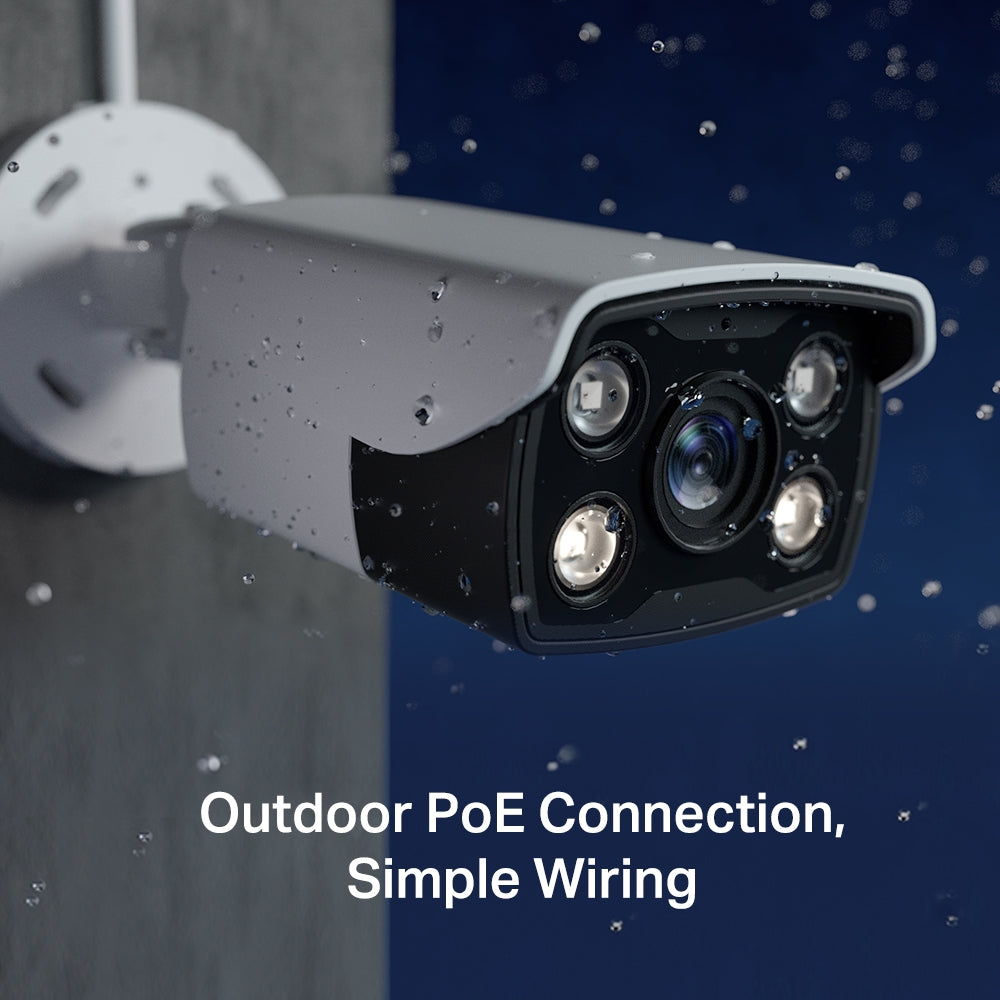

The 174 x 78 x 71 mm plastic housing is IP67 rated and rated for -30 to 60 C, and waterproof cable attachments are in the box. One RJ-45 10/100 Mbps port carries 802.3af/at class 0 PoE at up to 6 W, or the camera runs from 12 V DC at up to 5.5 W — notably frugal. TP-Link publishes on-board storage as N/A on this model, so there is no microSD slot: plan on a VIGI or ONVIF recorder for retention. Manual adjustment is pan and tilt, each -90 to 90 degrees.

Ideal For

Singapore fence lines, long driveways, car park aisles and perimeter approaches where reach matters more than width, on sites that already have a VIGI or ONVIF recorder to hold the footage. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
