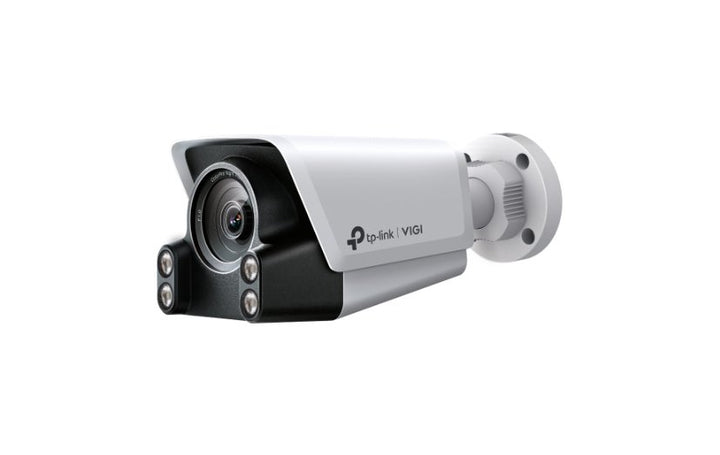

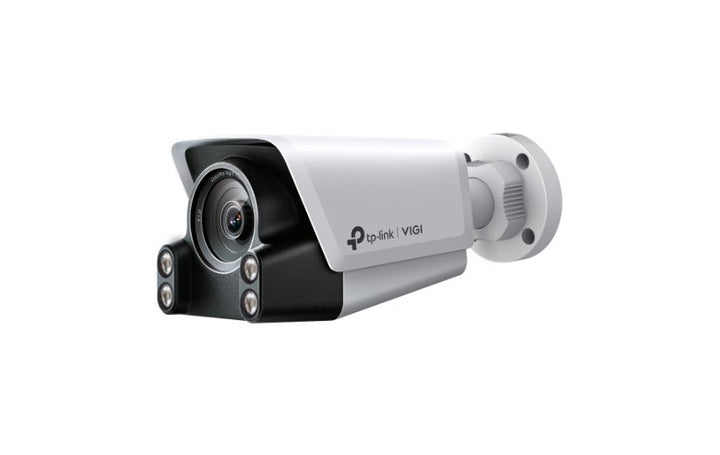

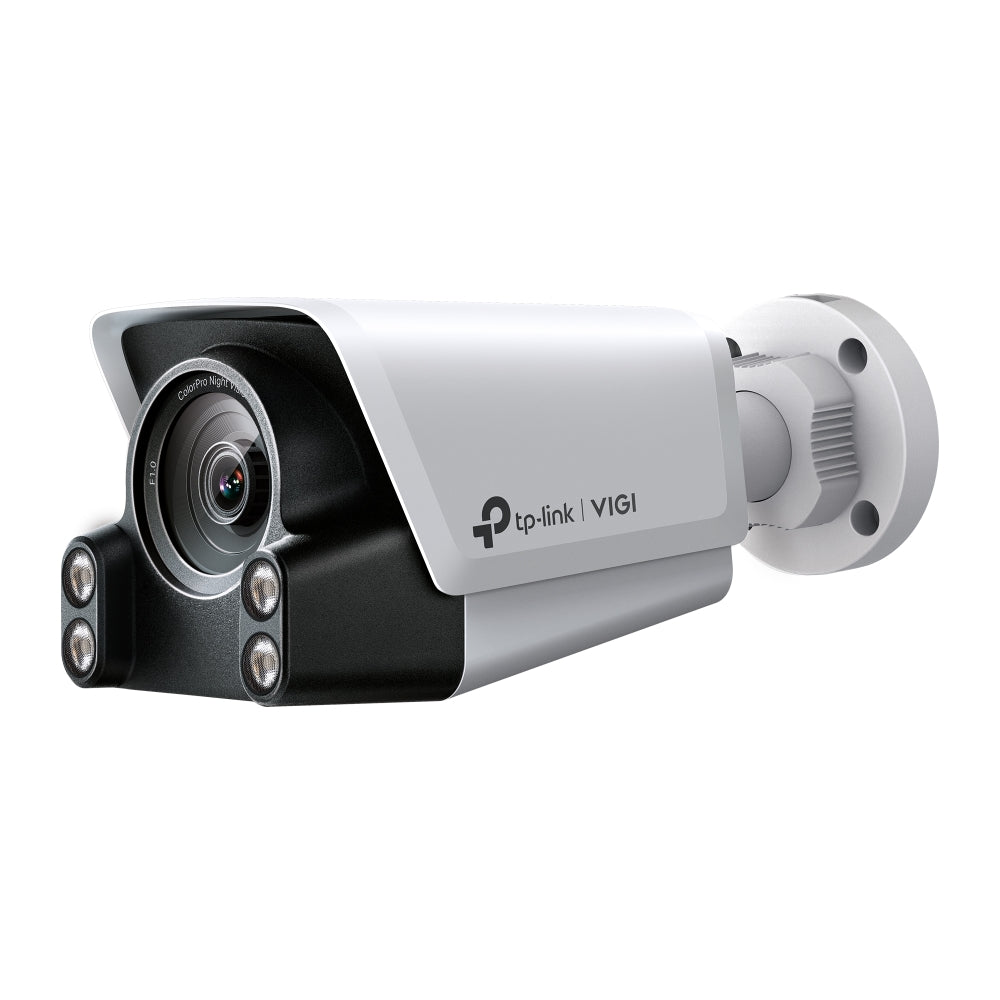

TP-Link VIGI C340S 4MP Outdoor ColorPro Night Vision Bullet Network Camera, 4mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 4MP Outdoor ColorPro Night Vision Bullet Network Camera (VIGI C340S 4mm) - 3 Years Local Warranty
The TP-Link VIGI C340S is a 4MP (2688 x 1520) outdoor bullet camera built around ColorPro night vision: a large 1/1.8" sensor and an F1.0 lens record colour video in very low light, with a stated minimum illumination of 0.0005 Lux, and four white LEDs reach 30 m when extra light is needed. It adds two-way audio, human and vehicle classification, People & Vehicle Analytics and an IP67 housing, and runs from PoE (802.3af/at) or 12V DC.
ColorPro Low-Light Colour Imaging

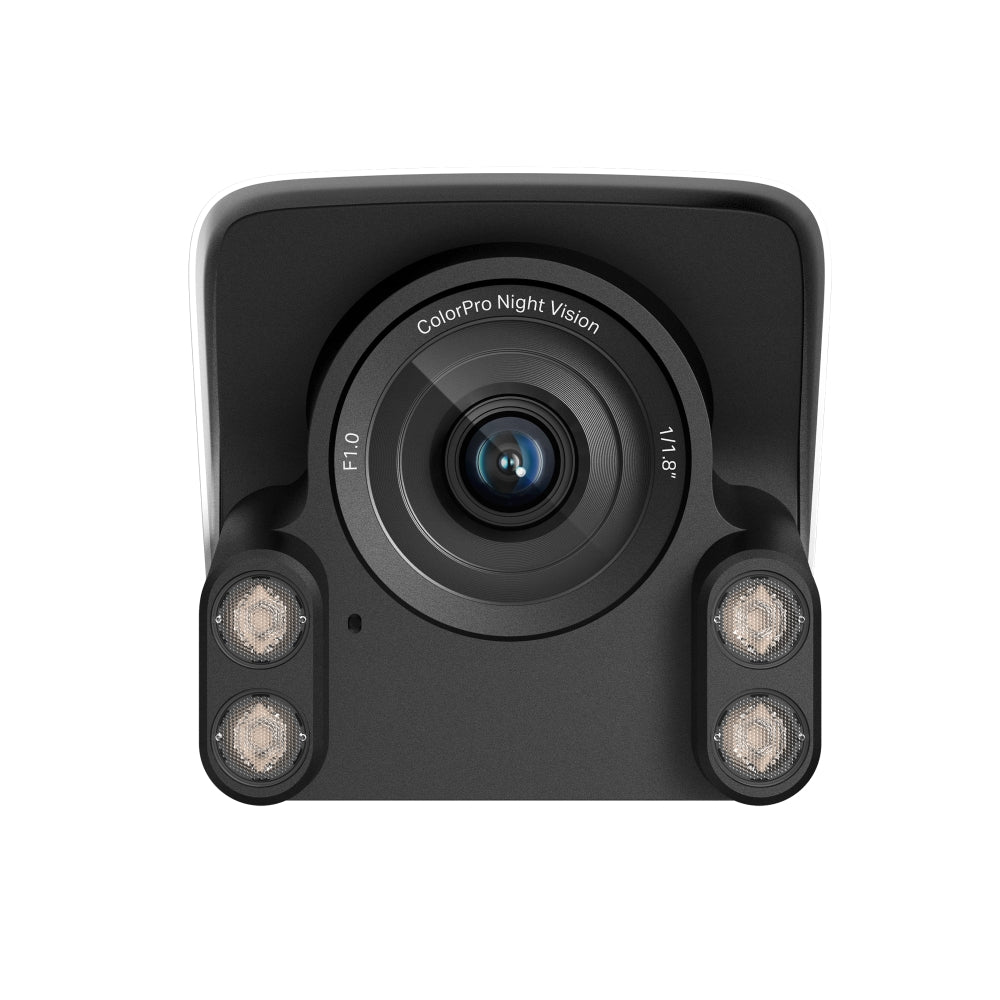

TP-Link pairs a 1/1.8" progressive-scan sensor with an F1.0 aperture so the C340S can produce colour images in ultra-low light without switching to infrared. It has no IR LEDs; four white LEDs provide supplementary light up to 30 m and can be set to auto, scheduled, always on or always off.
People & Vehicle Analytics and Smart Detection
Human and vehicle classification, area intrusion, line-crossing, region entering and exiting, loitering, abandoned and removed object and scene change detection are built in. With VIGI specified software, recorded footage can be searched by person or vehicle attributes.
Two-Way Audio and Active Deterrence
A built-in microphone and speaker support live conversation from the VIGI app, and events can trigger an audible warning and flashing white light.
IP67 Outdoor Housing and H.265+
A metal front and plastic rear cover carry an IP67 rating for outdoor mounting, and H.265+ compression reduces storage and network load. A microSD slot takes cards up to 256 GB (not included).
Ideal For
Car parks, driveways, perimeters, loading bays and building frontages with little or no ambient light at night, where colour evidence of vehicles and clothing is valuable. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C340S 4mm Datasheet — Technical Specifications
General
| Model | VIGI C340S 4mm |
| Official Product Name | VIGI 4MP Outdoor ColorPro Night Vision Bullet Network Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.0005 Lux; 0 Lux with white light |
| Day/Night Mechanism | NA |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.0 |
| FOV | Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7° |
| Lens Mount | M16*P 0.5 |
| DORI Distance | Detect: 70 m (231 ft) Observe: 29 m (96 ft) Recognize: 14 m (46 ft) Identify: 7 m (23 ft) |
| Angle Adjustment (Manual) | Pan: -90° to 90° Tilt: -90° to 90° |
Illuminator
| IR LED | N/A |
| White LED | Quantity: 4 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2688 x 1520 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 705x576, 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Third Stream | Frame Rate: 15fps Resolution: 1280x720 |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm & Event Management
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Scene Change Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login), Scene Change Detection |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
Deep Learning Function
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. (Must be used with VIGI specified software.) |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB (SD card is not included in the package) |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
General
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Front Cover: Metal Back Cover: Plastic |
| Power Supply | 12V DC ± 5%, Max. 10.1 W, 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 11.5 W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 102 x 236 x 99 mm |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
TP-Link publishes no net or gross weight for the VIGI C340S. The C340S is listed by TP-Link with a 4 mm lens only.
Compatibility & Software Support
| Management | VIGI App, VIGI Security Manager, Web UI |
| Cloud | Yes |
| Third-Party Integration | ONVIF (Profile S) |
| On-Camera Storage | MicroSD card up to 256 GB (not included) |
| Power | PoE 802.3af/at or 12V DC |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
Package Contents & Ordering Information
Package Contents
| In the Box | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
Ordering Information
| Model | VIGI C340S 4mm |
| SKU | VIGI C345 (6mm) |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C340S
What warranty does SourceIT provide?
The VIGI C340S 4mm is supplied by SourceIT with 3 years local warranty (Singapore), backed by TP-Link Singapore. Keep your GST invoice as proof of purchase for any warranty claim.
How is ColorPro different from IR night vision?
IR cameras switch to black-and-white at night. The C340S has no IR LEDs; its large sensor and F1.0 lens are designed to keep producing colour images in very low light, with four white LEDs for supplementary light when required.
Is it suitable for outdoor installation?
Yes. TP-Link rates it IP67 with an operating range of -30 to 60 °C, and waterproof cable attachments are included.
How is it powered?
By 802.3af/at PoE (max. 11.5 W) from a PoE switch or PoE NVR, or by a 12V DC adapter (max. 10.1 W). A DC adapter is not listed in the package contents.
Can SourceIT quote this for an office or a project?
Yes. SourceIT can quote the VIGI C340S 4mm in quantity together with VIGI network video recorders, PoE switches, hard drives and cabling for offices, shops, warehouses and multi-site projects. Contact our sales team with your camera count and site details for a consolidated quotation with GST invoice.
