TP-Link VIGI C450 5MP Full-Color Turret Network Camera, 4mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 5MP Full-Color Turret Network Camera (VIGI C450 4mm) - 3 Years Local Warranty

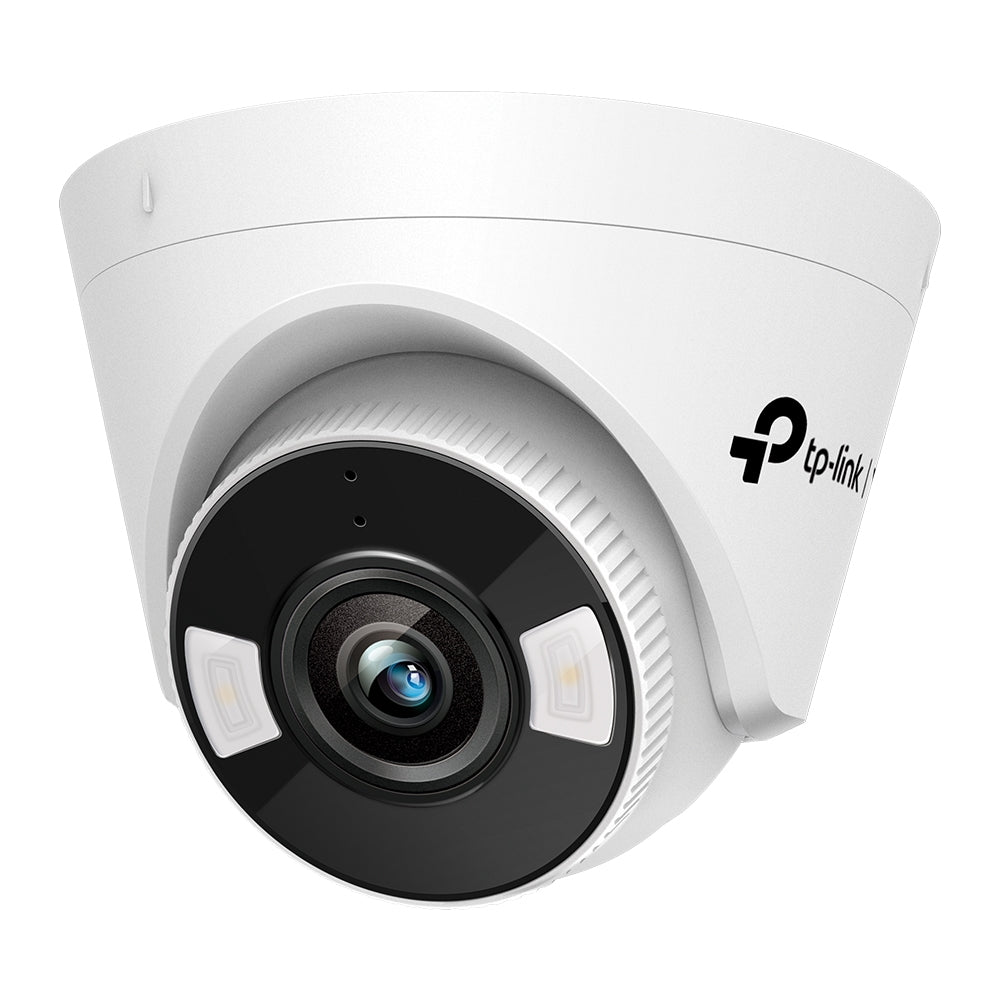

The TP-Link VIGI C450 is a 5MP (2880 x 1620) turret camera with a 4 mm F1.6 fixed lens, combined IR and white-light illuminators for 24-hour colour images up to 30 m, two-way audio and active sound-and-light deterrence. It supports human and vehicle classification, People & Vehicle Analytics and microSD recording up to 256 GB, and runs from PoE (802.3af/at) or 12V DC.
5MP Resolution with 24-Hour Full Colour
A 1/2.7" sensor, large-aperture F1.6 lens and paired IR and white LEDs deliver colour footage in darkness, with a stated minimum illumination of 0.005 Lux.
Comprehensive AI Detection

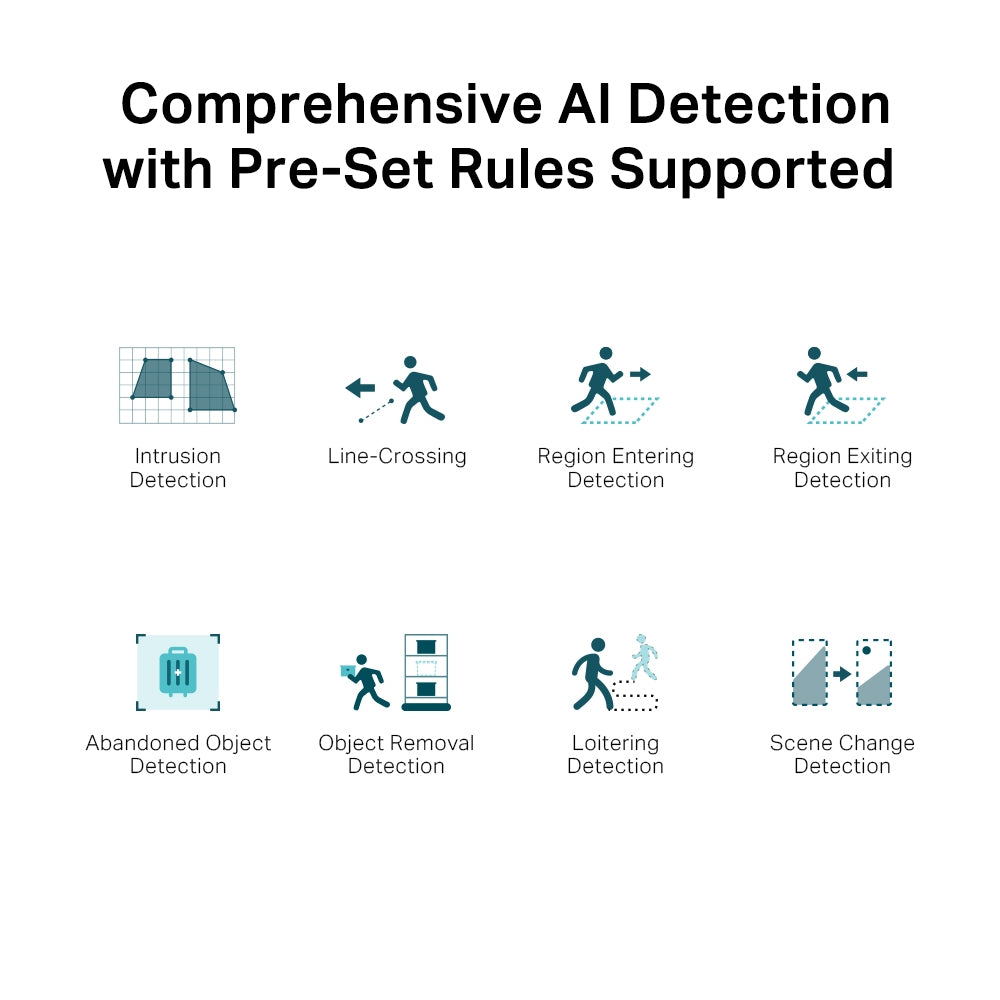

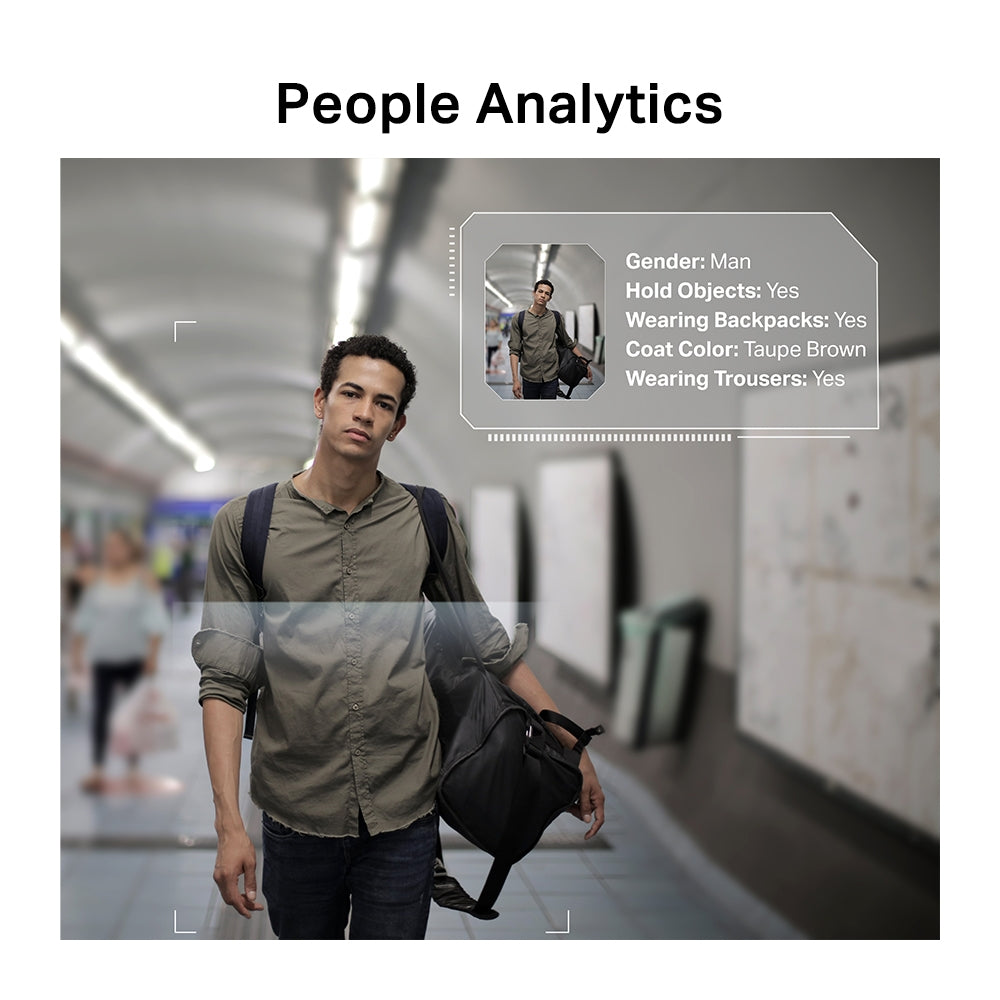

Human and vehicle classification reduces false alarms, and intrusion, line-crossing, region entering and exiting, loitering, abandoned and removed object and scene change rules are built in. People & Vehicle Analytics lets you filter recorded footage by attributes such as clothing colour or vehicle type.
Active Defence and Two-Way Audio
When an event is detected the camera can sound an audible warning and flash its white light, and the built-in microphone and speaker support live conversation through the VIGI app.
Corridor Mode and H.265+
90°/270° image rotation switches to a 9:16 view for aisles and corridors, and H.265+ compression reduces storage and bandwidth on the main stream.
Ideal For
Reception areas, retail aisles, corridors, warehouses and covered entrances in offices and shops where colour identification at night is needed. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C450 4mm Datasheet — Technical Specifications
General
| Model | VIGI C450 4mm |
| Official Product Name | VIGI 5MP Full-Color Turret Network Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/white light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
| Angle Adjustment (Manual) | Pan: 0° to 360°, Tilt: 0° to 85° |
Illuminator
| IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 2 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2880 x 1620 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile (see tile-encoding note below) |
| H.265+ | Main Stream Supported (see tile-encoding note below) |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm & Event Management
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login), Scene Change Detection |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
Deep Learning Function
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| Multi-Target-Type Detection | Supports Simultaneous Detection and Capture of Human Body and Vehicle |
| Face Capture | N/A |
| Face Comparison | N/A |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB (SD card is not included in the package) |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
General
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Plastic |
| Net Weight | 0.24 Kg |
| Gross Weight | 0.4 Kg |
| Power Supply | 12V DC ± 5%, Max. 9 W, 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 10.5 W |
| Protection | N/A |
| Product Dimensions (L x W x H) | 123 x 84 x 123 mm |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
TP-Link lists Protection as N/A for the VIGI C450 and publishes no IP or IK rating. The VIGI C450 is also available with a 2.8 mm lens.
TP-Link note on H.265: tile encoding is automatically enabled in H.265 mode when the horizontal resolution exceeds 2688. If a third-party NVR does not support tile encoding, it cannot enable H.265 mode; TP-Link recommends using a VIGI NVR with VIGI cameras.
Compatibility & Software Support
| Management | VIGI App, VIGI Security Manager, Web UI, NVR UI |
| Cloud | Yes |
| Third-Party Integration | ONVIF (Profile S); see the H.265 tile-encoding note in the datasheet |
| Recommended Recorder | VIGI NVR |
| On-Camera Storage | MicroSD card up to 256 GB (not included) |
| Power | PoE 802.3af/at or 12V DC |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
Package Contents & Ordering Information
Package Contents
| In the Box | VIGI Network Camera Quick Start Guide Mounting Accessories |
Ordering Information
| Model | VIGI C450 4mm |
| SKU | VIGI C450 |
| Other Focal Lengths | 2.8 mm |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C450
What warranty does SourceIT provide?
The VIGI C450 4mm is supplied by SourceIT with 3 years local warranty (Singapore), backed by TP-Link Singapore. Keep your GST invoice as proof of purchase for any warranty claim.
Is the VIGI C450 weatherproof?
TP-Link lists Protection as N/A and publishes no IP rating for the C450, so it is best suited to indoor or sheltered positions. For exposed outdoor use, consider an IP67-rated VIGI model.
Can it work with a third-party NVR?
It supports ONVIF Profile S. TP-Link notes that above 2688 horizontal resolution H.265 uses tile encoding, which some third-party NVRs cannot decode; in that case use H.264 or a VIGI NVR.
Does it record to a memory card?
Yes. It has a microSD slot supporting cards up to 256 GB (card not included) and can record on events as an alarm linkage.
Can SourceIT quote this for an office or a project?
Yes. SourceIT can quote the VIGI C450 4mm in quantity together with VIGI network video recorders, PoE switches, hard drives and cabling for offices, shops, warehouses and multi-site projects. Contact our sales team with your camera count and site details for a consolidated quotation with GST invoice.
