TP-Link VIGI C340I 4MP Outdoor IR Bullet Network Camera, 4mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

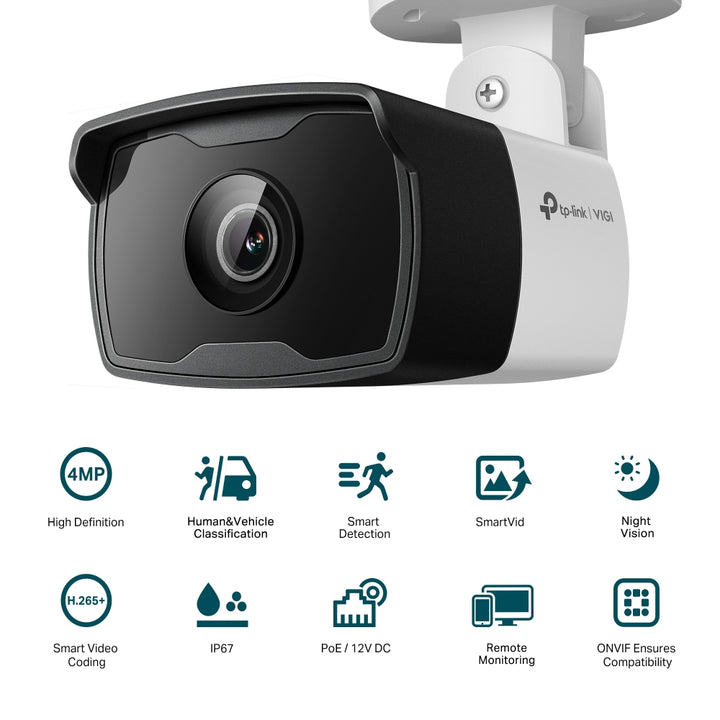

TP-Link VIGI 4MP Outdoor IR Bullet Network Camera (VIGI C340I 4mm) - 3 Years Local Warranty
The TP-Link VIGI C340I is a 4MP outdoor bullet network camera with a 4 mm fixed lens, 50 m IR night vision, human and vehicle classification and an IP67 weatherproof housing. It runs on PoE or 12V DC and can be managed through the web UI, a VIGI NVR, the VIGI app or VIGI Security Manager.
4MP Resolution with Smart IR Night Vision
A 1/3" progressive scan CMOS sensor records at up to 2560 x 1440. Two 850 nm IR LEDs give a stated IR range of 50 m, and Smart IR, DWDR and 3D DNR help keep night and backlit scenes usable.
4 mm Fixed Lens
The 4 mm lens balances coverage and detail (75.2° horizontal), suited to building perimeters, loading bays and mid-sized outdoor areas.
Human & Vehicle Classification and Smart Detection
On-camera analytics separate people and vehicles from other movement for more accurate alerts, with intrusion, line-crossing, region entering/exiting, object abandoned/removal and abnormal sound detection.
Weatherproof, with PoE or 12V DC Power
The bullet housing is rated IP67 and TP-Link states an operating range of -30 to 60 °C. Power it from an 802.3af/at PoE switch over a single cable, or from a 12V DC supply. Ceiling, wall and pole mounting are supported.
Ideal For
Outdoor perimeters, car parks, warehouse yards, shopfronts and building entrances in small and medium businesses, recording to a VIGI NVR or managed through the VIGI app and VIGI Security Manager. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C340I 4mm Datasheet — Technical Specifications
General
| Model | VIGI C340I(4mm) |
| Official Product Name | VIGI 4MP Outdoor IR Bullet Network Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F2.0 |
| FOV | Horizontal FOV: 75.2°, Vertical FOV: 40.8°, Diagonal FOV: 88.3° |
| Lens Mount | M12 |
| DORI Distance | Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
Angle Adjustment (Manual)
| Range | Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360° |
Illuminator
| IR LED | Quantity: 2 Range: 50m Wavelength: 850nm |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2560 x 1440 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned/Removal Detection Abnormal Sound Detection People Detection Vehicle Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) Video Tampering Detection Exception (Illegal Login) |
| Alarm Linkage | Message Push |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | DC Power Port |
| On-board Storage | N/A |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | N/A |
General
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Plastic |
| Net Weight | 0.28 Kg |
| Gross Weight | 0.43 Kg |
| Power Supply | 12V DC ± 5%, Max. 5 W, 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 5.5 W |
| Protection | IP67 Waterproof |
| Product Dimensions (L x W x H) | 78.50 x 188.03 x 71.55 mm (3.09 x 7.40 x 2.82 in) |
| Certifications | CE, NTRA, VCCI, BSMI |
TP-Link lists the aperture, field of view and DORI distances separately for the 2.8 mm, 4 mm and 6 mm versions; only the figures for this lens are shown above. TP-Link publishes no mean-time-between-failures figure or IK impact rating for the C340I.
Compatibility & Software Support
| Management | Web UI, VIGI NVR UI, VIGI app and VIGI Security Manager |
| Client (spec table) | VIGI App, VIGI Security Manager, Web UI |
| ONVIF | Yes — Open Network Video Interface (Profile S) |
| Cloud | Yes |
| Web Browser | Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above |
| On-board Storage | N/A — recording is to a network video recorder |
| Power | 802.3af/at PoE (class 0, max. 5.5 W) or 12V DC ± 5% (max. 5 W) |
Package Contents & Ordering Information

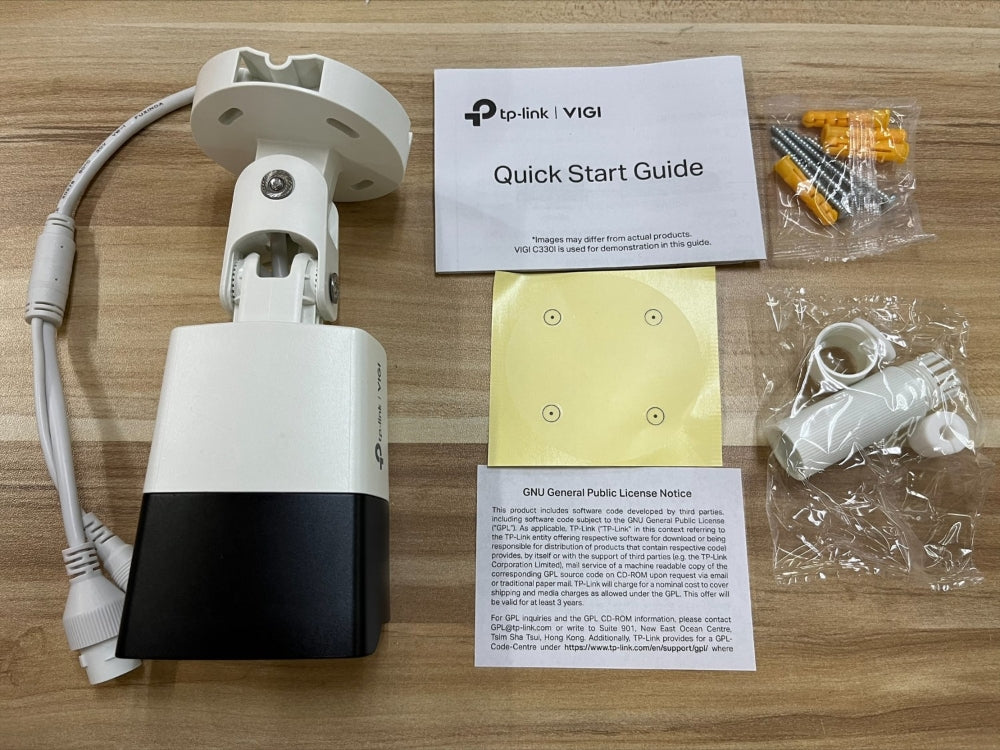

Package Contents
| 1 | VIGI Network Camera |
| 2 | Quick Start Guide |
| 3 | Waterproof Cable Attachments |
| 4 | Mounting Accessories |
Ordering Information
| Model | VIGI C340I(4mm) |
| SKU | VIGI C340I |
| Warranty | 3 Years Local Warranty (Singapore) |
| Other focal lengths in this range | VIGI C340I(2.8mm), VIGI C340I(6mm) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C340I
Is the VIGI C340I suitable for outdoor use?
Yes. TP-Link rates the housing IP67 and states an operating temperature of -30 to 60 °C, with waterproof cable attachments in the box.
How far can the C340I see at night?
TP-Link states an IR range of 50 m from two 850 nm IR LEDs. For the 4 mm lens, the published detect distance is 80 m (262 ft) and the identify distance is 8 m (26 ft).
Does it need a PoE switch?
No. It can be powered by an 802.3af/at PoE switch or injector, or by a 12V DC adapter through the 5.5 mm coaxial power port. A power adapter is not listed in the package contents.
Does it have a memory card slot?
No. TP-Link lists on-board storage as N/A, so footage is recorded to an NVR such as a VIGI network video recorder.
What warranty does SourceIT provide?
The VIGI C340I is supplied with a 3 Years Local Warranty (Singapore). Keep your SourceIT invoice as proof of purchase.
Can SourceIT quote this for an office or a project?
Yes. SourceIT supplies the VIGI C340I for single sites and multi-camera projects in Singapore. Send the quantity, focal lengths and any matching VIGI recorder or PoE switch you need, and SourceIT will return a quotation with a GST invoice.
