TP-Link VIGI C440 4MP Full-Color Turret Network Camera, 4mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 4MP Full-Color Turret Network Camera (VIGI C440 4mm) - 3 Years Local Warranty

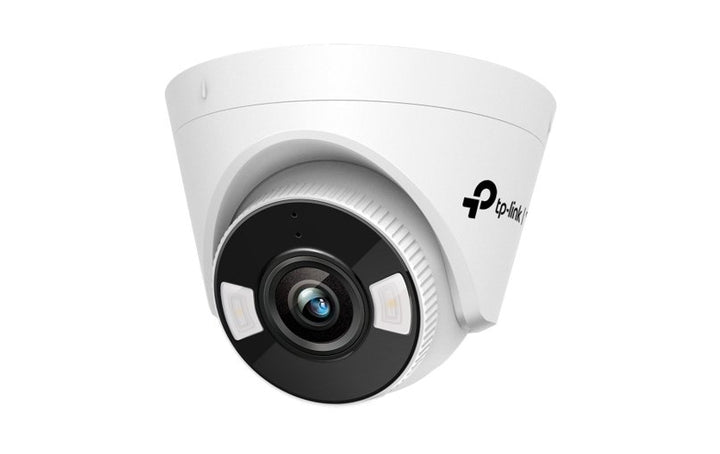

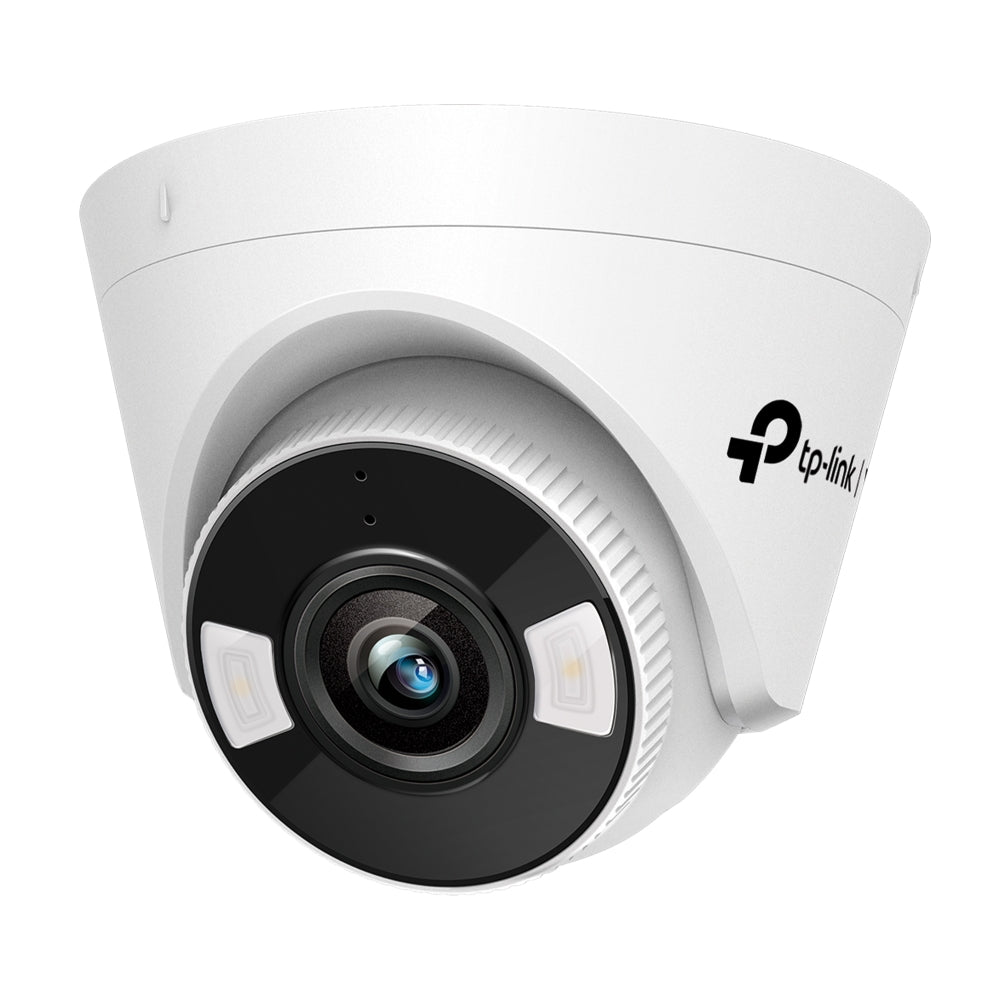

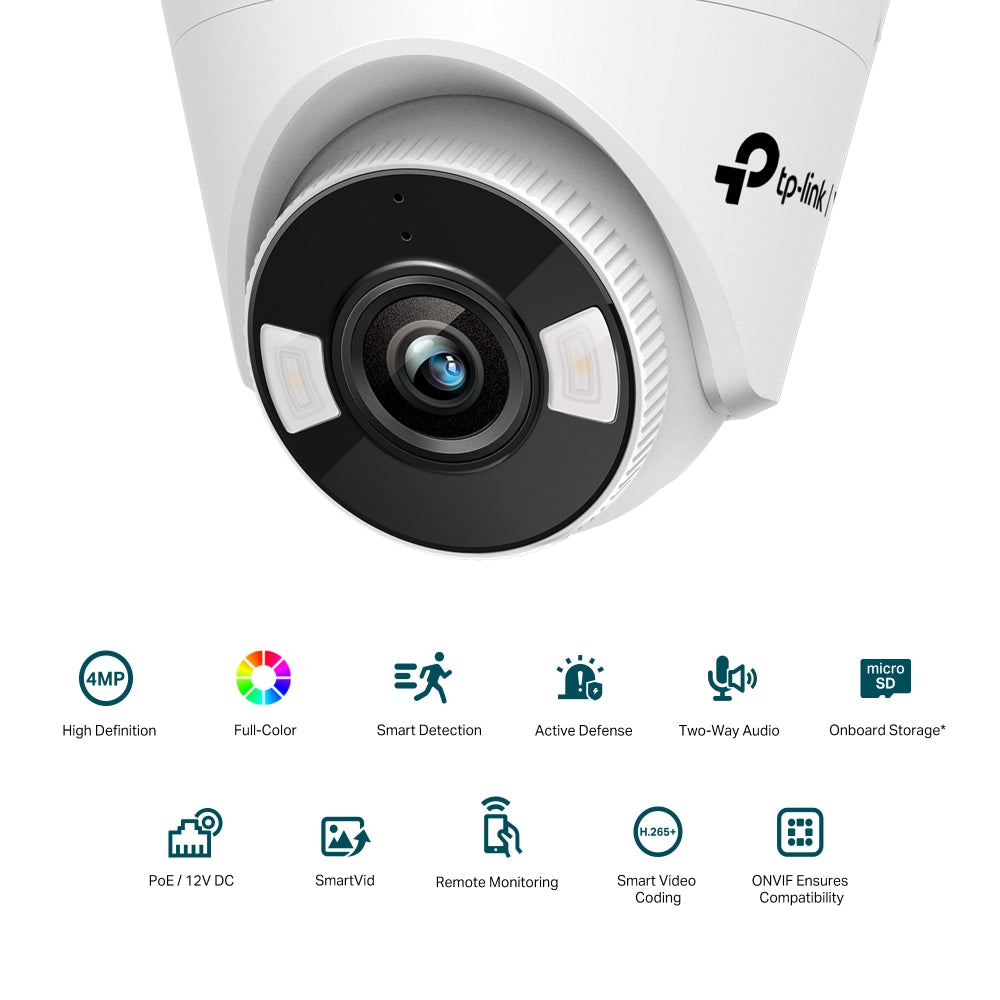

The TP-Link VIGI C440 is a 4MP turret network camera with a 4mm fixed lens, two IR LEDs and two white LEDs for 24-hour full-colour images, two-way audio through a built-in microphone and speaker, and a microSD slot for on-camera recording. It runs on PoE (802.3af/at) or 12V DC and compresses video with H.265+.
4MP Resolution with 24-Hour Full Colour
A 1/3" progressive scan CMOS sensor records up to 2560 x 1440. Two white LEDs with a 30 m range keep the image in colour at night, and two 850 nm IR LEDs, also rated to 30 m, are available for infrared night vision.
Smart Detection and Alerts
Area intrusion, line-crossing, motion and video tampering detection trigger push messages, memory card recording, an audible warning or white-light flashing.
Two-Way Audio
A built-in microphone that records within a 5 m (16.4 ft) radius and a built-in speaker allow audio monitoring and talk-back.
H.265+ and Local Storage
H.265+ on the main stream reduces bandwidth and disk use, and a built-in microSD card slot accepts cards up to 256 GB.
PoE or 12V DC Power
Power the camera over a single Ethernet cable from a PoE switch or NVR, or from a 12V DC adapter where PoE is not available.
Ideal For
Shop fronts, reception areas, offices, corridors and small warehouses where colour footage at night and two-way audio are useful. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C440 Datasheet — Technical Specifications
General
| Model | VIGI C440 4mm |
| Official Product Name | VIGI 4MP Full-Color Turret Network Camera |
| Brand | TP-Link |
| Lens Option | 4mm fixed focal lens |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0 lux with IR/white Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| Lens Mount | M12 |
| FOV | Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° |
| DORI Distance | Detect: 80 m (262 ft); Observe: 33 m (109 ft); Recognize: 16 m (52 ft); Identify: 8 m (26 ft) |
Angle Adjustment (Manual)
| Range | Pan: 0° to 360°; Tilt: 0° to 85°; Rotate: 0° to 360° |
Illuminator
| IR LED | Quantity: 2; Range: 30m; Wavelength: 850nm |
| White LED | Quantity: 2; Range: 30m |
| Illuminator On/Off Control | Unified/ Scheduled/ Auto |
Video
| Max. Resolution | 2560 x 1440 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps. Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps. Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 (Video section); 640x480, 352x288, 320x240 (Video/Image section) |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Area Intrusion Detection, Line-Crossing Detection, People Detection (Alarm section); Area Intrusion Detection, Line-Crossing Detection (Smart Feature-Set section) |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A (Alarm section); Trigger Notification: ONVIF, HTTPS (Smart Feature-Set section) |
| Output Notification | Message Push |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
Power
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug; PoE (802.3af/at, class 0) |
| Max. Power Consumption | 12V DC: Max 5.5W; PoE: Class 0 |
Physical & Environment
| Operating Temperature | -30 °C to 60 °C |
| Storage Temperature | -40 °C to 60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Dimensions | 123 x 123 x 84 mm (H x W x D); 123 x 83 x 123 mm (L x W x H) |
| Material | Plastic |
| Net Weight | 0.25 Kg |
| Gross Weight | 0.4 Kg |
| Protection | N/A |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Certifications | CE, FCC, RCM, BSMI, VCCI, RoHS |
TP-Link's product page lists some rows twice with different values (sub-stream resolutions, smart events, linkage method and dimensions); both published values are shown above. The page lists no IP or IK protection rating for this camera.
Compatibility & Software Support

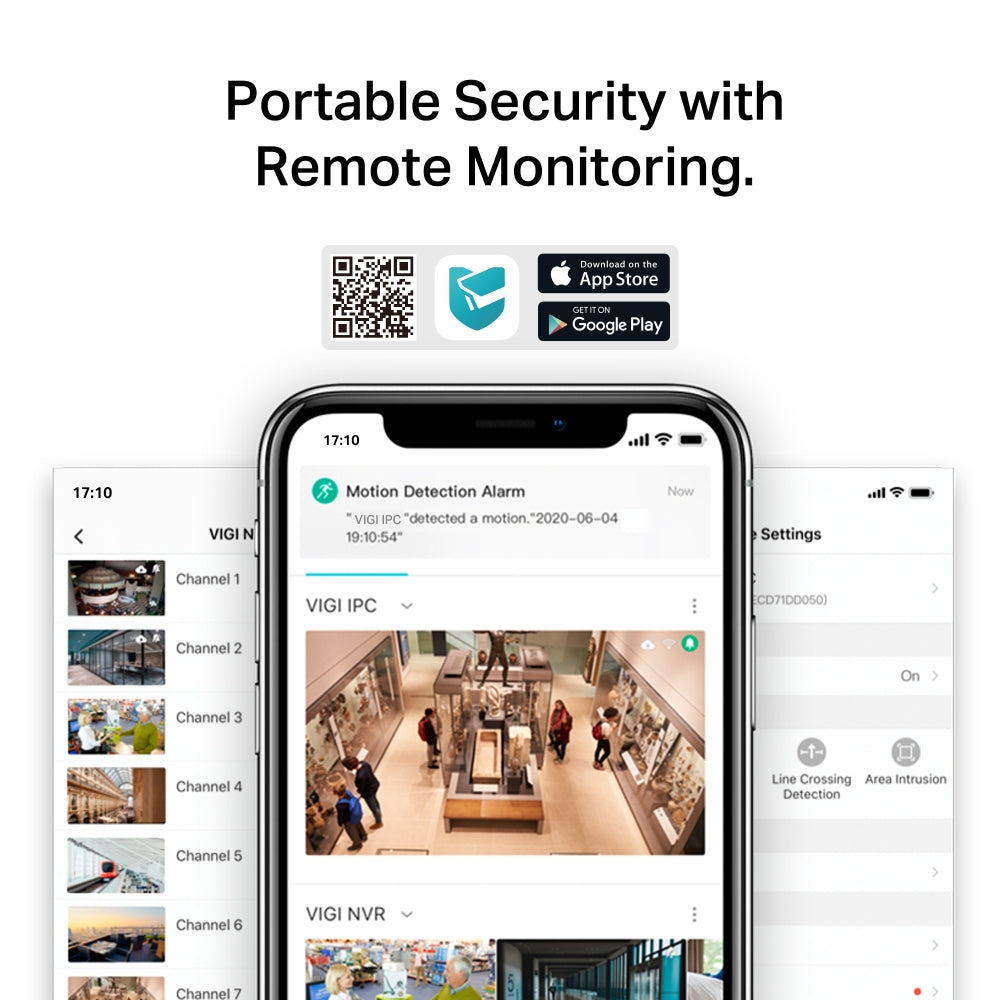

| Clients | VIGI app (remote monitoring), web UI |
| Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Third-Party Integration | ONVIF |
| Storage | MicroSD card up to 256 GB (card not listed in the package contents) |
| Power | PoE 802.3af/at switch or NVR, or 12V DC adapter |
Package Contents & Ordering Information

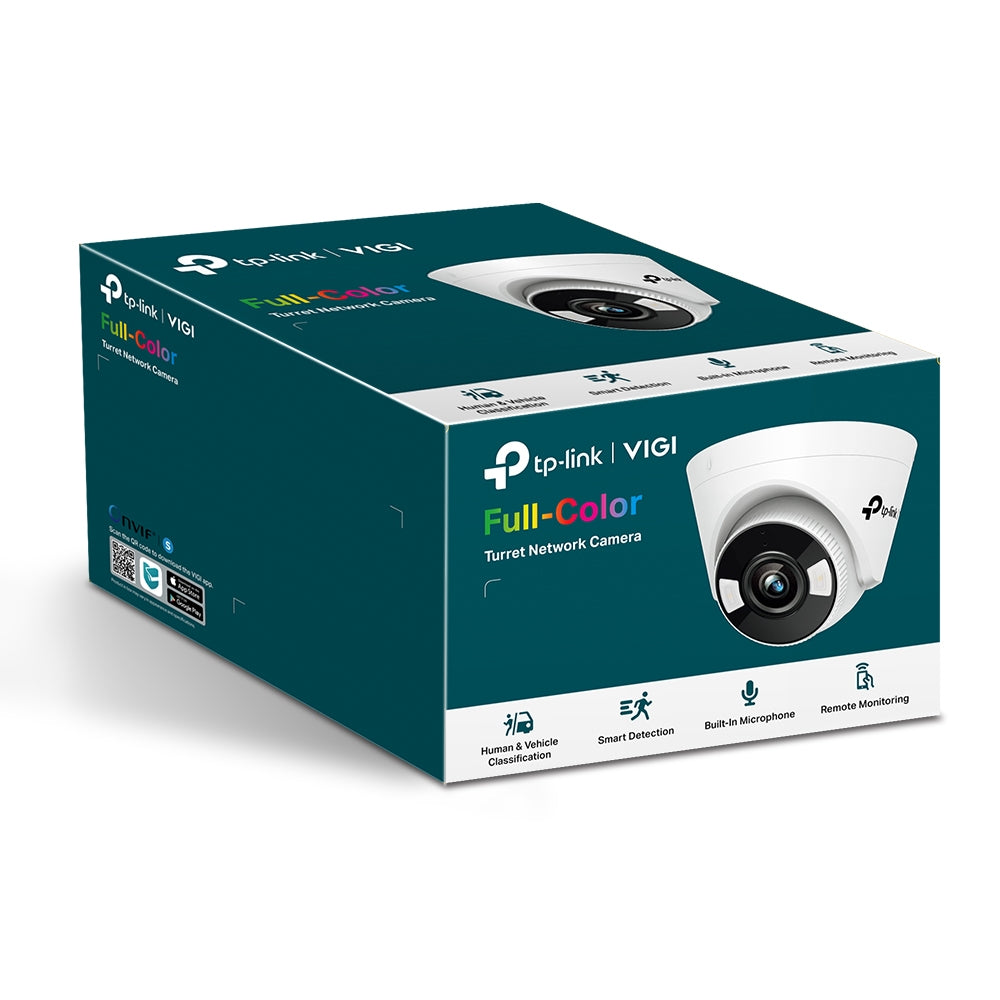

Package Contents
| VIGI Network Camera | Included |
| Quick Start Guide | Included |
| Screws and Anchors | Included |
| Mounting Template | Included |
Ordering Information
| Model | VIGI C440 4mm |
| Lens | 4mm |
| SKU | VIGI C440 |
| Warranty | 3 Years Local Warranty (Singapore) |
| Other Lens Options | VIGI C440 2.8mm (listed separately) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C440
Does the VIGI C440 record in colour at night?
Yes. TP-Link specifies two white LEDs with a 30 m range for 24-hour full-colour images, with 0 lux minimum illumination when the white or IR light is on.
Can it record without an NVR?
Yes. It has a built-in microSD card slot supporting cards up to 256 GB, and alarm linkage includes memory card video recording.
How is the camera powered?
Either by PoE (802.3af/at, class 0) over the Ethernet cable or by a 12V DC supply through the 5.5 mm coaxial power port.
What warranty does SourceIT provide?
The VIGI C440 4mm is supplied with a 3-year local warranty in Singapore. Warranty claims are handled locally in line with TP-Link's replacement warranty policy, linked in the downloads section above.
Can SourceIT quote this for an office or a project?
Yes. SourceIT quotes VIGI cameras together with VIGI NVRs, PoE switches and cabling for offices, shops, warehouses and multi-site projects in Singapore, with a GST invoice. Contact the SourceIT sales team with the number of cameras and the areas to be covered.
